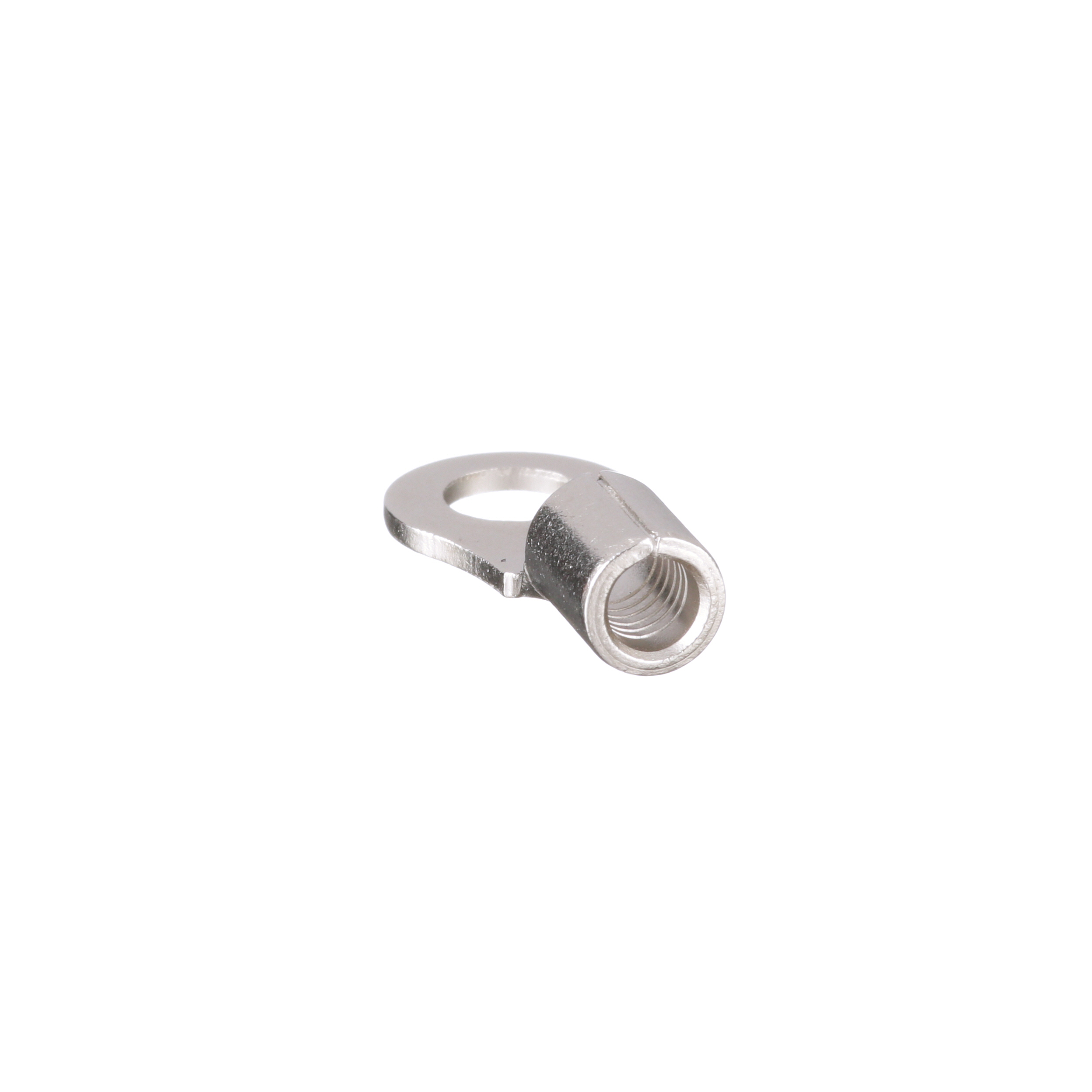

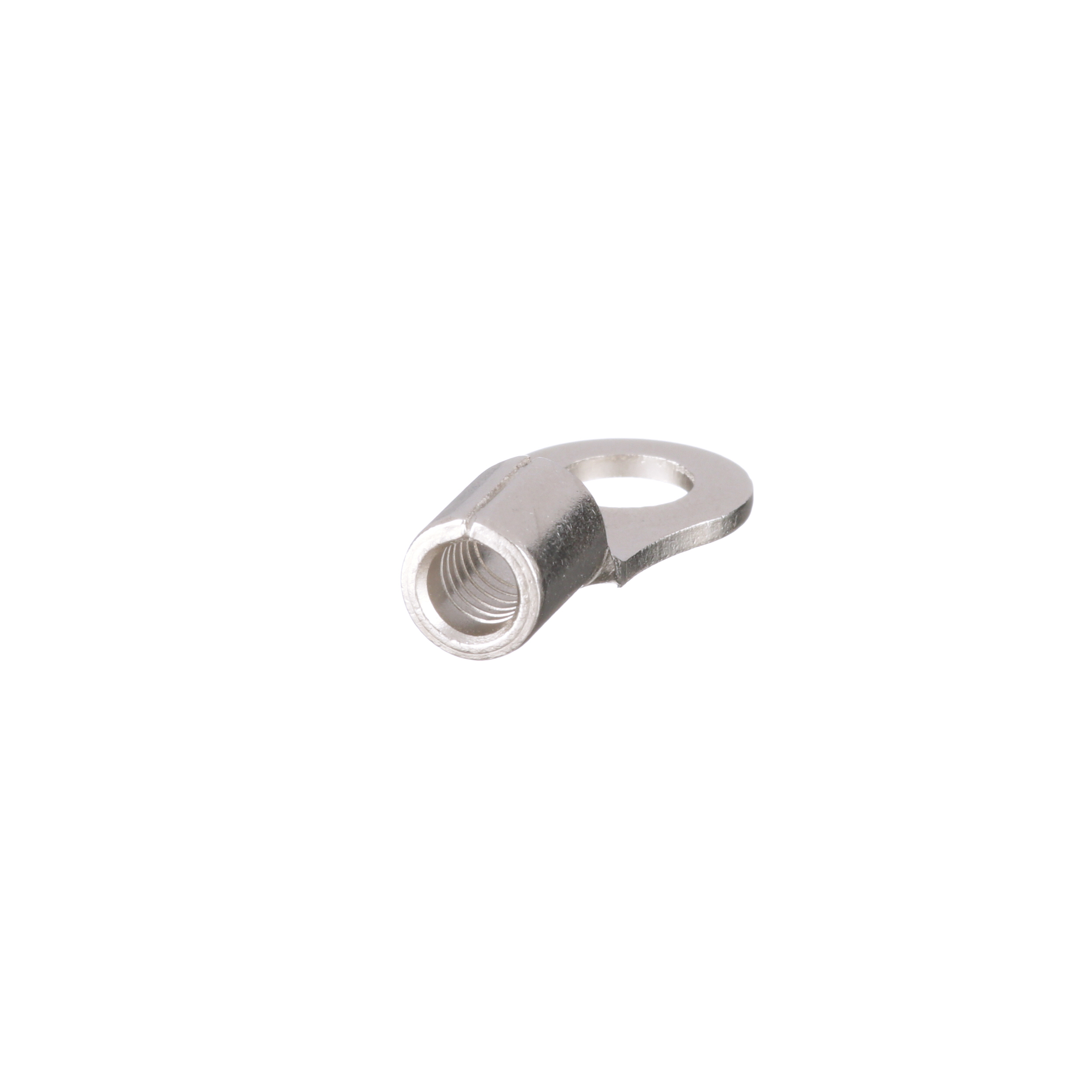

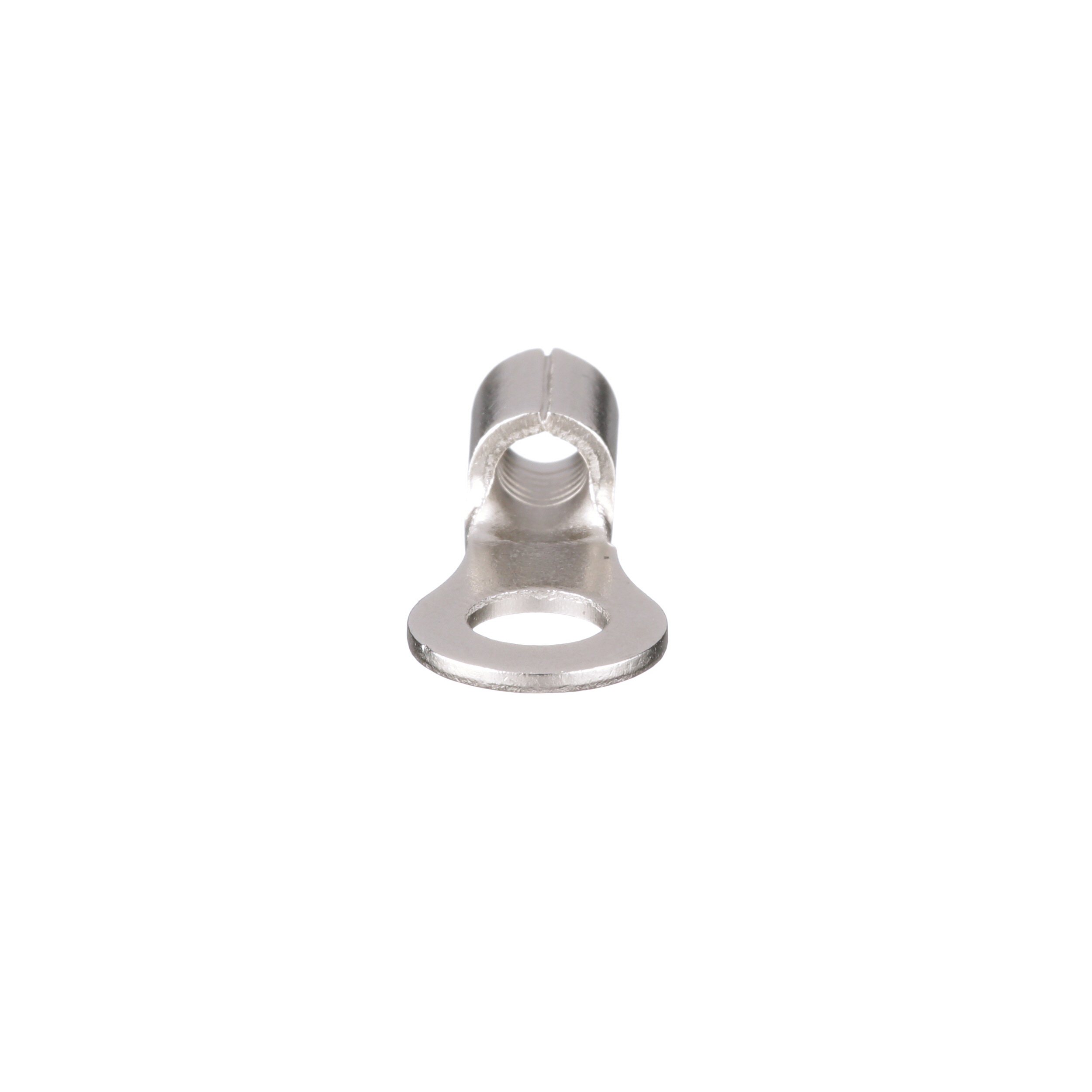

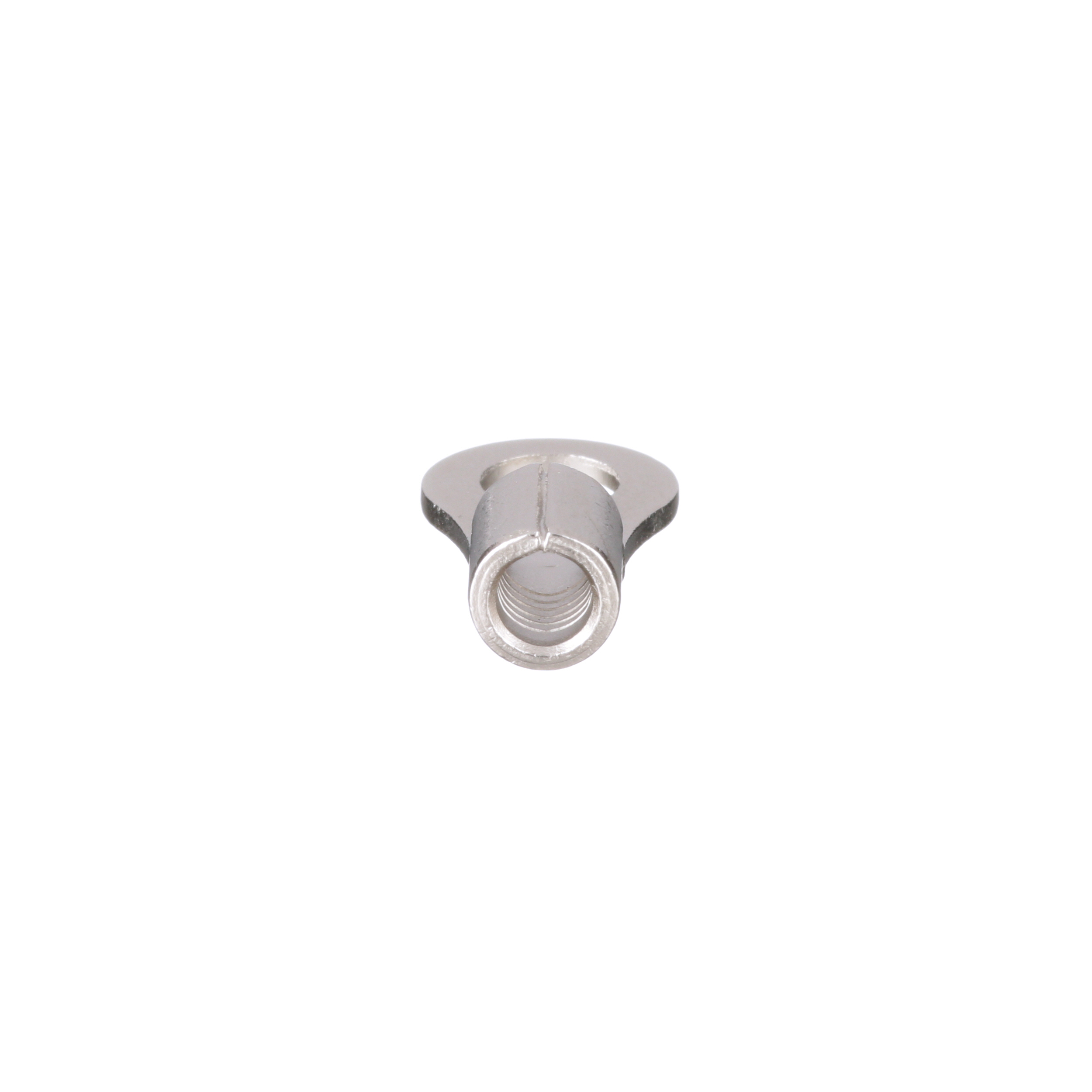

Product image for Pan-Term® P10-10RHT6-L Ring Terminal, High Temp, Bare, 10-14 AWG, #10 Stud,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Pan-Term® P10-10RHT6-L Ring Terminal, High Temp, Bare, 10-14 AWG, #10 Stud,

Manufacturer: Panduit | Catalog # P10-10RHT6-L | Electrozad South Part # 78331
$101.07 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The P10-10RHT6-L Pan-Term® Terminal is a non-insulated, nickel-plated, ring terminal for high temperature applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.31 in
Barrel Type
Beveled
Color Coding
Silver
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
343 degrees C
Minimum Operating Temperature
650 degrees F
Size
#10
TC Connection
Standard
Temperature Rating
650 F
Tongue Thickness
0.04 in
Tongue Width
0.38 in
Type
Ring Terminal
Wire Size
#10 AWG

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983805433
Color
NA
Finish
Tin-Plated
GTIN
00074983805433
Product UPC
07498380543

Dimensions

Outer Diameter
0.22 in
Overall Length
0.81 in
Width
0.38 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
