Disc,M,BlVn,.25x.032",16-14AWG,1000

Manufacturer: Panduit | Catalog # DV14-250MB-M | Electrozad South Part # 67791
*Call For Price*
Log in or register to view your price, purchase history, and more!
147 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

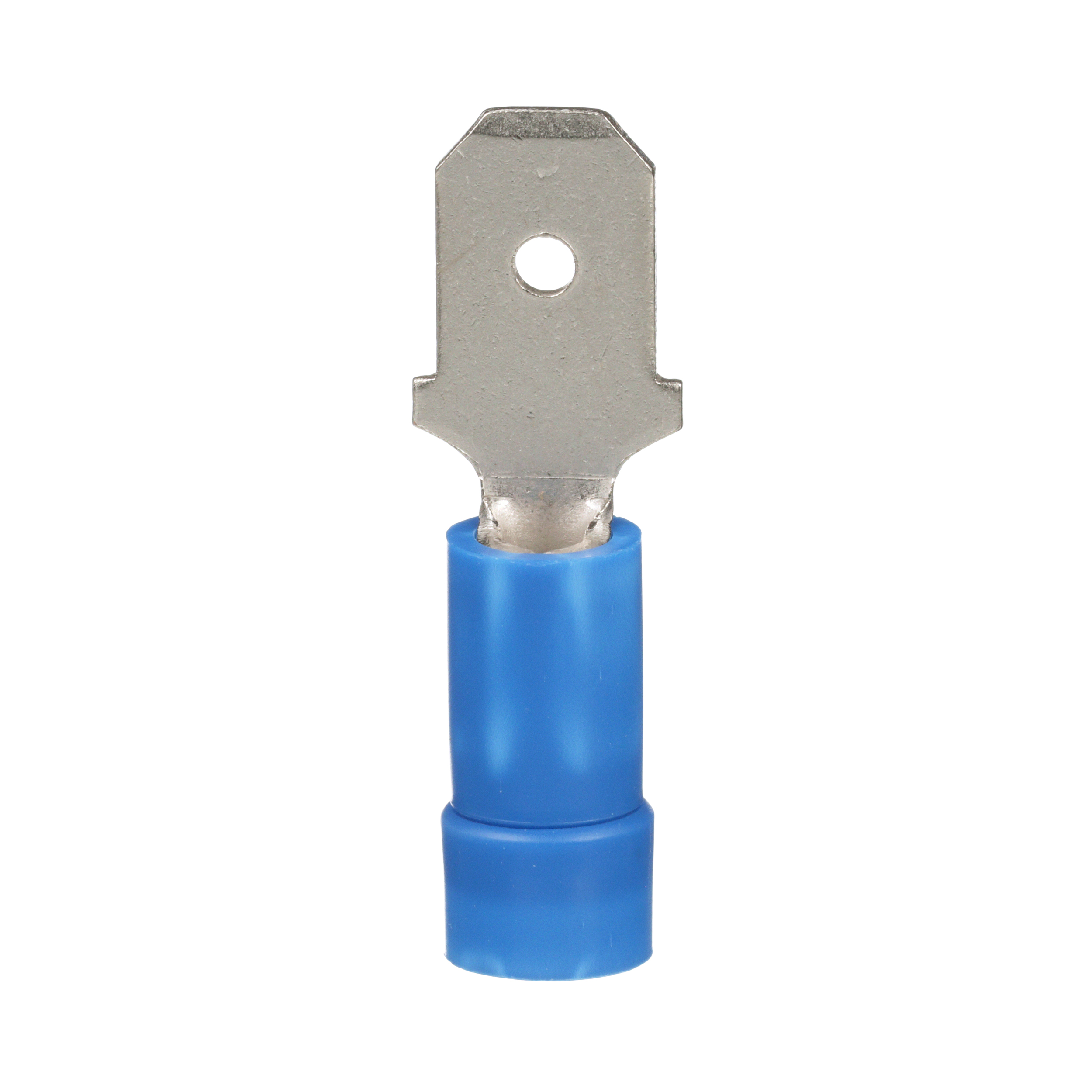

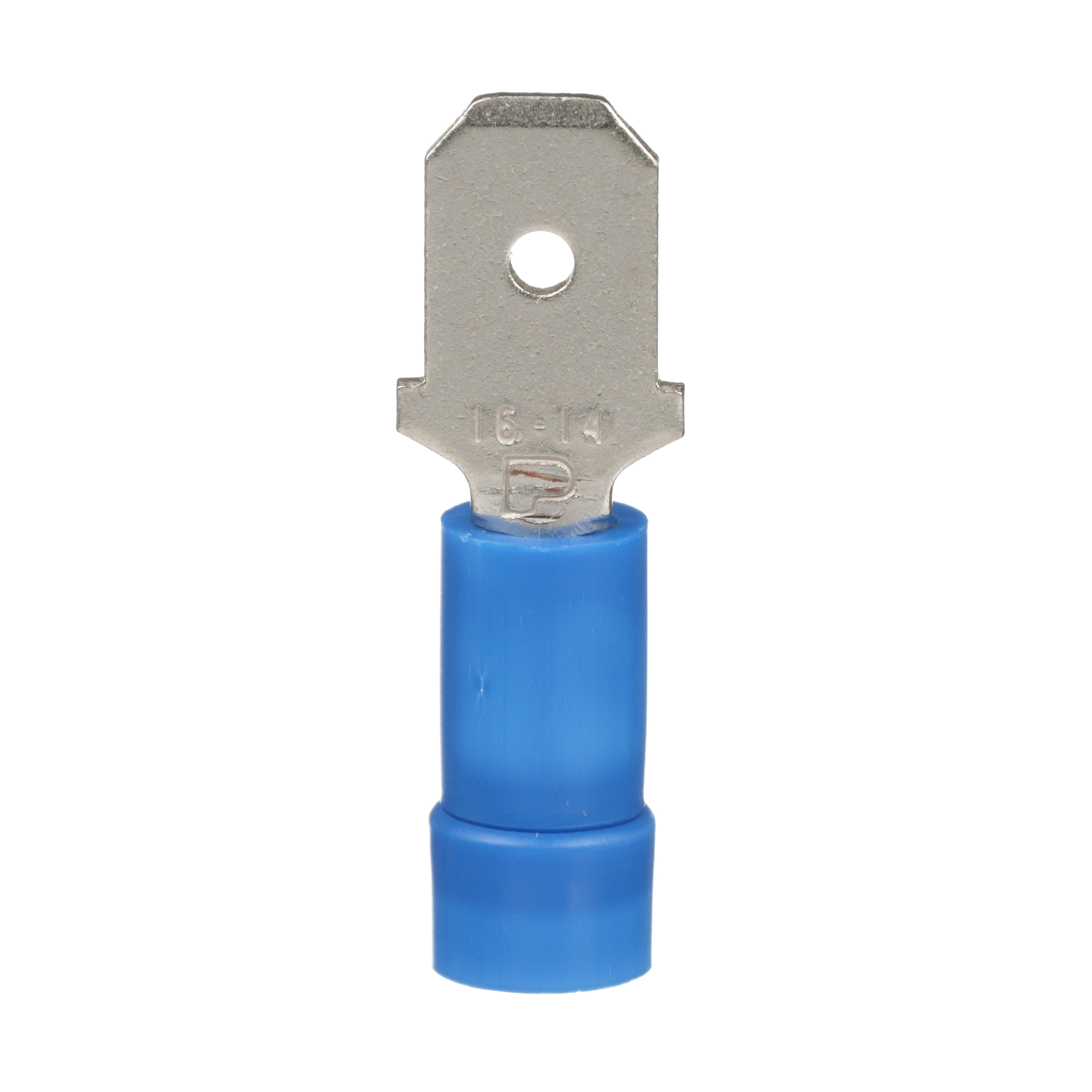

The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm..). It is 0.96" (24.4 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

Technical Information

Barrel Type
Butted Seam
Color Coding
Blue
Material
Copper
Max Operating Temperature
105 degrees C
TC Connection
funnel Entry
Temperature Rating
221 F
Type
Loose Piece Disconnect
Wire Size
16-14 AWG

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term

General Product Info

12-Digit UPC
074983822263
Color
Blue
Finish
Nickel
GTIN
00074983822263
Product Type
Terminals
Product UPC
07498382226
UNSPSC
39121409

Dimensions

Height
0.18 in
Length
.96 in
Overall Length
0.96 in
Width
6.4 mm

Certifications & Compliance

ARRA Compliant
Yes
BAA | Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
