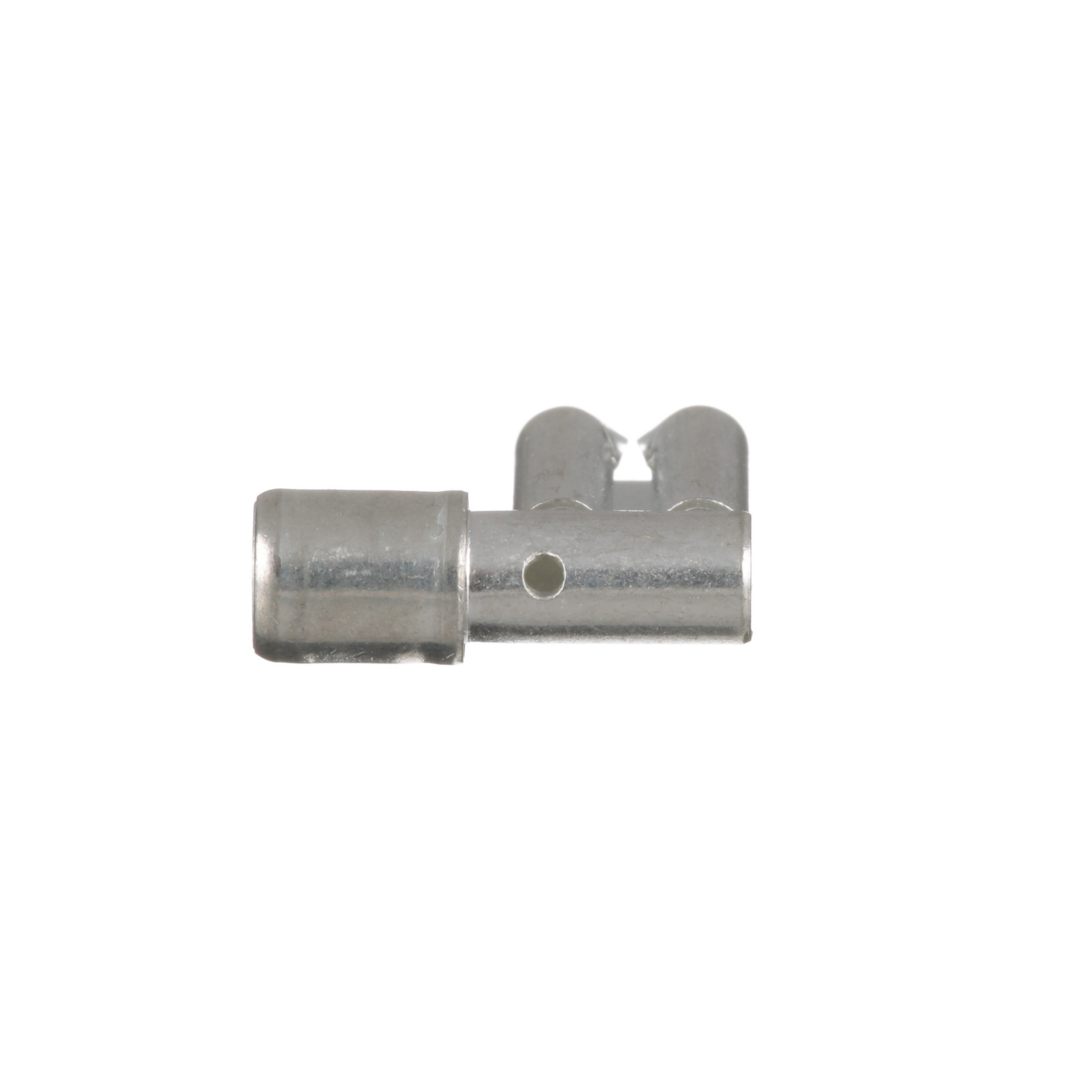

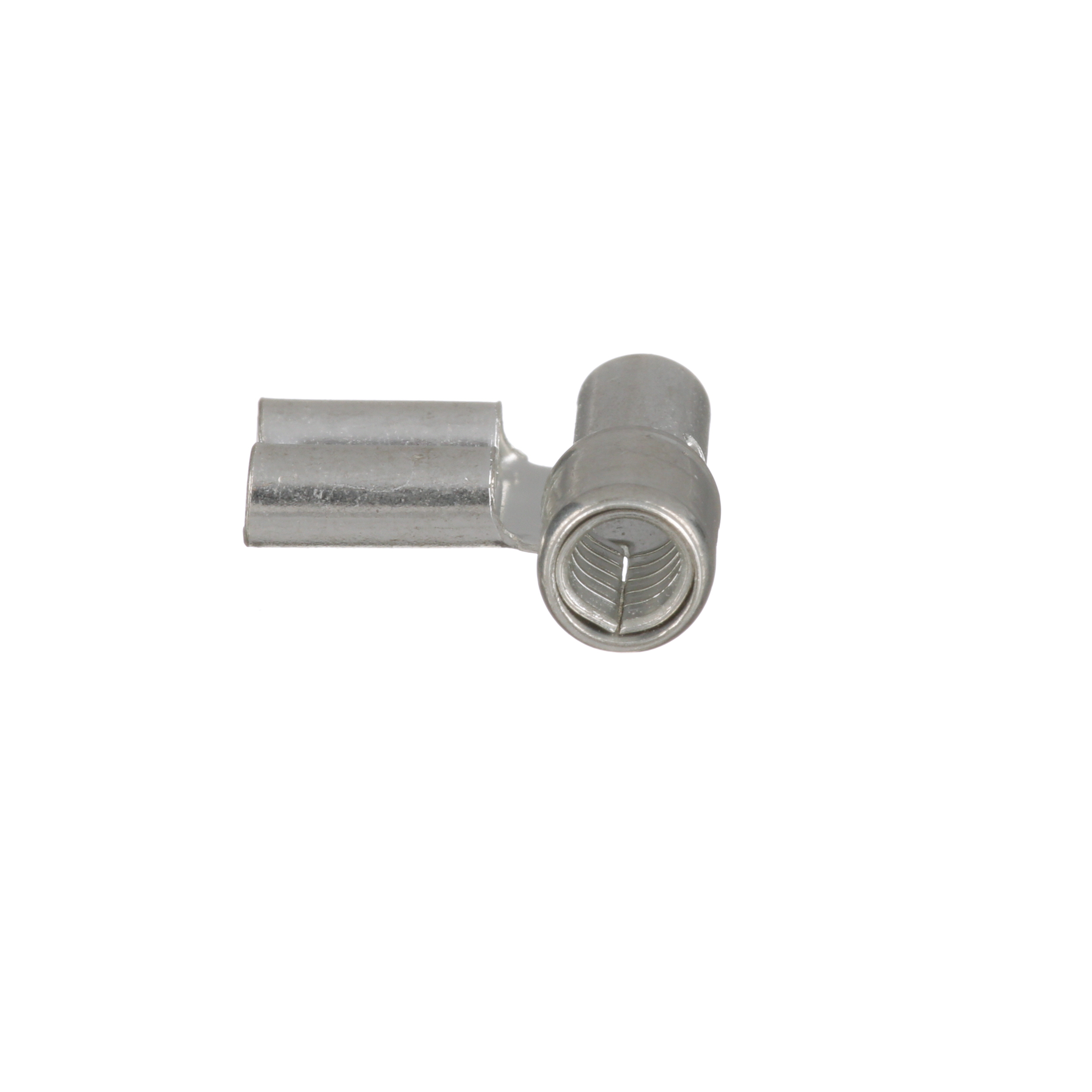

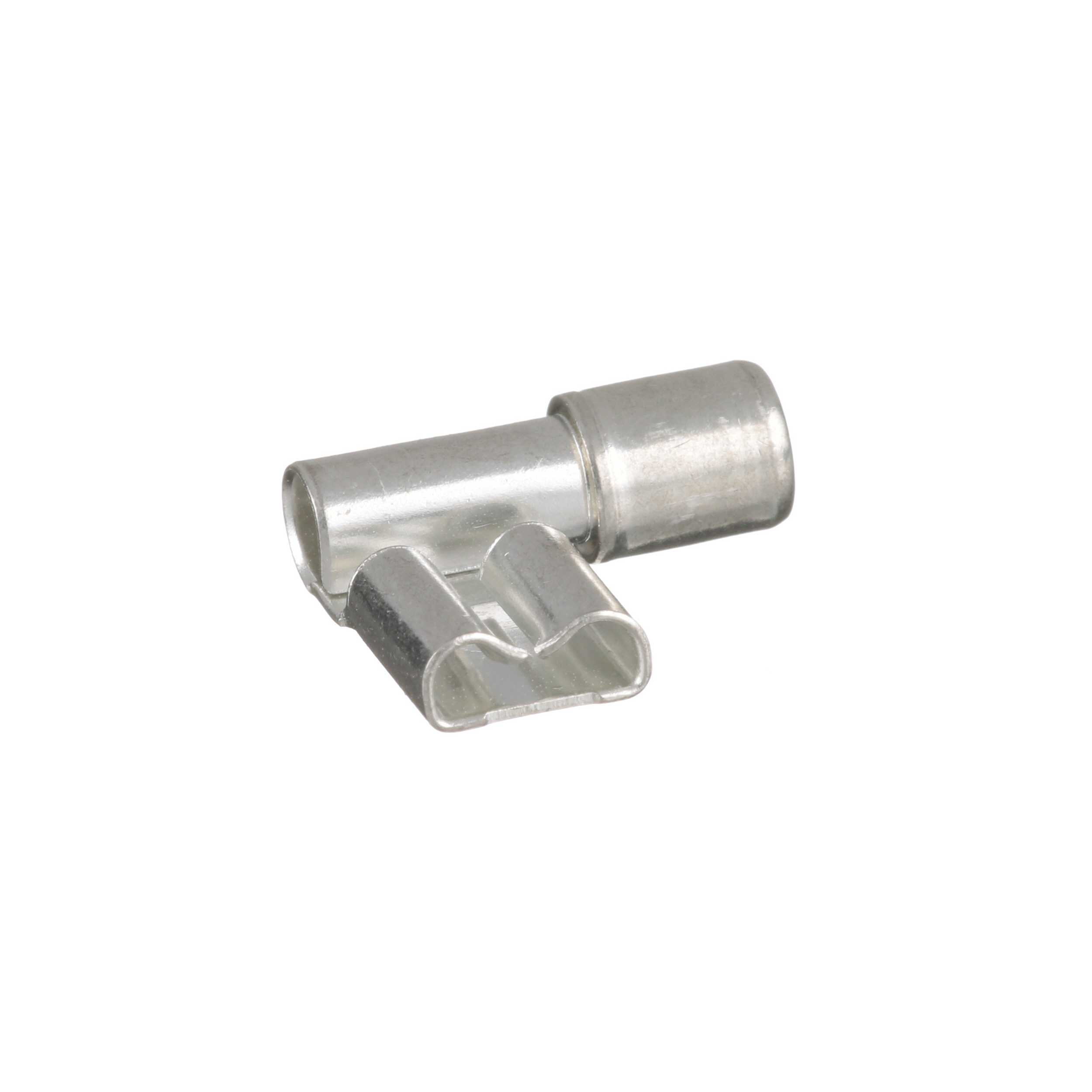

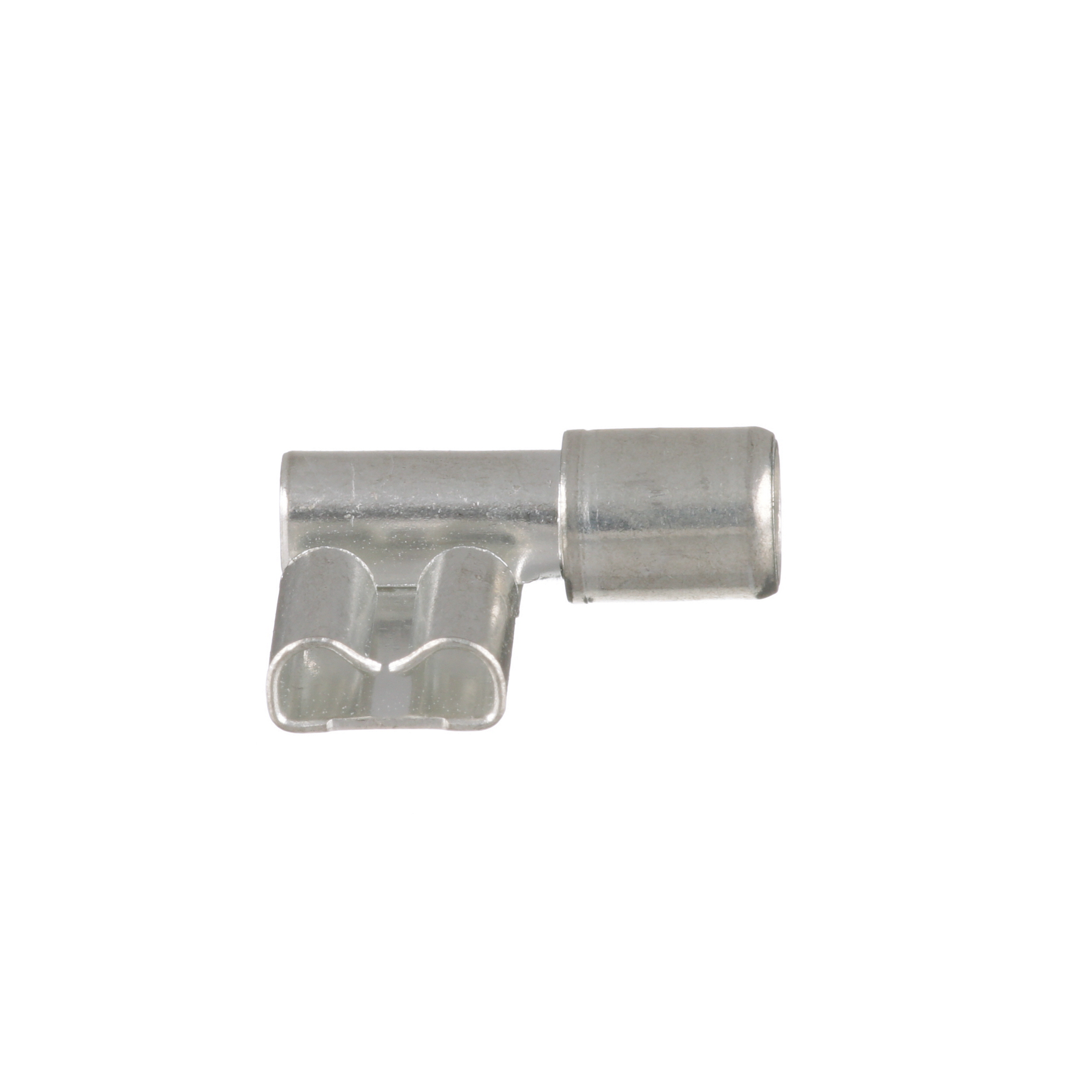

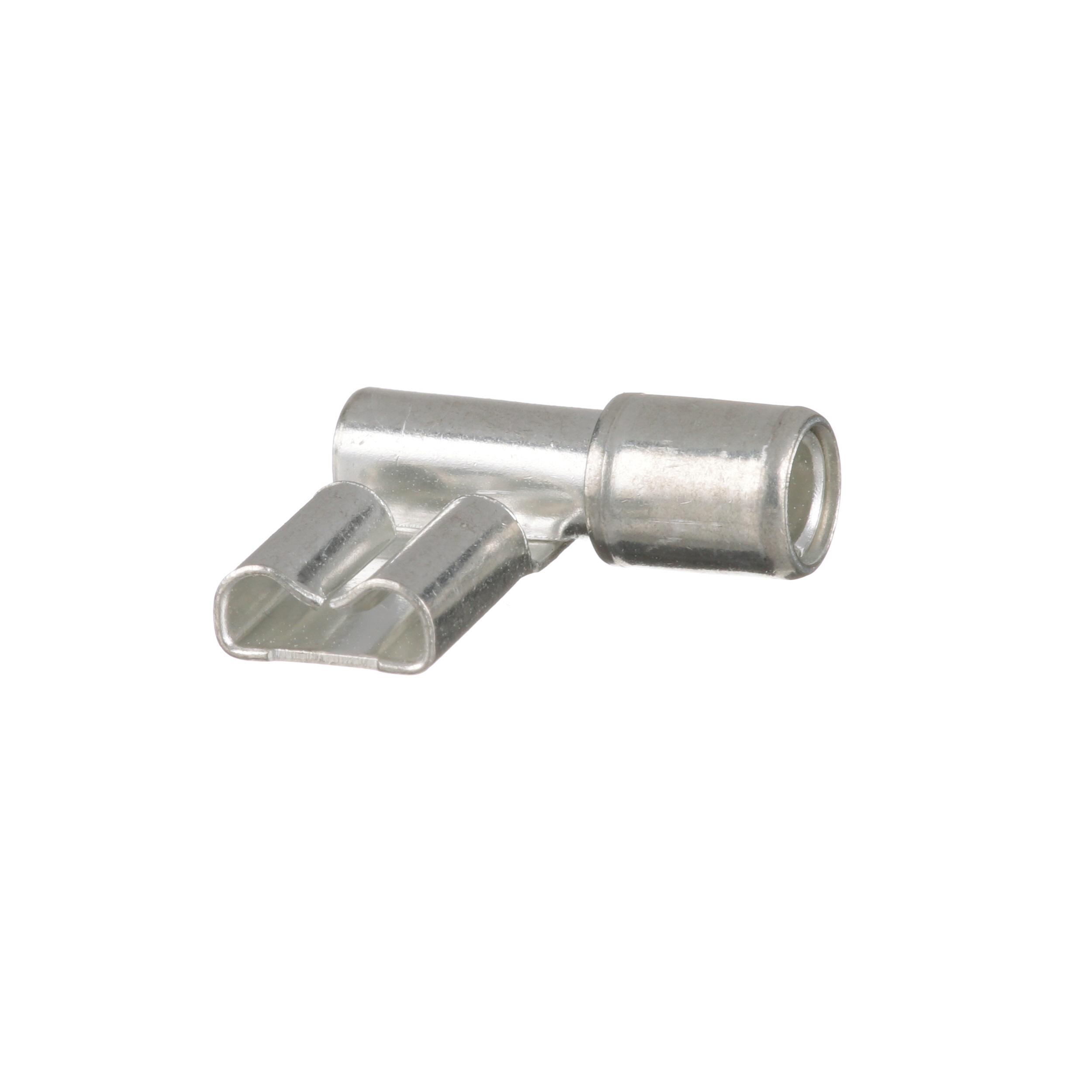

Pan-Term® DR10-250-L Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DR10-250-L | Electrozad South Part # 61770
$154.31 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm..). It is 0.61" (15.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Material
Brass
Max Operating Temperature
150 degrees C
TC Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Wire Size
#10 AWG

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827367
Finish
Tinned
GTIN
00074983827367
Product UPC
07498382736
UNSPSC
39121409

Dimensions

Depth
0.57 in
Height
0.57 in
Overall Length
0.61 in
Width
0.3 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
