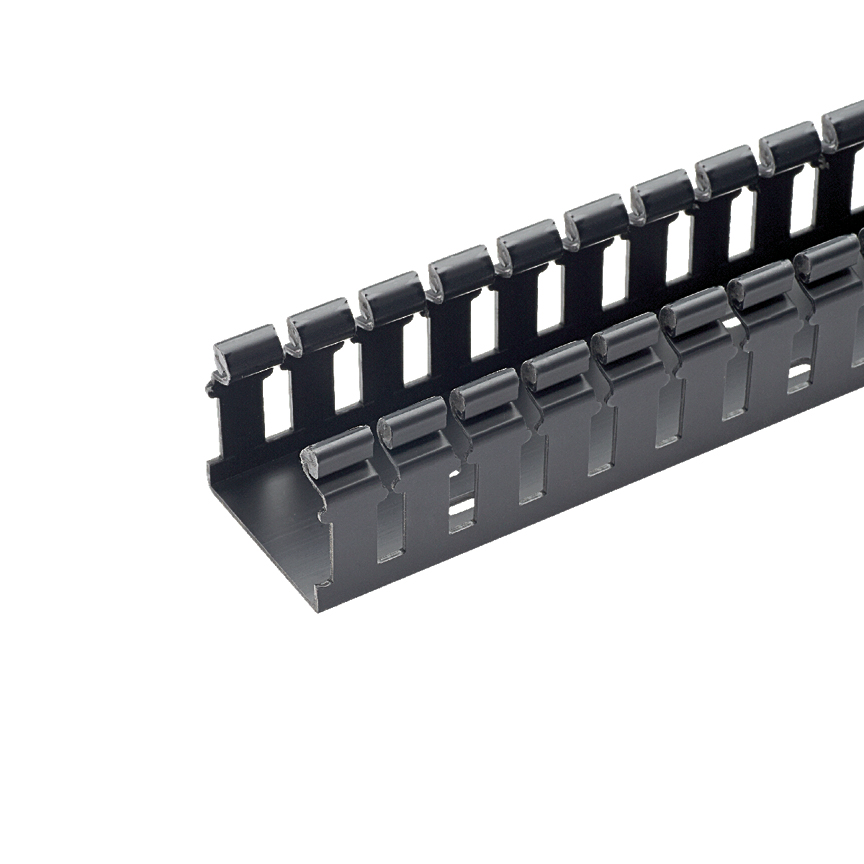

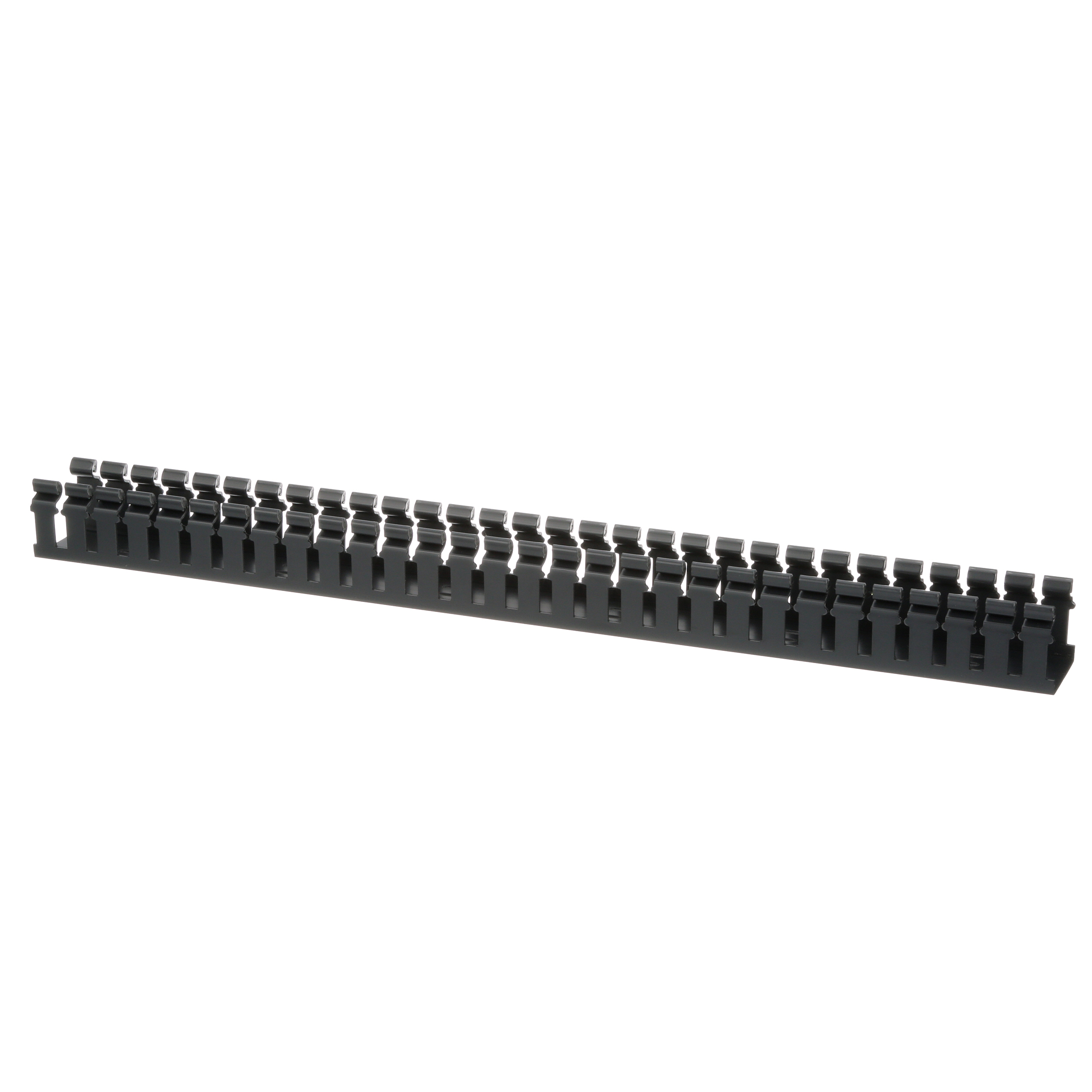

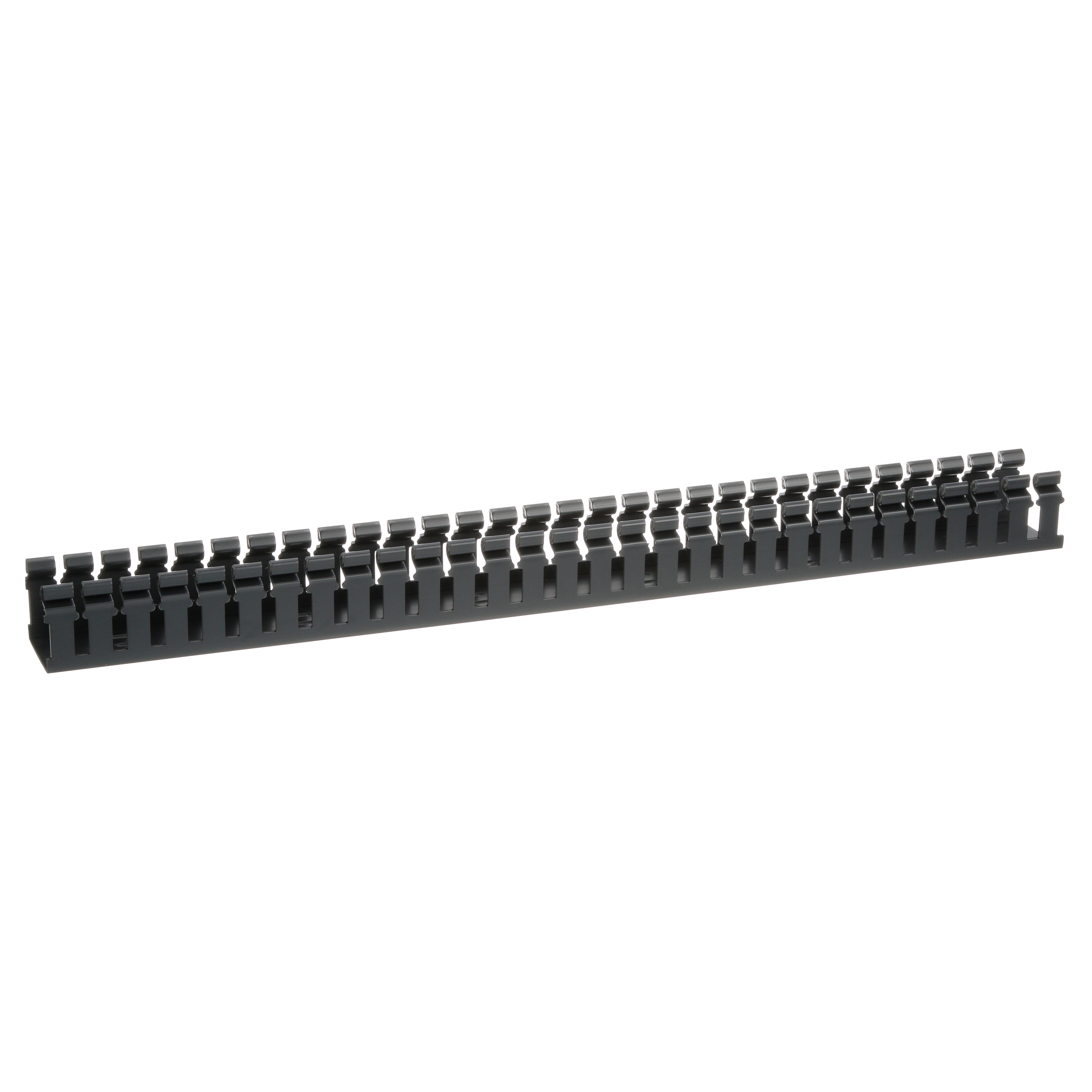

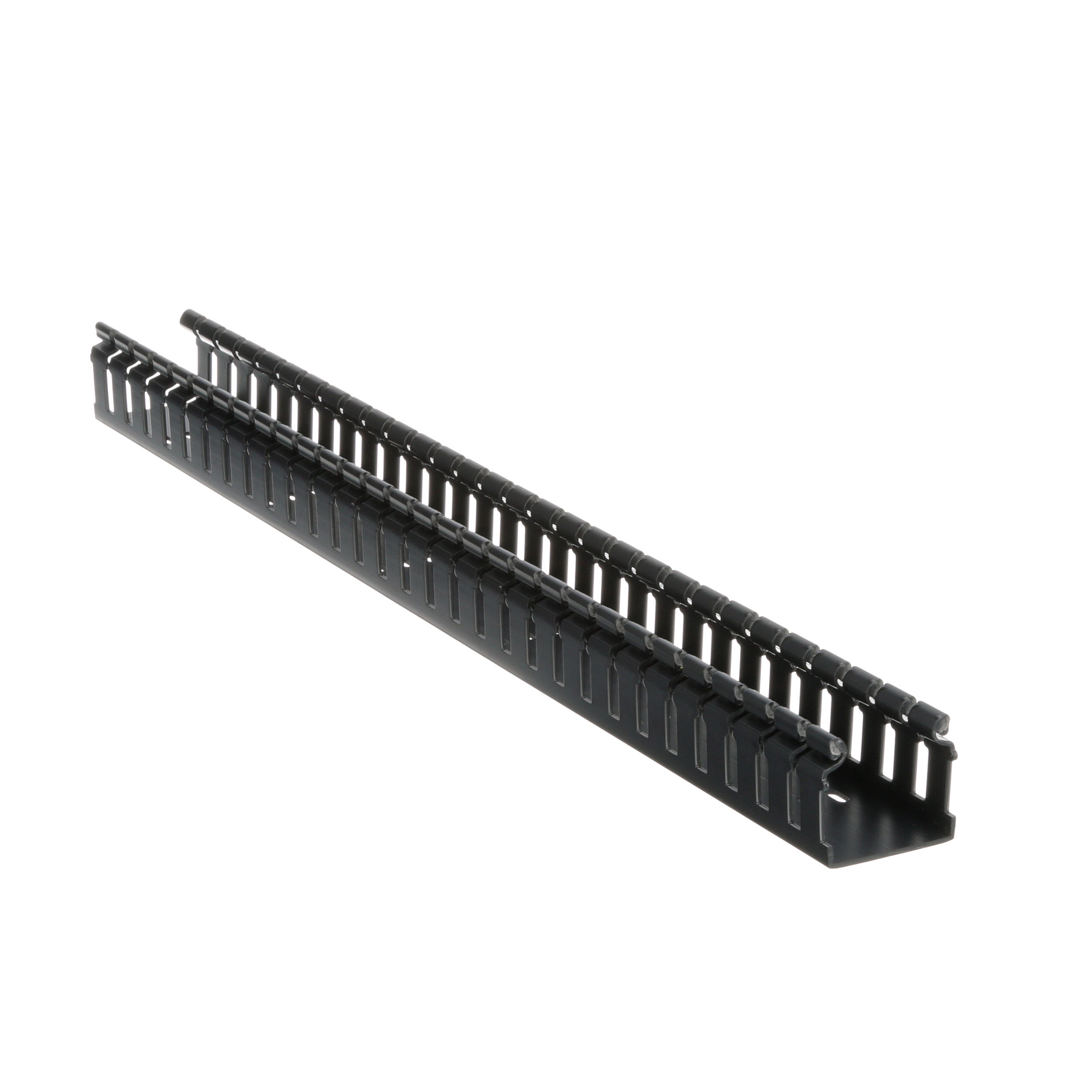

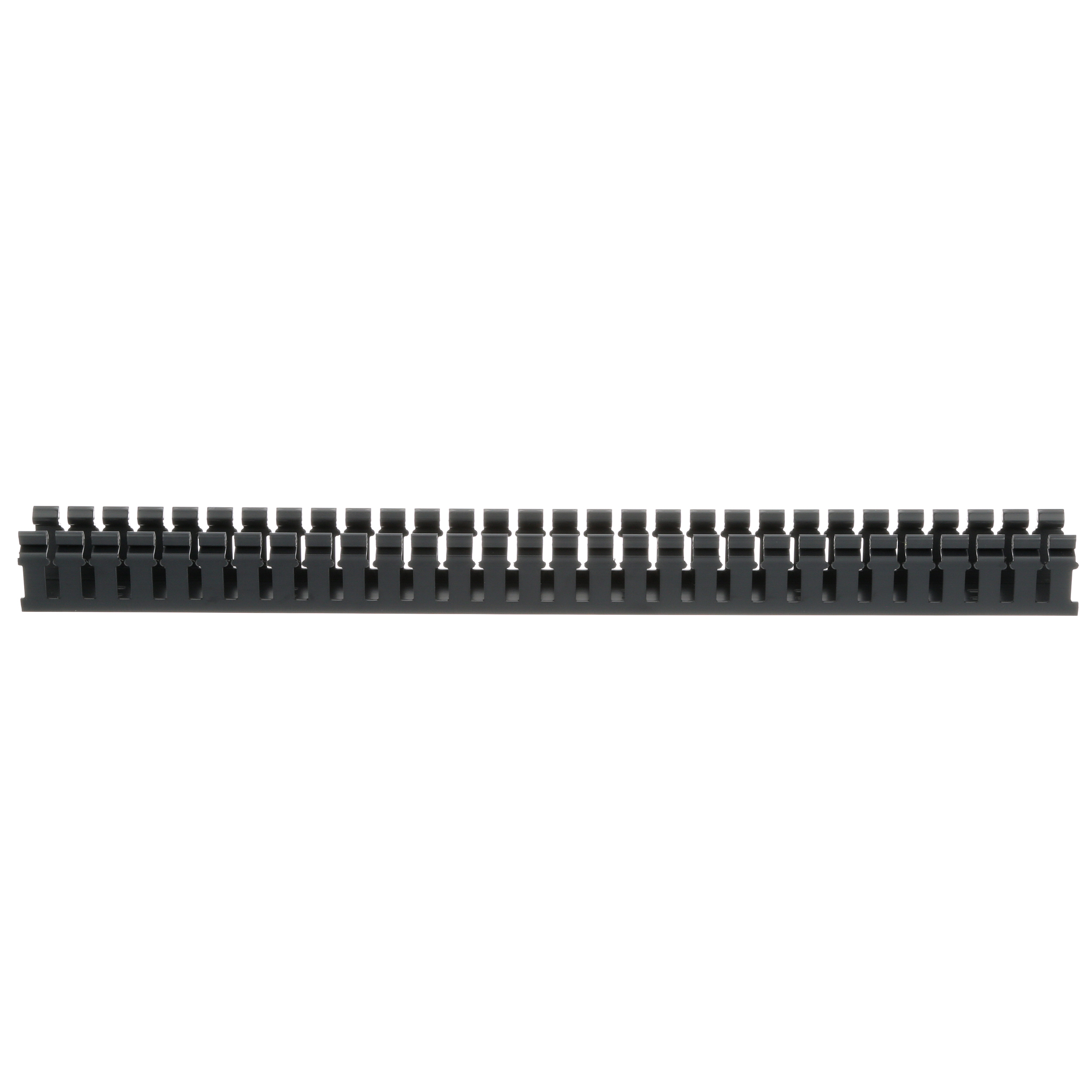

Product image for H2X2BL6 Hinged Cover Wide Slot Duct, Black, PVC, 2"x 2"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

H2X2BL6 Hinged Cover Wide Slot Duct, Black, PVC, 2"x 2"

Manufacturer: Panduit | Catalog # H2X2BL6 | Electrozad South Part # 60736
$8.97 /ft
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The H2X2BL6 PVC Hinged-Cover Wide Slot Wiring Duct features a hinged cover and wide finger/slot design that provides greater rigidity and allows for use with a range of wire/bundle sizes. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with UL recognized continuous-use temperature up to 122..F (50..C). Mounting holes provided. Lead-Free PVC. 1.92" x 2.17" (48.8mm x 55.1mm) and 6' (1.83m) long. Cover sold separately. Black.

Technical Information

Applications
Hinged Cover Wide Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Material
PVC
Mounting Type
Mounting Holes
Size
2.00 x 2.00 IN
TC Connection
Mounting Holes
Type
Base Wiring Duct
Wire Size
1.6mm Fiber = 436 2mm Fiber = 279 3mm Fiber = 124 5.2mm Fiber = 41 6.35mm CAT6 = 28 7.57mm CAT6A = 19

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct®

General Product Info

12-Digit UPC
074983854141
Color
Black
GTIN
00074983854141
Product UPC
07498385414
UNSPSC
39131712

Dimensions

Height
1.98 in
Length
NA In.
Overall Length
6 ft
Thickness
0.08 IN
Width
2.17 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
