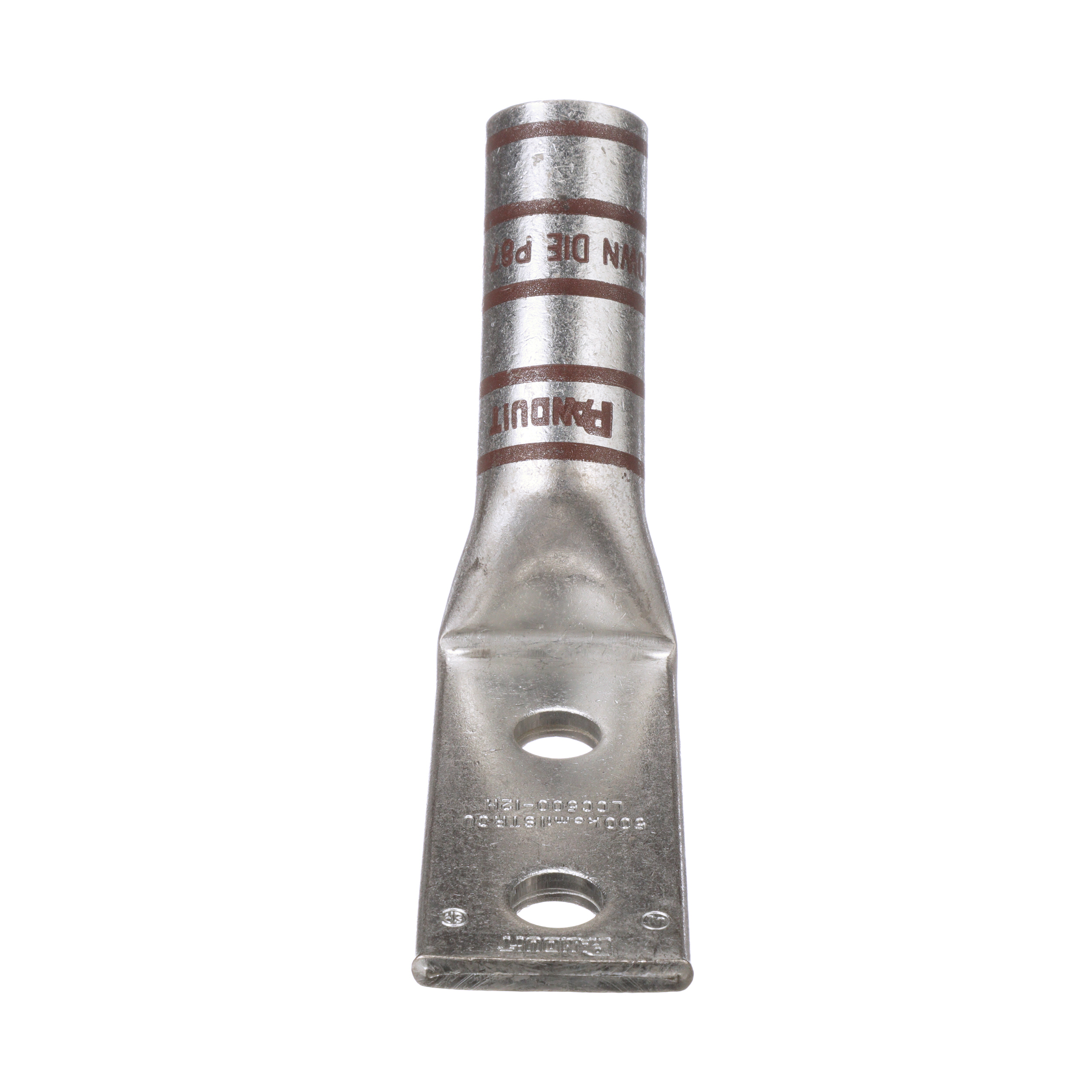

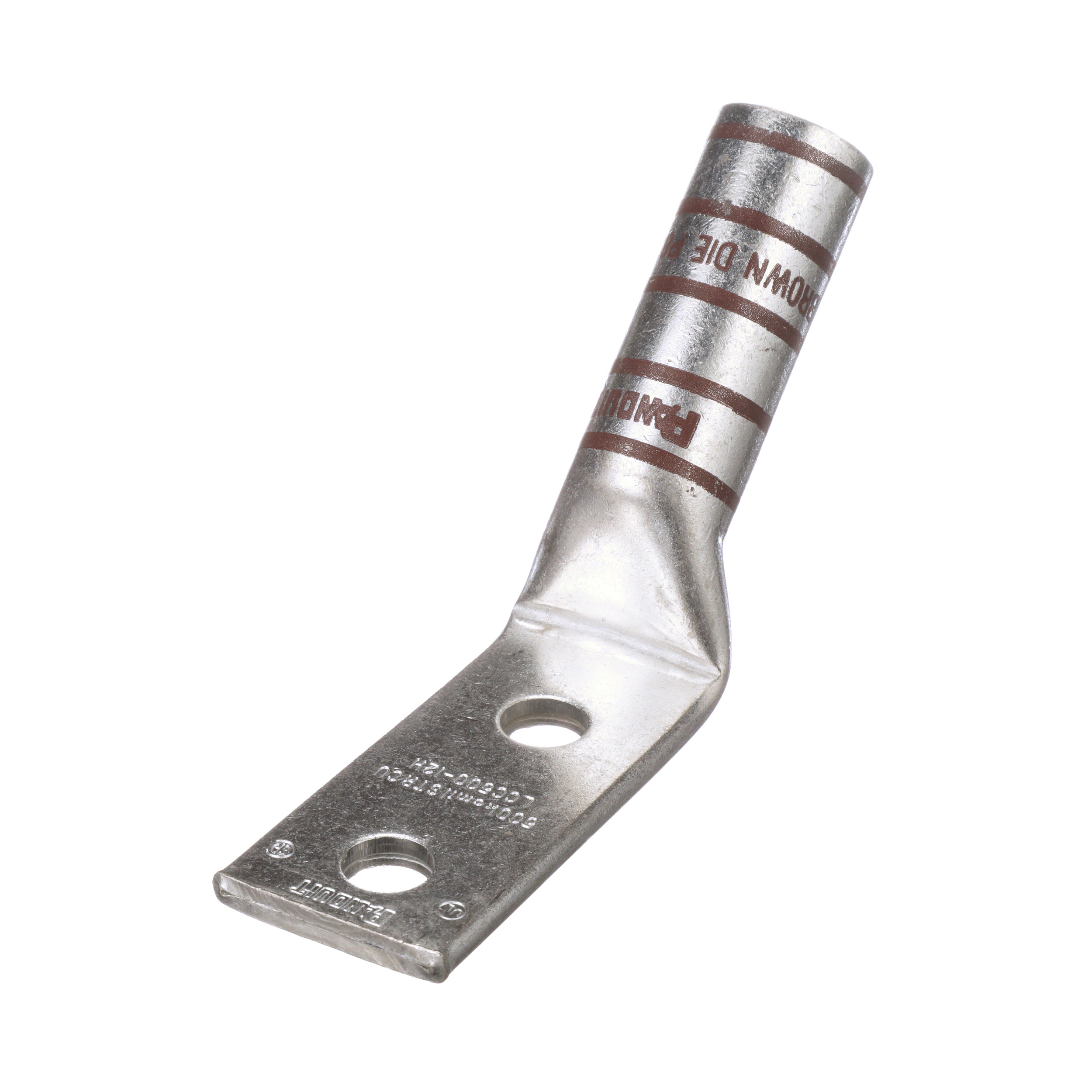

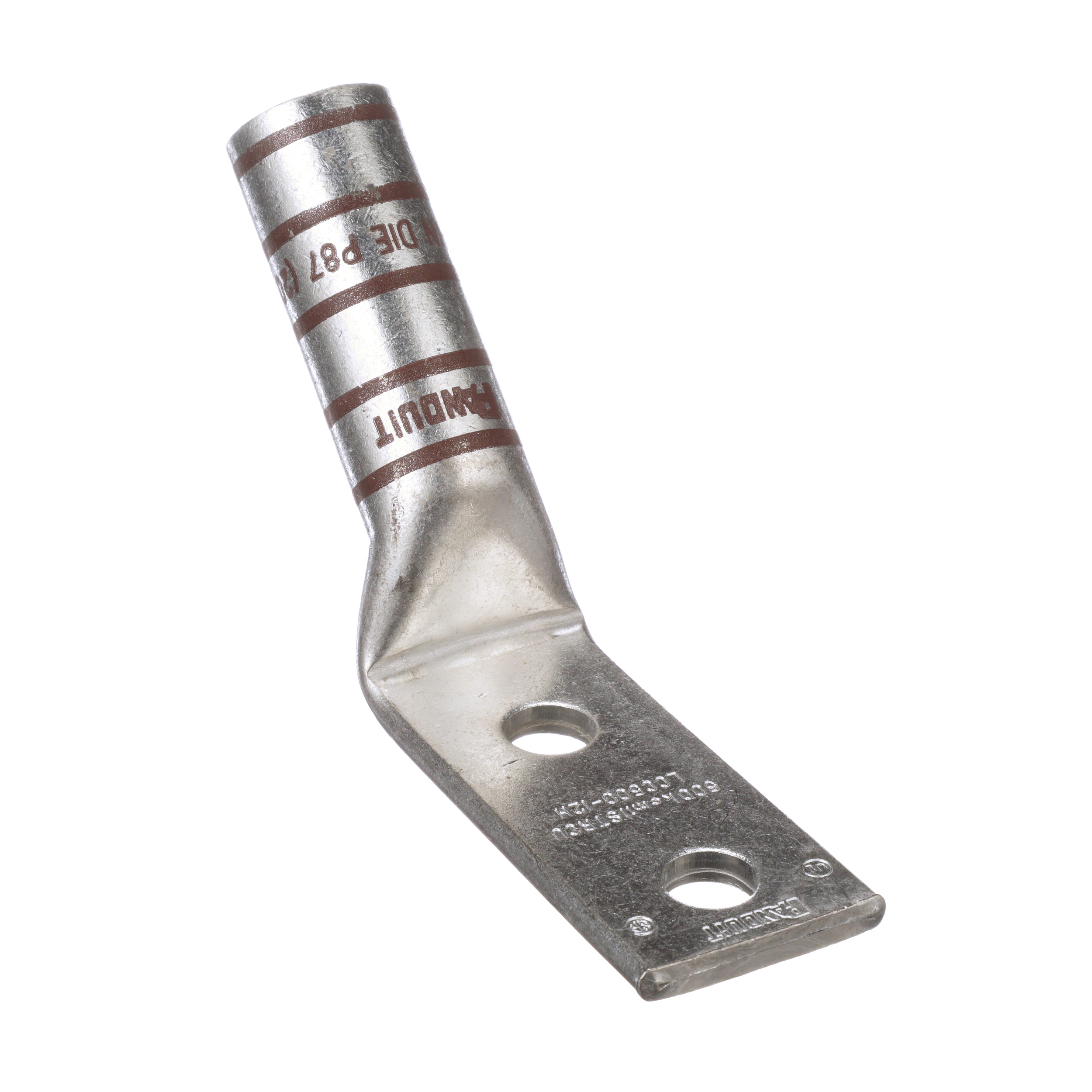

Pan-Lug™ LCC500-12H-6 Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCC500-12H-6 | Electrozad South Part # 422912
$9,951.41 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Two-hole, long barrel lug, 500 kcmil wire, 1/2 stud hole, 1 3/4 hole spacing, 45.. angle tongue.

Technical Information

Angle
45°
Barrel Length
2.5 in
Barrel Type
Long Barrel Length Without Inspection Window
Cable Size
AWG
Color Coding
Brown
Material
Copper
Number of Holes
2
Size
500 kcmil Code
Stud Size
1/2 In.
Tongue Angle
45 degrees
Tongue Thickness
0.22 in
Tongue Type
Standard
Tongue Width
1.54 in
Type
Compression Lug

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983902521
Color
Brown
GTIN
00074983902521
Product UPC
07498390252
UNSPSC
39121405

Dimensions

Overall Length
5.57 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
