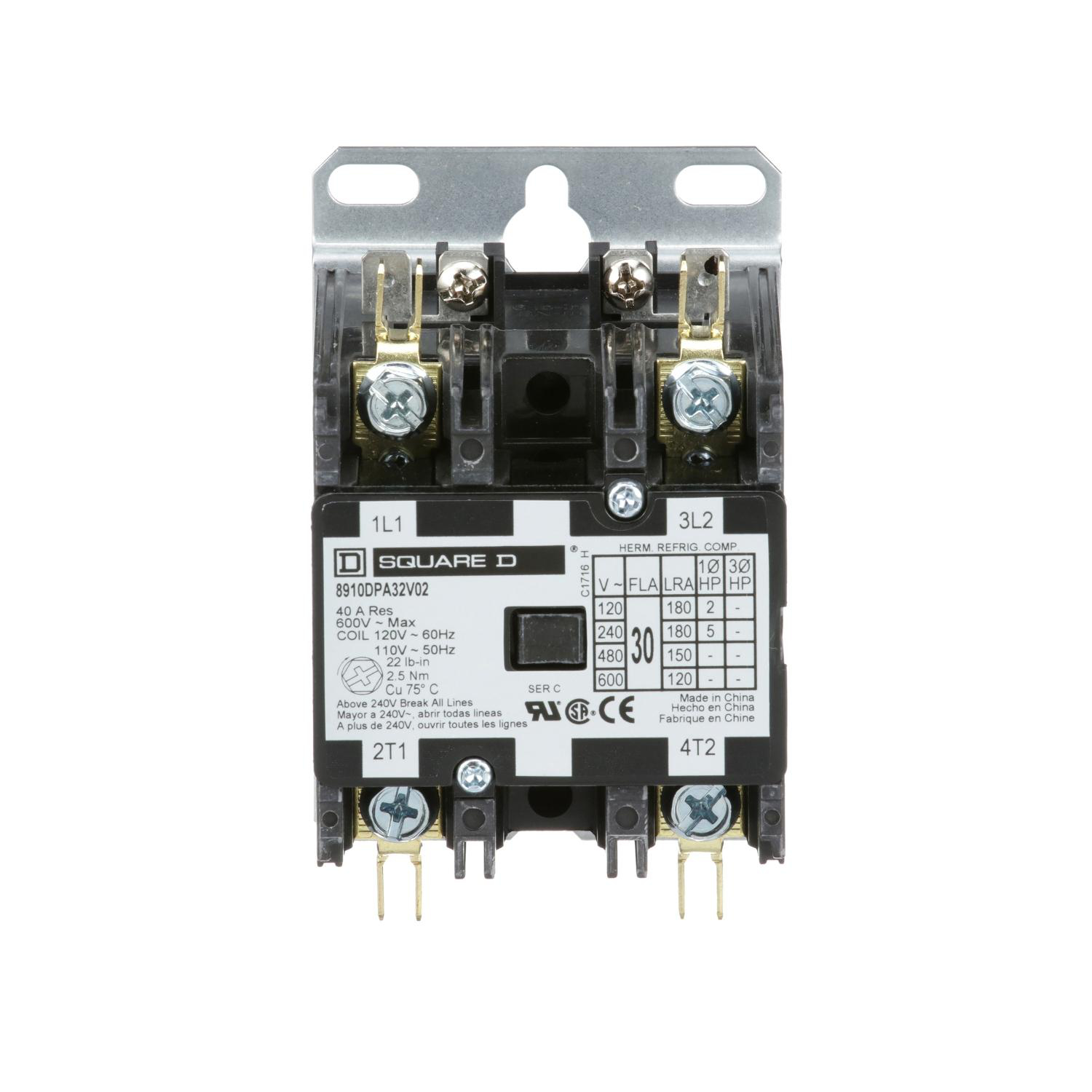

Image thumbnail 1

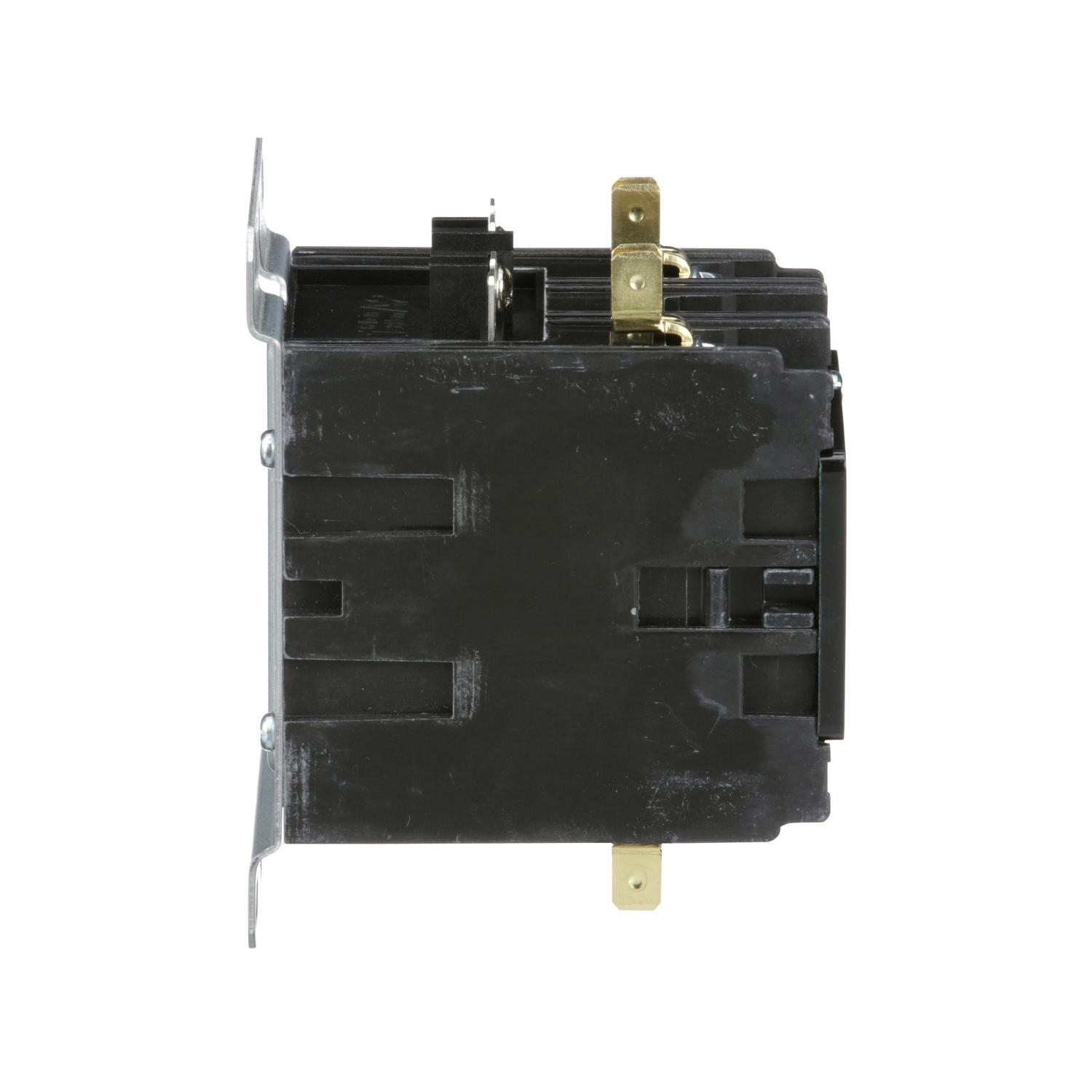

Image thumbnail 2

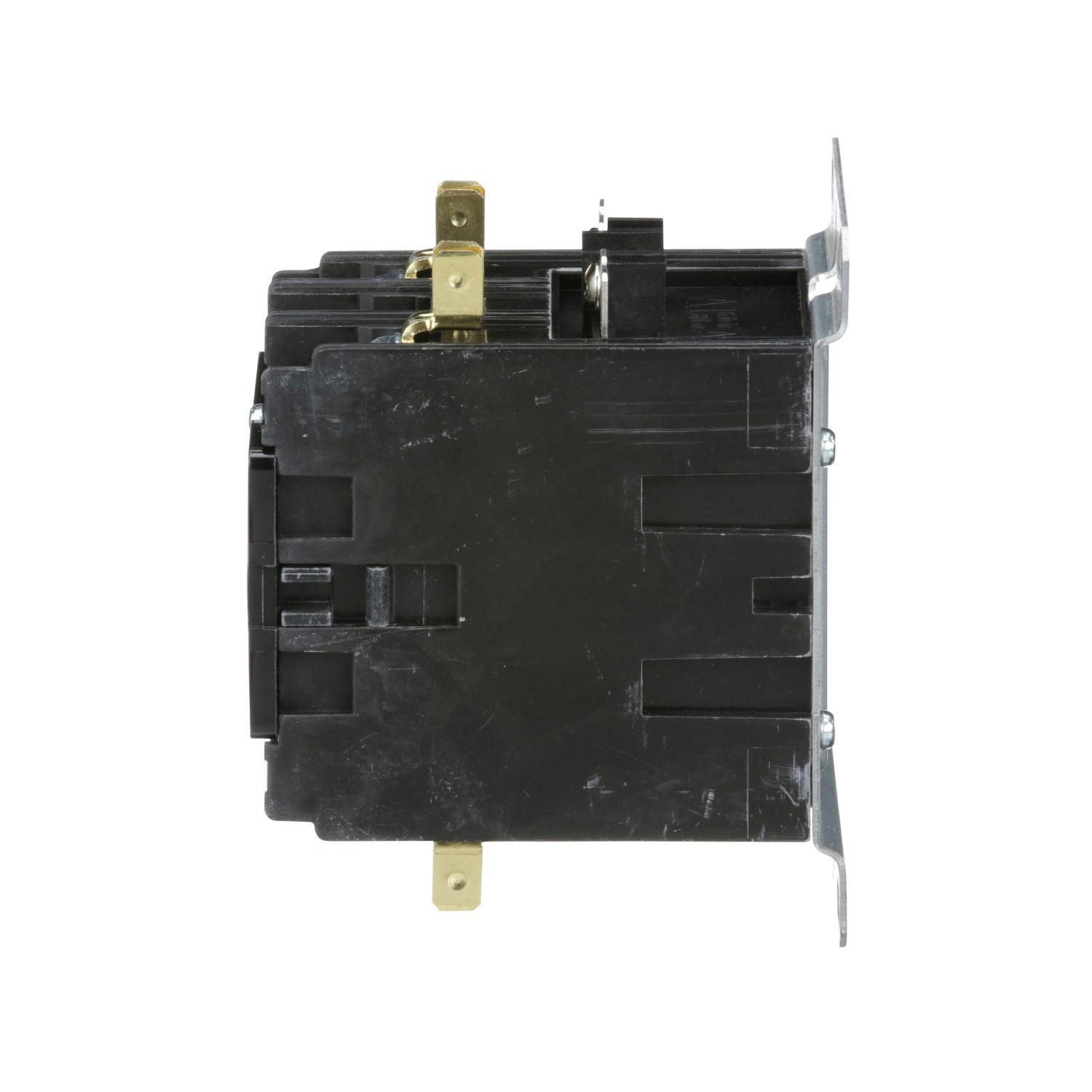

Image thumbnail 3

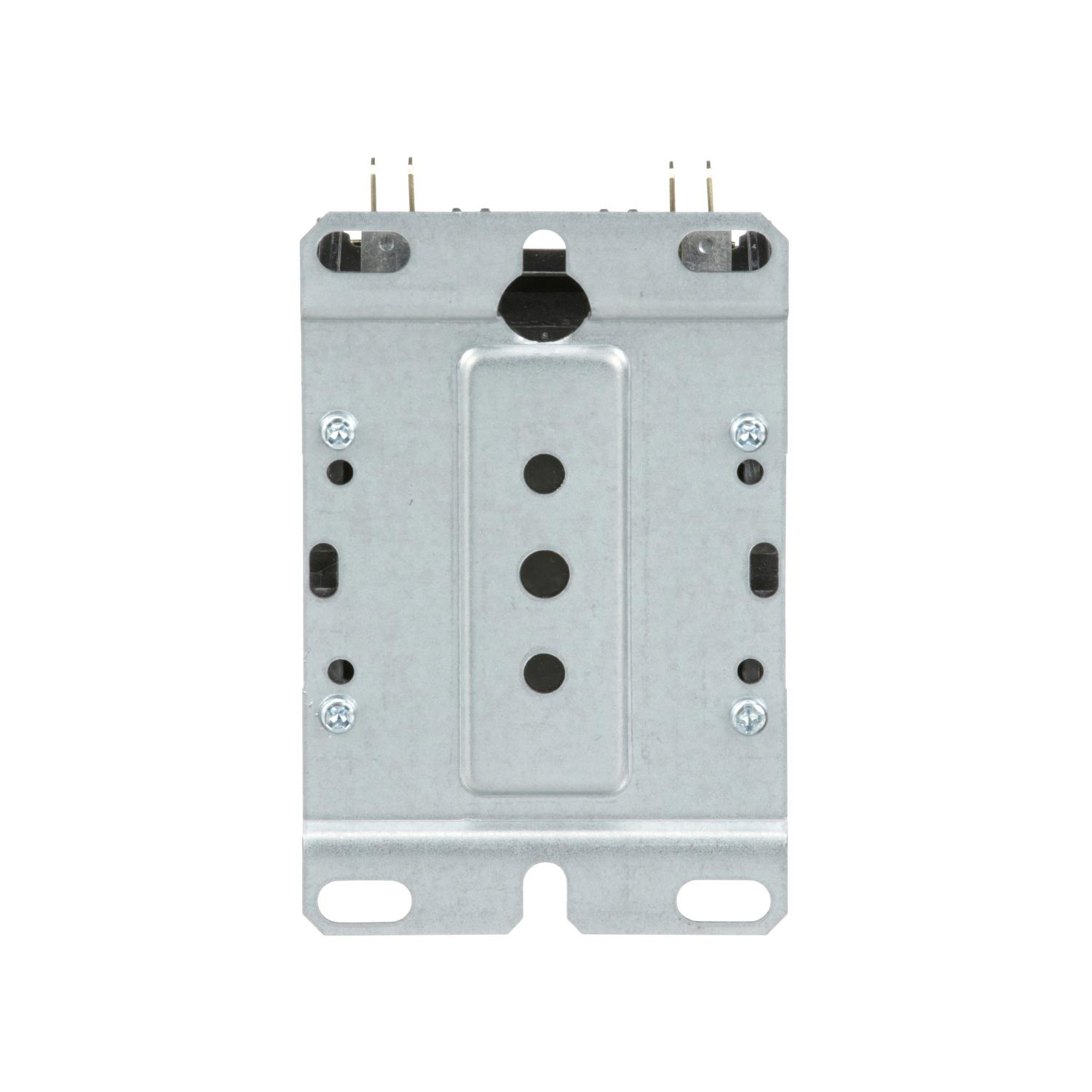

Image thumbnail 4

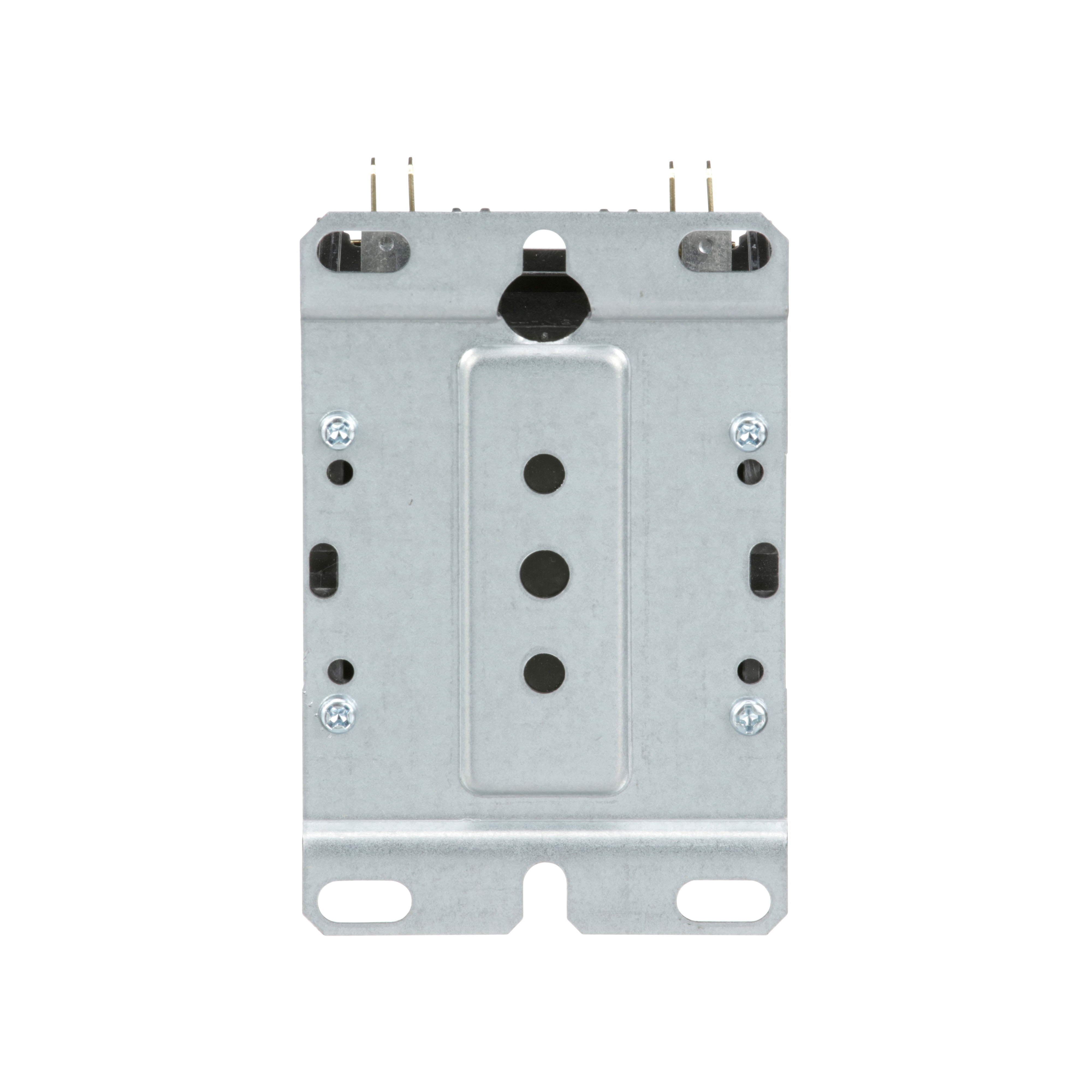

Image thumbnail 5
To:
CC:

CONTACTOR, DEFINITE PURPOSE, 30A, 2 POLE, 5HP AT 230VAC, 1 PHASE, 110/120VAC COIL AT 50/60HZ, OPEN

Manufacturer: Schneider | Square D | Catalog # 8910DPA32V02 | Electrozad South Part # 422335
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 I INSTALL ASSEMBLY INSTRUCTIONS URL
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Technical Information

Amperage
30 A
Applications
IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Coil Voltage
120 V AC 60 HZ-110 V AC 50 HZ,600 V AC
Contact Configuration
2 NO
Contact Rating
30 A
Line Rated Current
30 A
Net Weight
.98 lb
Number of Phases
1
Number of Poles
2
Size
2.90 in
TC Connection
Binder head;Quick connect terminals
Type
Definite Purpose Contactor
Voltage
600 V

Manufacturer Information

Brand
Square D
Sub Brand
DPA

General Product Info

12-Digit UPC
785901116967
GTIN
00785901116967
Weight
.44 kg

Dimensions

Depth
0.11 in
Height
2.31 in
Warranty Length
18 mth
Width
2.37 in

Certifications & Compliance

CA Prop65 Warning
This product can expose you to chemicals which are known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
CSA,UL Recognized
Country of Origin
China
Overview
  • Square D 8910DPA32V02 magnetic contactor, definte purpose, 2 pole, 30 amperes maximum at 600 volts, with 120 VAC, 60 Hz. operating coil, open
