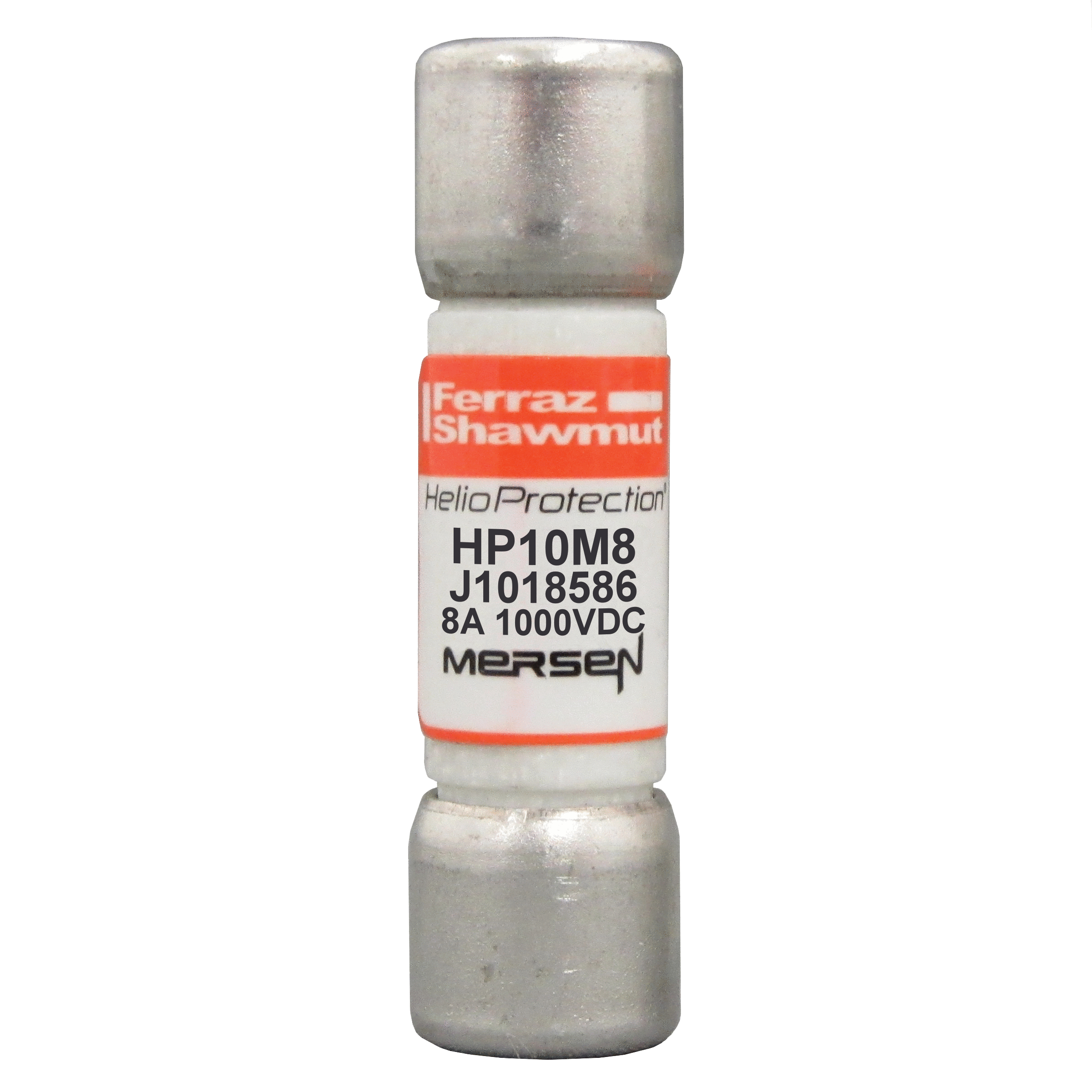

Photovoltaic fuse gPV 1000VDC UL 8A With Ferrule For Clip

Manufacturer: Ferraz Shawmut Mersen | Catalog # HP10M8 | Electrozad South Part # 421283
*Call For Price*
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet

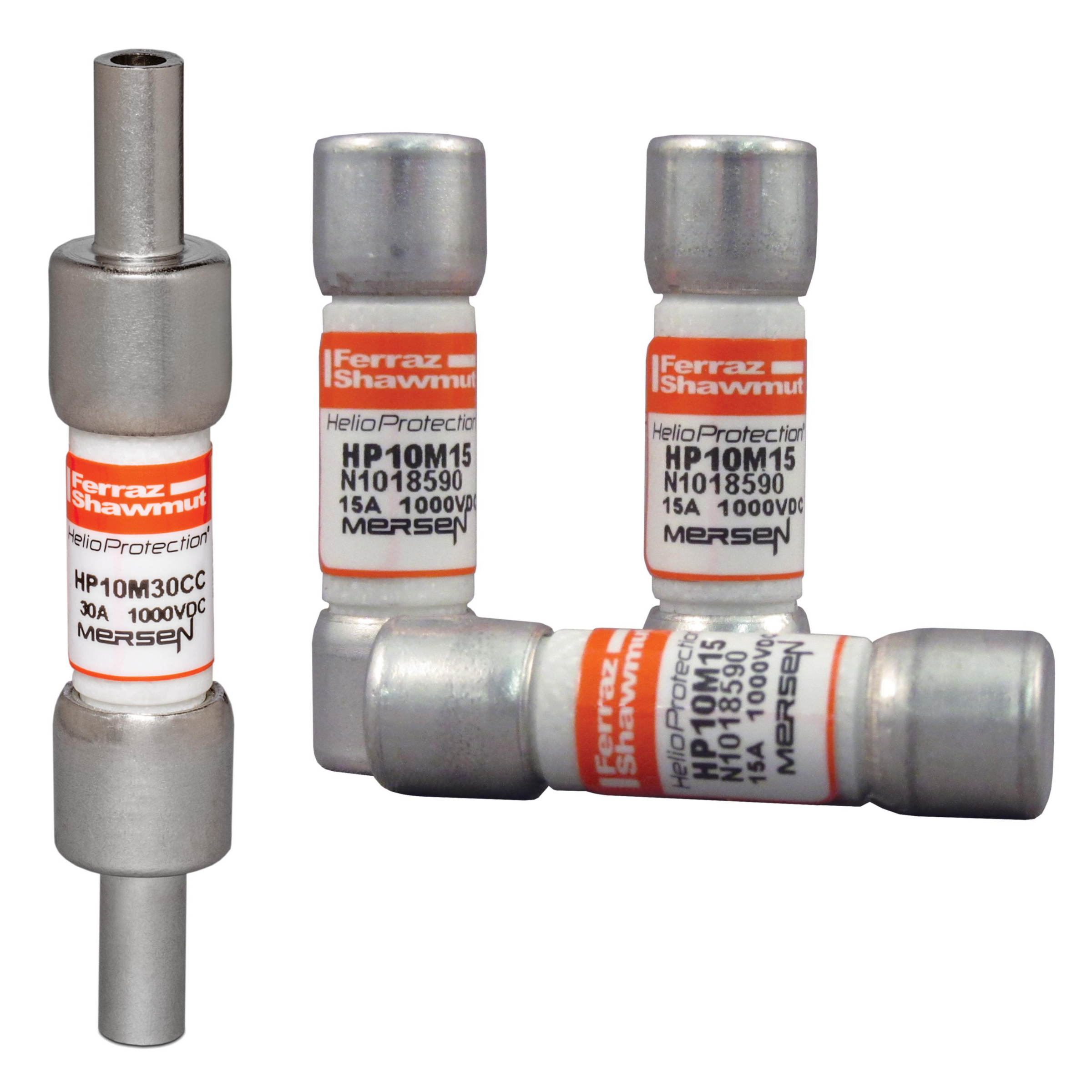

Engineered to protect photovoltaic applications Mersen's HP10M photovoltaic (PV) fuse series was engineered and designed specifically for the protection of photovoltaic systems. Its enhanced fuse construction makes it ideal for constant temperature and current cycling withstand adding to system longevity. The 1000VDC rated HP10M, designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, allows for safe circuit interruption under typical low fault current conditions produced by PV arrays. Protect your off-grid or grid tied PV system from unexpected ground faults and line faults using Mersen's HelioProtection fuse line.

Technical Information

Amperage
8 A
Applications
All photovoltaic applications PV string/array level protection Combiner box applications In-line PV module protection Inverters Battery charge controllers
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Photovoltaic
Insulation Material
GMG
Interrupt Rating
10 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage DC
1000 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Photovoltaic Fuses

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Helio Protection

General Product Info

12-Digit UPC
782001429928
GTIN
30782001429929
Product UPC
78200142992
Weight
0.02 lb

Dimensions

Diameter
1.5 in
Length
1.5 in

Certifications & Compliance

Country of Origin
Mexico
