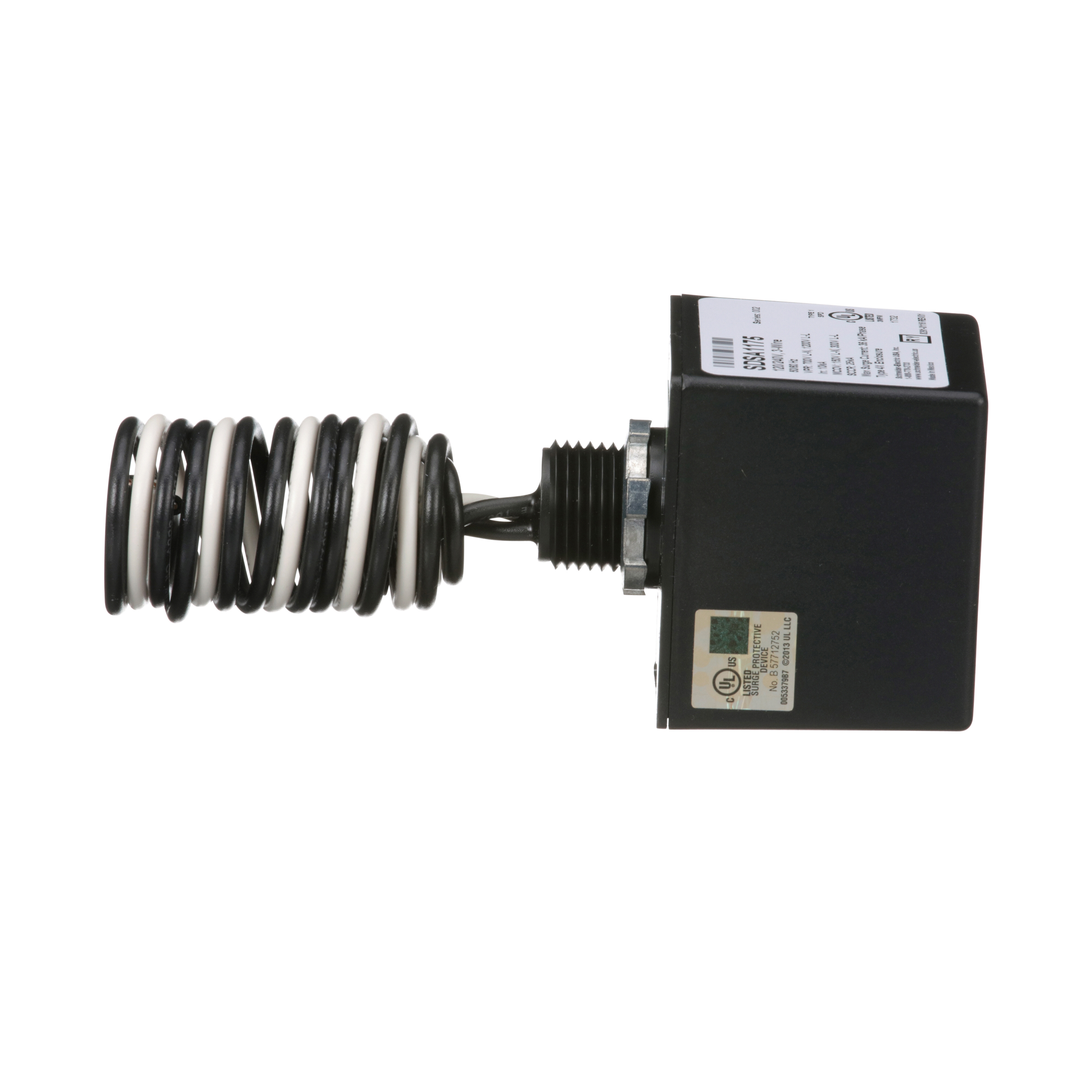

Image thumbnail 1
Image thumbnail 2

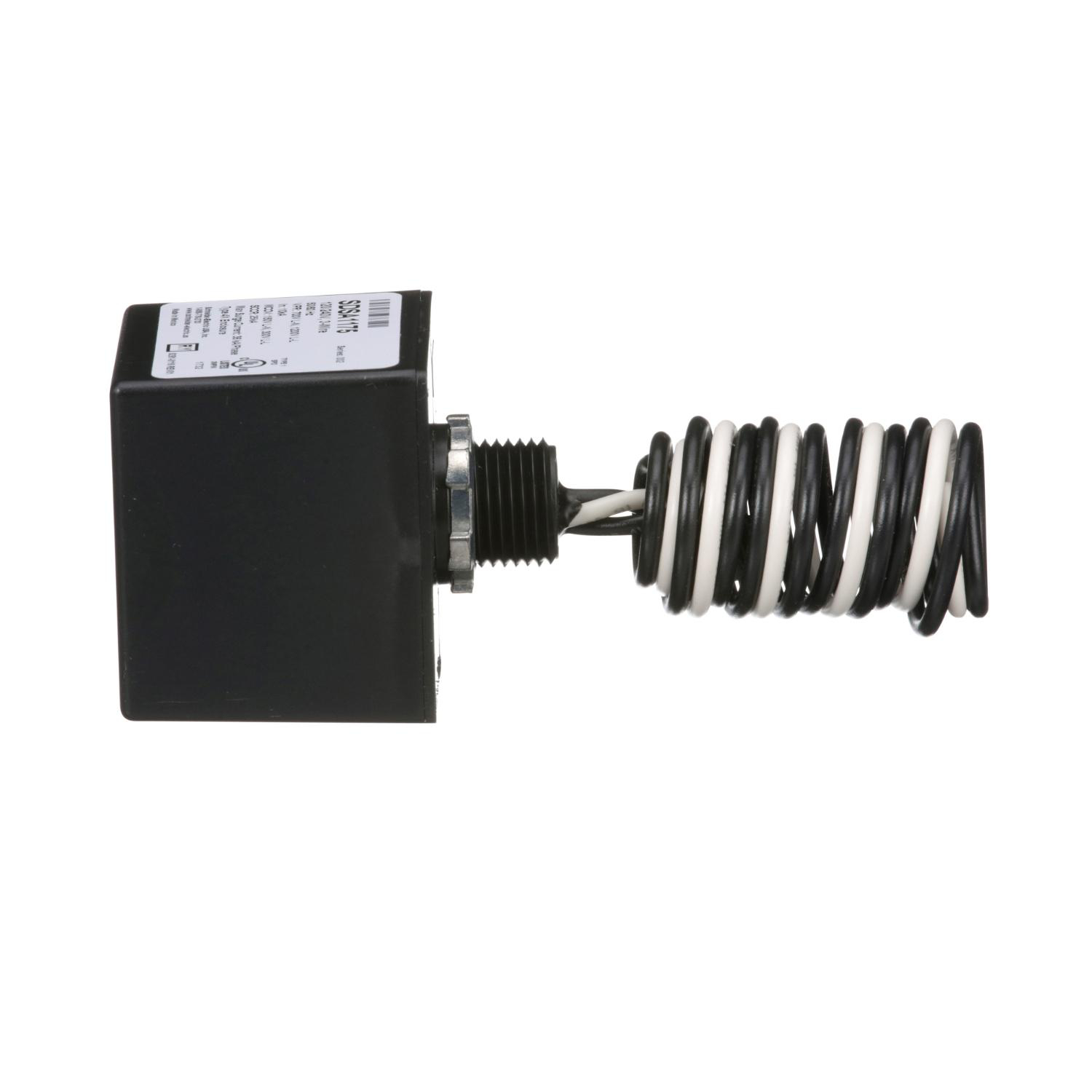

Image thumbnail 3
Image thumbnail 4

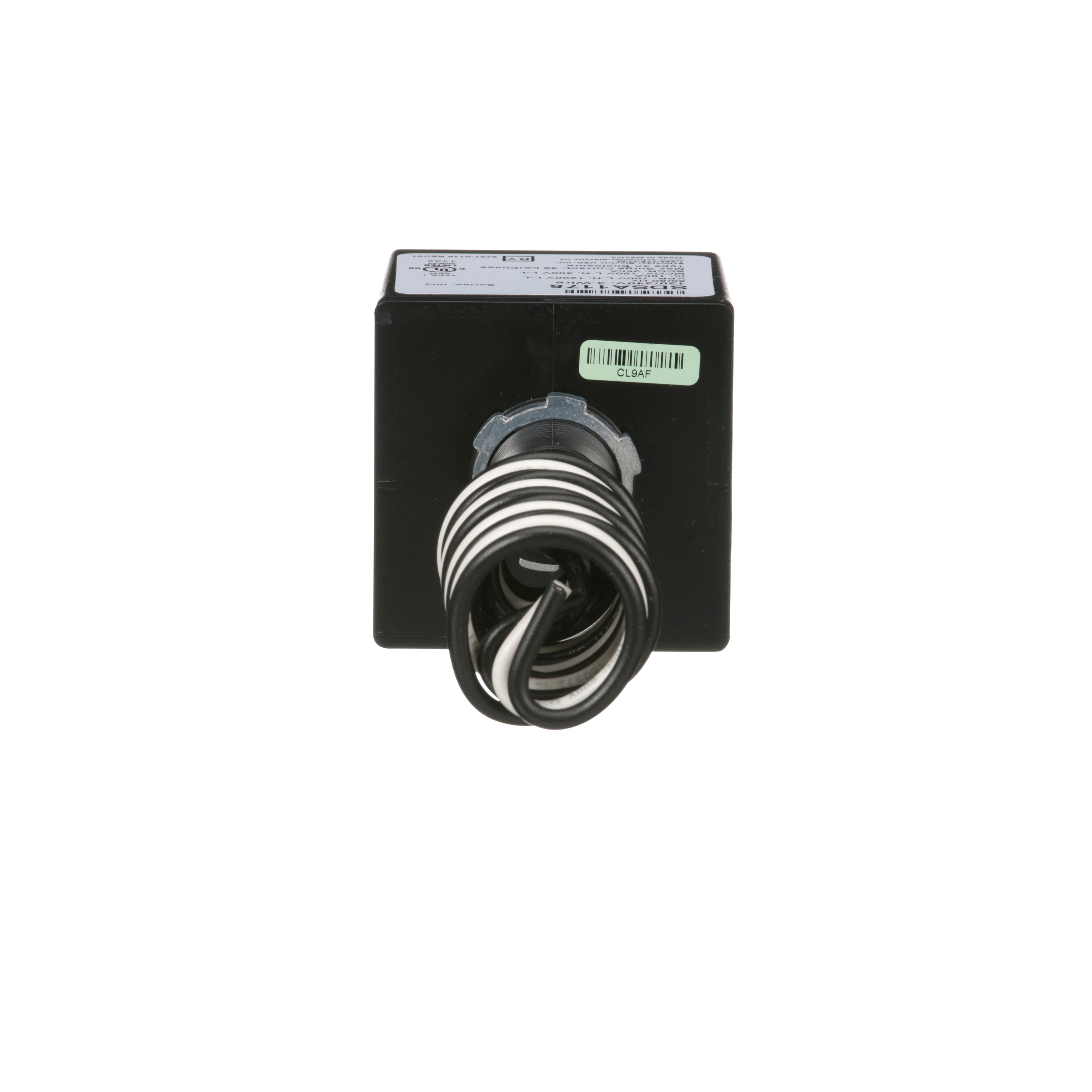

Image thumbnail 5
To:
CC:

SURGE PROTECTION DEVICE, SURGELOGIC, 36KA, 120/240 VAC, 1 PHASE, 3 WIRE, 25KA SCCR, NEMA 4X

Manufacturer: Schneider | Square D | Catalog # SDSA1175 | Electrozad South Part # 420457
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual G USERS MANUAL URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.

Technical Information

Applications
LOAD CENTERS AND CSEDS
Enclosure
4X
Enclosure Material
Black Plastic
Interrupt Rating
25 kA
Nominal Discharge Current
10 kA
Number of Phases
1
Standard
CSA C22.2 No 8,NEC 285,UL 1449:ed. 4: Type I
Type
Surge protection device
Voltage
120/240 V

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901210870
GTIN
00785901210870

Dimensions

Cable Length
24 in
Depth
2.7 in
Height
2.25 in
Length
24 in
Warranty Length
18 mth
Width
2.25 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Mexico
