LEV Series IEC Pin & Sleeve Receptacle

Manufacturer: Leviton Manufacturing | Catalog # 4100R12WLEV | Electrozad South Part # 420056
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

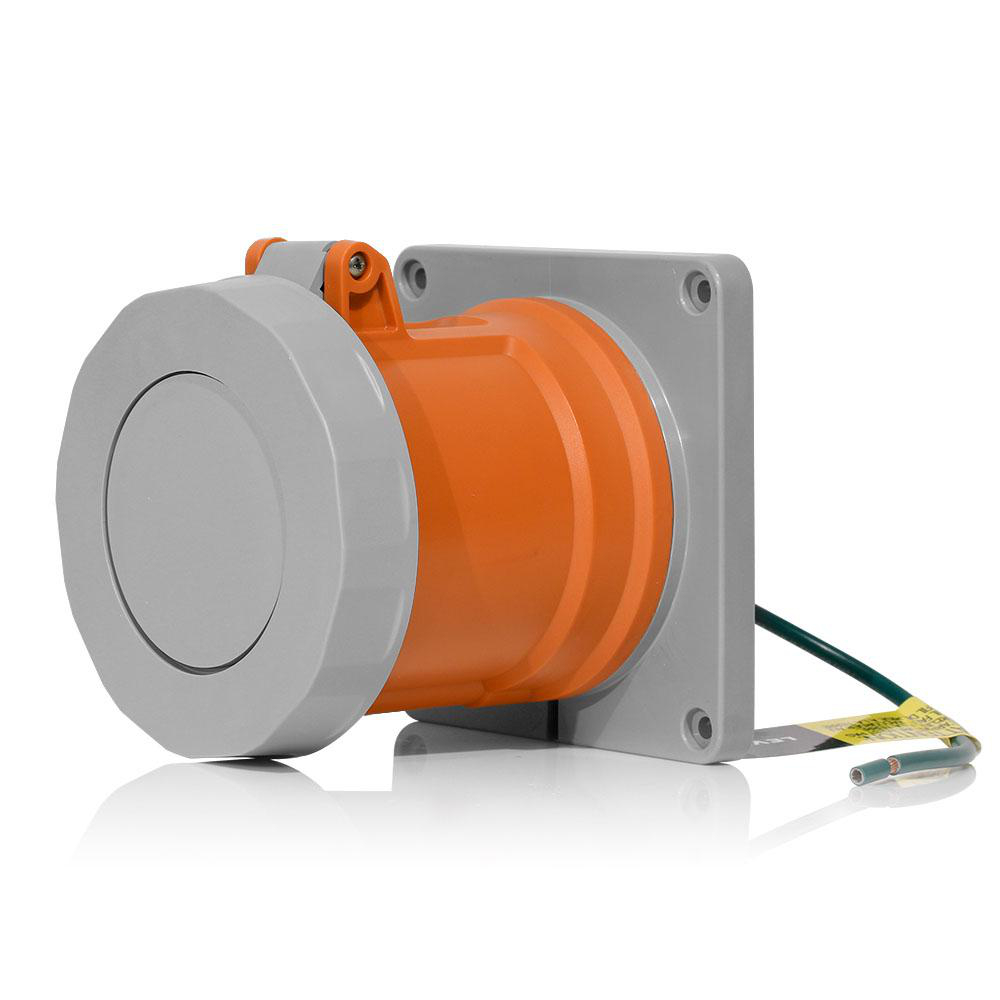

100 Amp, 125/250 Volt, 3P, 4W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Receptacle, Industrial Grade, IP66/IP67/IP68/IP69K, Watertight - Orange

Technical Information

Amperage
100 A
Device Type
Receptacle
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Max Voltage
600 V
Number of Poles
3
Number of Wires
4
Operating Temperature
-35 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477320464
GTIN
60078477320466
Housing Material
Impact Modified Nylon
Product UPC
07847732046

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
