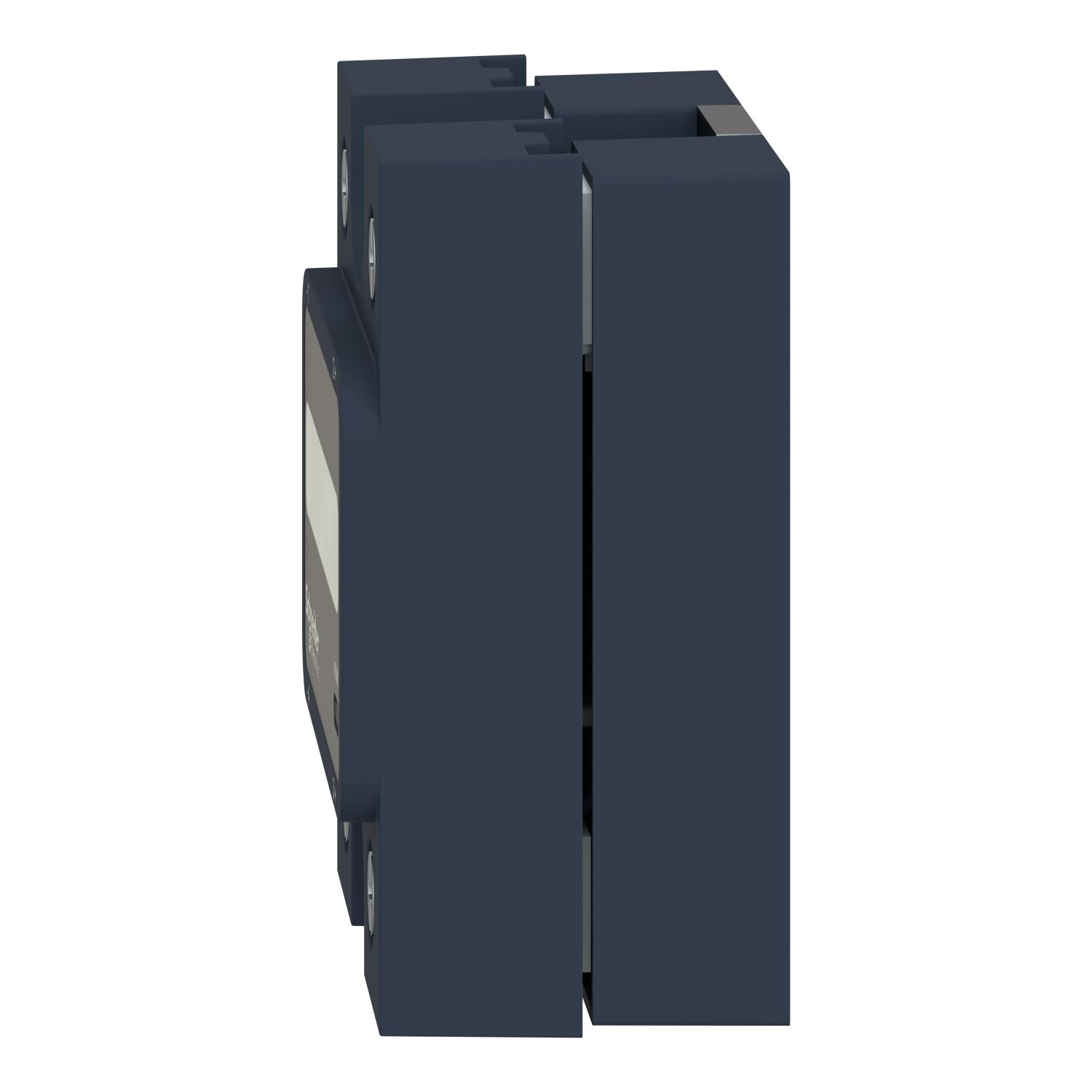

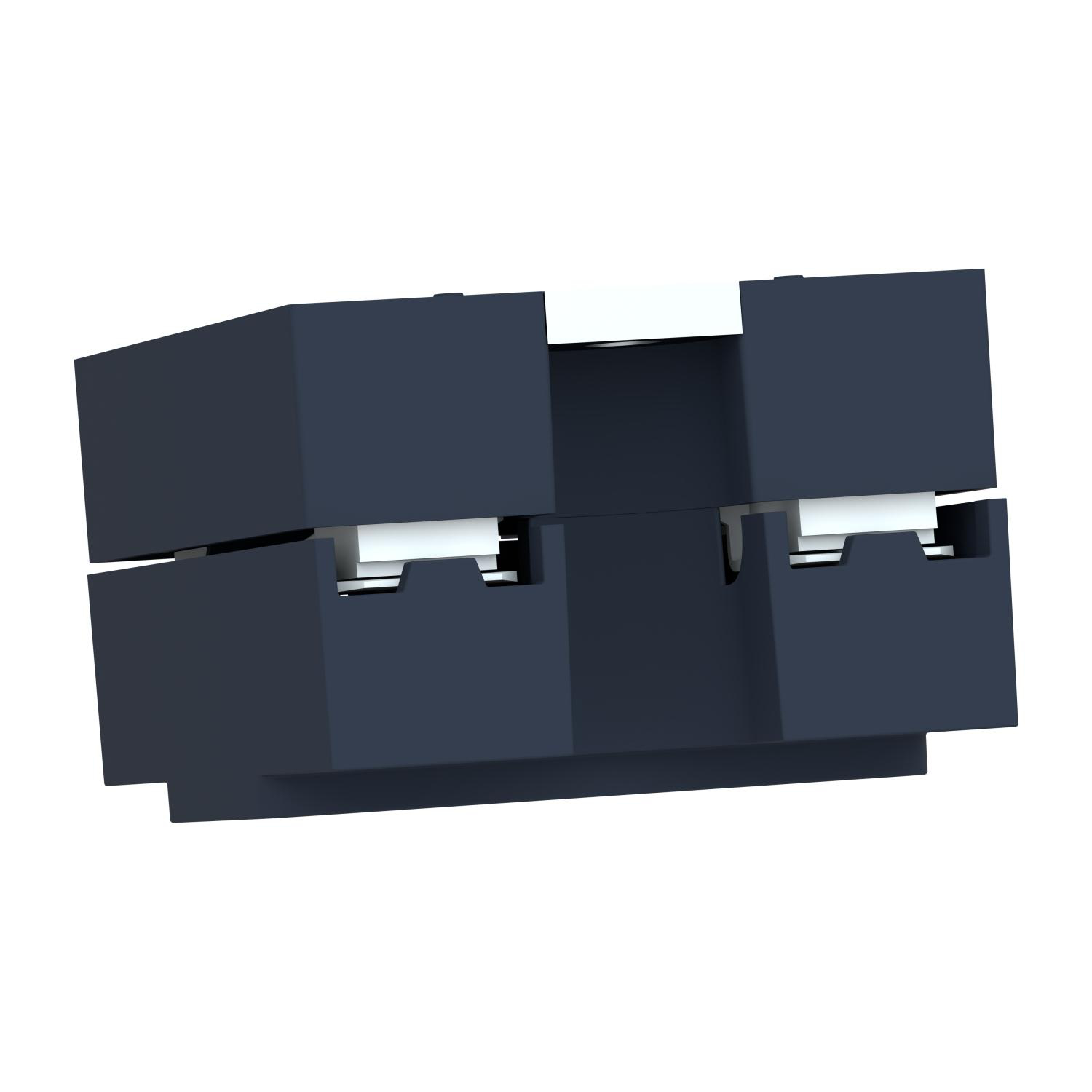

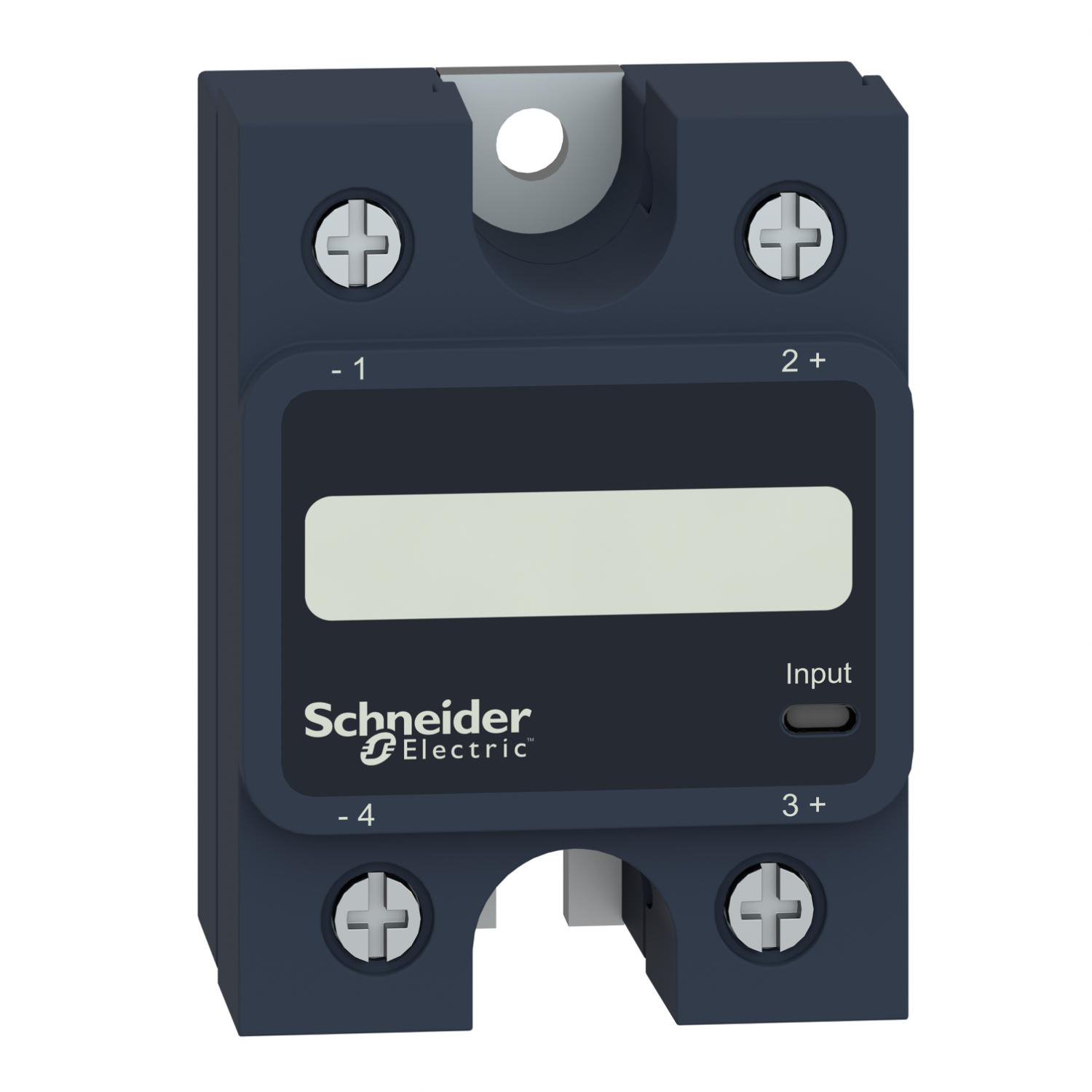

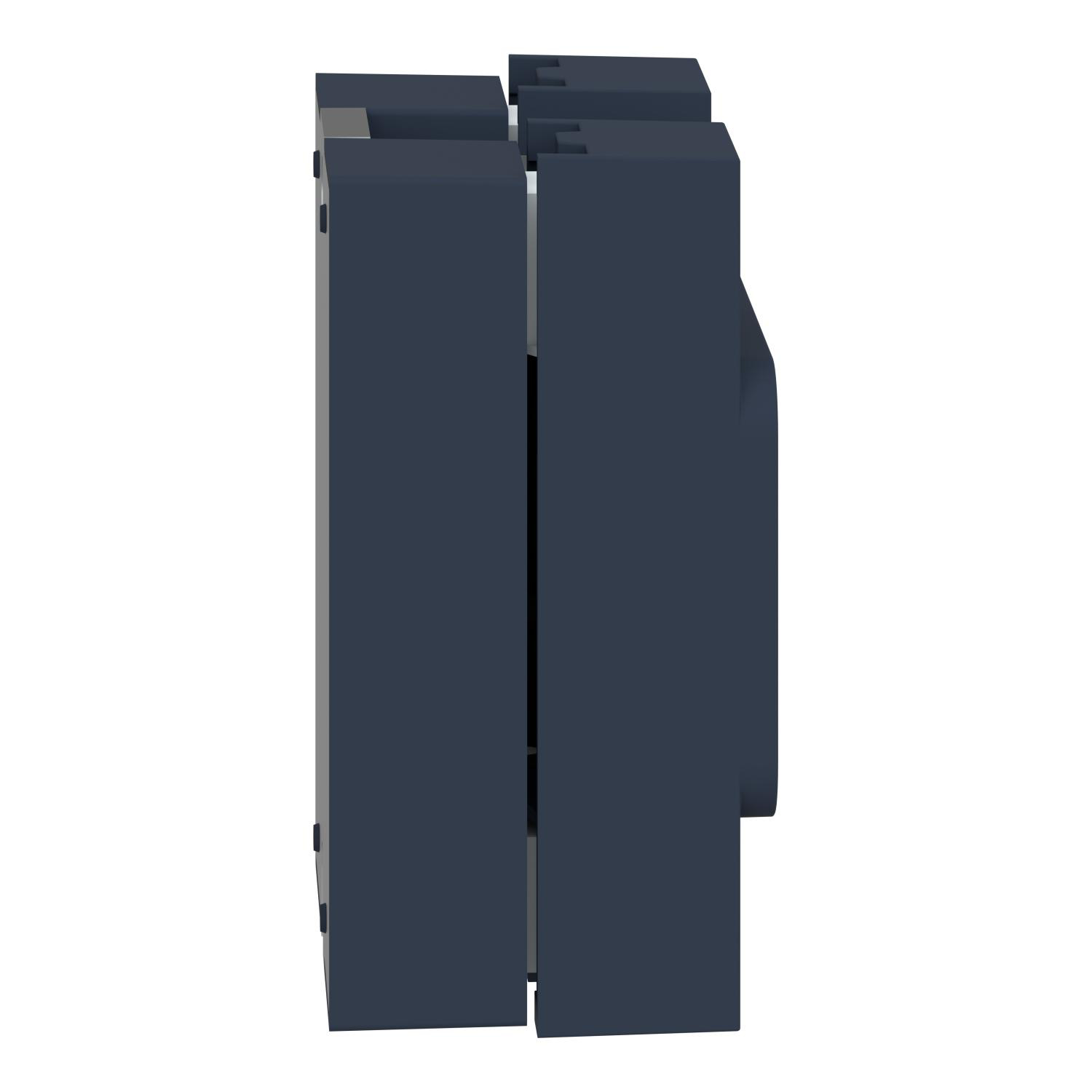

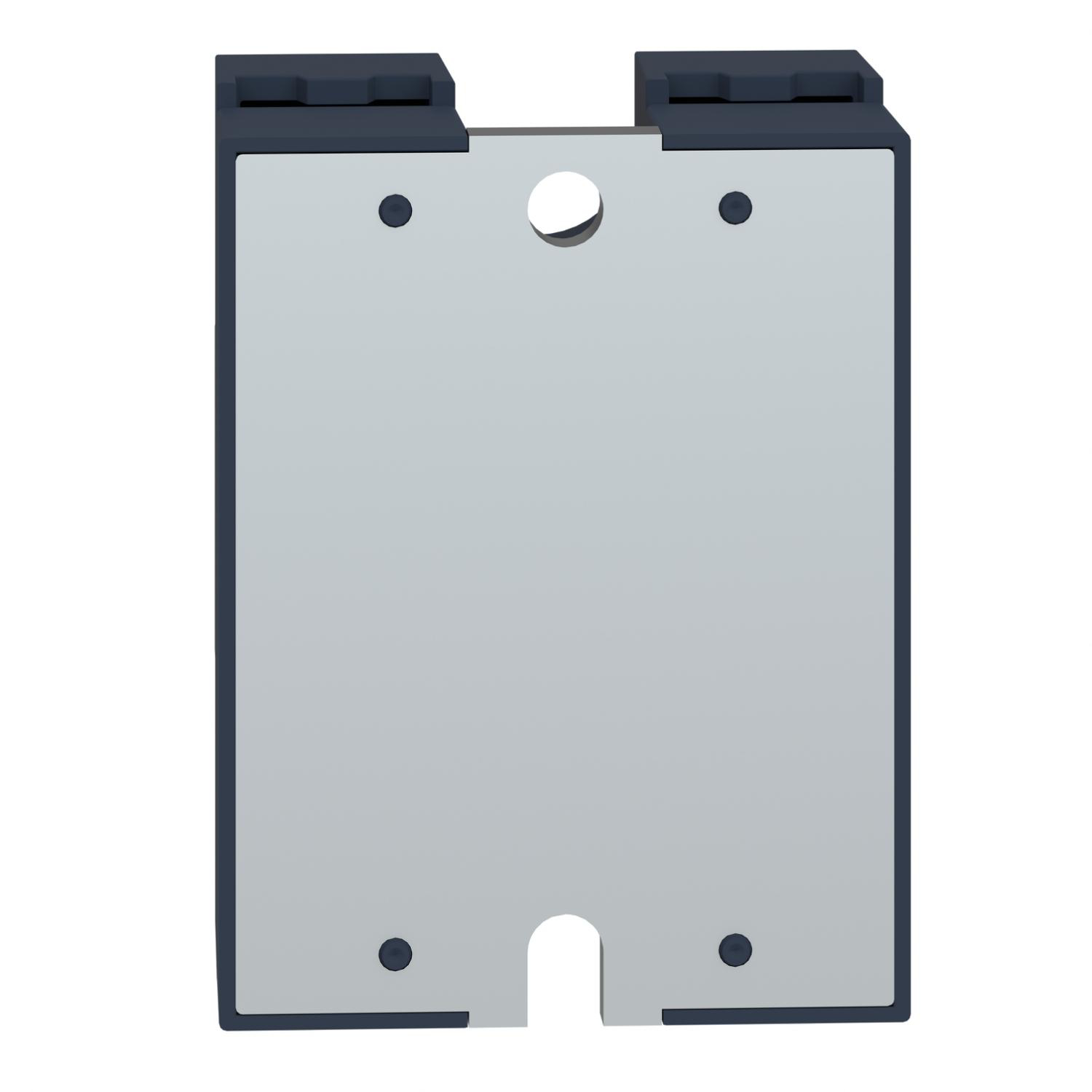

SINGLE PHASE RELAY, HARMONY SOLID STATE RELAYS, 10A, PANEL MOUNT, ZERO VOLTAGE SWITCHING, THERMAL PAD, INPUT 3 TO 32V DC, OUTPUT 24 TO 300V AC

Manufacturer: Schneider Electric | Catalog # GVAE113 | Electrozad South Part # 419866
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 I INSTALL ASSEMBLY INSTRUCTIONS URL
This Harmony SSP solid state panel mount single-phase relay is rated 10A, is controlled with a 3V to 32V DC input, has a rated load voltage of 24V to 300V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Amperage
10 A
Applications
0.5 HP 120 V AC-1 HP 240 V AC
Contact Configuration
1 NO + 1 NC
Dielectric Strength
4 kV
Input Current
10 mA at 12 V DC
Line Rated Current
10 A
Maximum Load Current
0.1510 A
Net Weight
89.2 g
Number of Phases
1
Operating Cycles
100000 CYCLES
Operating Temperature
-40-80 Adegrees C
Output Voltage
24-300 V
Range
TeSys;TeSys Deca
Response Time
0.5 cycle (turn-on);0.5 cycle (turn-off)
Size
13 MM,31.5 MM,44.5 MM
Standard
CSA C22.2 No 14-13,EN/IEC 60950-1,EN/IEC 62314,UL 508
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 0.2...3.3 MMA², AWG 24...AWG 12) WITH CABLE END INPUT-SCREW TERMINALS 0.5...5.26 MMA², AWG 20...AWG 10) WITH CABLE END OUTPUT-SCREW TERMINALS 0.2...3.3 MMA², AWG 24...AWG 12) WITHOUT CABLE END INPUT-SCREW TERMINALS 0.5...8.26 MMA², AWG 20...AWG 8) WITHOUT CABLE END OUTPUT-FORKED TYPE TAG CONNECTORS 9.2 X 4 MM INPUT-RING LUGS 9.2 X 4 MM INPUT-FORKED TYPE TAG CONNECTORS 11.7 X 4.5 MM OUTPUT-RING LUGS 11.7 X 4.5 MM OUTPUT
Type
SOLID STATE RELAY
Voltage
240 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSP1

General Product Info

12-Digit UPC
787260040310
Color
Gray
Environmental Conditions
NORMAL ENVIRONMENT
GTIN
03606485442037
Weight
89.2 g

Dimensions

Depth
1.24 in
Height
0.51 in
Warranty Length
18 mth
Width
1.75 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,EAC,UL
Country of Origin
Mexico
