Cable Entry System, Un-Terminated, IP65, 4.41"X1.42",13 holes,1PC

Manufacturer: Panduit | Catalog # CESU2-E13 | Electrozad South Part # 415945

$100.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

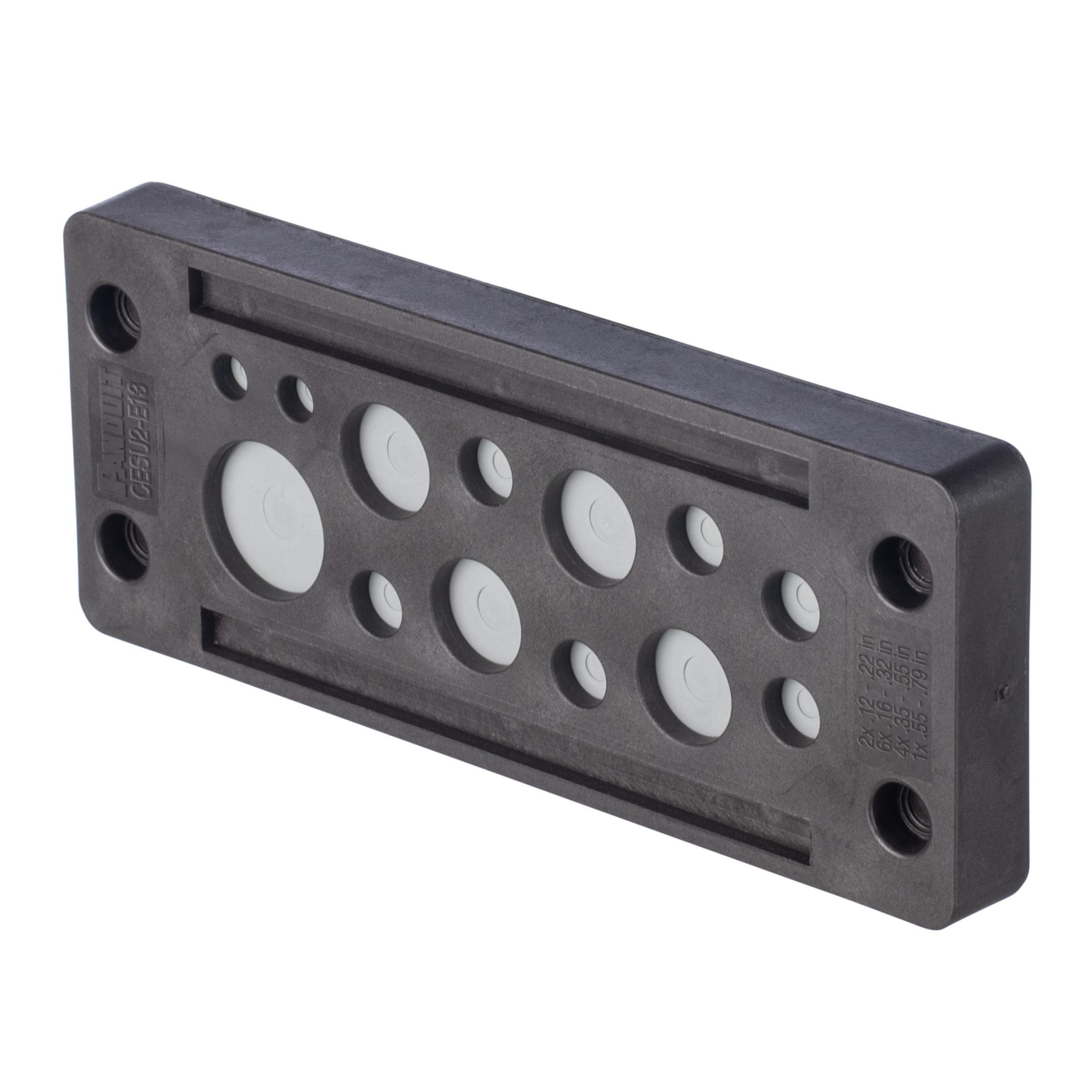

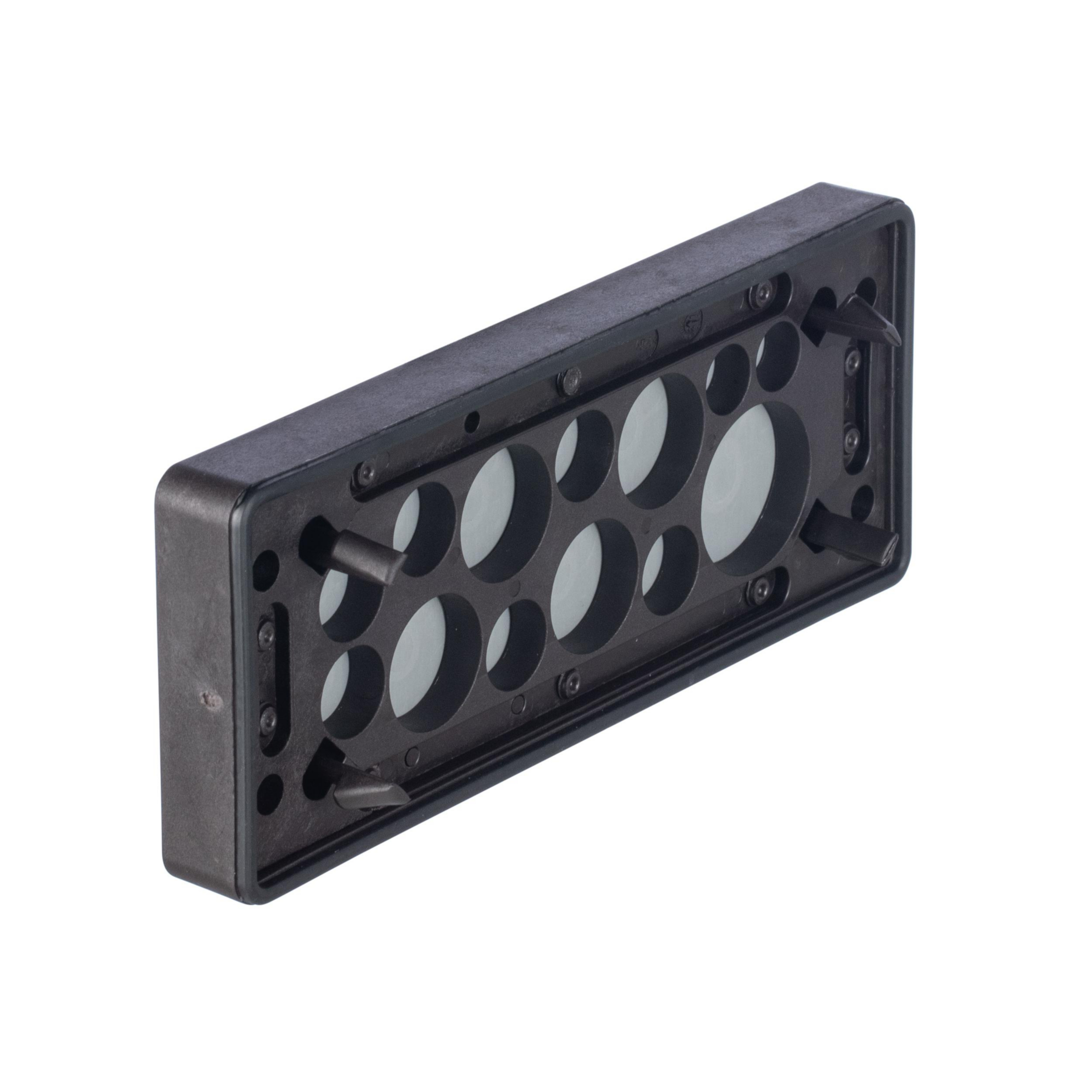

The Engineered cable entry system offers a high degree of strain relief while maintaining IP/NEMA ingress sealing rating. The CESU2-E13 is a Rectangular Un-Terminated Cable Entry System, 5.79" (147.1 mm) Long, with 2 Openings 0.12" (3.0 mm) to 0.22" (5.6 mm), 6 Openings 0.16" (4.1 mm) to 0.32" (8.1 mm), 4 Openings 0.35" (8.9 mm) to 0.55" (14.0 mm), & 1 Opening 0.55" (14.0 mm) to 0.79" (20.1 mm). Std Pkg Qty=1 PC.

Technical Information

IP Rating
IP65
Max Operating Temperature
100 degrees C
Minimum Operating Temperature
-22 degrees F
Type
Cable Entry System Frame

Manufacturer Information

Brand
Panduit

General Product Info

12-Digit UPC
613056856042
Color
Black
GTIN
00613056856042
Product UPC
61305685604

Dimensions

Overall Length
5.79 in
Width
2.32 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
Germany
