Pan-Lug™ LCMA120-12-L Comp. Lug, Metric, Tin Plt Copper, Strt, PK50

Manufacturer: Panduit | Catalog # LCMA120-12-L | Electrozad South Part # 412780
$2,709.71 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

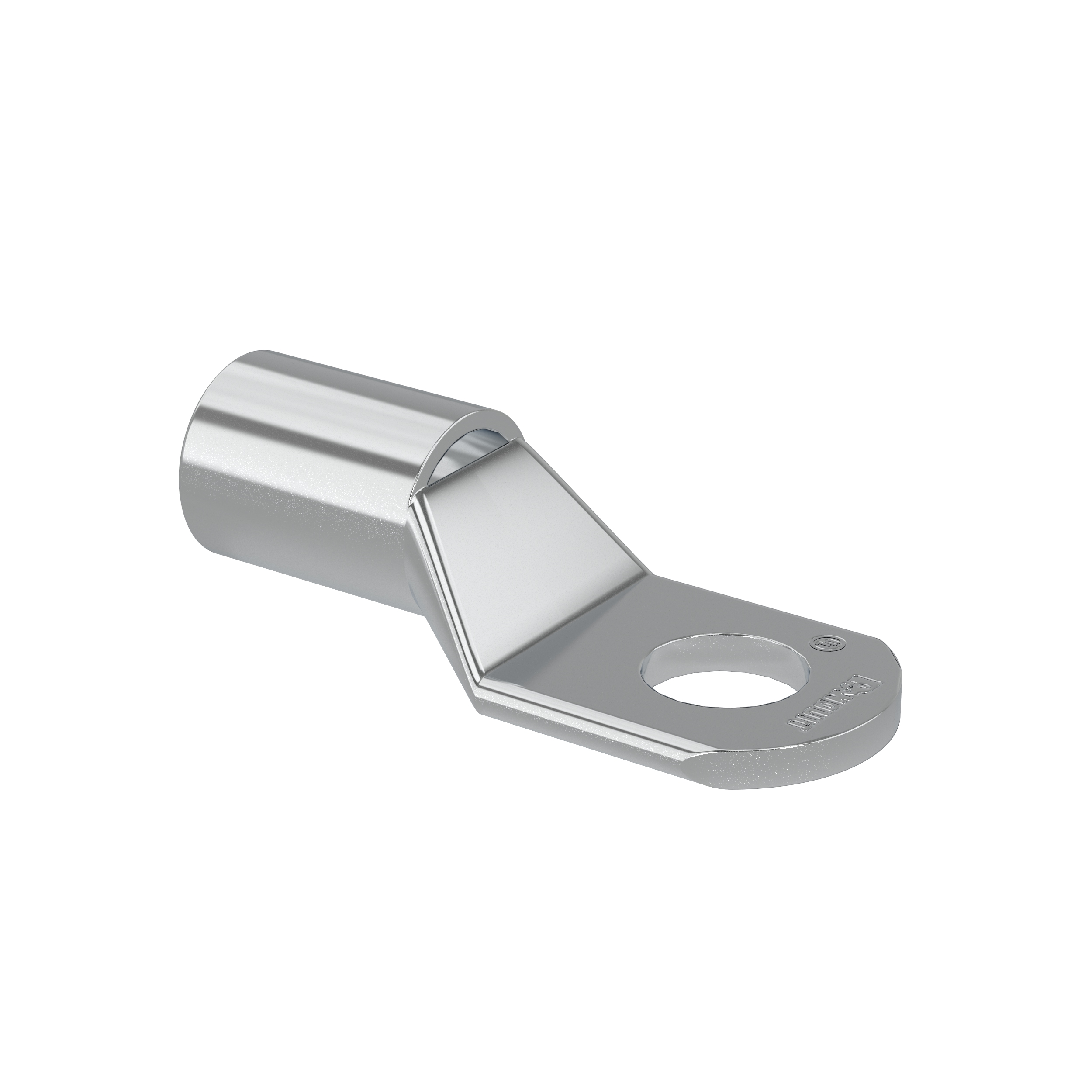

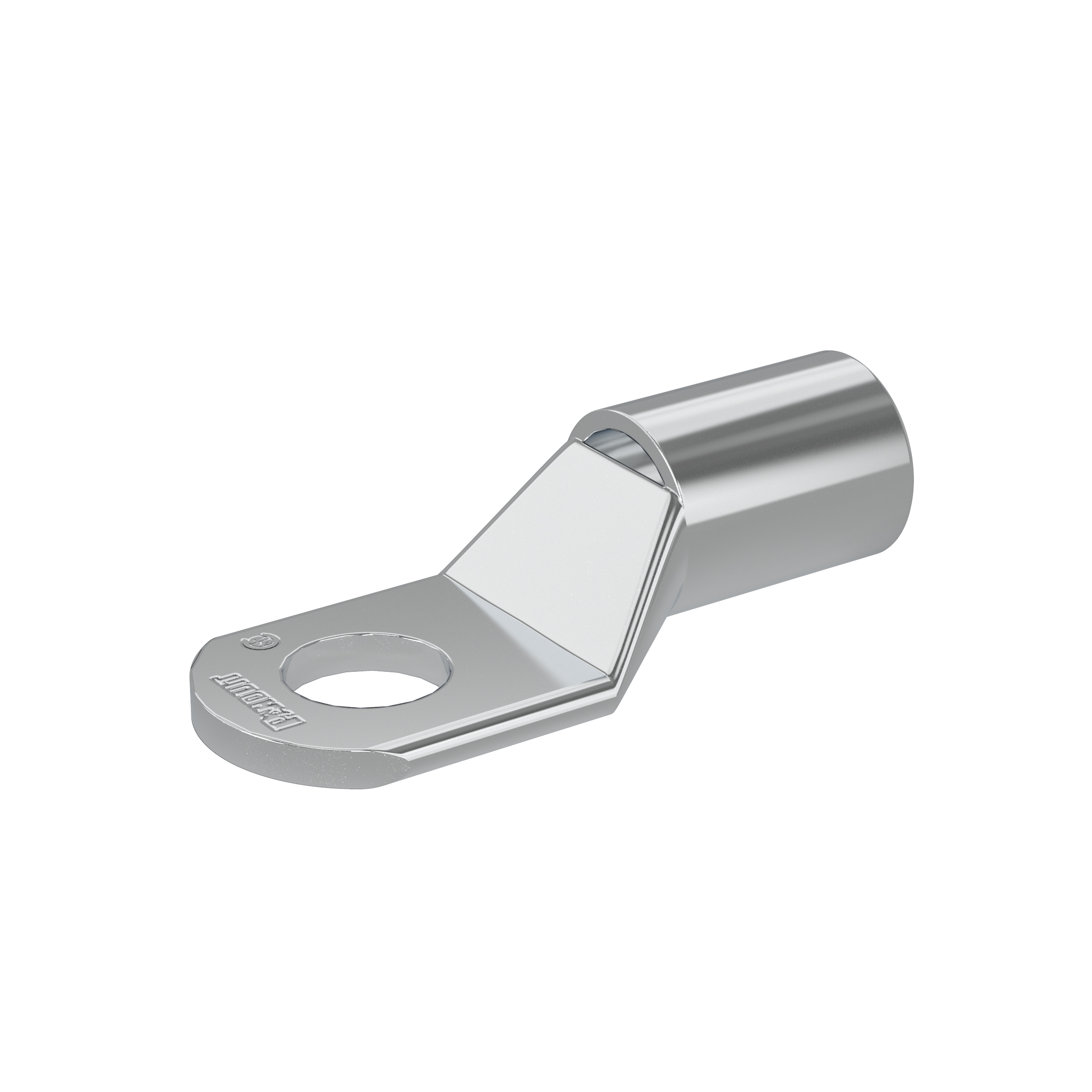

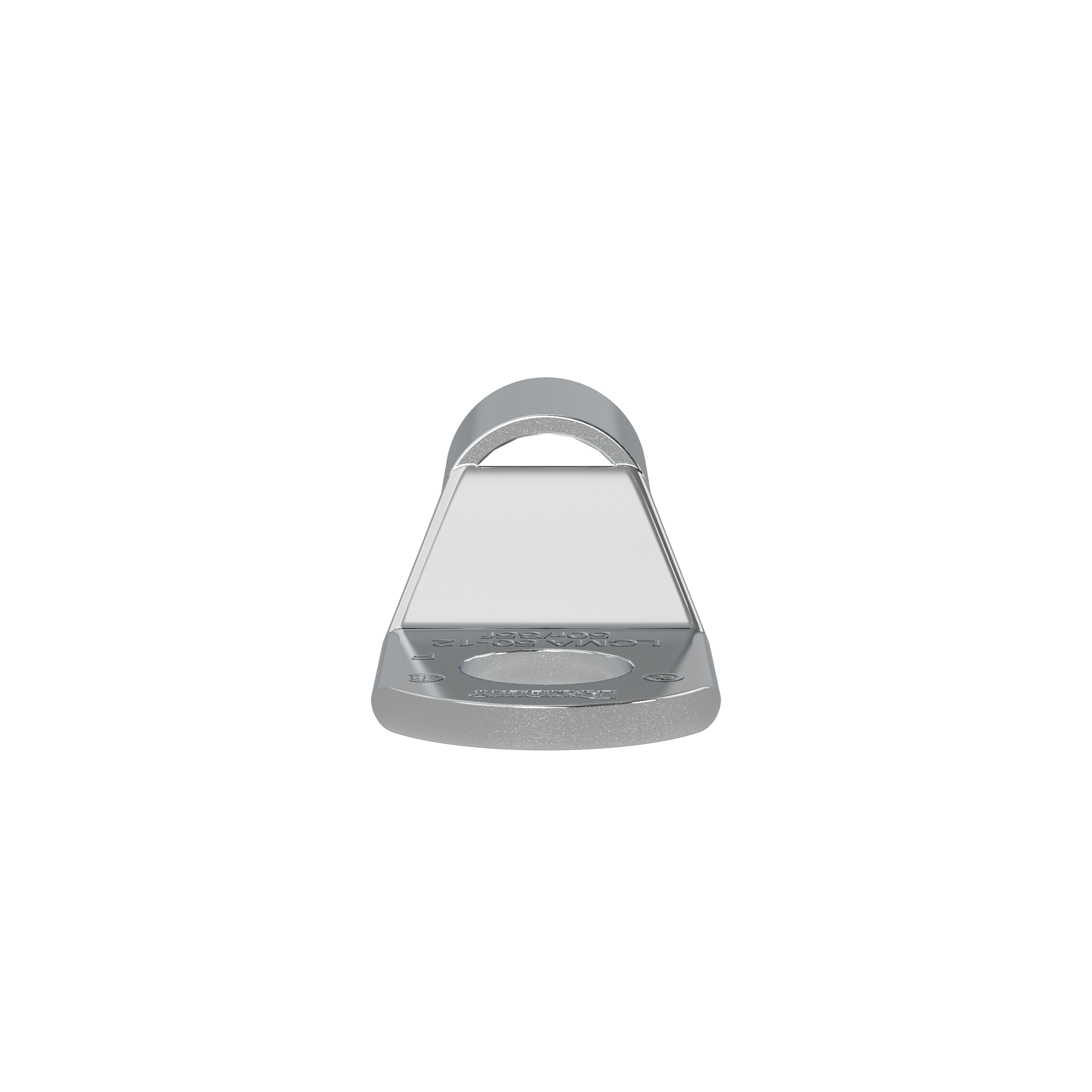

The LCMA120-12-L Tin-Plated Copper Compression Metric Lug, one-hole, standard barrel, has a rounded tongue convenient for use in tight spaces and a beveled wire entry for fast and easy installation. The inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
24.5 mm
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
NA
Size
120mm² Class 2
Stud Size
0.4724 in
Tongue Thickness
3.5 mm
Tongue Type
Round
Tongue Width
27.5 mm
Type
Metric Compression Lug

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983769575
GTIN
00074983769575
Product UPC
07498376957

Dimensions

Outer Diameter
0.73 in
Overall Length
64.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
AR
