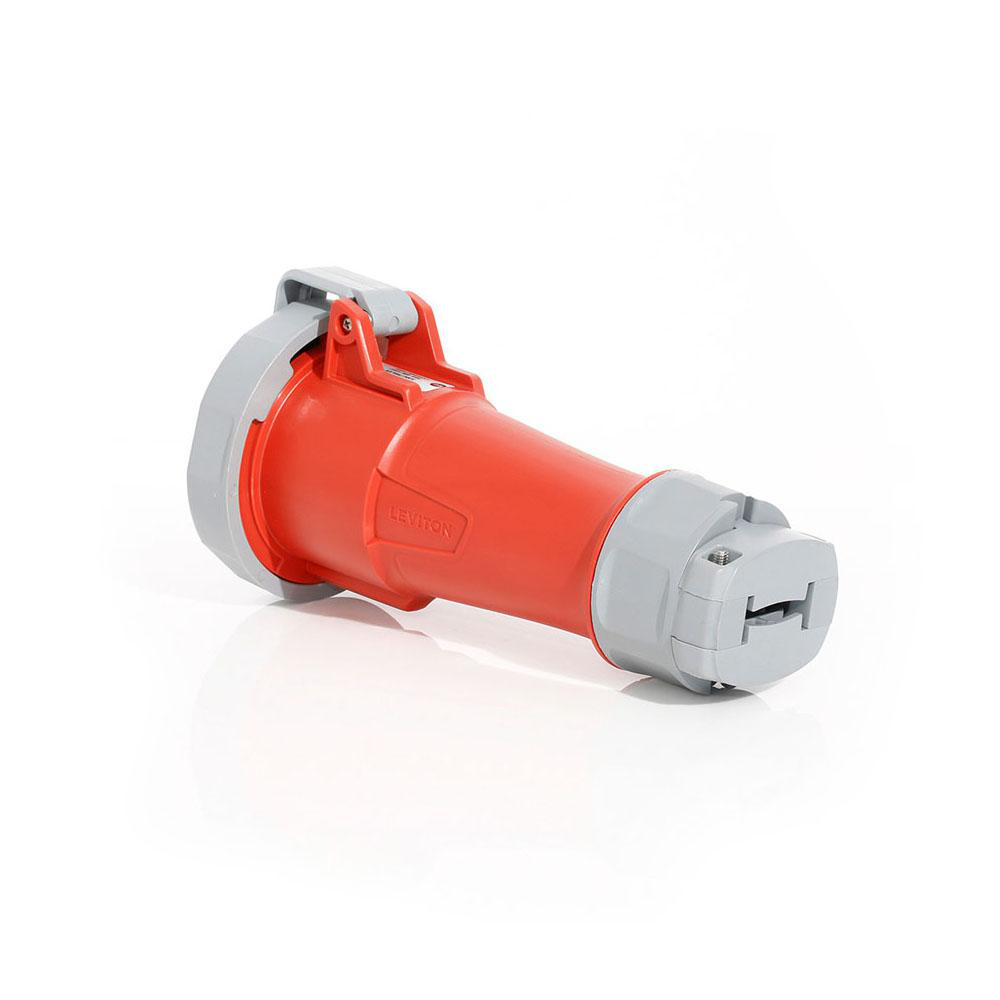

Image thumbnail 1

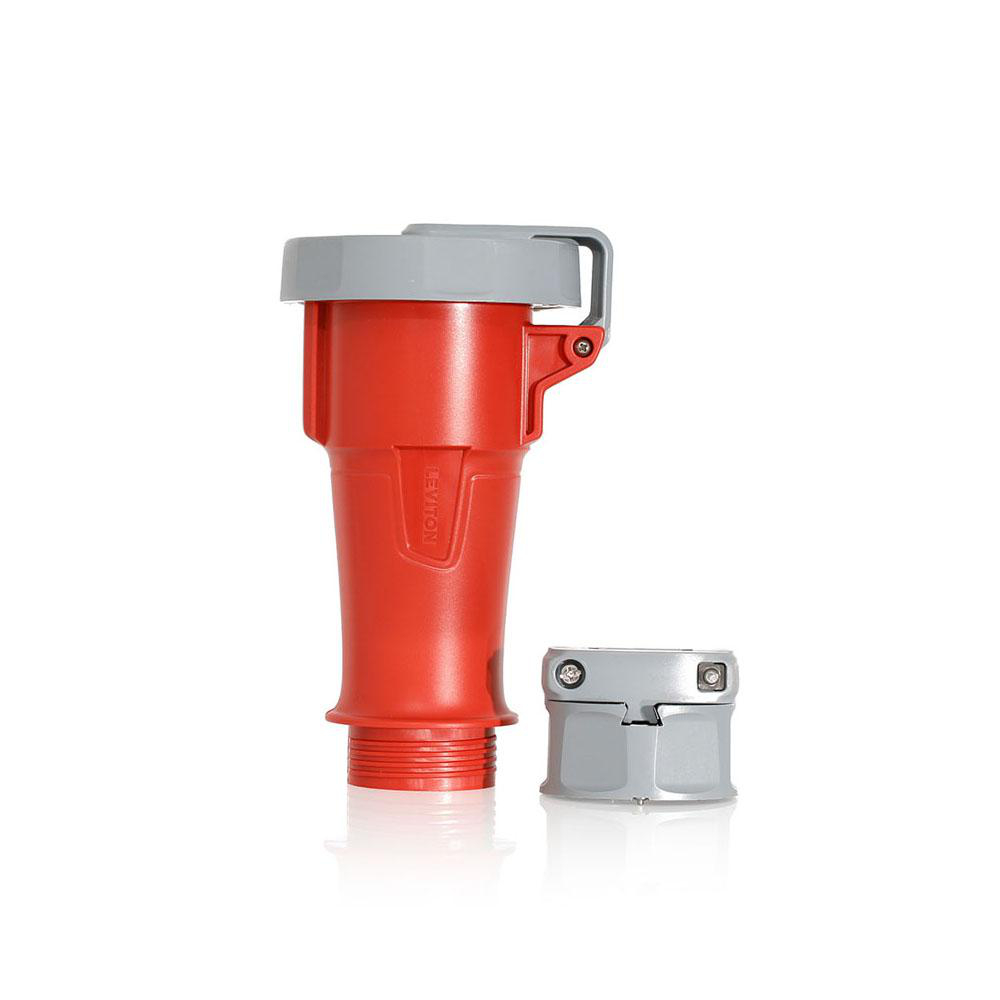

Image thumbnail 2
To:
CC:

LEV Series IEC Pin & Sleeve Connector

Manufacturer: Leviton Manufacturing | Catalog # 520C7WLEV | Electrozad South Part # 411579
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
20 Amp, 277/480 Volt 3-Phase, 4P, 5W, LEV Series North American-Rated IEC 60309-1 & 60309-2 Pin & Sleeve Connector, Industrial Grade, IP66/67/68/IP69K, Watertight - RED

Technical Information

Amperage
20 A
Device Type
Connector
Dielectric
3000 V
Flamability Class
Rated HB Or Better Per UL94,Rated V-0 Perf UL 94
Horsepower
7.5 hp
Max Voltage
600 V
Number of Poles
4
Number of Wires
5
Operating Temperature
-40 degrees C
Temperature Rise
30 degrees C

Manufacturer Information

Brand
Leviton
Sub Brand
PIN AND SLEEVE DEVICES

General Product Info

12-Digit UPC
078477952672
Color
Red
GTIN
60078477952674
Housing Material
Impact Modified Nylon
Product UPC
07847795267

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Country of Origin
Mexico
