CNY, LED, ADJUSTABLE LIGHT OUTPUT, SWITC

Manufacturer: Lithonia Lighting | Catalog # CNY LED ALO SWW2 UVOLT PE PIR DDB M2 | Electrozad South Part # 407775
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Offices & Banks,Retail
Color Temperature
3000 ,4000 ,5000 ,Variable K
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
10,000 LM,5000 LM,5500 LM,6500 LM,7500 LM,8500 LM LM
Material
Aluminum
Power Source
Hardwired
Style
Traditional
Wattage
75 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
197589495041
Color
Bronze
Environmental Conditions
Outdoor
Finish
Gloss
GTIN
00197589495041
Product UPC
19758949504
Shape
Square

Dimensions

Height
3 in
Length
10 in
Width
10 in
Overview
  • WARRANTY: 5-Year Limited Warranty
  • VOLTAGE: UVOLT 120 - 347V

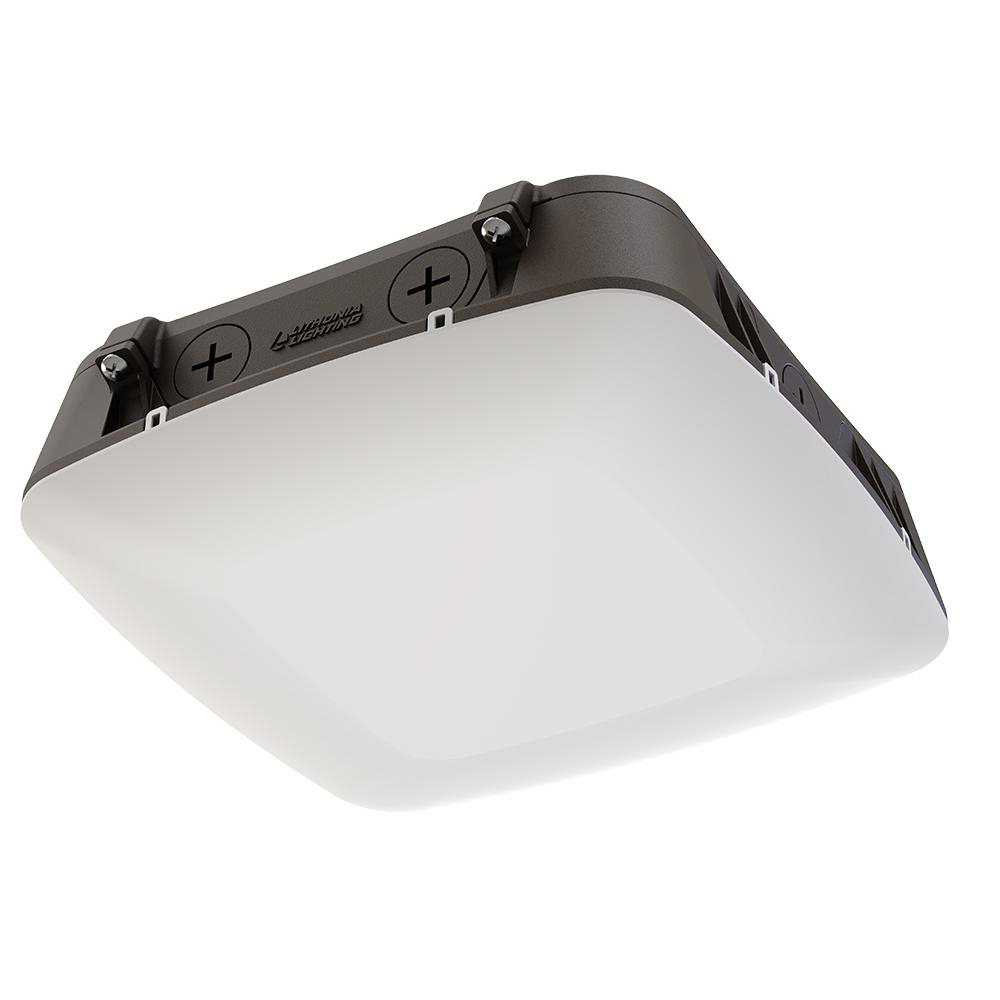

  • CONSTRUCTION: Cast-aluminum housing with powder coat finish for lasting durability and IK08 impact rated frosted lens is designed for uniform light distribution while providing visually comfortable illumination

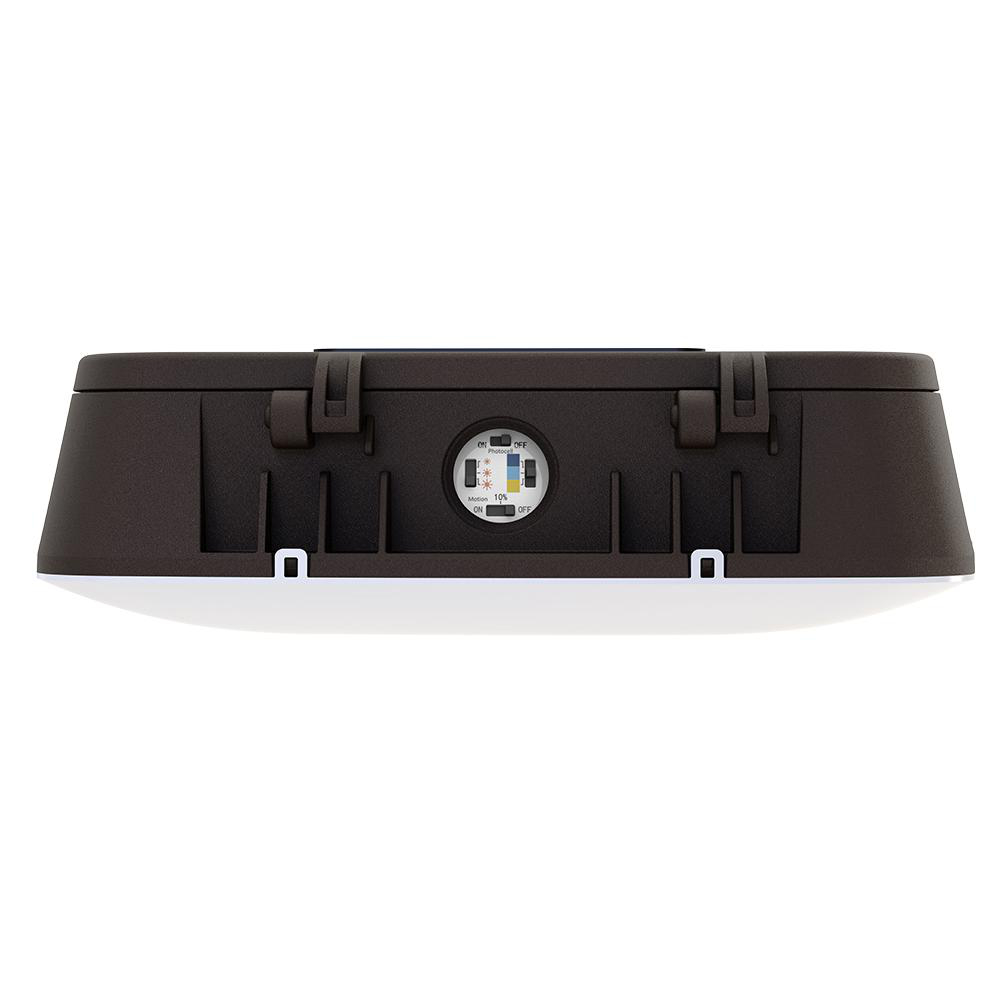

  • CONTROLS: Includes a selectable photocell that turns the fixture on in the evening and off the next morning and a selectable occupancy sensor that turns on when motion is detected and can be set to maintain 10% or fully off when no motion is detected
  • TECHNOLOGY: Adjustable Lumen Output (ALO), Switchable Color Temperature (SWW2), Selectable Photocell (PE) and Selectable Motion Sensor (PIR) features allow for this canopy luminaire to offer 54 customizable options in one fixture
  • HOURS OF LIFE: High-efficiency LEDs maintains over 70% of light output at 100,000 hours (L70>100,000 hours)

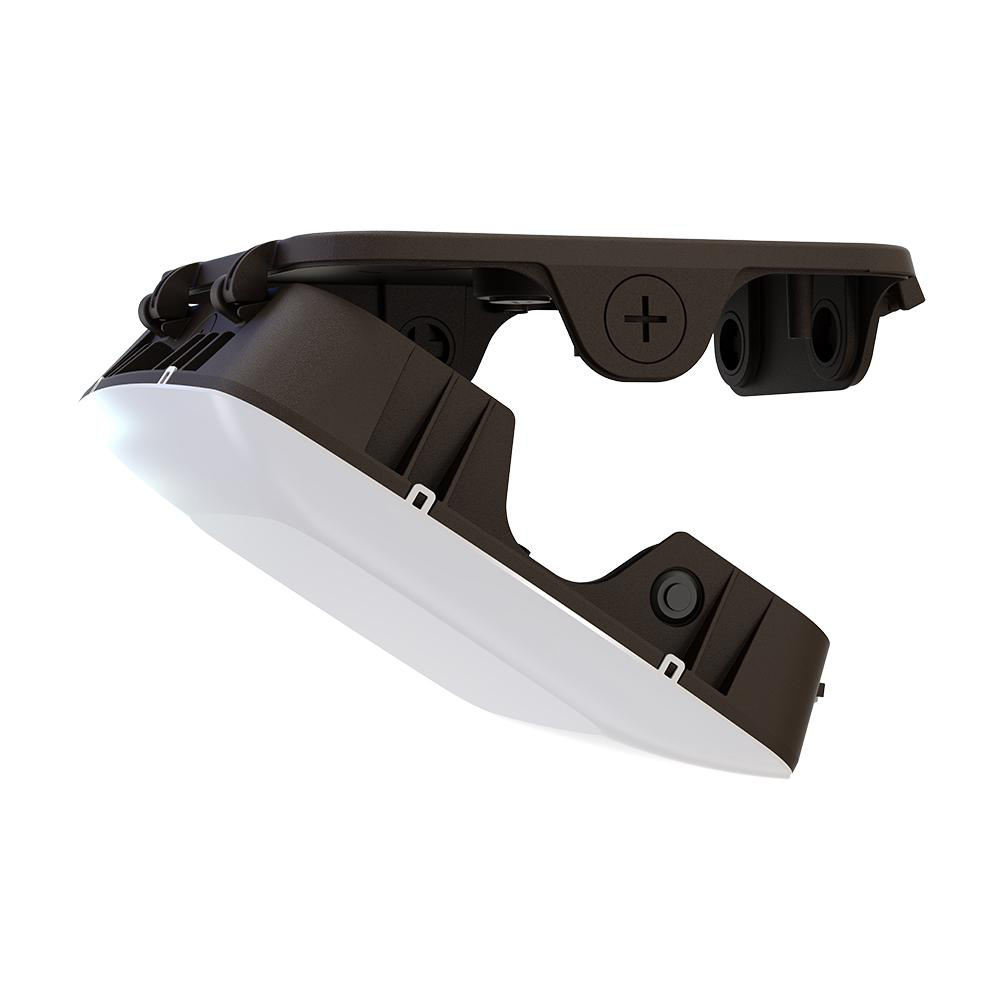

  • INSTALLATION: Quick-mount plate that makes mounting to a recessed junction box or conduit entry point both quick and trouble free and can be separated for surface mounting and reattached via a hinge for support while wiring

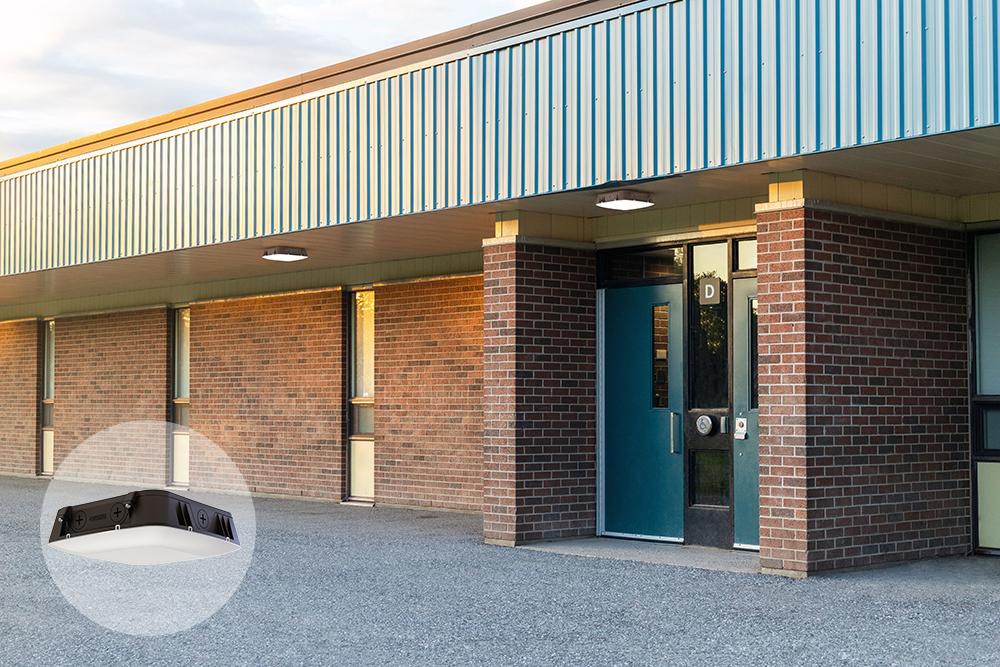

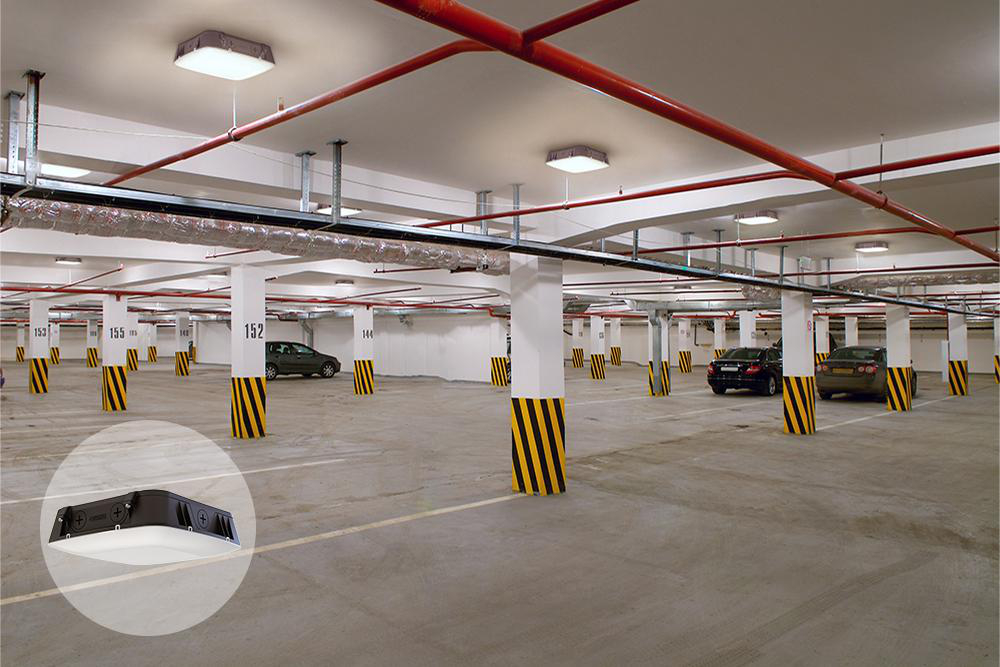

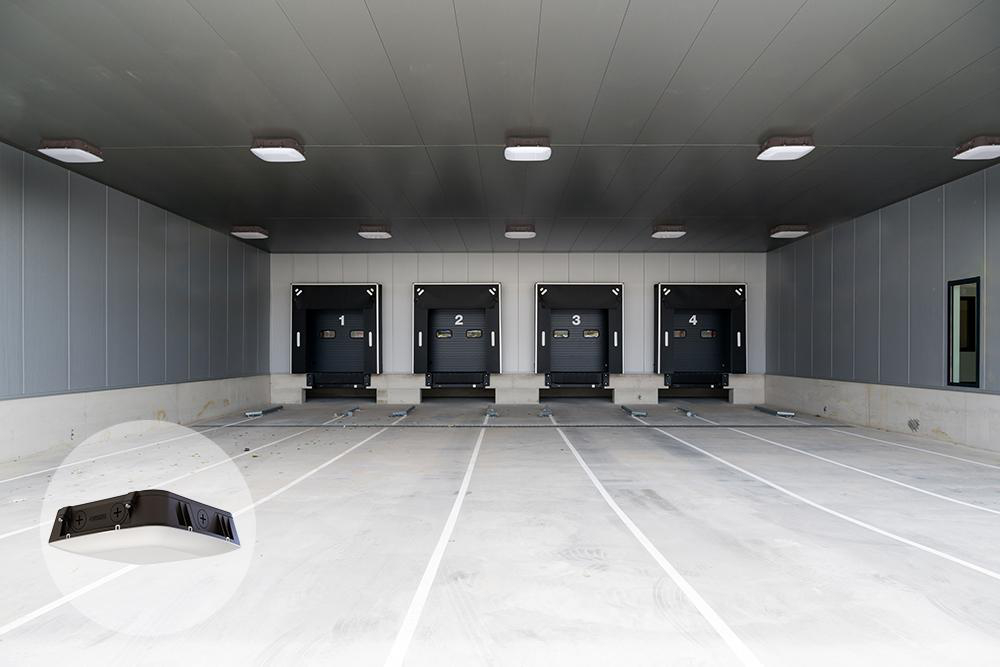

  • APPLICATIONS: Ideal for parking garages, building entrances and walkways
  • DIMENSIONS: (w x h x d) 10 in. x 3 in. x 10 in.
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations. IP65. Tested in accordance with IESNA LM-79 and LM-80 standards. DesignLights Consortium® (DLC) Premium qualified product and DLC qualified product
