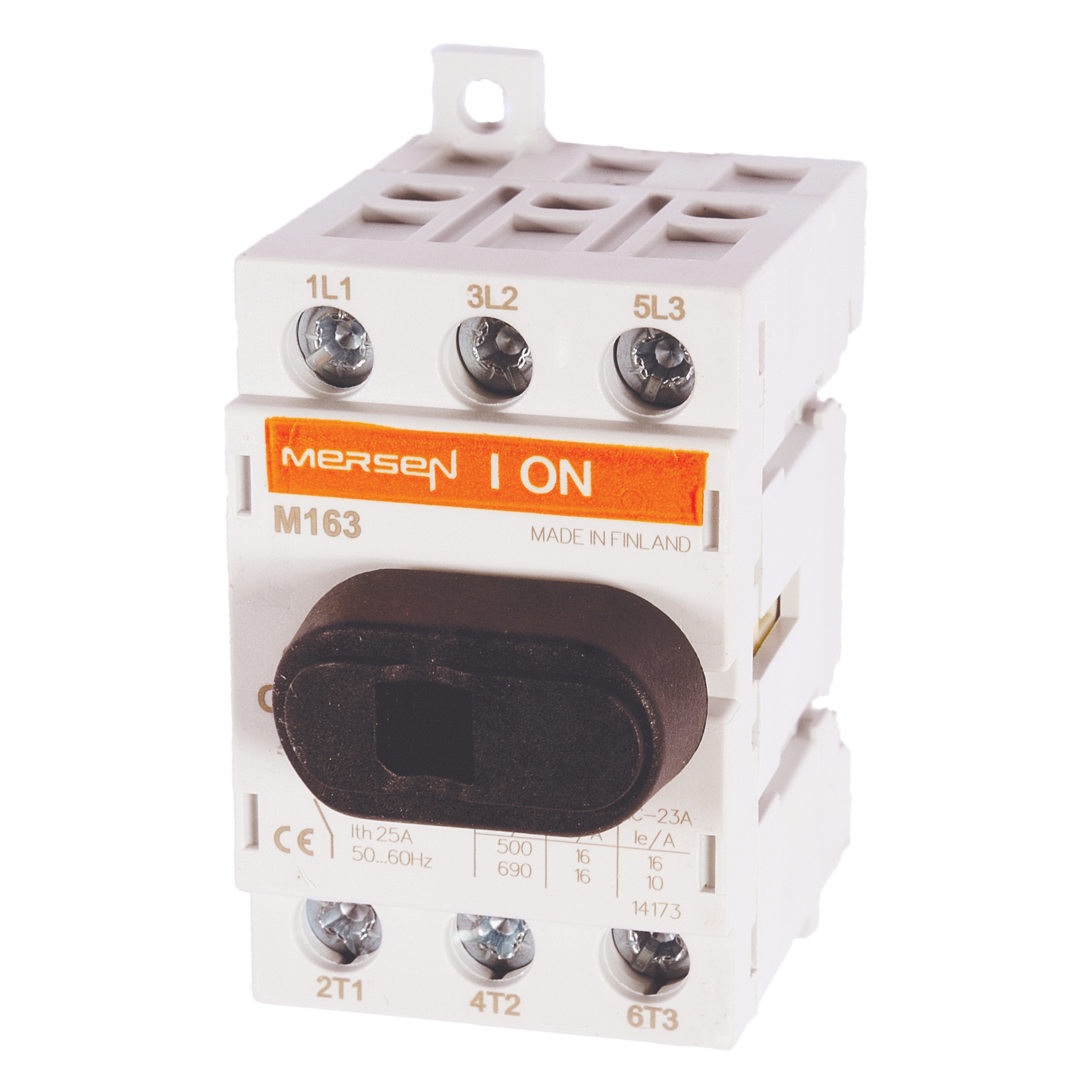

UL508 Switch 600VAC Non-Fused 16A 3-Pole Direct Screw Mount

Manufacturer: Ferraz Shawmut Mersen | Catalog # M163 | Electrozad South Part # 407192
$133.34 /ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet
The M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.

Technical Information

Amperage
16 A
Applications
Line of sight disconnect
Connection Type
Box
Max Operating Temperature
40 degrees C
Minimum Operating Temperature
-5 degrees C
Mounting Type
Direct Screw Mount
Number of Poles
3
Rated Insulation Voltage
750 V
Rated Voltage AC
600 V
Rated Voltage DC
0 V
Short Circuit Current Rating
10000 A
TC Connection
Tunnel Terminal
Terminal Type
Box
Torque
7 lb-in
Torque Rating
7 lb-in
Type
UL/CSA Switches
Voltage
600 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
3605340557411
GTIN
33605340557412
Weight
0.24 lb

Dimensions

Height
1.77 in
Length
2.13 in
Width
1.38 in

Certifications & Compliance

Country of Origin
Finland
