Pan-Lug™ LAB1/0-12-X Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LAB1/0-12-X | Electrozad South Part # 401189
$2,614.22 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

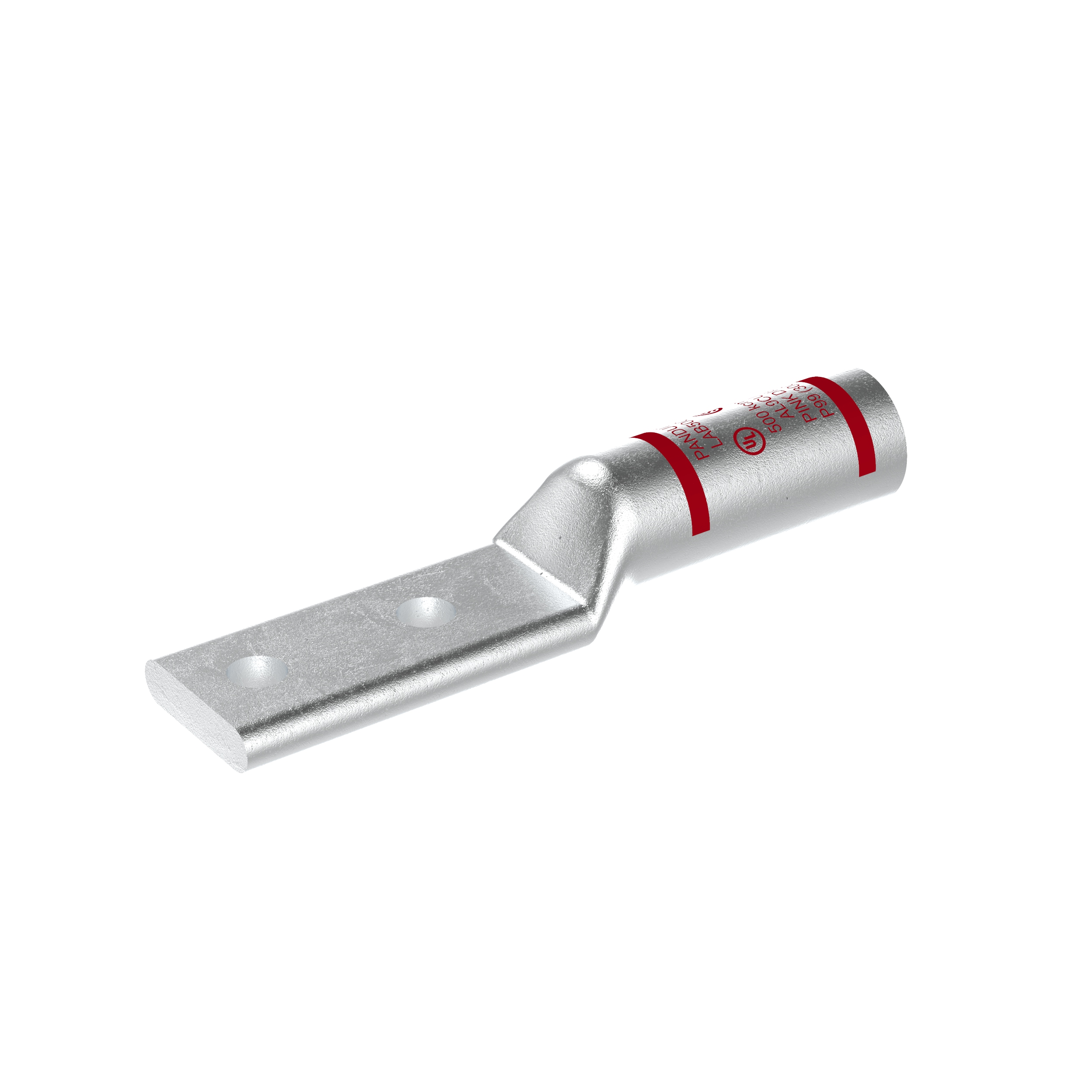

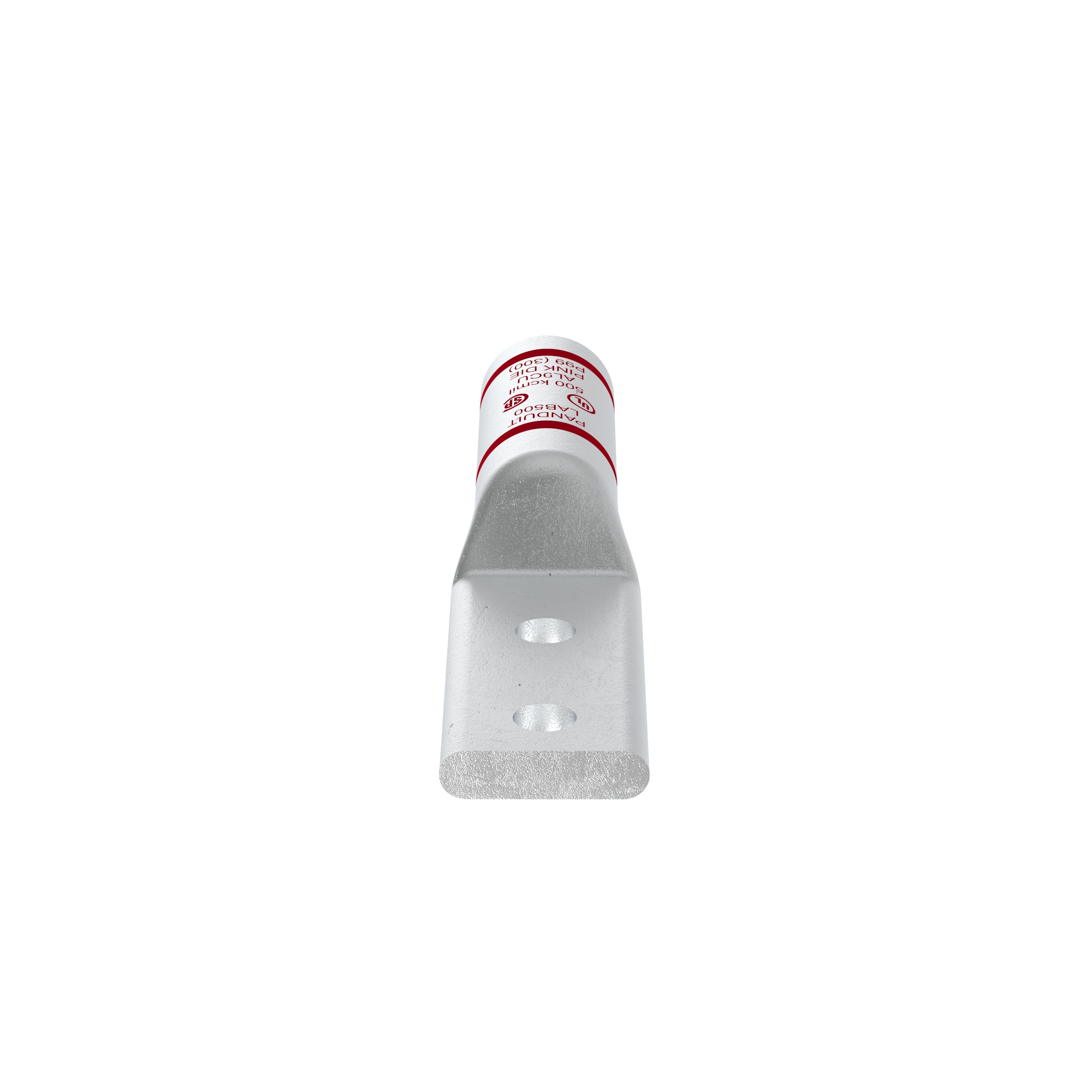

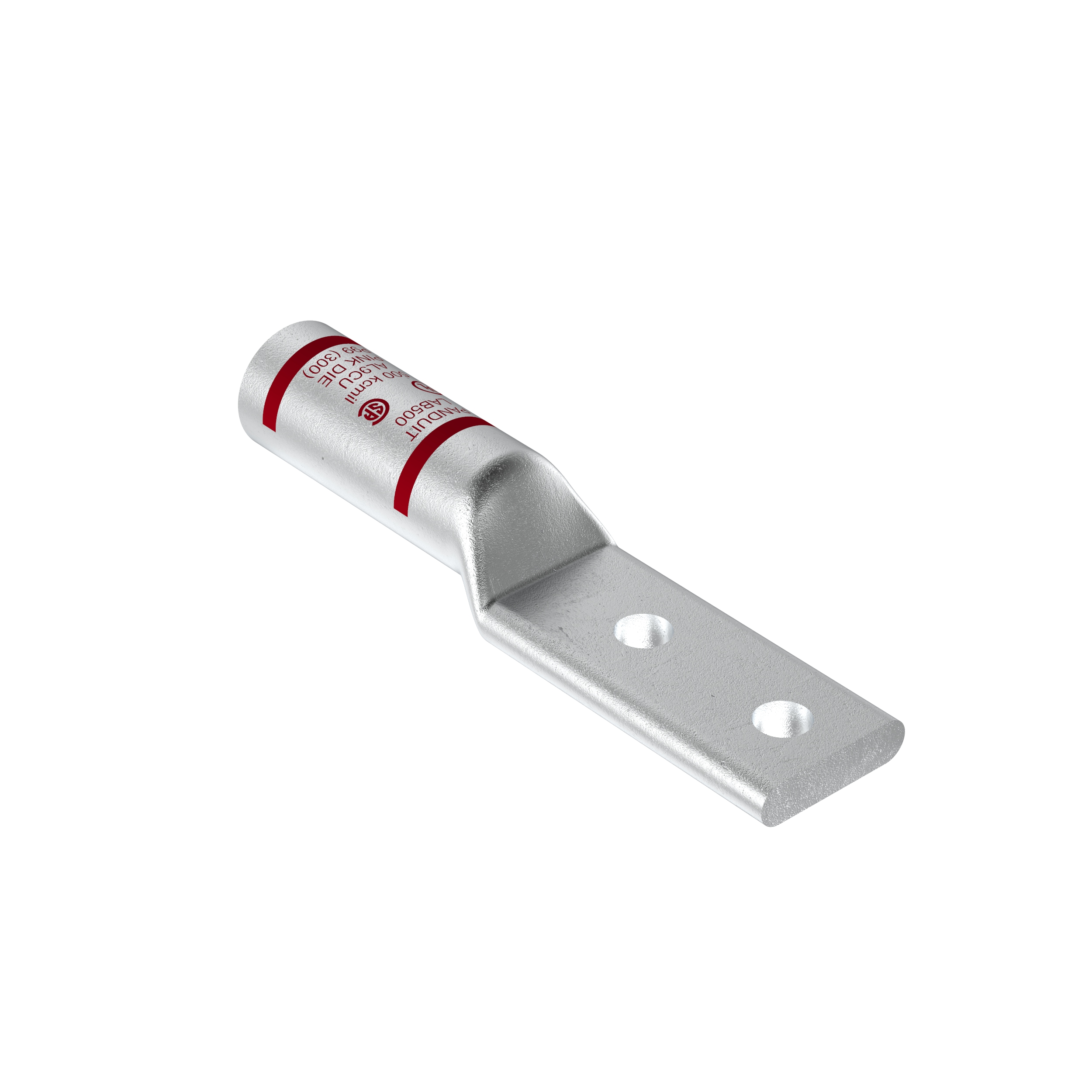

The LAB1/0-12-X Aluminum Compression Connector Lug, two-hole, is manufactured from high conductivity thick wall aluminum with an enclosed barrel for harsh environments. The color-coded barrels are marked with Panduit and specified competitor die index numbers for proper crimp die selection. Factory pre-filled with joint compound and tin-plated to inhibit corrosion. cULus listed up to 35kV and temperature rated to 90..C.

Technical Information

Applications
Stranded Aluminum or Copper Code Conductor
Barrel Length
1.5 in
Base Material
Aluminum
Color Coding
Tan
Material
Aluminum
Tongue Thickness
0.23 in
Tongue Type
Standard
Tongue Width
0.88 in
Type
Compression Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983025909
Color
Other
GTIN
00074983025909
Product UPC
07498302590

Dimensions

Overall Length
5.39 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
India
