Pan-Lug™ LAM2A250-38-X Al Mech,250kcmil,Tin Plt,1hole,3/8"Stud,PK10

Manufacturer: Panduit | Catalog # LAM2A250-38-X | Electrozad South Part # 398440
$2,243.76 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

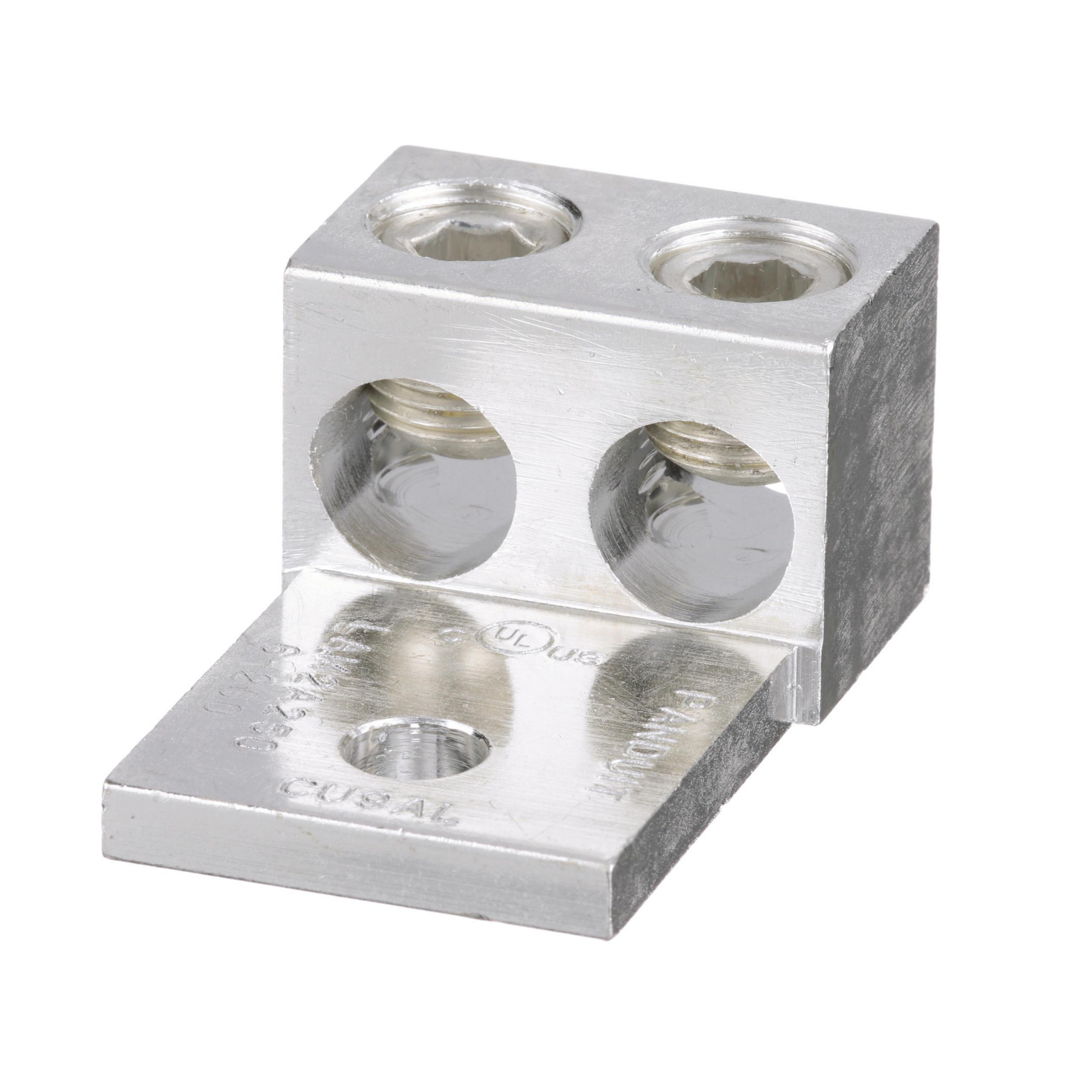

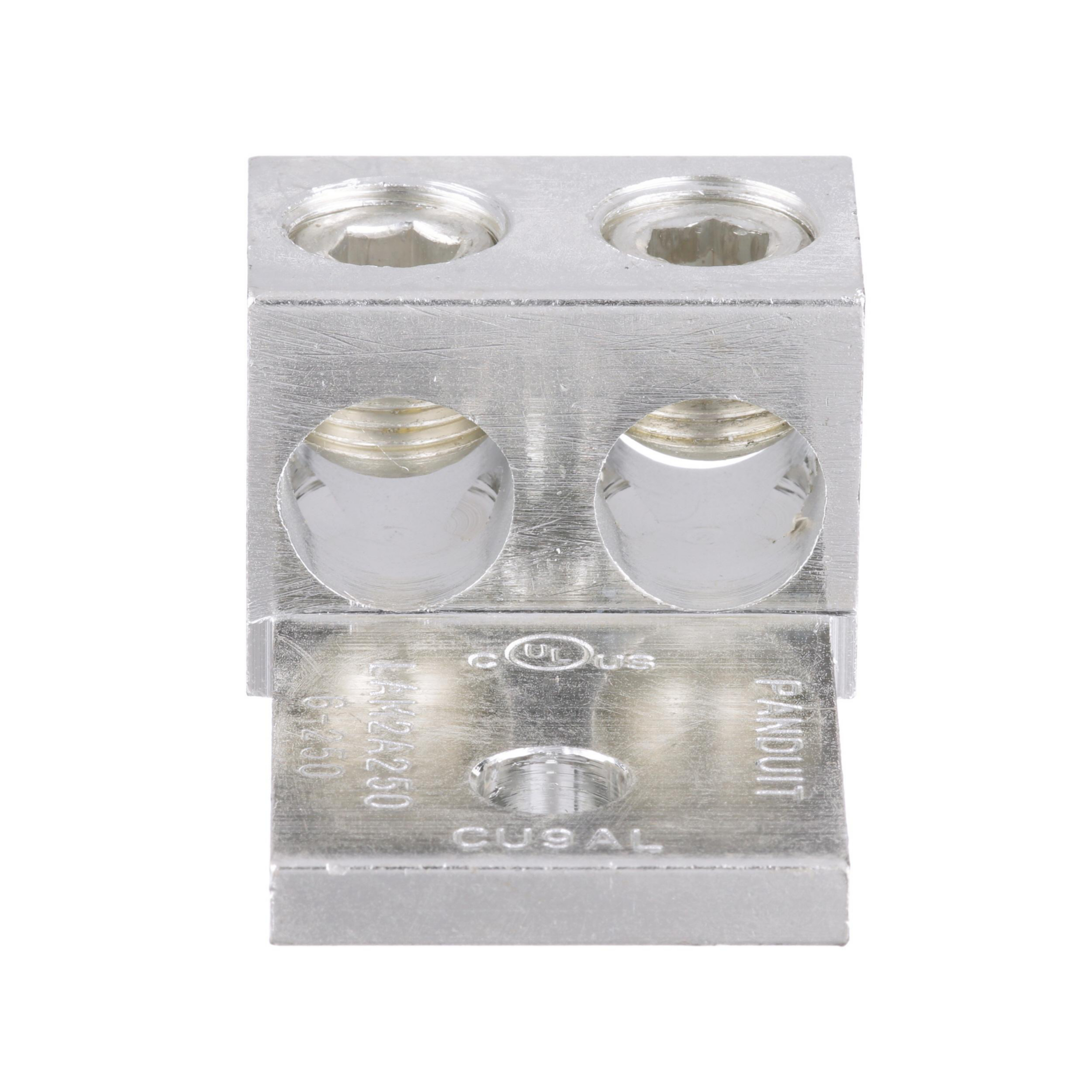

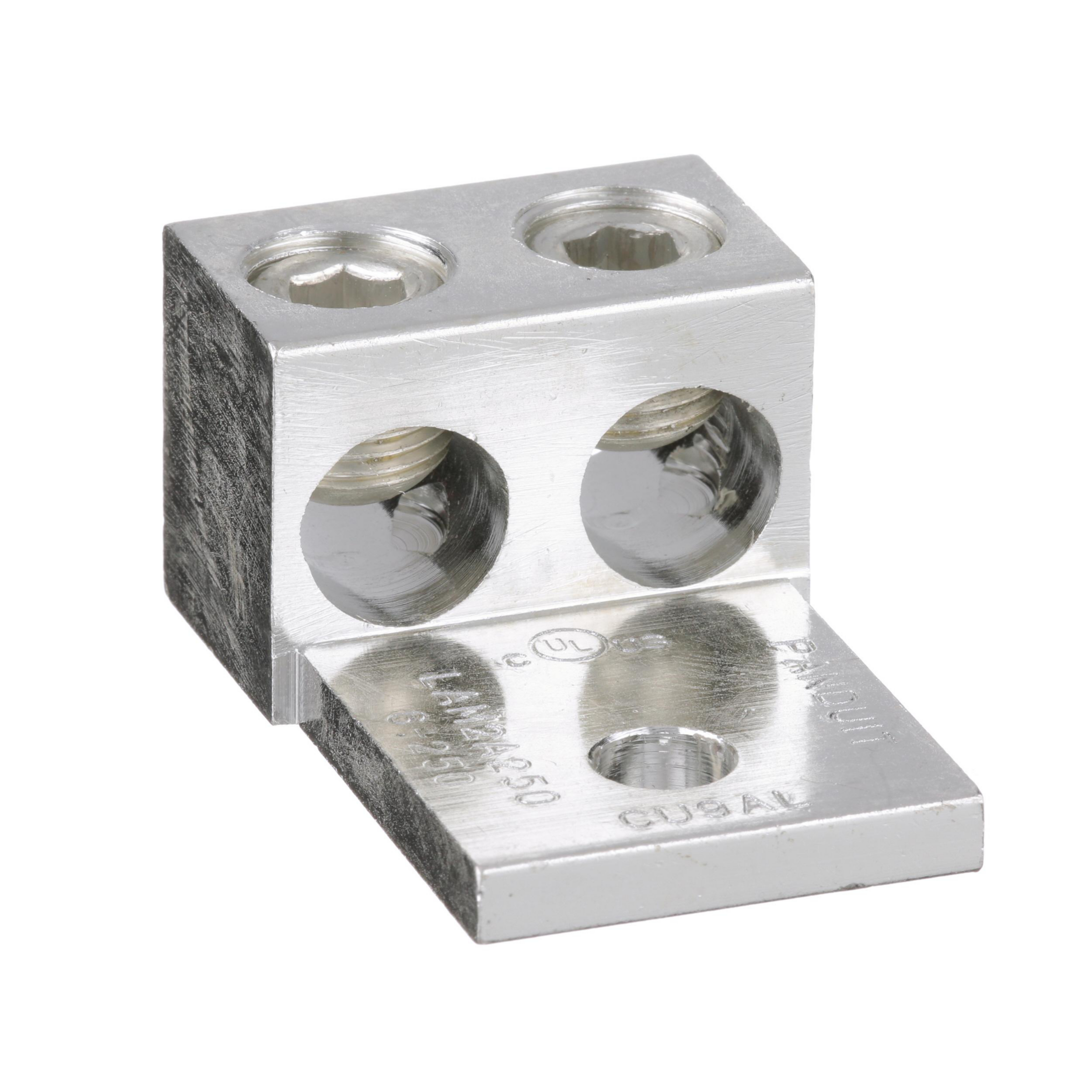

The LAM2A250-38-X Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Technical Information

Applications
Stranded Aluminum or Copper Code Conductor
Barrel Length
1.01 in
Cable Size
AWG
Material
Aluminum
Number of Holes
1
Stud Size
3/8 In.
Tongue Thickness
0.26 in
Tongue Type
Straight
Tongue Width
1.5 in
Type
Mechanical Lug

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056878433
GTIN
00613056878433
Product UPC
61305687843

Dimensions

Height
1.19 in
Overall Length
2.58 in
Width
1.64 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
India
