Pan-Lug™ LAM2A1/0-14-Q Al Mech,1/0,Tin Plt,1 hole,1/4" Stud,PK25

Manufacturer: Panduit | Catalog # LAM2A1/0-14-Q | Electrozad South Part # 398284
$851.56 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

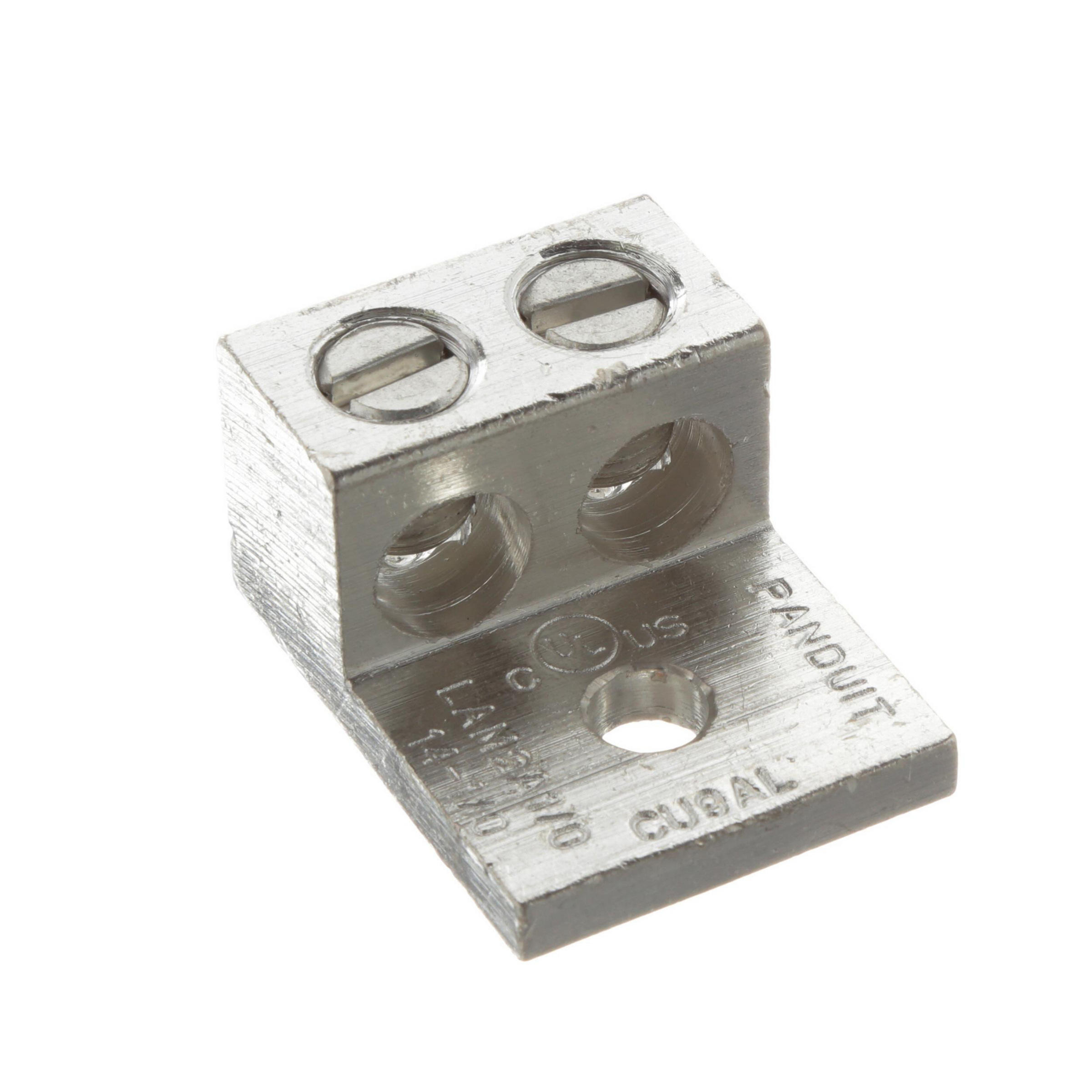

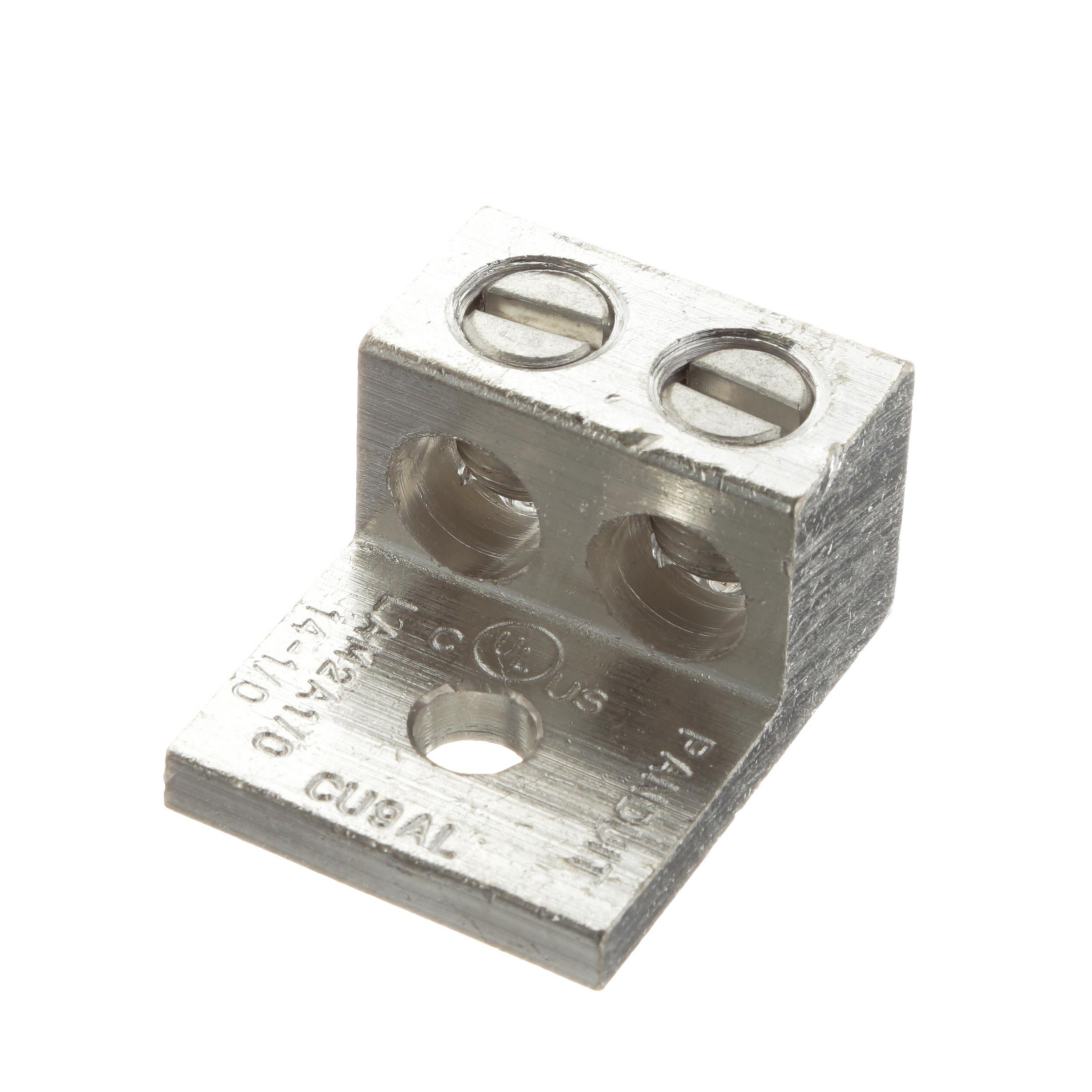

The LAM2A1/0-14-Q Tin-Plated Aluminum Mechanical Lug, one-hole, two barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and Lug. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.

Technical Information

Applications
Stranded Aluminum or Copper Code Conductor
Barrel Length
0.63 in
Cable Size
AWG
Material
Aluminum
Number of Holes
1
Stud Size
1/4 In.
Tongue Thickness
0.19 in
Tongue Type
Straight
Tongue Width
1.13 in
Type
Mechanical Lug

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056878419
GTIN
00613056878419
Product UPC
61305687841

Dimensions

Height
0.77 in
Overall Length
1.48 in
Width
1.13 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
India
