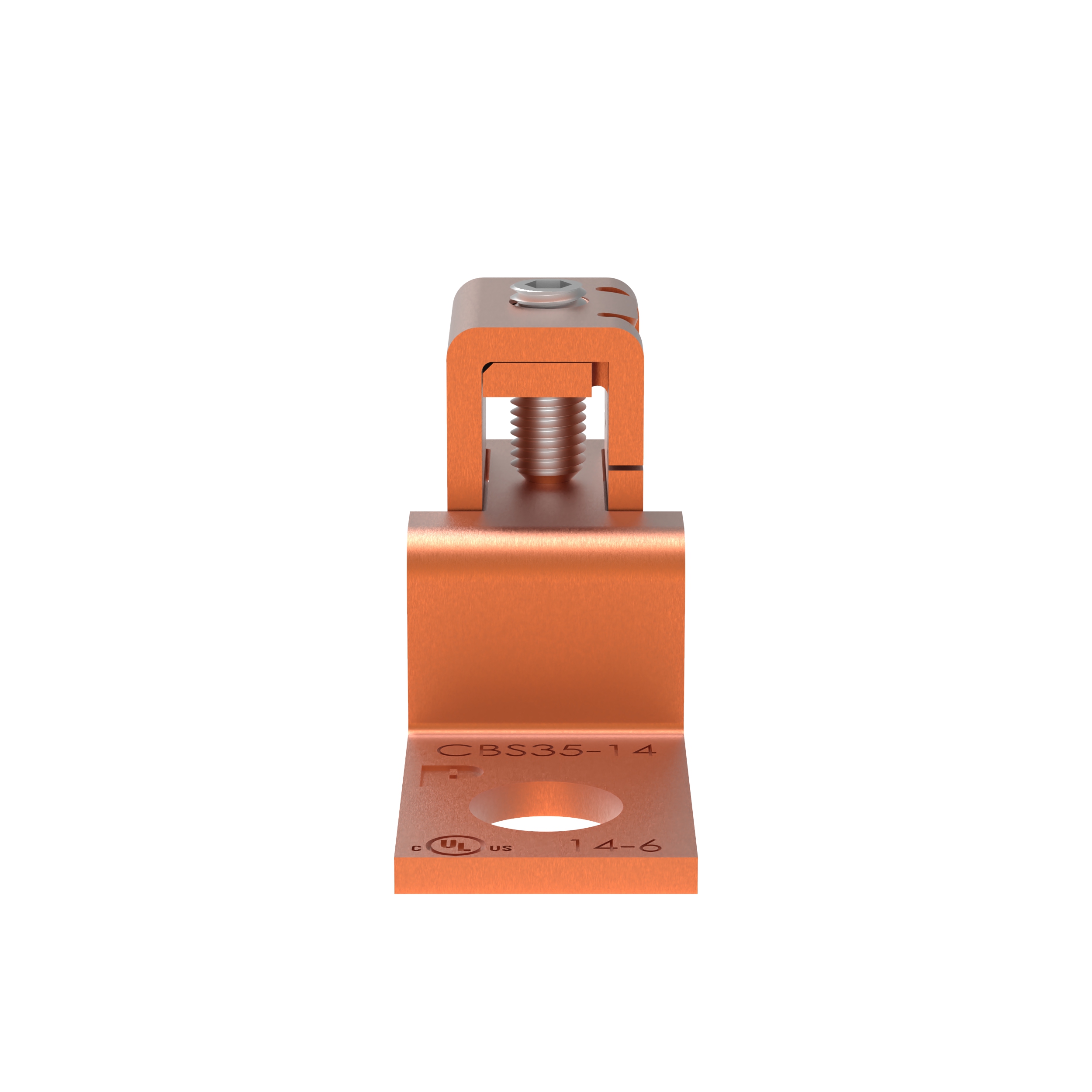

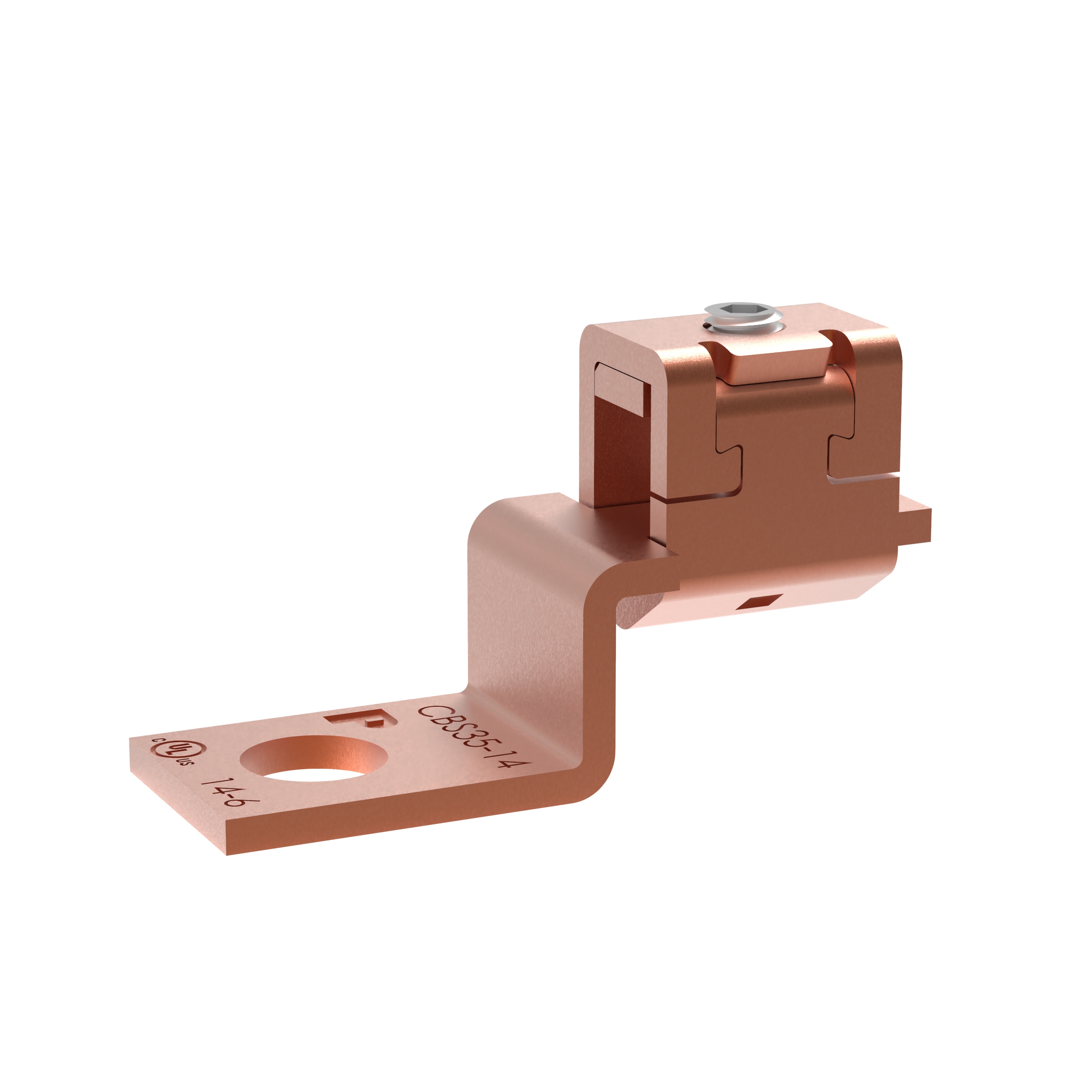

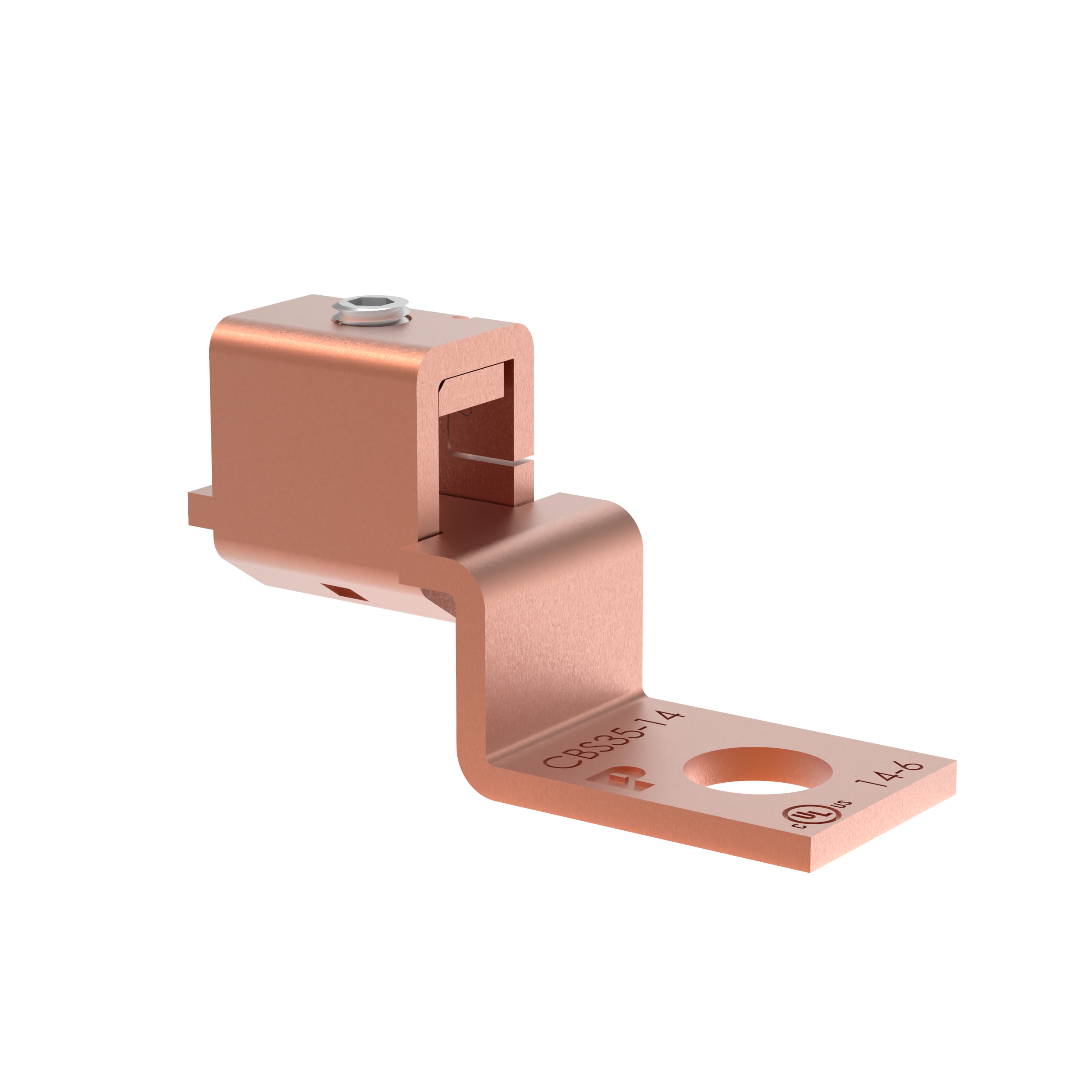

Product image for Pan-Lug™ CBS35-14-C Mechanical Connectors - Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pan-Lug™ CBS35-14-C Mechanical Connectors - Lug

Manufacturer: Panduit | Catalog # CBS35-14-C | Electrozad South Part # 392745
$392.24 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The CBS35-14-C Mechanical Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Barrel Length
0.47 in
Cable Size
AWG
Material
Copper
Number of Holes
1
Stud Size
1/4 In.
Tongue Thickness
0.06 in
Tongue Type
Offset Floating
Tongue Width
0.67 in
Type
Mechanical Lug

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056260696
GTIN
00613056260696
Product UPC
61305626069

Dimensions

Height
0.55 in
Overall Length
1.43 in
Width
0.5 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
Mexico
