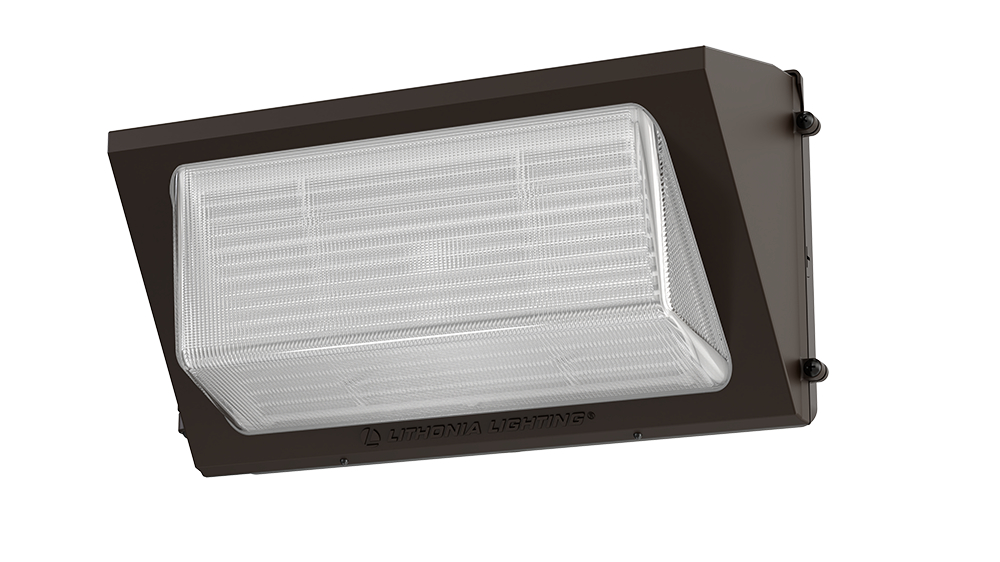

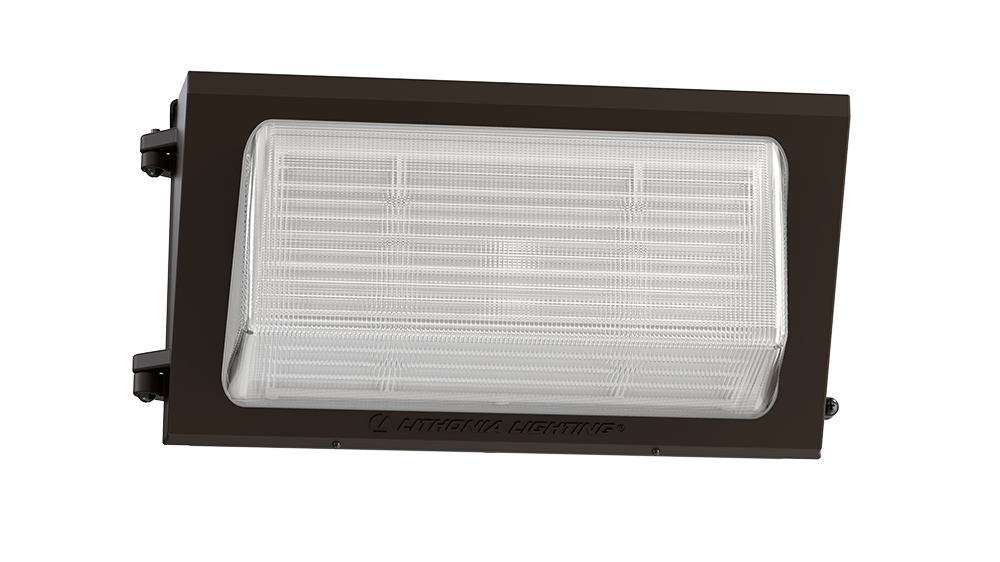

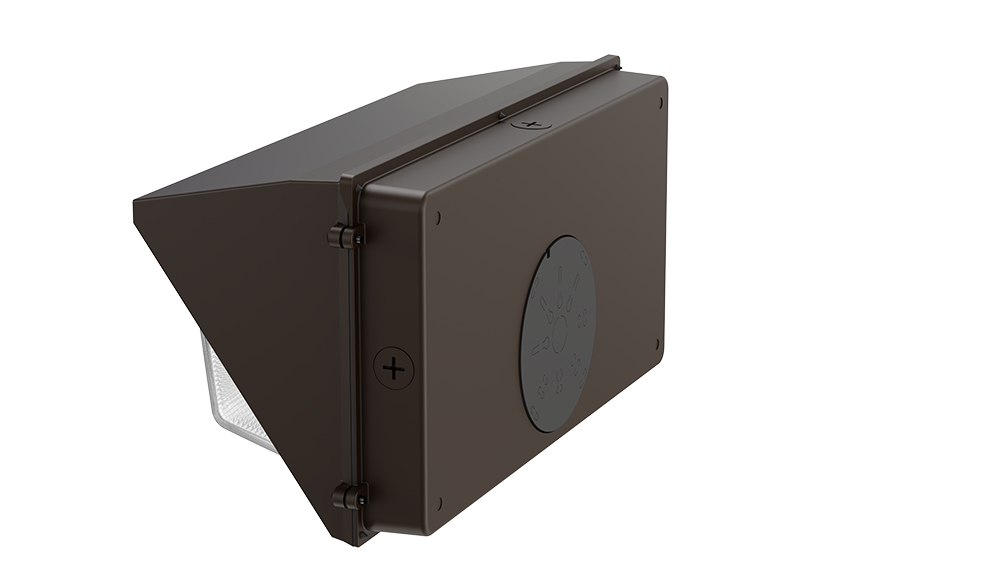

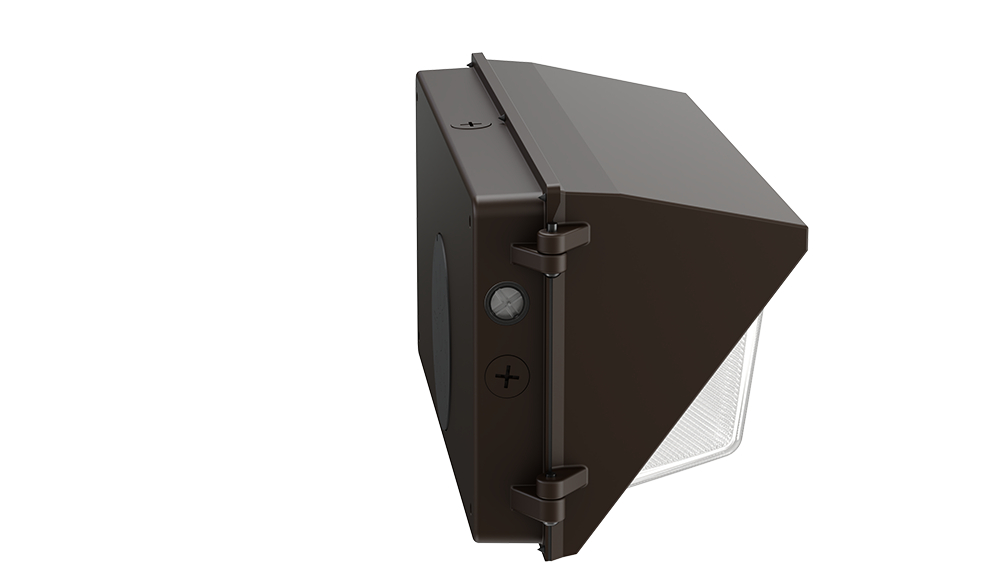

Product image for TWR2V, LED, ADJUSTABLE LIGHT OUTPUT, SWI
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9

To:
CC:

TWR2V, LED, ADJUSTABLE LIGHT OUTPUT, SWI

Manufacturer: Lithonia Lighting | Catalog # TWR2 LED ALO SWW2 UVOLT PE DDBTXD | Electrozad South Part # 390458

$252.31 /ea
ea
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check another branch
The TWR2 LED wall pack offers a classic appearance with a traditional shape and is loaded with modern features including three adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell. TWR2 provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy. TWR2 is powerful yet efficient, delivering 8,200 - 16,100 lumens and capable of replacing up to a 400w HID while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR2 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. Designed to provide a cost-effective, energy-efficient solution when replacing the entire site or only a portion of the buildings wall packs. TWR2 is the ideal choice for outdoor wall-mounted applications including loading areas, building facades, driveways, and parking areas.

Technical Information

Applications
Education,Hospitality,Offices & Banks
Color Rendering Index
80
Color Temperature
3000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Material
Glass
Lumens
8200 lm
Material
Aluminum
Mounting Type
Surface
Number of Lamps
1
Standard
C-UL-US
Style
Traditional
Type
Wallpack
Voltage
120 V
Wattage
112 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196183390028
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Textured
GTIN
00196183390028
Product Type
Wallpack
Product UPC
19618339002
Shape
Rectangular
Weight
12.1 lb

Dimensions

Height
9.2 in
Length
7.9 in
Warranty Length
5 yr
Width
17.1 in

Certifications & Compliance

Country of Origin
Taiwan
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: UVOLT for 120-347V (50/60Hz)
  • INSTALLATION: Designed for wall mounting above four feet from ground. Housing is configured for mounting directly over a standard 4❠outlet box (by others) or for surface wiring via any of four convenient 1/2❠threaded conduit entry hubs
  • PHOTOCELL: Switchable photocell for dusk-to-dawn operation
  • DESIGN: The Lithonia Lighting® TWR2 LED Wall Pack is equipped with adjustable lumen output (up to 16,100 lumens), switchable CCT (30K/40K/50K), and a switchable photocell allowing the contractor to customize to a level perfectly suited for the job site
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
  • HOURS OF LIFE: LEDs maintain 90% of light output at 100,000 hours of service or L90/100,000 hours
  • BATTERY BACKUP: Not available
  • DIMENSIONS: 17.1\" W x 9.2\" H x 7.9\" D
  • RATINGS: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium® (DLC) qualified product
