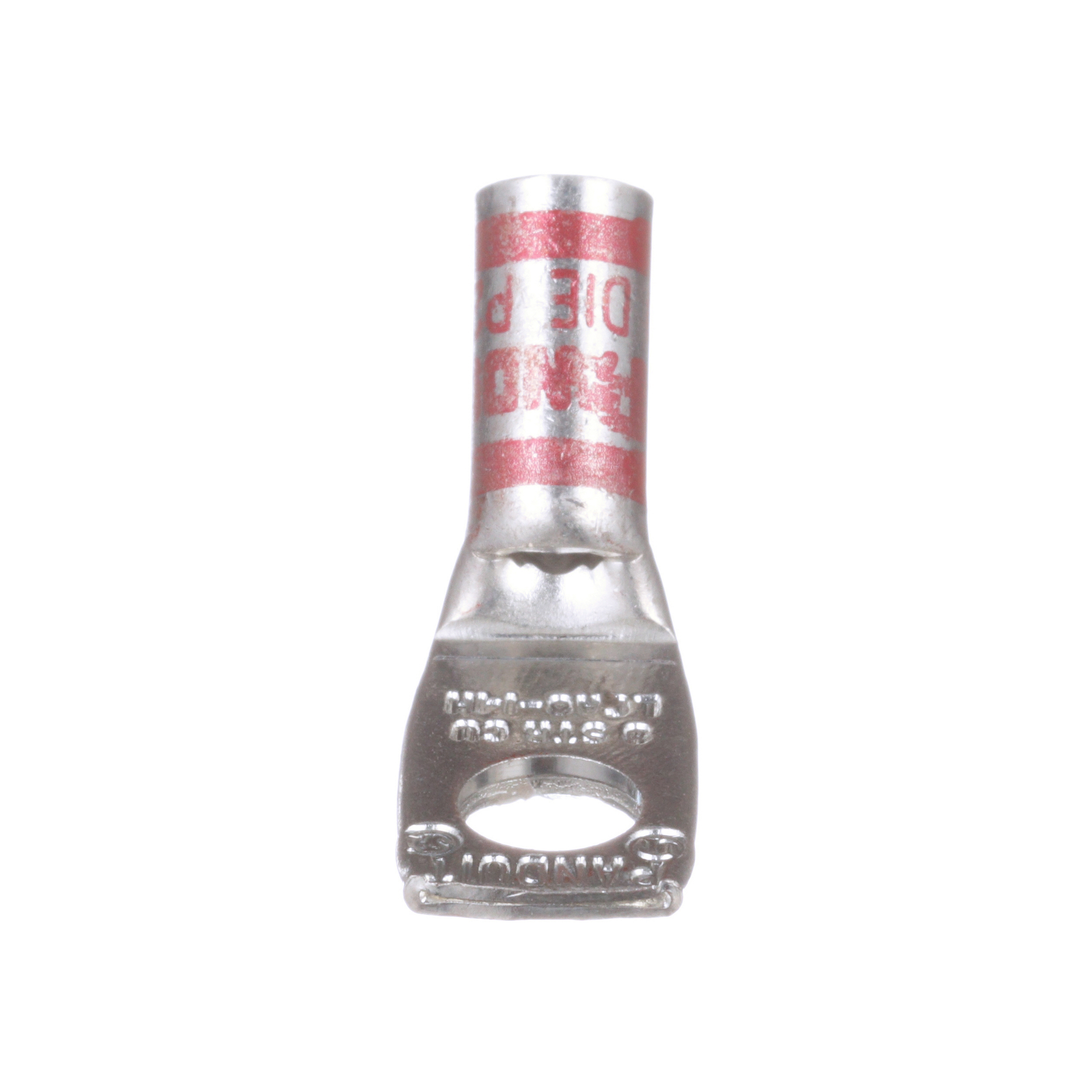

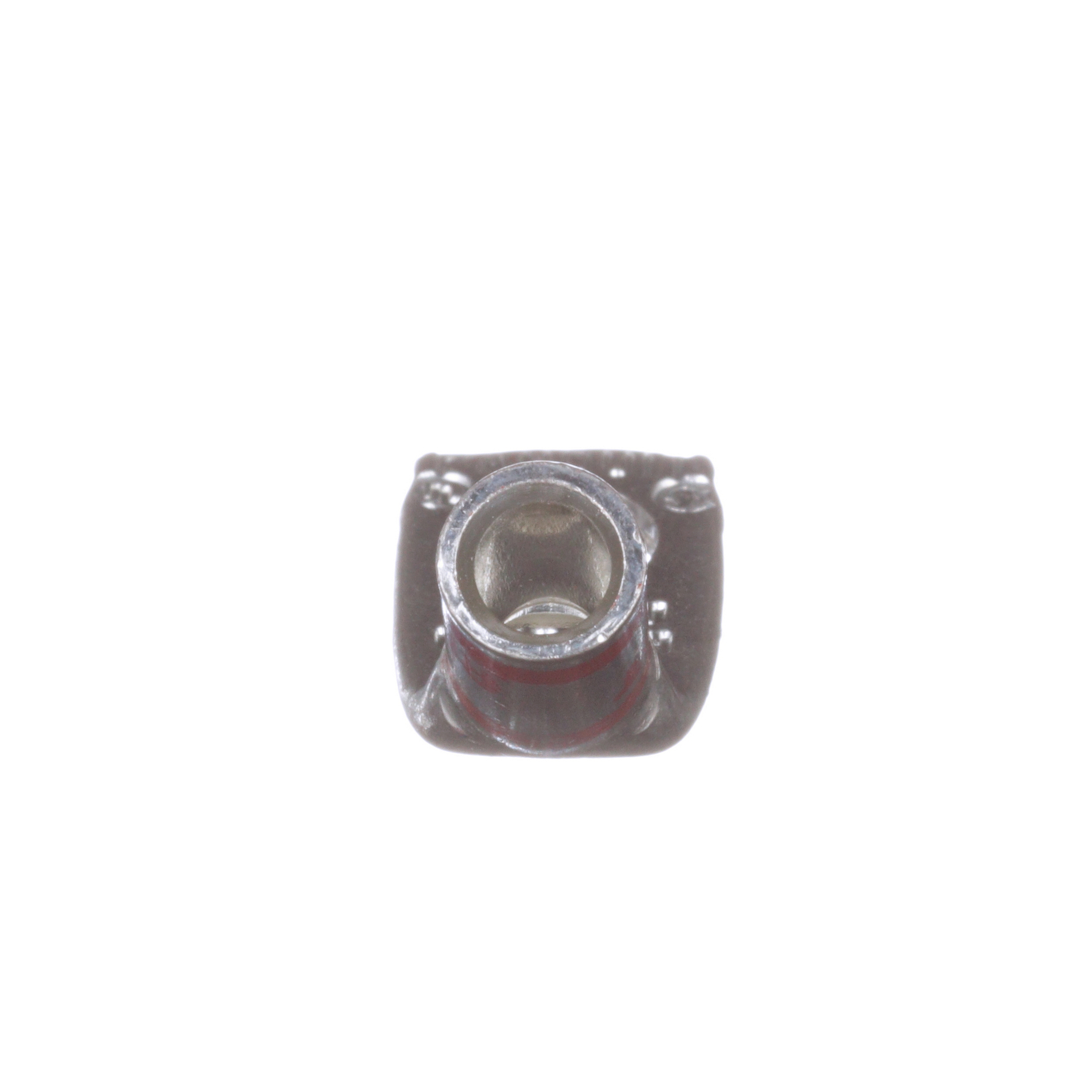

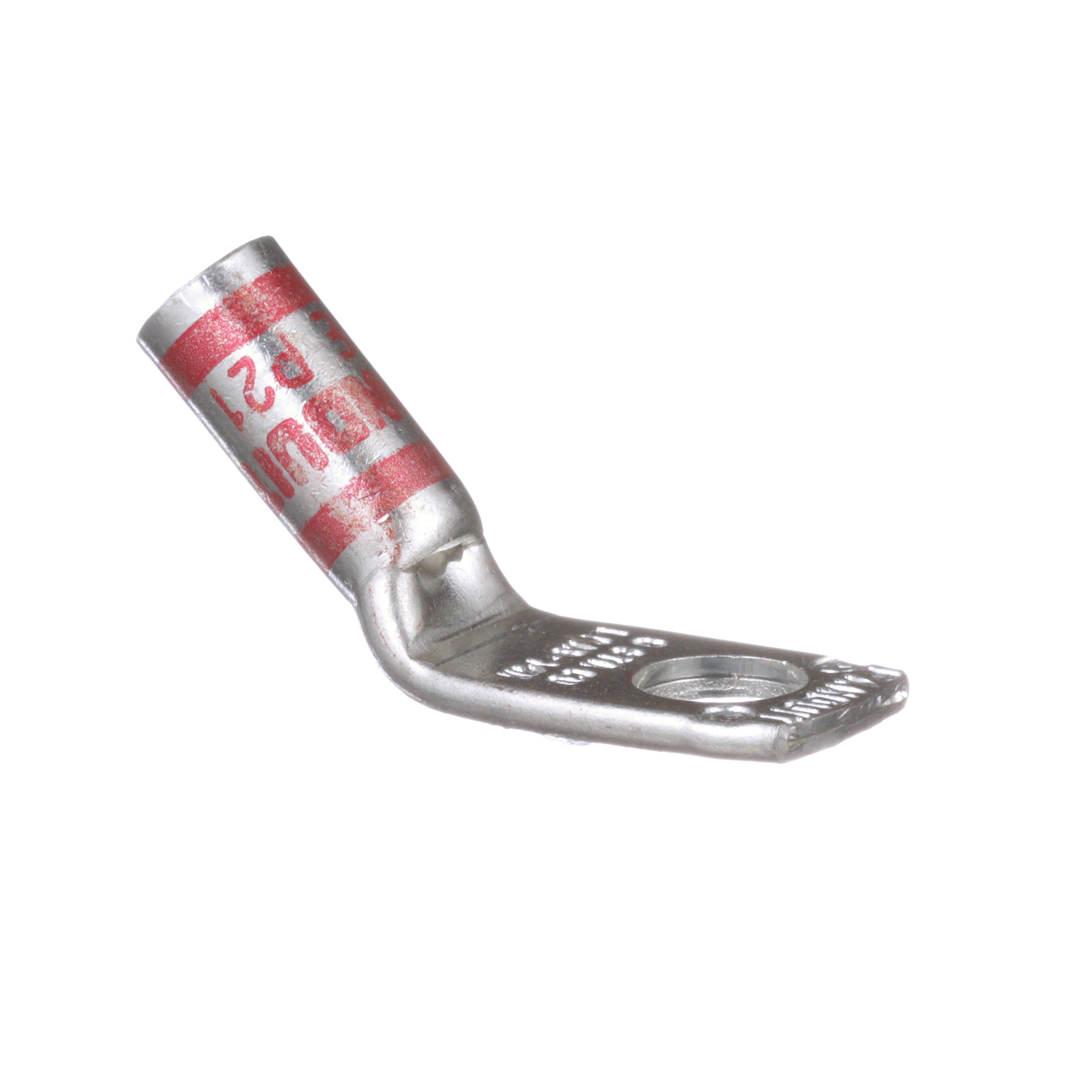

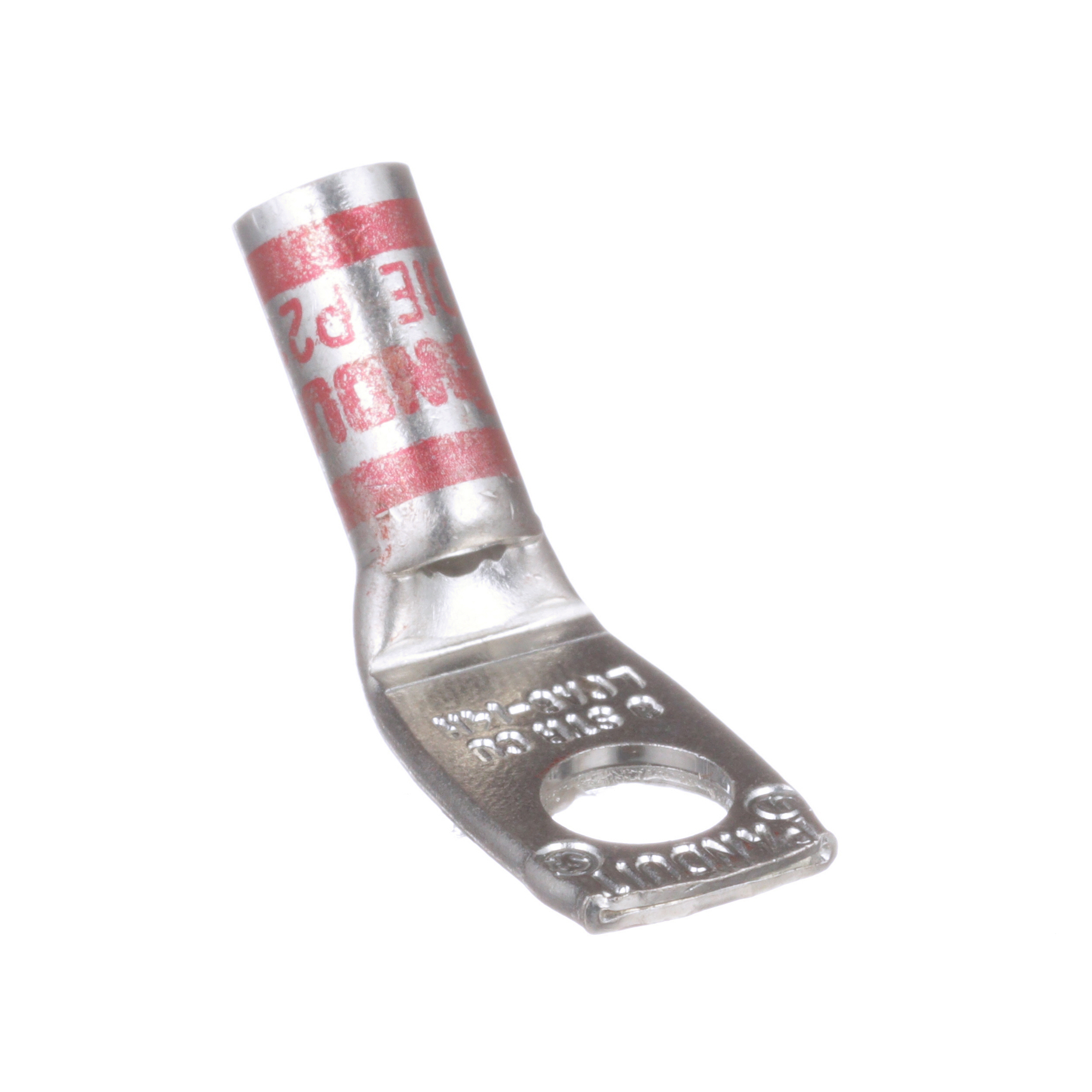

Product image for Pan-Lug™ LCA8-14H-L Copper Compression Connectors - Lugs
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Pan-Lug™ LCA8-14H-L Copper Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCA8-14H-L | Electrozad South Part # 389345
$573.27 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
One-hole, standard barrel with window lug, #8 AWG wire, 45.. angle tongue, 1/4 stud hole.

Technical Information

Angle
45°
Barrel Length
0.56 in
Barrel Type
Standard Barrel Length With Inspection Window
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
1
Size
#8 AWG Code
Stud Size
1/4 In.
Tongue Angle
45 degrees
Tongue Thickness
0.07 in
Tongue Type
Standard
Tongue Width
0.48 in
Type
Compression Lug

Packaging

Package Qty
50

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983558025
Color
Red
GTIN
00074983558025
Product UPC
07498355802
UNSPSC
39121405

Dimensions

Overall Length
1.19 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
