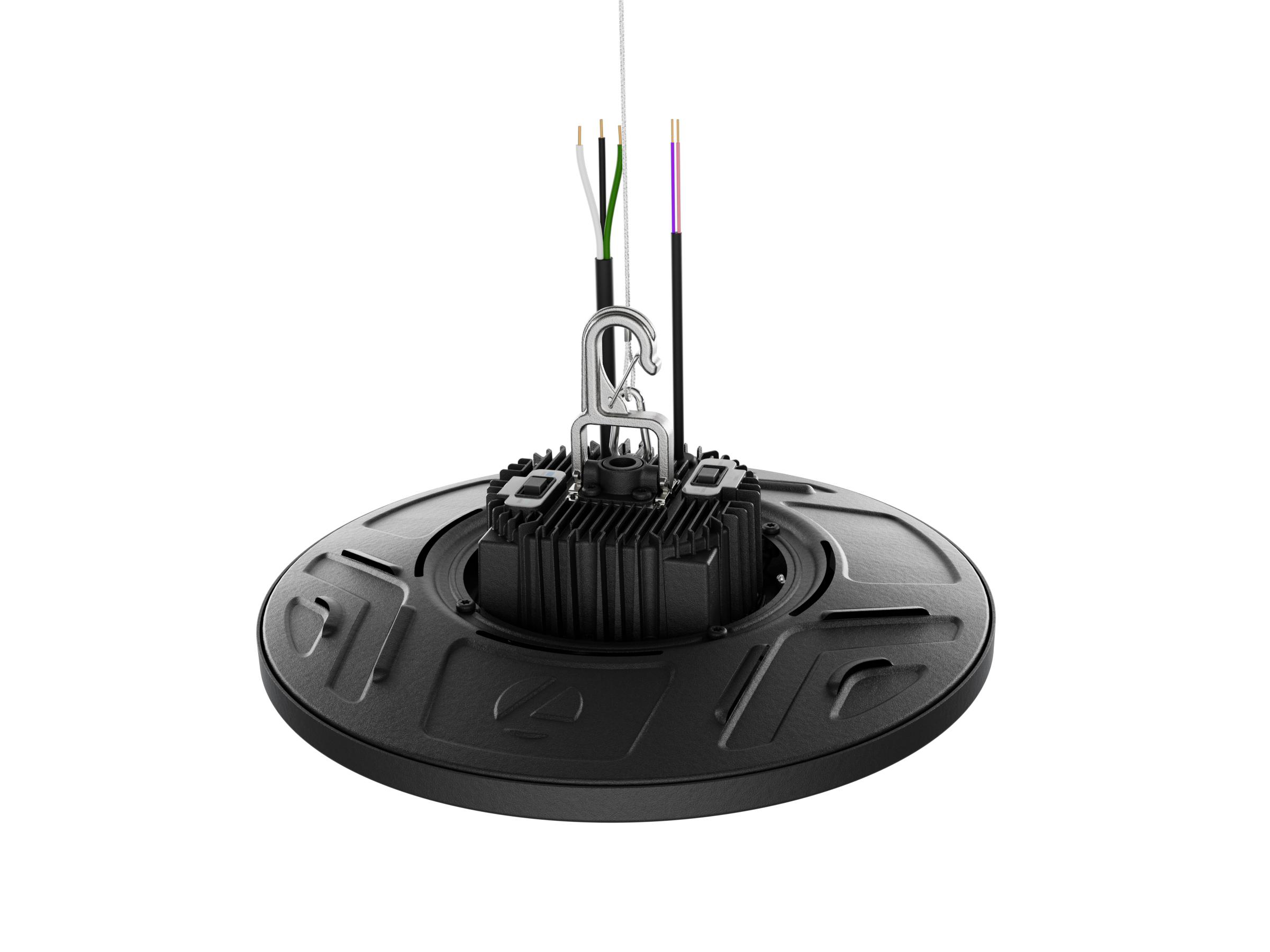

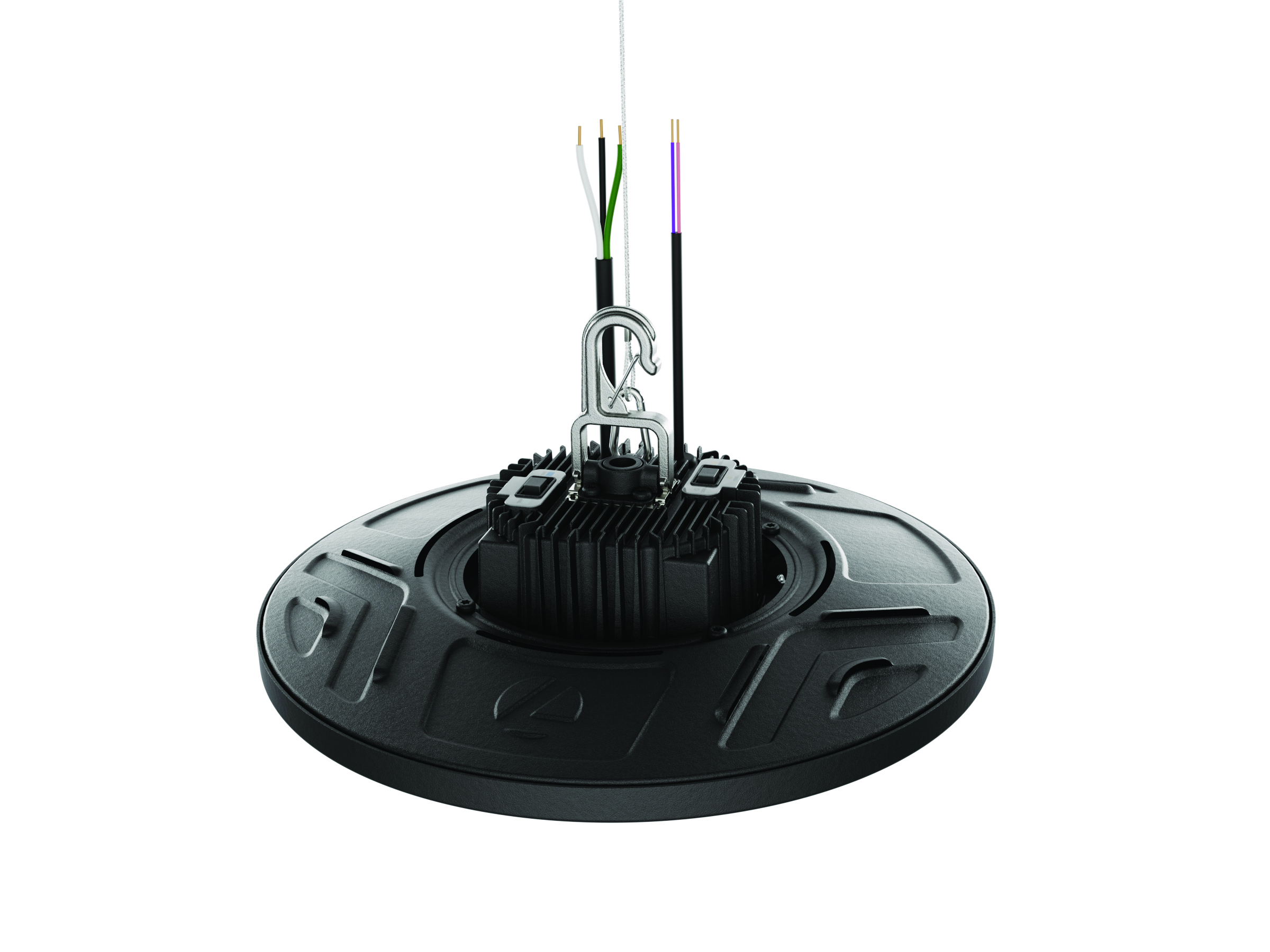

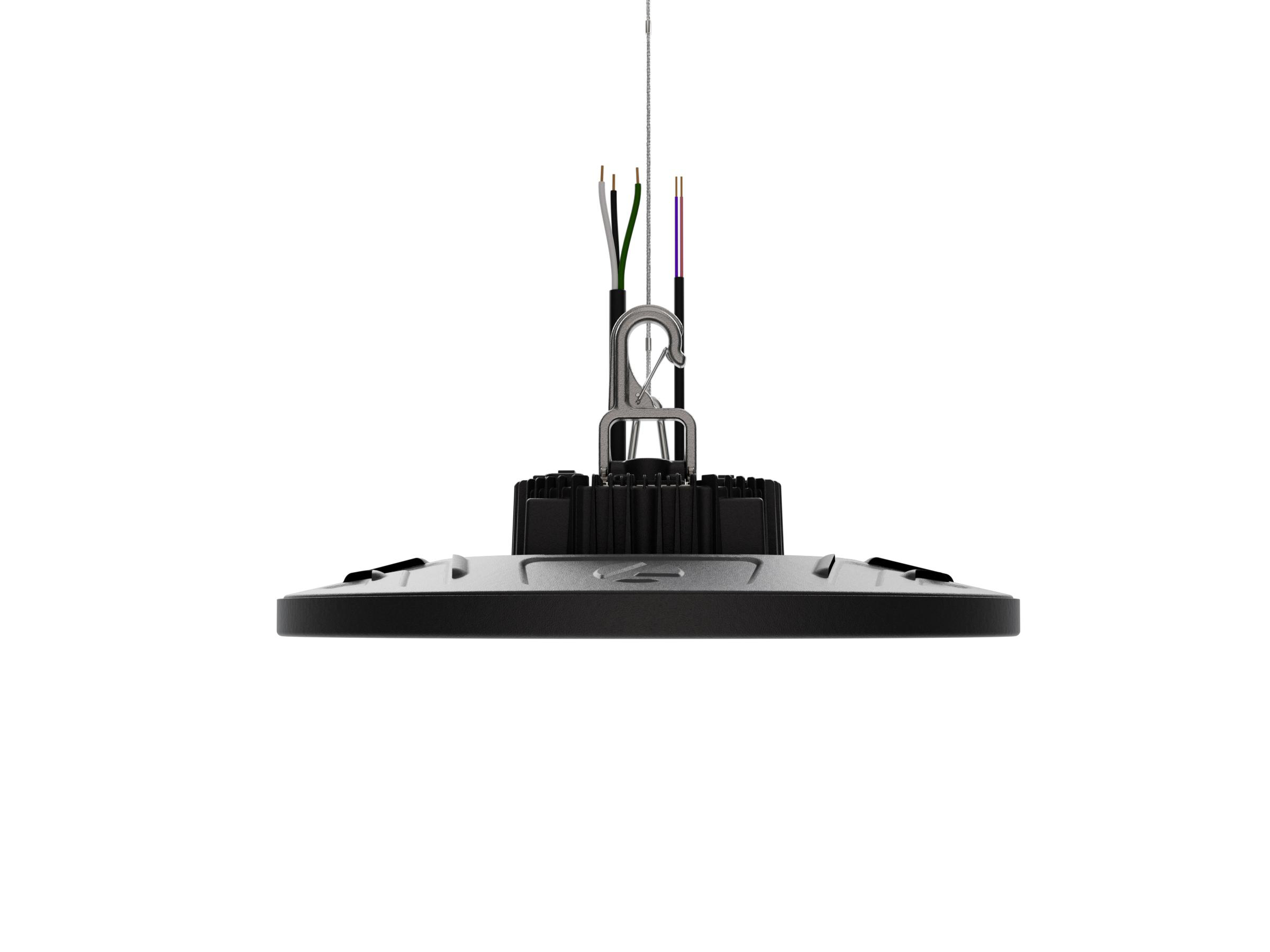

COMPACT PRO INDUSTRIAL LED ROUND HIGH BA

Manufacturer: Lithonia Lighting | Catalog # CPRB ALO14 UVOLT SWW9 80CRI DBL | Electrozad South Part # 387173
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Common Areas,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80 CRI
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
Switchable lm
Material
Steel
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Style
Traditional
Type
High Bay
Voltage
120 V
Wattage
194.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182615078
Color
Black
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
GTIN
00196182615078
Product UPC
19618261507
Shape
Round
Weight
6.1 lb

Dimensions

Height
3.35 in
Length
15.14 in
Width
15.14 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: UVOLT driver 120-347V
  • INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard
  • CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight® AIR Wireless Controls option

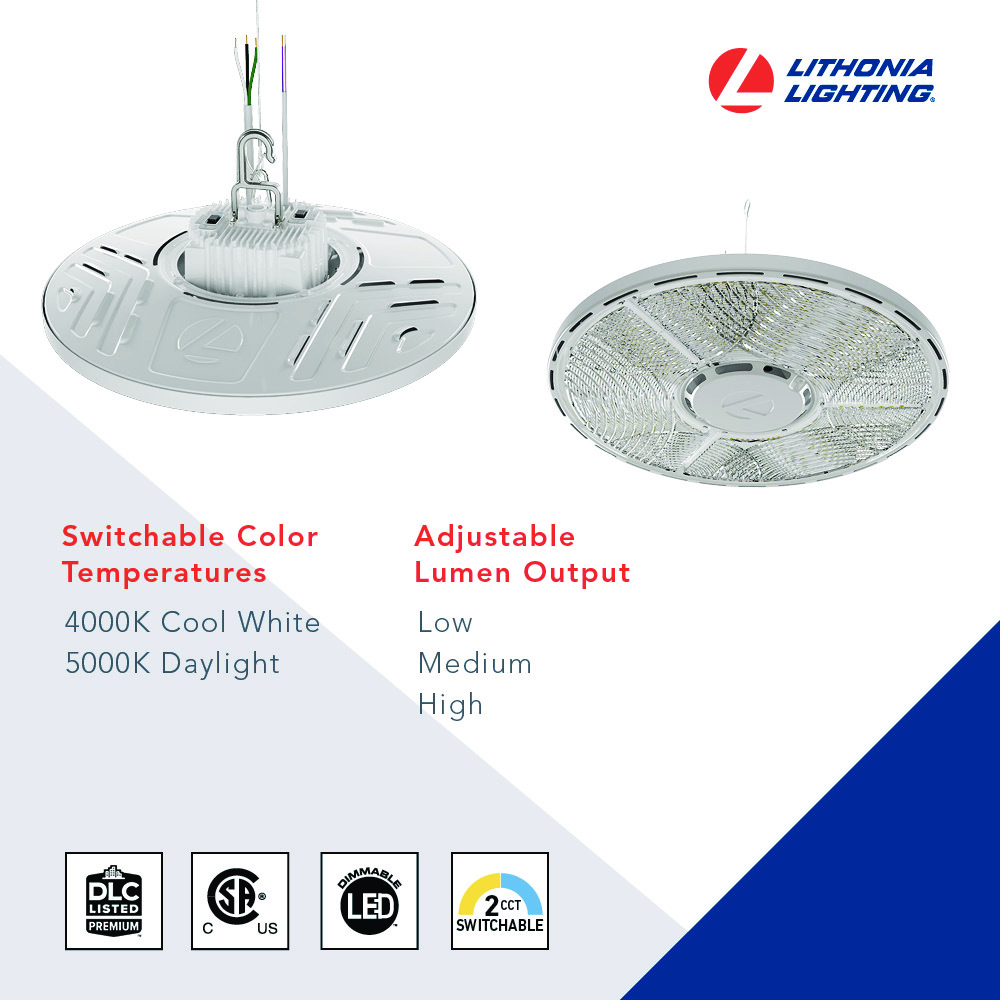

  • TECHNOLOGY: Adjustable Lumen Output (21000/24000/27000) and Switchable White (4000K/5000K) features allow for 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • BATTERY: Emergency battery pack, 40W AC output, sold separately
  • DIMENSIONS: 15.14 in. x 15.14 in. x 3.35 in.
  • RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -37°C to 55°C
