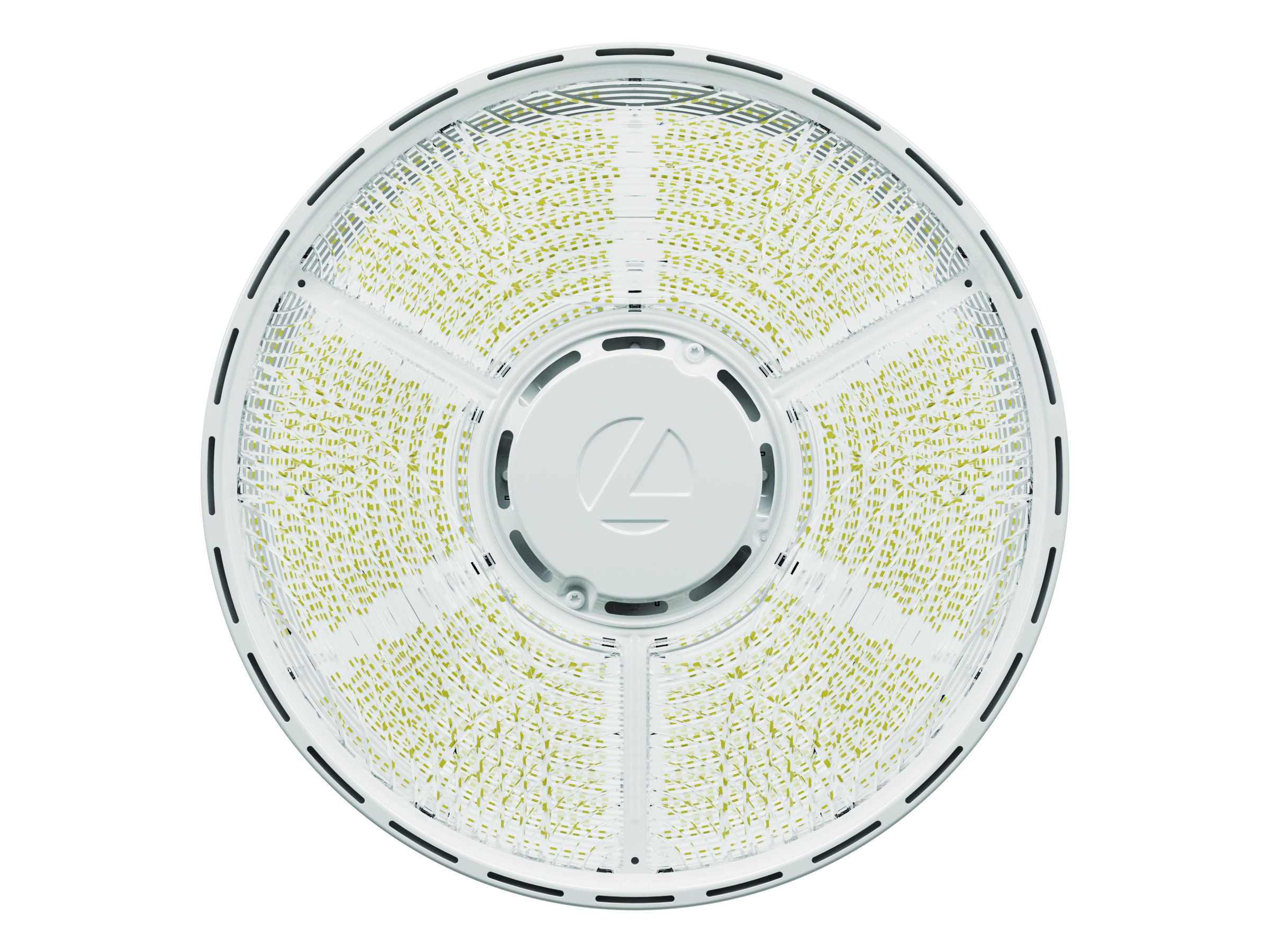

Product image for COMPACT PRO INDUSTRIAL LED ROUND HIGH BA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
To:
CC:

COMPACT PRO INDUSTRIAL LED ROUND HIGH BA

Manufacturer: Lithonia Lighting | Catalog # CPRB 24LM MVOLT 40K 80CRI DWH | Electrozad South Part # 387169
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
The Compact Pro High Bay (CPRB) is a budget-oriented high bay designed specifically with the contractor in mind. Its compact design makes it easier and quicker to install. CPRB is built with quality to last and performance to meet the needs of the job, making it the best choice for affordable and reliable light-duty industrial applications

Technical Information

Applications
Common Areas,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80
Color Temperature
4000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
24,000 lm
Material
Steel
Mounting Type
Pendant,Surface,Suspended
Standard
CSADLC Premium,DLC Standard
Style
Traditional
Type
High Bay
Voltage
120 V
Wattage
170.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182615498
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Product Type
High Bay
Product UPC
19618261549
Shape
Round
Weight
5.1 lb

Dimensions

Height
3.35 in
Length
15.14 in
Warranty Length
5 yr
Width
15.14 in

Certifications & Compliance

Country of Origin
China
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: Multi-volt driver 120-277V
  • INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard
  • CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight® AIR Wireless Controls option
  • TECHNOLOGY: Patent-pending Tri-Radial polycarbonate lens meets DLC 5.1 Premium glare rating which diffuses light the source and reduces glare while protecting LEDs
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • BATTERY: Emergency battery pack, 40W AC output, sold separately
  • DIMENSIONS: 15.14 in. x 15.14 in. x 3.35 in.
  • RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -40°C to 55°C
