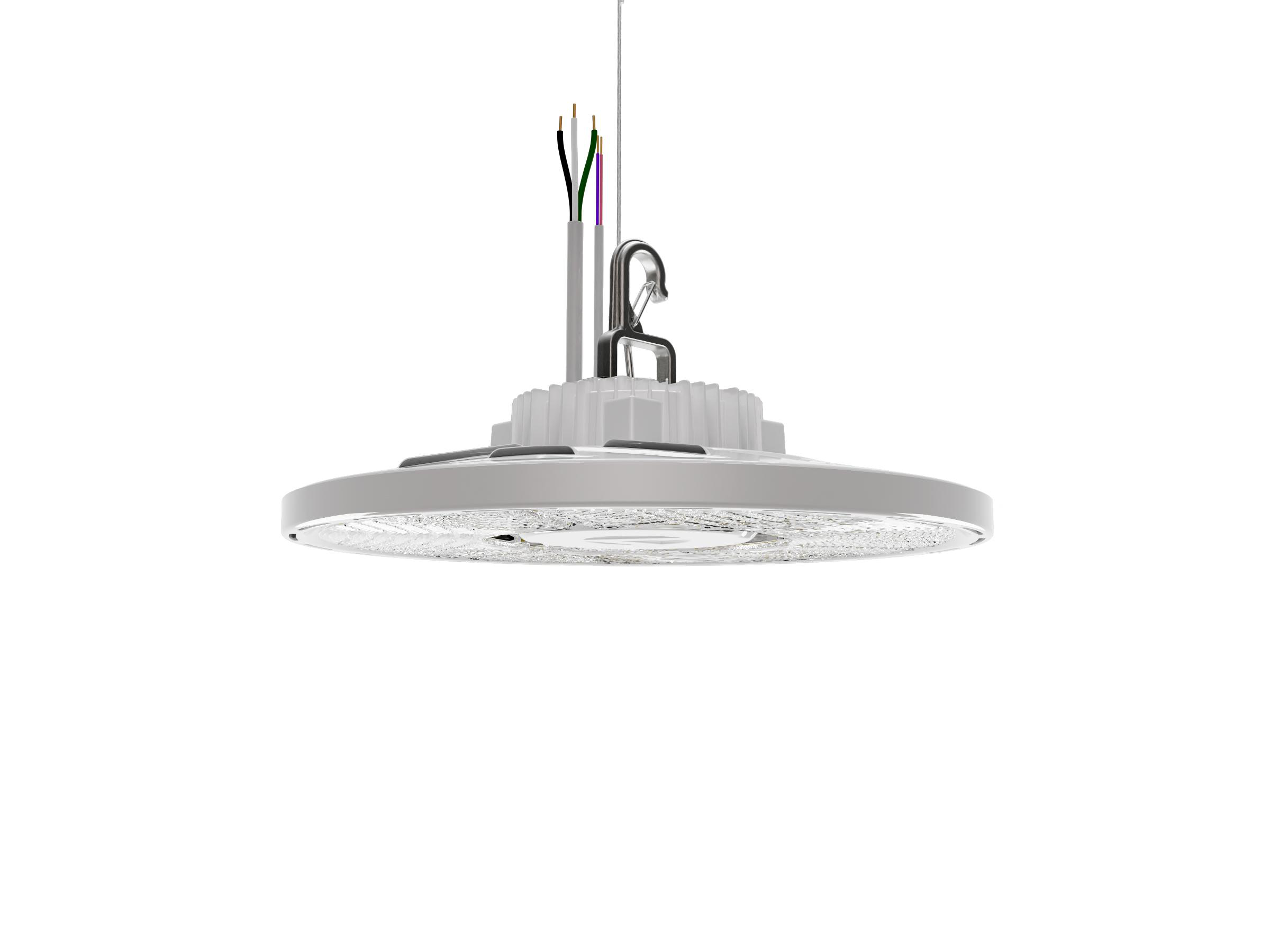

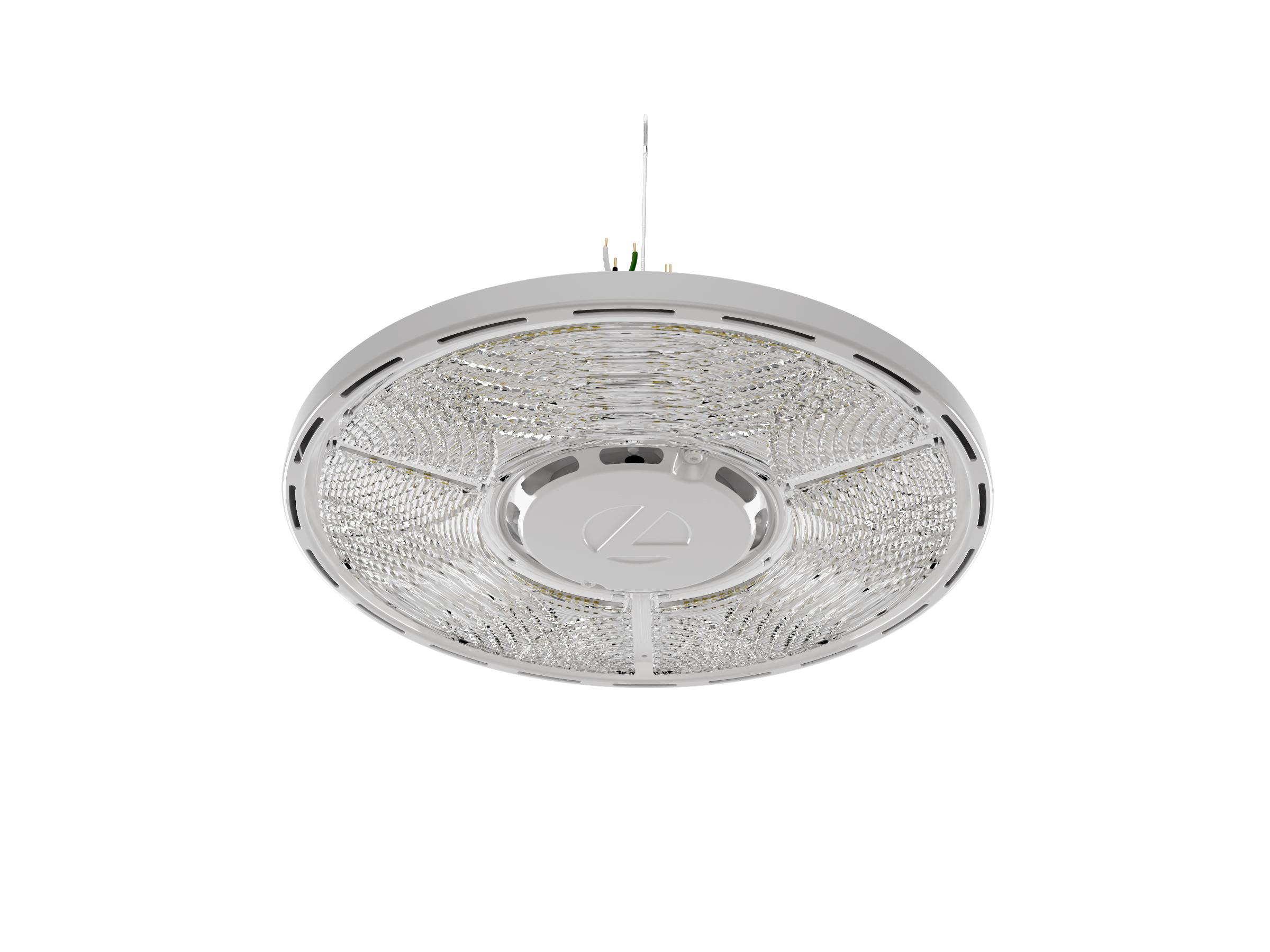

COMPACT PRO INDUSTRIAL LED ROUND HIGH BA

Manufacturer: Lithonia Lighting | Catalog # CPRB 18LM MVOLT 40K 80CRI DWH | Electrozad South Part # 387168
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
Contractor Select

Technical Information

Applications

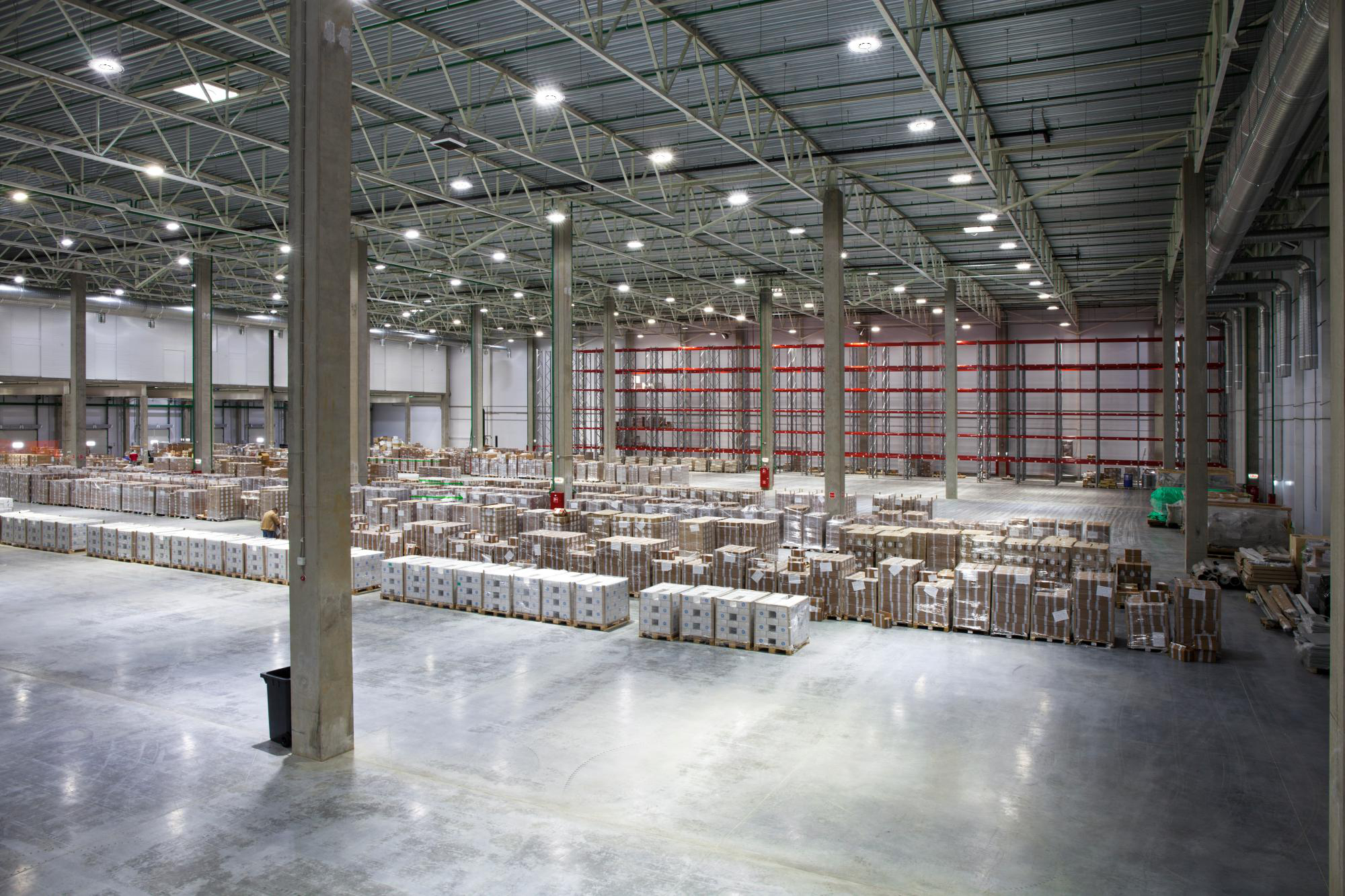

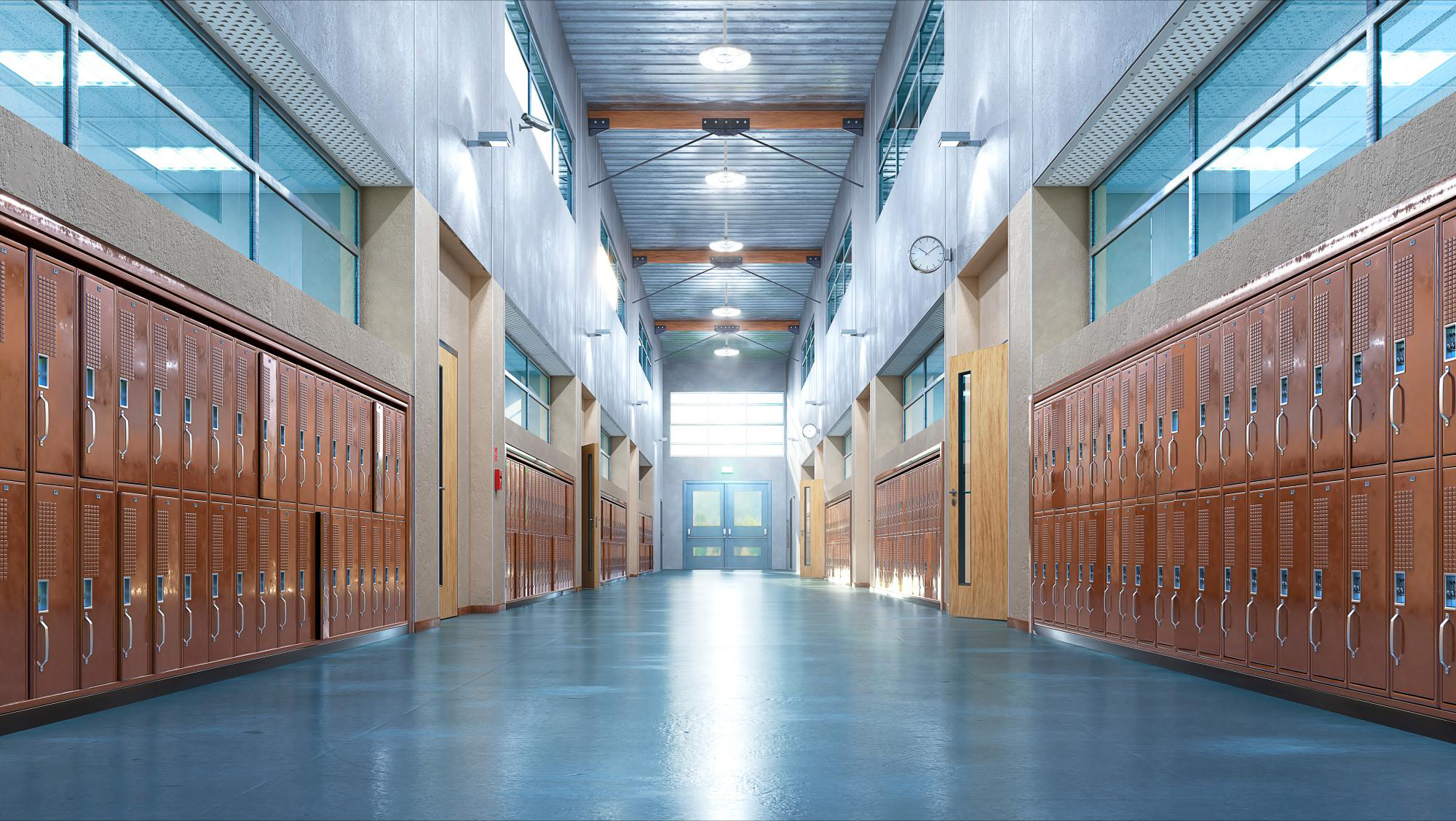

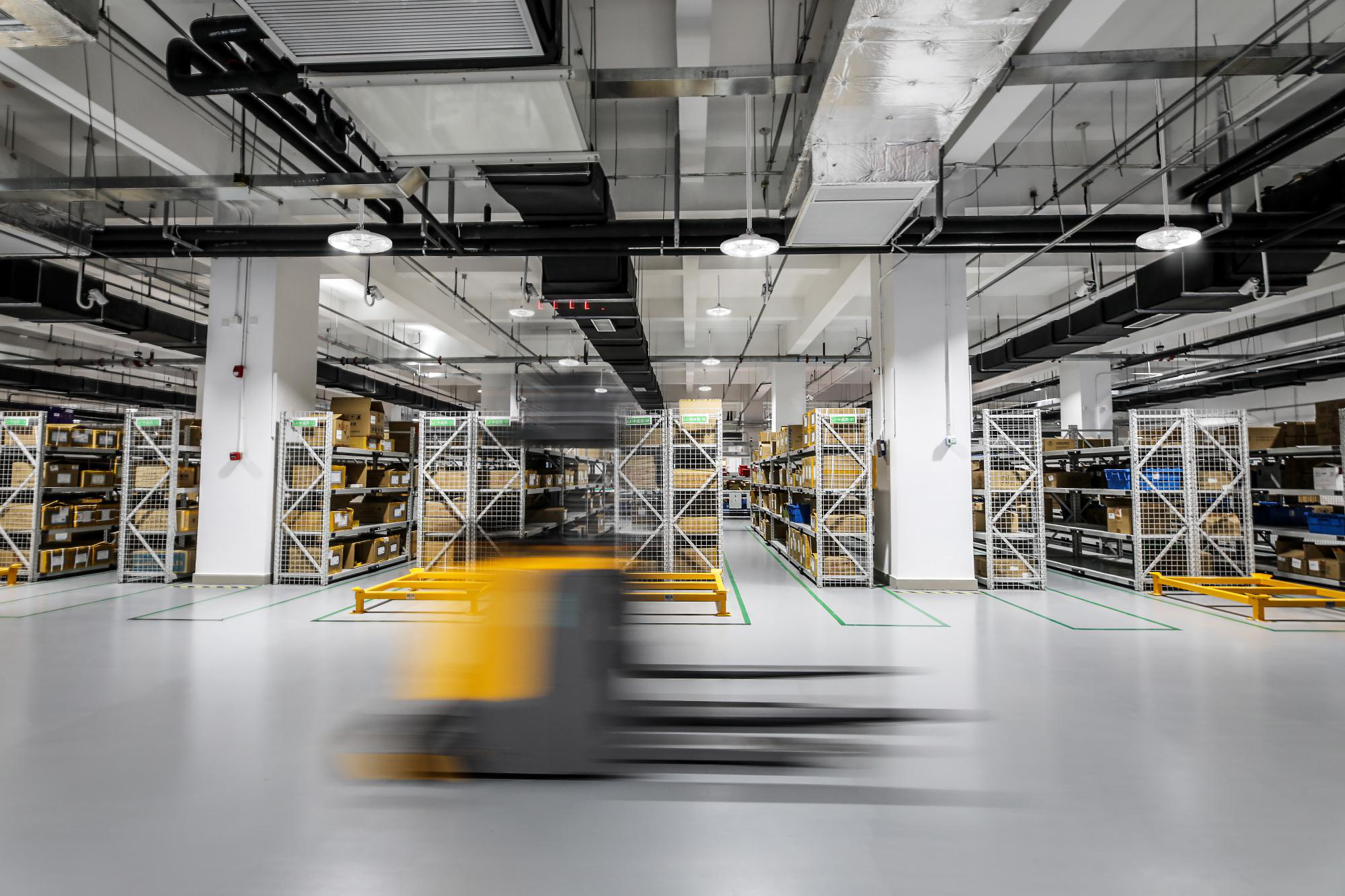

Common Areas,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80 CRI
Color Temperature
4000 K
Dimmable?
Yes
Lens Color
Clear
Lens Material
Polycarbonate
Lumens
18, 000 lm
Material
Steel
Mounting Type
Pendant,Surface,Suspended
Style
Traditional
Type
High Bay
Voltage
120 V
Wattage
128.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182615429
Color
White
Construction
New Construction,Remodel
Environment
Indoor
Environmental Conditions
Indoor
Finish
Gloss
Product UPC
19618261542
Shape
Round
Weight
5 lb

Dimensions

Height
3.16 in
Length
12.98 in
Width
12.98 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: Multi-volt driver 120-277V

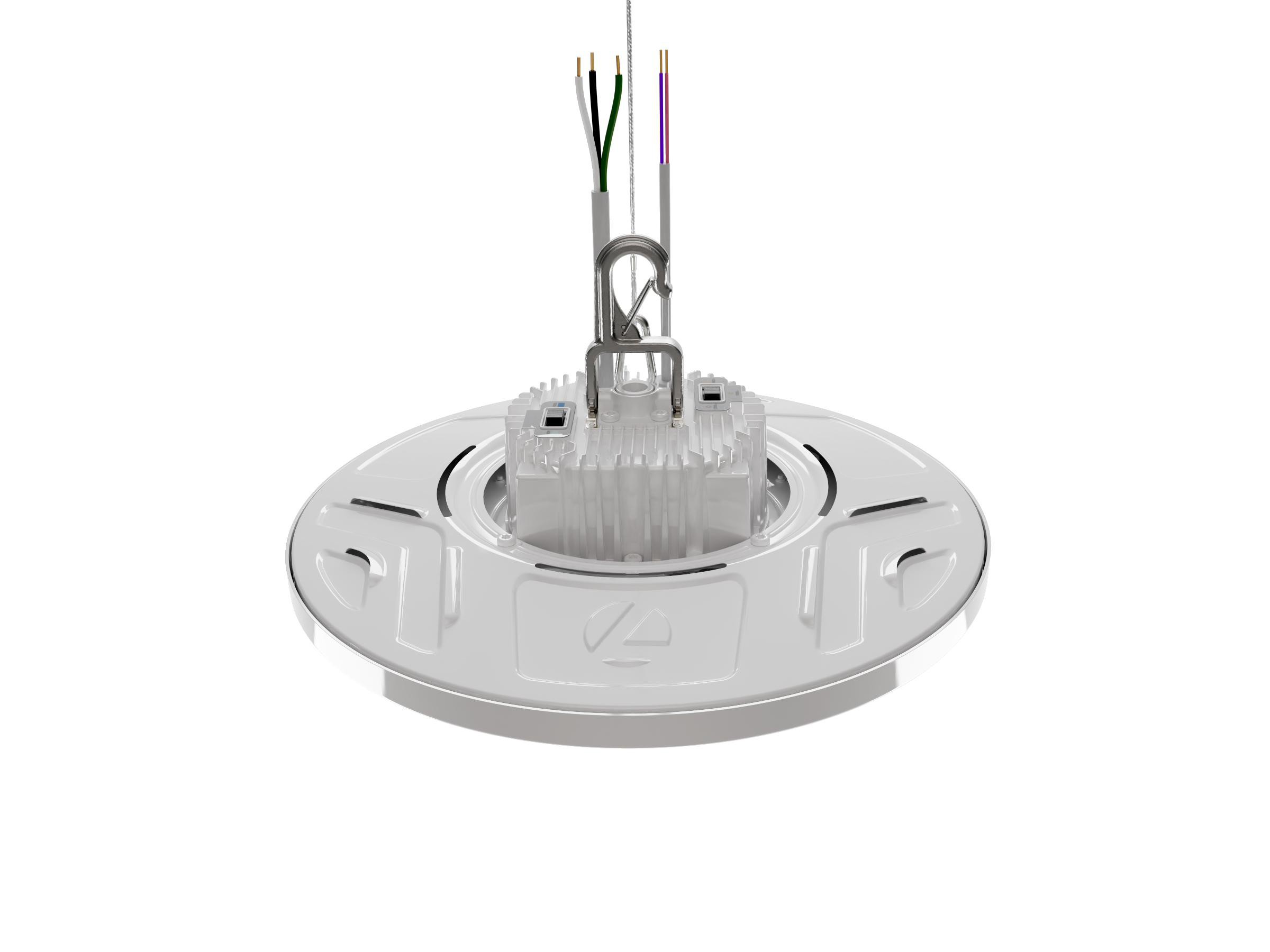

  • INSTALLATION: Includes patent-pending permanently attached hook with safety latch feature and 7' galvanized safety cable standard
  • CONTROLS: 0-10V dimming driver standard for 10% to 100% dimming capabilities; Available with nLight® AIR Wireless Controls Option

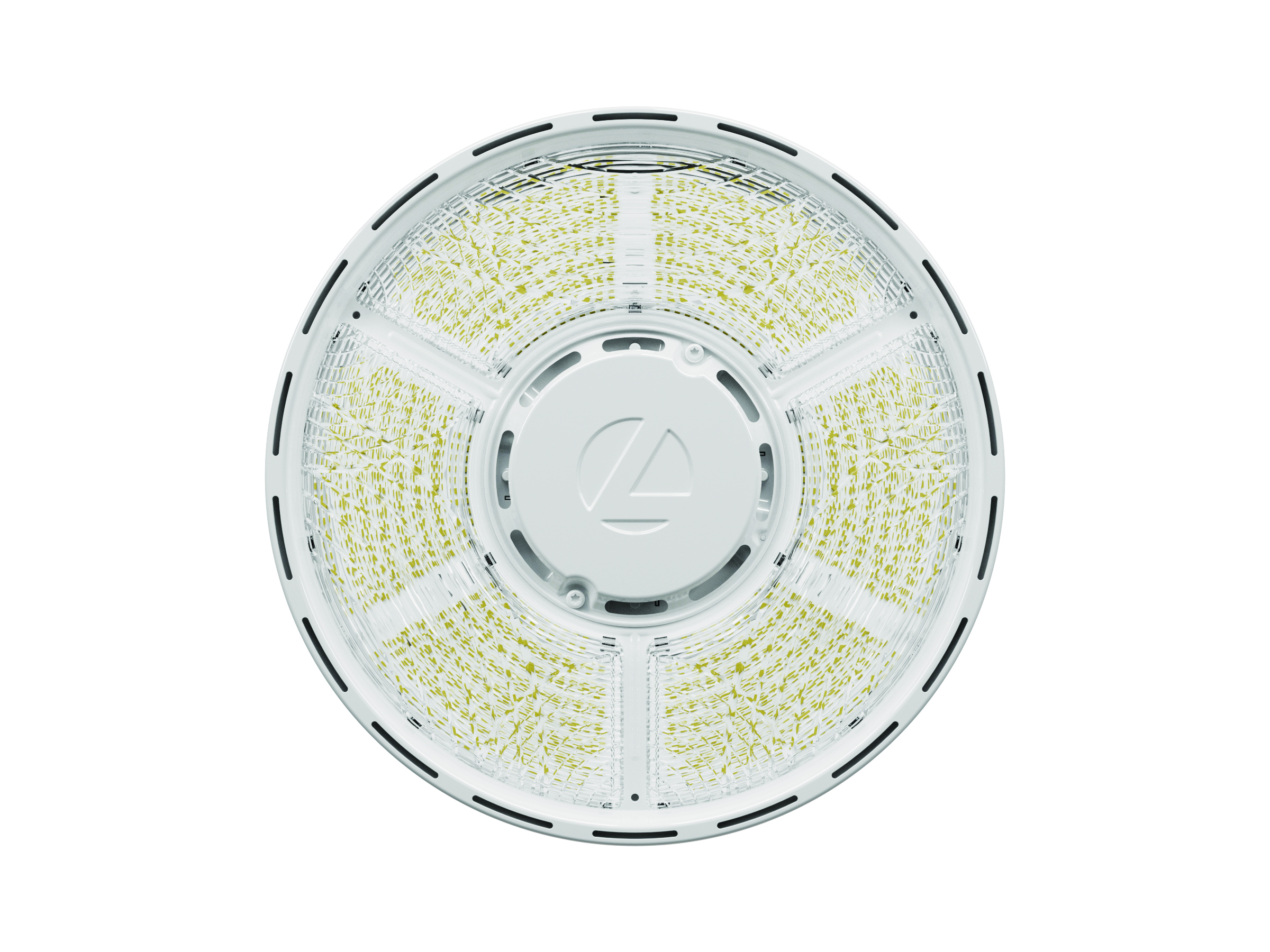

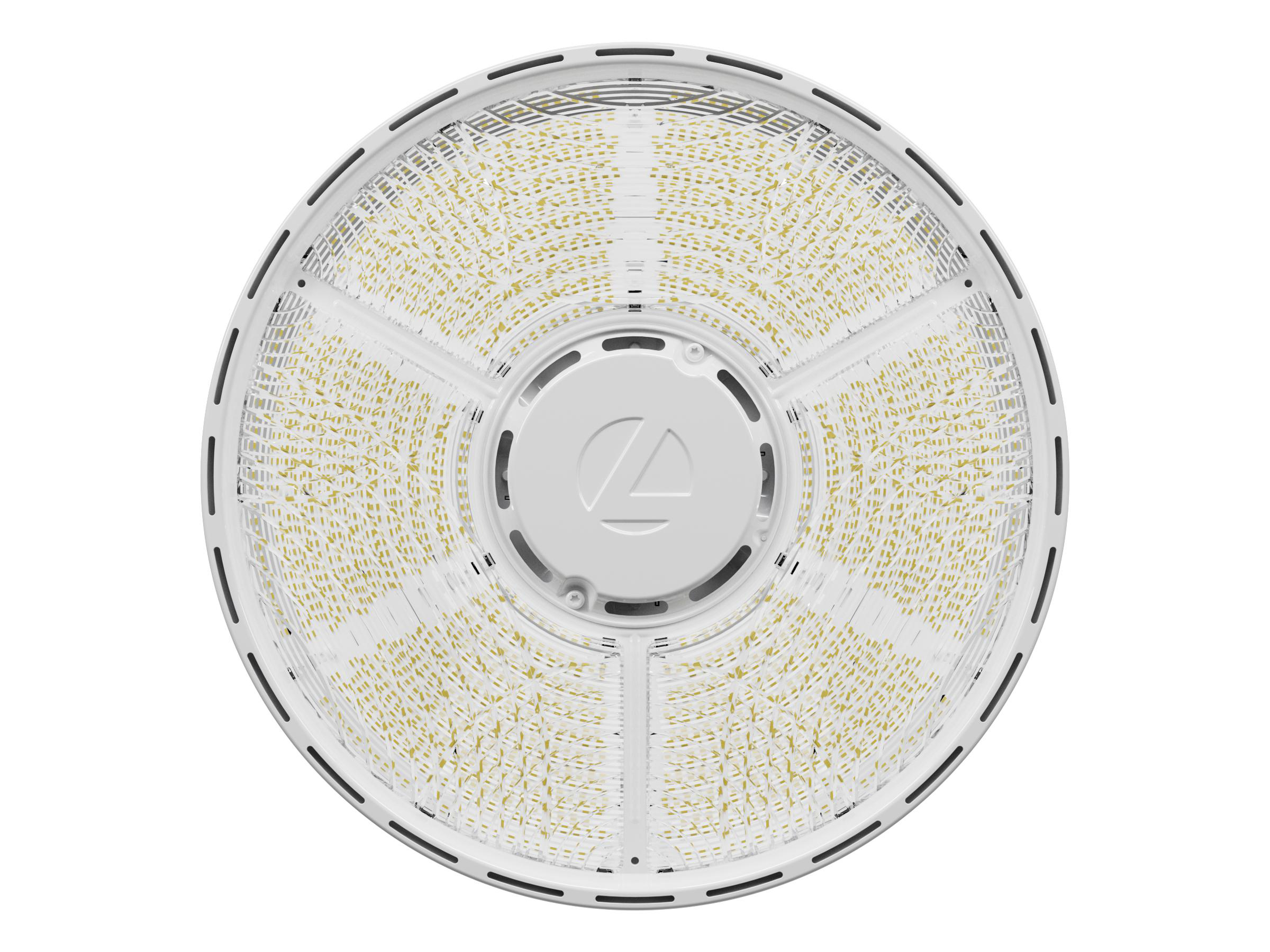

  • TECHNOLOGY: Patent-pending Tri-Radial polycarbonate lens meets DLC 5.1 Premium glare rating which diffuses light the source and reduces glare while protecting LEDs
  • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE: 70% lumen maintenance at > 100,000 hours
  • BATTERY: Emergency battery pack, 40W AC output, sold separately
  • DIMENSIONS: 12.98 in. x 12.98 in. x 3.16 in.
  • RATINGS: CSA listed, Damp location listed, IP54 rated, designed for ambient temperature ranging -40°C to 55°C
