30MM PUSH BUTTON, TYPES K, SK OR KX, CONTACT BLOCK, 1 NO

Manufacturer: Schneider | Square D | Catalog # 9001-KA2 | Electrozad South Part # 385776
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

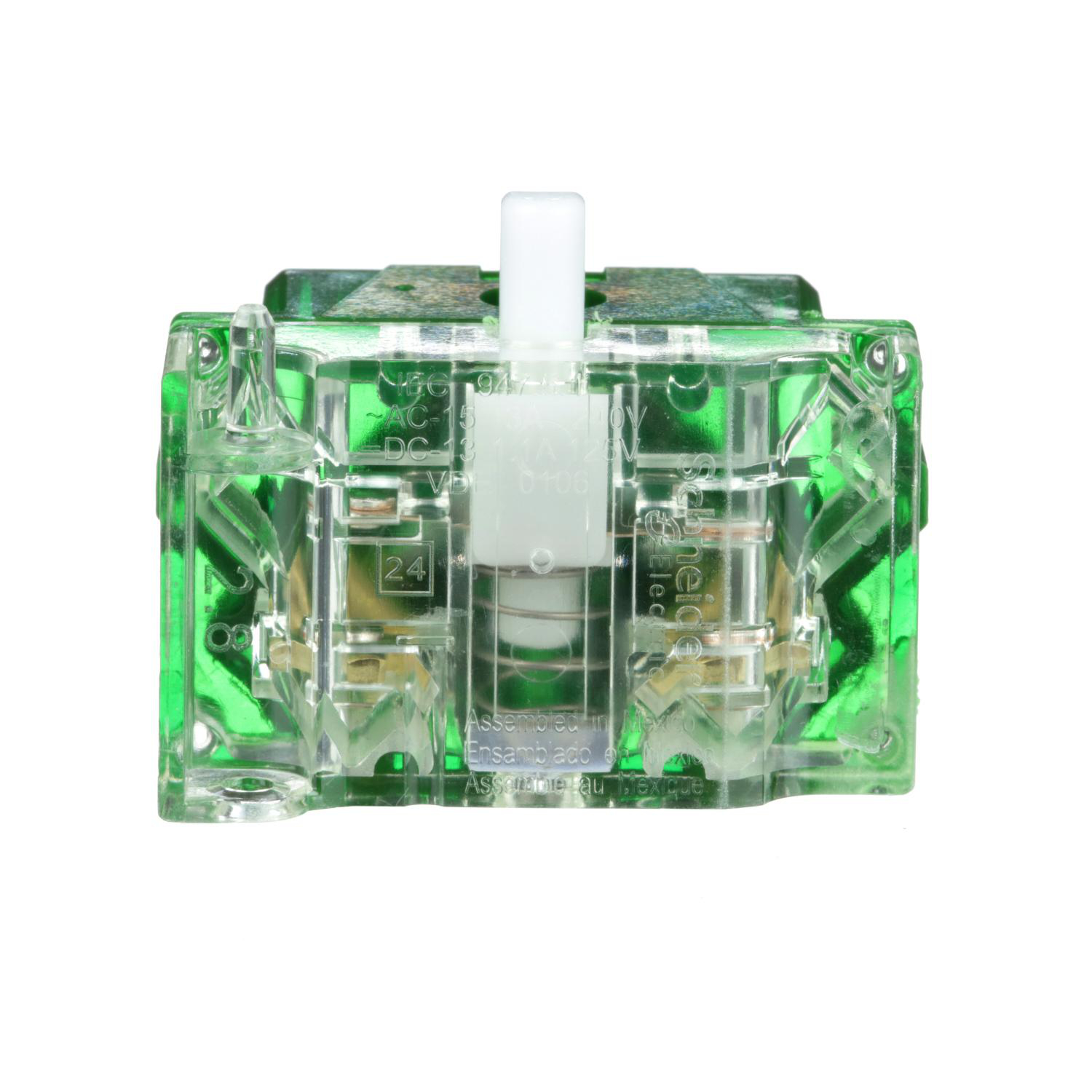

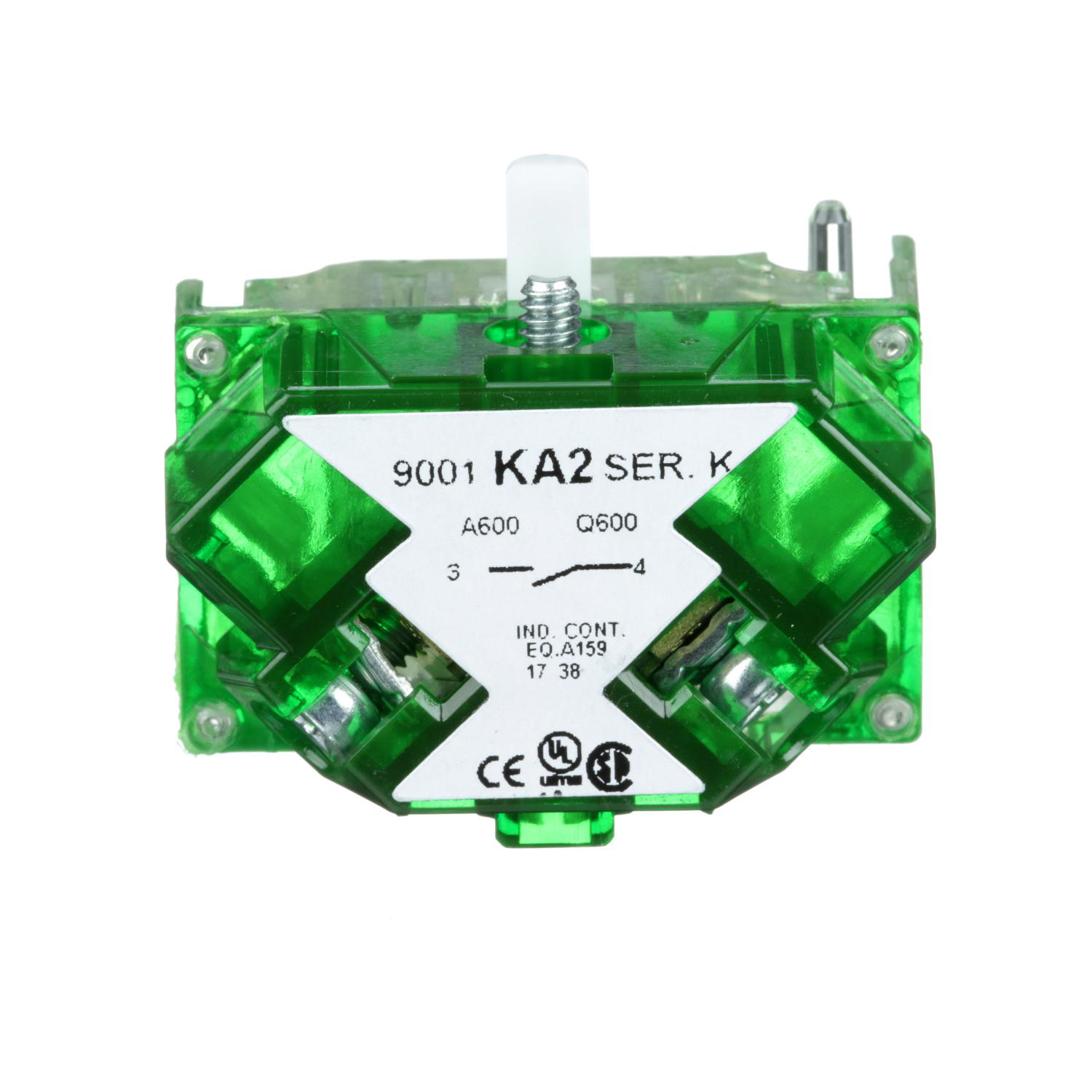

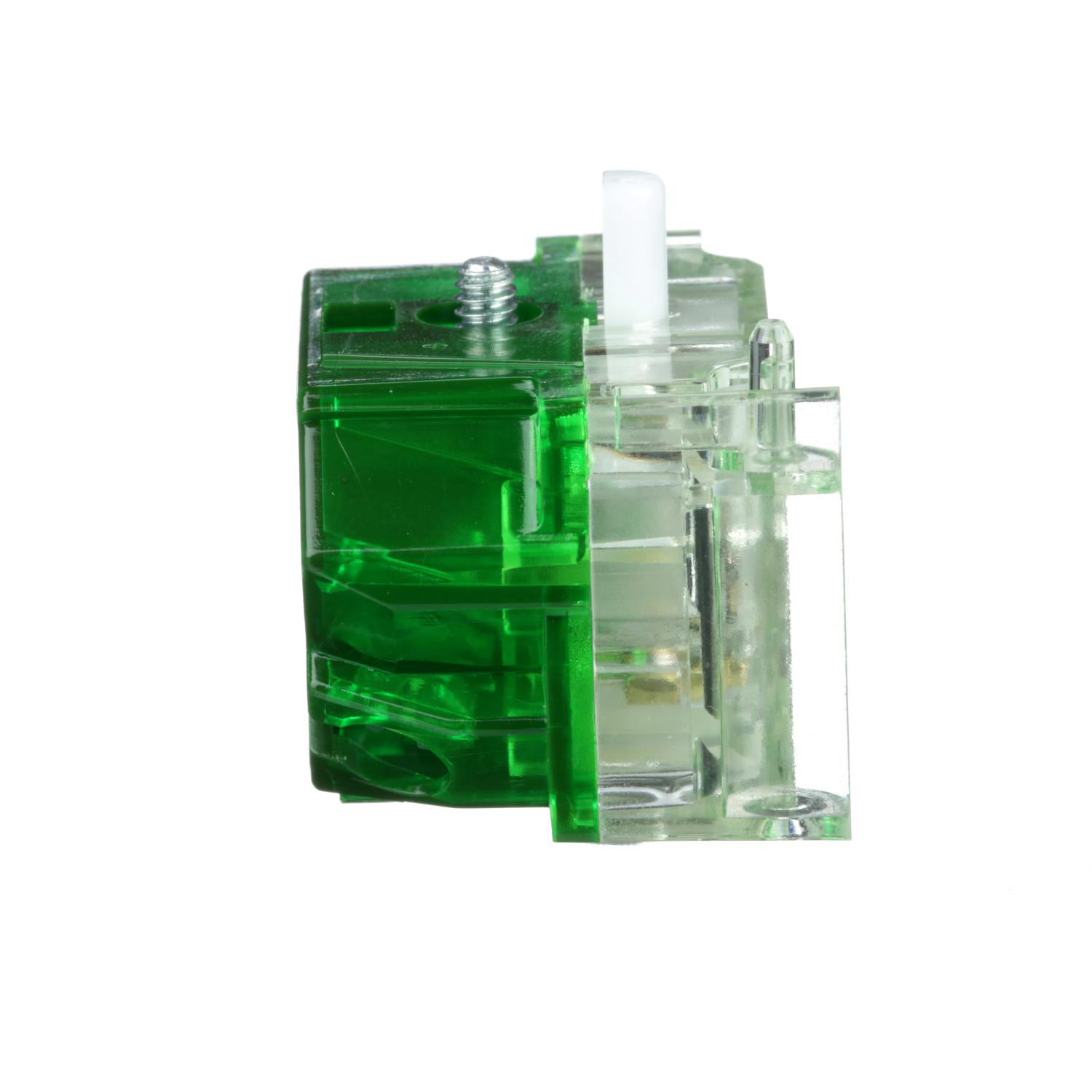

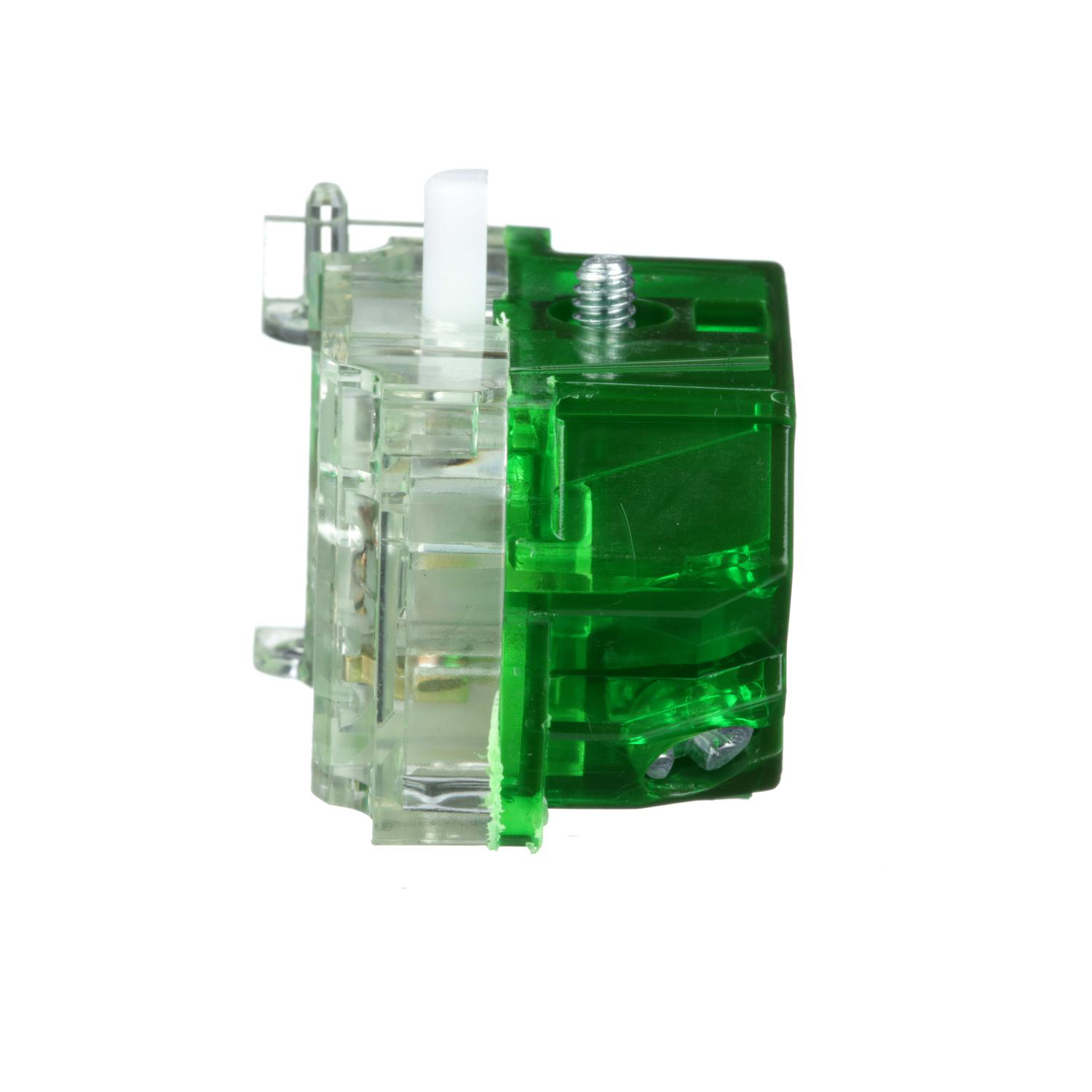

This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features standard contact operation. It weighs 23g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Technical Information

Action
Standard
Contact Configuration
1 NO
Contact Material
Silver Alloy
Net Weight
0.023 kg
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,UL 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Contact block with protected terminals

Manufacturer Information

Brand
Schneider Electric
Sub Brand
9001K

General Product Info

12-Digit UPC
785901880011
GTIN
00785901880011
Product UPC
78590188001
Weight
0.023 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Overview
  • This Schneider Electric Harmony 9001K standard contact block uses screw-clamp terminals and has 1 x NO contact. It is compatible with Harmony 9001K push-buttons and switches. It fits in a 30mm hole.
