LED, TWO-HEADED EMERGENCY UNIT, CALIFORN

Manufacturer: Lithonia Lighting | Catalog # EU2C M6 | Electrozad South Part # 385683
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

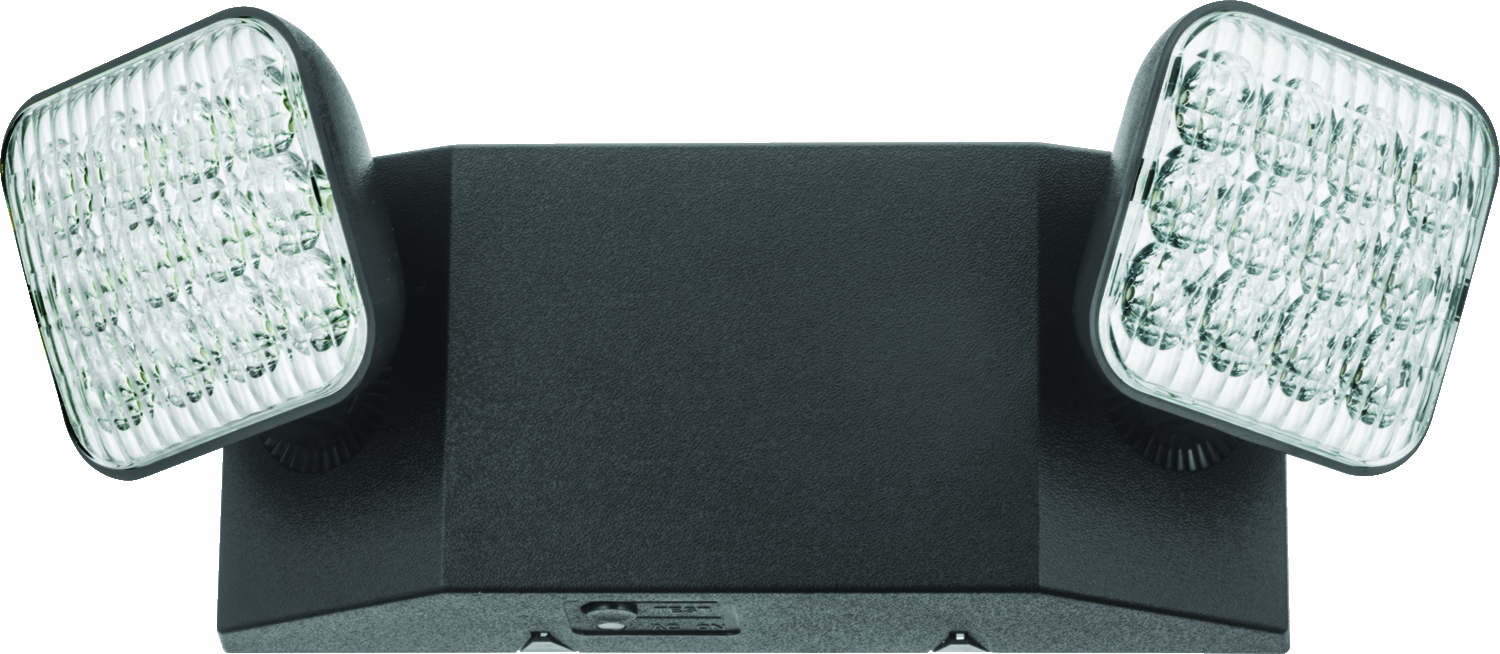

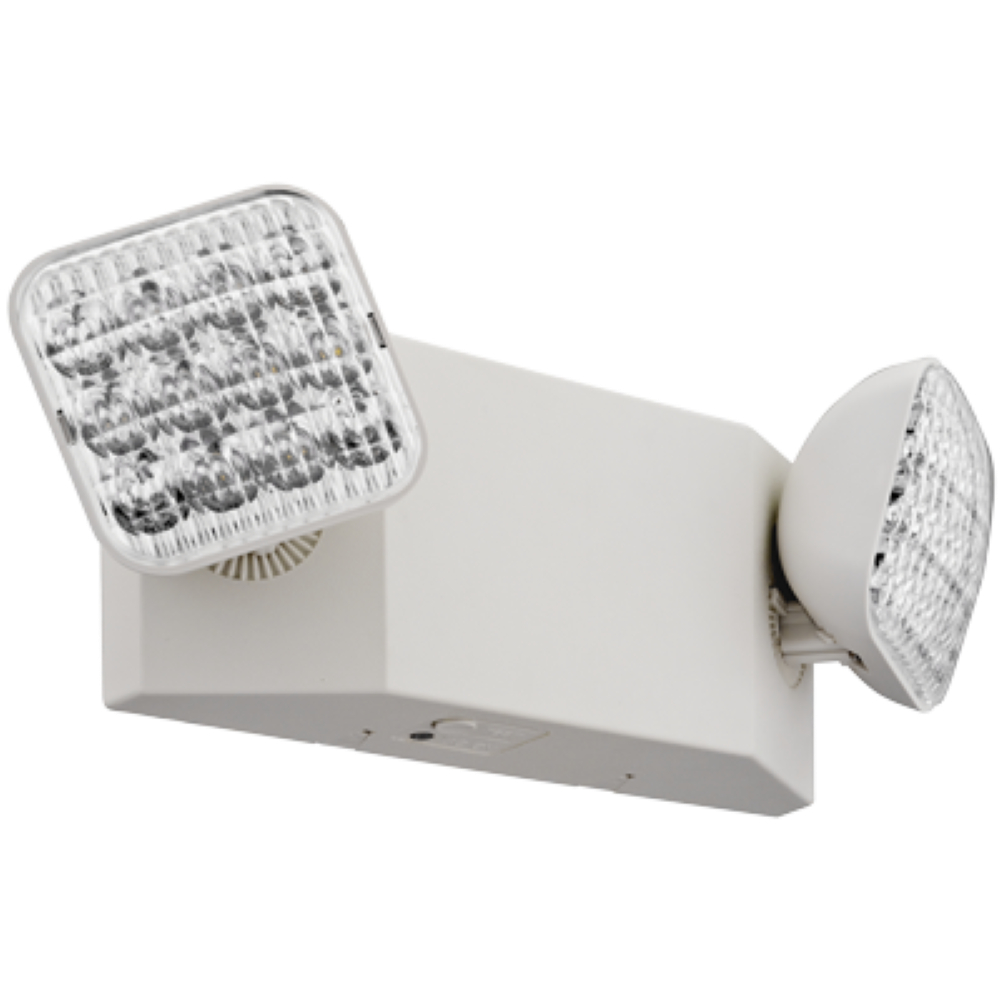

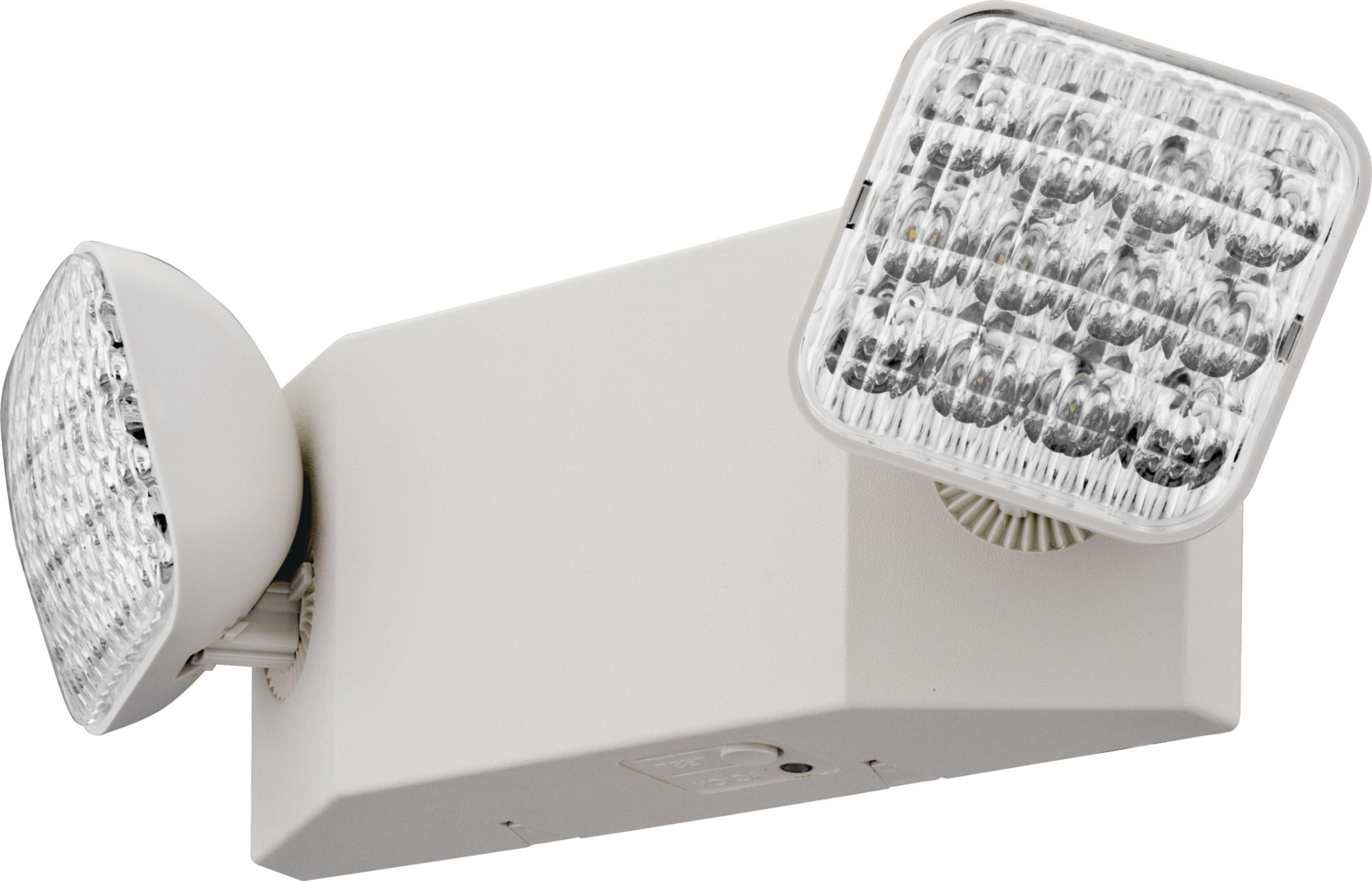

The EU2C by Lithonia Lighting® is a dual lamp head LED emergency light. Certified Title 20 for small battery charger systems, the EU2C provides emergency lighting while saving energy. It is ideal for lighting the path-of-egress in applications such as stairways, hallways and other small spaces at lower mounting heights.

Technical Information

Applications
Education,Healthcare,Hospitality,House Of Worship,Offices & Banks
Color Rendering Index
70
Color Temperature
5000 K
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Plastic
Lumens
90 lm
Material
Thermoplastic
Mounting Type
Surface
Power Source
Hardwired
Standard
CSA,NFPA 101,NFPA 70,UL
Type
Emergency Lighting Unit
Voltage
120 V
Wattage
2 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848037188
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
GTIN
00191848037188
Product Type
Emergency Lighting Unit
Product UPC
19184803718
Shape
Square
Weight
1.2 lb

Dimensions

Height
3.75 in
Length
10.125 in
Warranty Length
2 yr
Width
3.75 in

Certifications & Compliance

Country of Origin
Vietnam
Overview
  • WARRANTY: 2-year limited warranty
  • VOLTAGE: Functions from 120-277 volts (50/60 Hz) with input wattage of 2 watts
  • DESIGN: Injection-molded, flame-retardant, high-impact, thermoplastic housing with snap-fit design components with LED lamps for easy installation
  • DIMMING: Not applicable
  • APPLICATIONS: Ideal for small commercial indoor applications requiring match existing equipment for mounting heights up to 10â™
  • INSTALLATION: Wall mount only (not suitable for ceiling mount)
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1 Watt LED lamps for emergency light

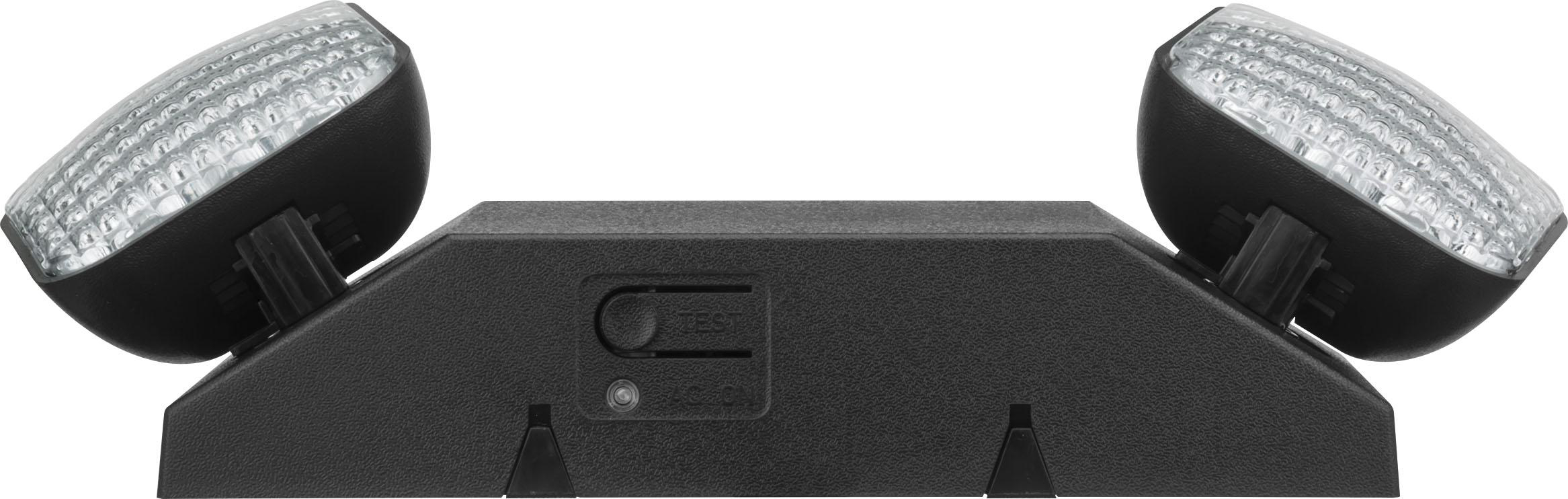

  • BATTERY: Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free 3.6V nickel-cadmium battery provides 90 minutes of emergency power
  • DIMENSIONS: Length: 10.125\" x Height 3.75\" x Width 3.75\
  • RATINGS: UL damp location listed standard at 50-104 degrees F (10-40C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
