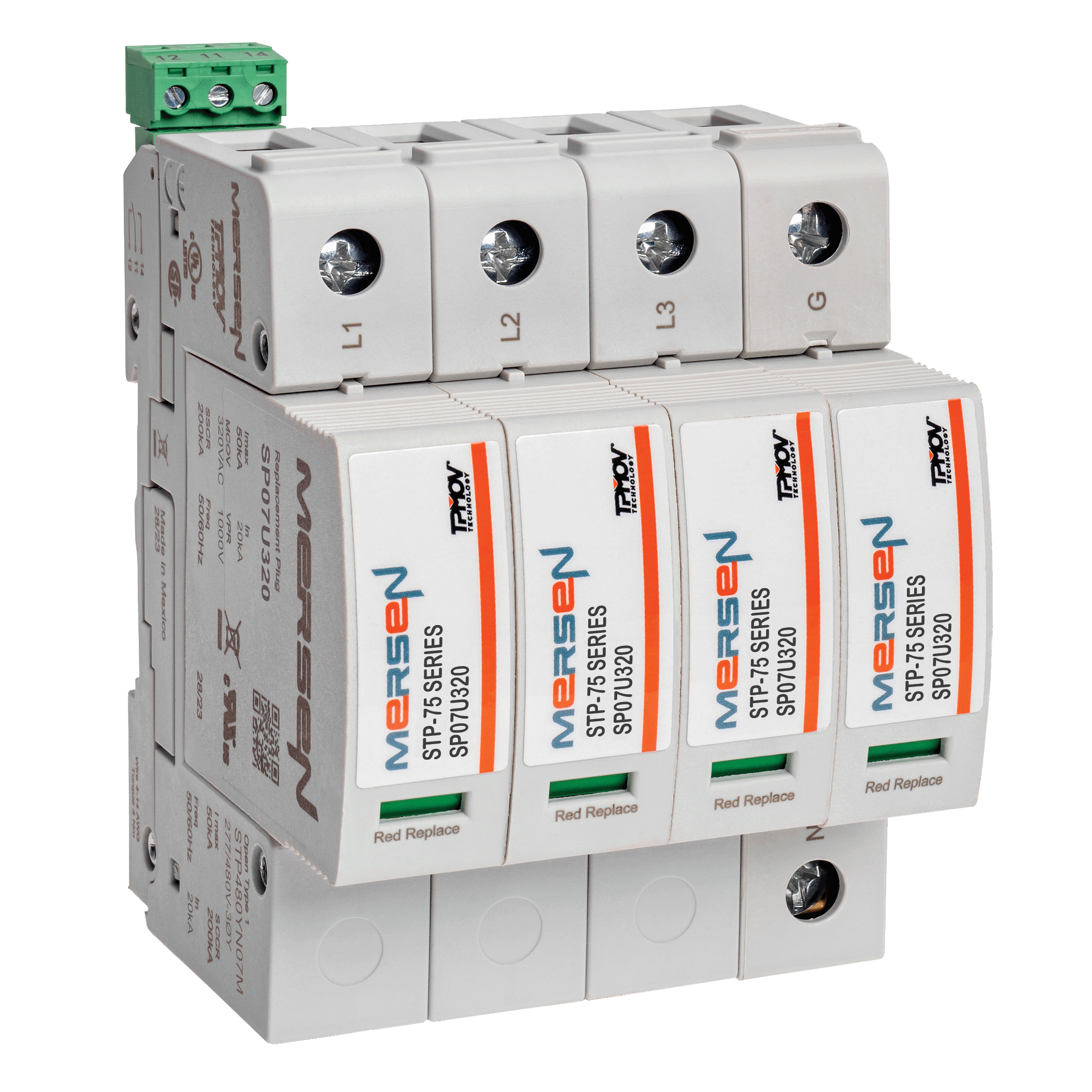

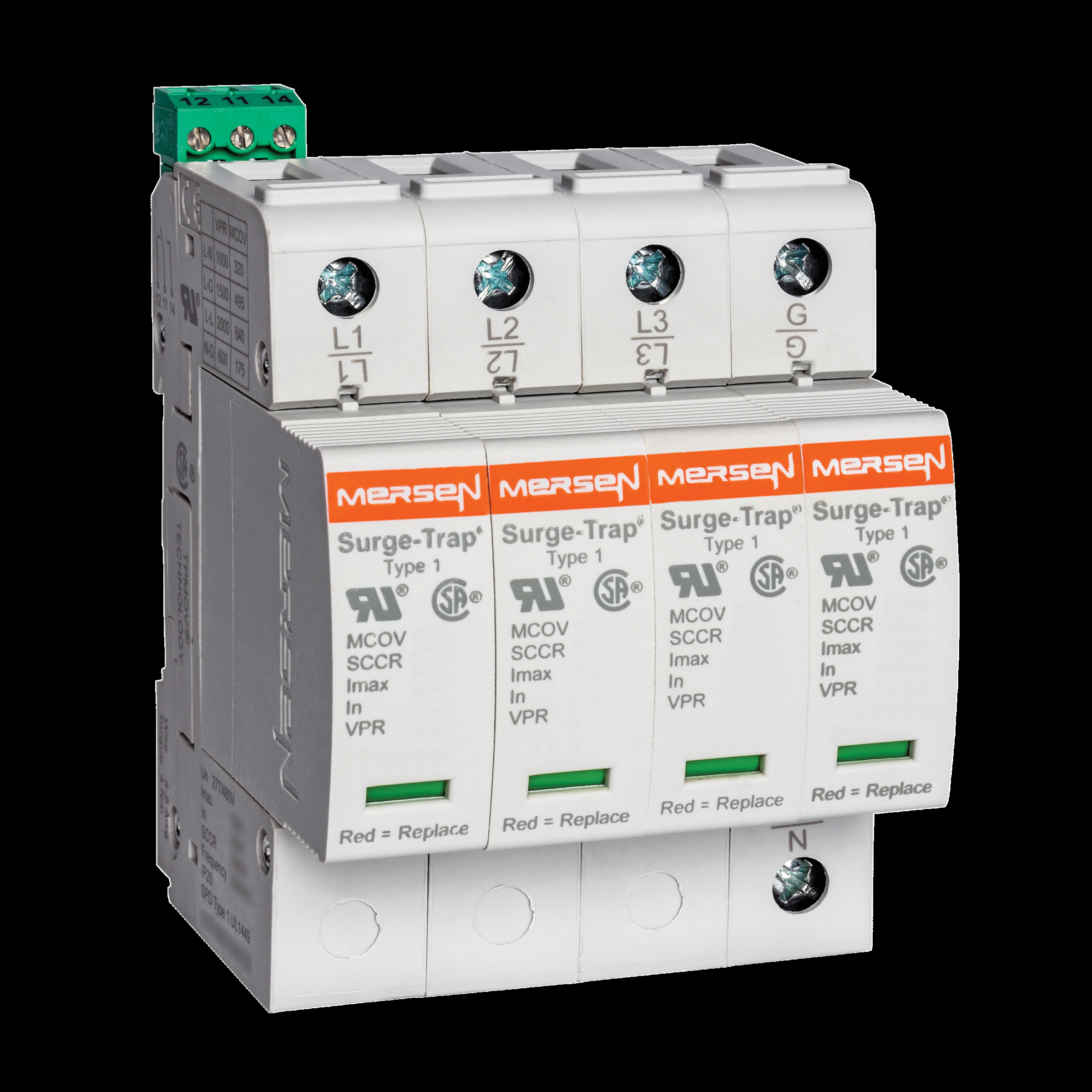

Product image for SPD - Plugable STP 75 Series N-G 480V L-N VPR 1500V L-N MCOV 320V 75 kA 4-pole M
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

SPD - Plugable STP 75 Series N-G 480V L-N VPR 1500V L-N MCOV 320V 75 kA 4-pole M

Manufacturer: Ferraz Shawmut Mersen | Catalog # STP480YN07M | Electrozad South Part # 384654
$798.36 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Surge-Trap® Pluggable Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen...s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Pluggable SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.

Technical Information

Connection Type
Box
Current Type
AC
Frequency
50/60 Hz
Indicator
Microswitch
Max Operating Temperature
85 degrees C
Minimum Operating Temperature
-40 degrees C
Mounting Type
DIN Rail
Nominal Discharge Current
20 kA
Number of Poles
4
Number of Wires
5
Response Time
<25 Nano-Seconds
Short Circuit Current Rating
200000 A
Terminal Type
Box
Torque
35.4 lb-in
Torque Rating
35.4 lb-in

Packaging

Package Qty
1

General Product Info

12-Digit UPC
782001477837
GTIN
00782001477837
Housing Material
Polyethelene Terphthalate
Product UPC
78200147783
Weight
1.55 lb

Dimensions

Height
2.81 in
Length
4.19 in
Width
2.76 in

Certifications & Compliance

Country of Origin
Mexico
