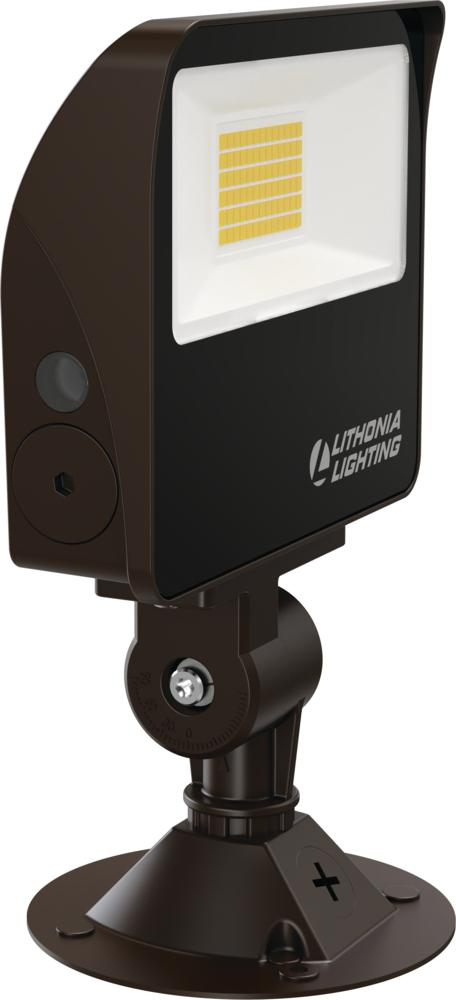

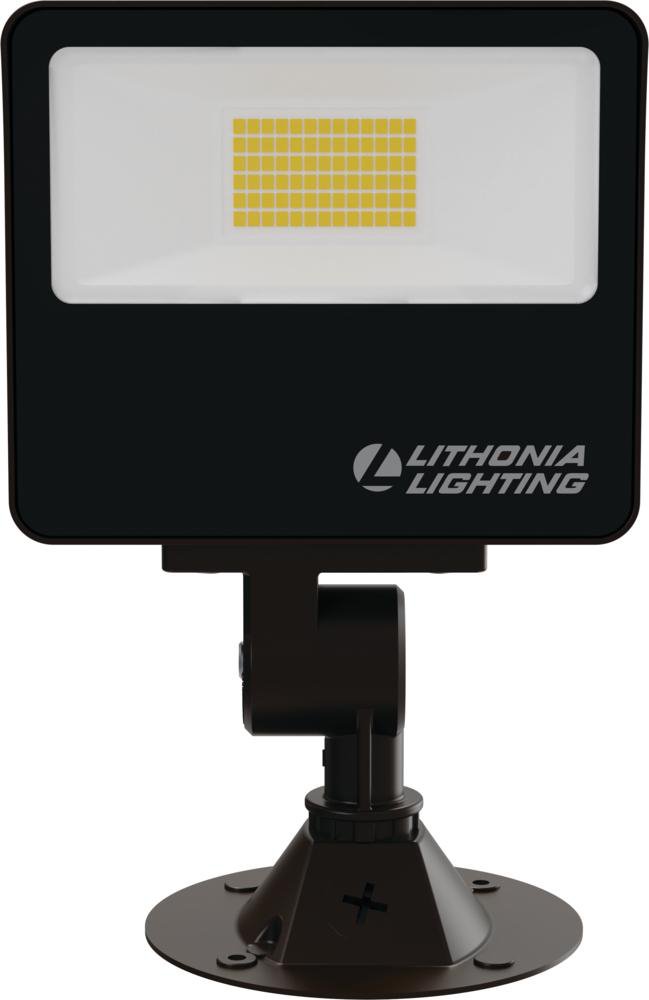

Product image for ESXF1, PACKAGE 0, SWITCHABLE CCT- 3000K,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
To:
CC:

ESXF1, PACKAGE 0, SWITCHABLE CCT- 3000K,

Manufacturer: Lithonia Lighting | Catalog # ESXF1 P0 SWW2 THK DDB M2 | Electrozad South Part # 384169
$69.24 /ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation
Average Rated Life
50,000 hr
Color Rendering Index
80 CRI
Color Temperature
3000 K
Lamp Type
LED - Static
Lumens
2500 lm
Material
Aluminum
Mounting Type
Knuckle
Number of Lamps
Not Applicable
Power Rating
17
Power Source
Hardwired
Size
8.77 x 6.04 IN
Standard
C-UL-US
Style
Contemporary
Type
Floodlight
Voltage
120 V
Wattage
17 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182393051
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
GTIN
00196182393051
Product Type
Floodlight
Product UPC
19618239305
Shape
Rectangular
Weight
2.17 lb

Dimensions

Height
1.86 in
Length
8.77 in
Warranty Length
5 yr
Width
6.04 in

Certifications & Compliance

Country of Origin
Vietnam,Vietnam
Overview
  • WARRANTY: Five-year limited warranty
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INSTALLATION: Ships with ½ NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4\" electrical boxes using the provided round mounting plate

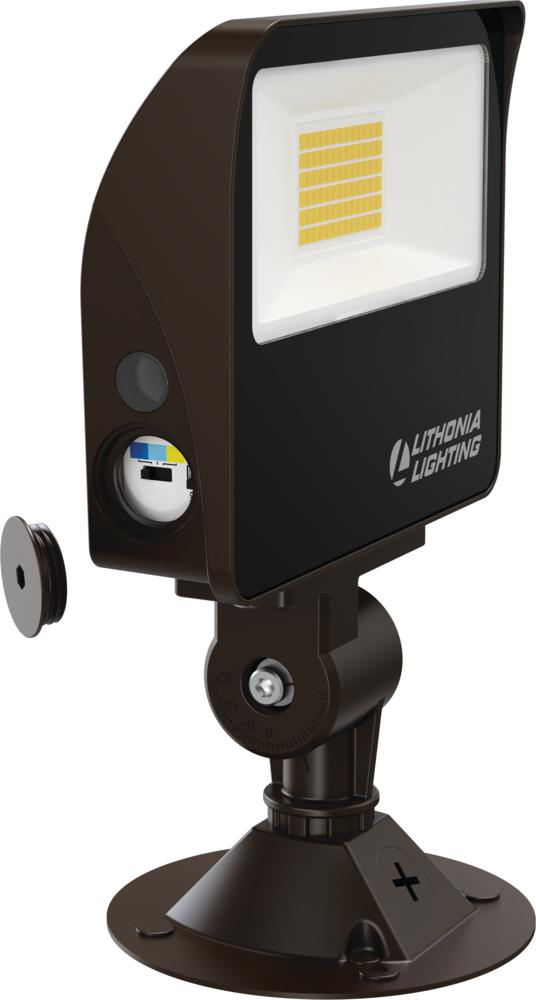

  • SELECTABLE: Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with lumen output of 2500 lumens
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • DIMENSIONS: 5.17 in. x 6.04 in. x 1.86 in.
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
