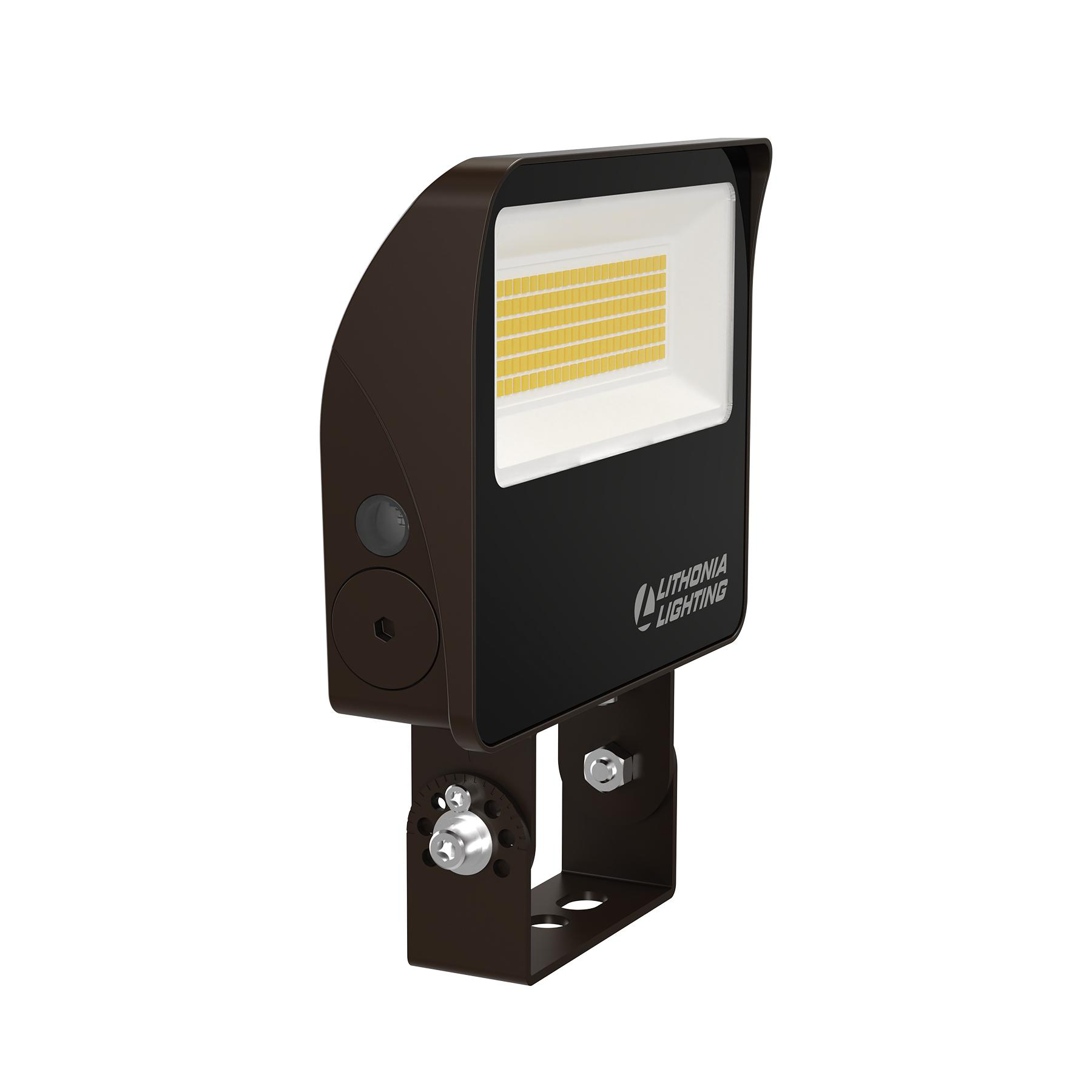

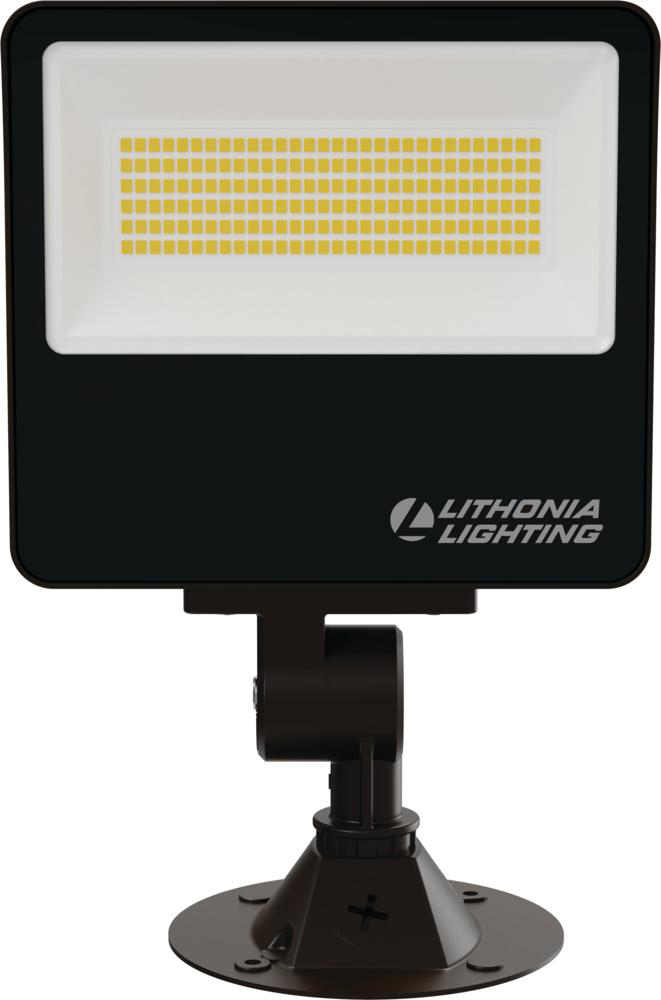

ESXF2, ADJUSTABLE LIGHT OUTPUT, SWITCHAB

Manufacturer: Lithonia Lighting | Catalog # ESXF2 ALO SWW2 KY DDB M2 | Electrozad South Part # 383770
$126.16 /ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Applications
Automotive & Parking,Decorative,Education,Entertainment,Food Service,Government,Hospitality,House Of Worship,Manufacturing,Offices & Banks,Parking Garage,Residential,Retail,Sports And Recreation
Average Rated Life
50,000 hr
Color Rendering Index
80 CRI
Color Temperature
3000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lumens
3000 lm
Material
Aluminum
Mounting Type
Knuckle,Yoke
Number of Lamps
1
Power Rating
56
Size
9.75 x 6.75 x 1.8 IN
Standard
C-UL-US
Type
Floodlight
Voltage
120 V
Wattage
56 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
196182393242
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
FloodLight
GTIN
00196182393242
Product Type
Floodlight
Product UPC
19618239324
Shape
Rectangular
Weight
2.92 lb

Dimensions

Height
1.8 in
Length
9.75 in
Warranty Length
5 yr
Width
6.75 in

Certifications & Compliance

Country of Origin
Vietnam,Vietnam
Overview
  • WARRANTY: Five-year limited warranty
  • VOLTAGE: MVOLT (120-277V), utilizes electronic drivers that are 0-10V, capable of continuous dimming and ensure system power factor >90% and THD <20%
  • INSTALLATION: Ships with ½ NPT threaded knuckle mount factory installed and can be mounted to conduit bodies or to 4\" electrical boxes using the provided round mounting plate, included yoke mounts can be easily changed in the field
  • SELECTABLE: Adjustable Lumen Output, Switchable CCT (3000K, 4000K, 5000K) and Standard Photocell
  • DESIGN: The Lithonia Lighting® ESXF LED is the all-in-one floodlight, providing easy access to adjustable lumen output (ALO), tri-level CCT switching, and selectable dusk-to-dawn photocell
  • ENERGY SAVINGS: Energy-efficient LEDs with a lumen output of 3500, 5500, and 7500 lumens
  • INTENDED USE: Designed to provide a cost effective, energy-efficient solution for the one-for-one replacement of existing traditional sources
  • CONSTRUCTION: Sealed die-cast aluminum body and IP66 listed to withstand moisture and the elements
  • DIMENSIONS: 6.16 in. x 6.75 in. x 1.8 in.
  • RATINGS: IP66 Rated aluminum housing, DLC Certified, CSA certified to US and Canadian standards
