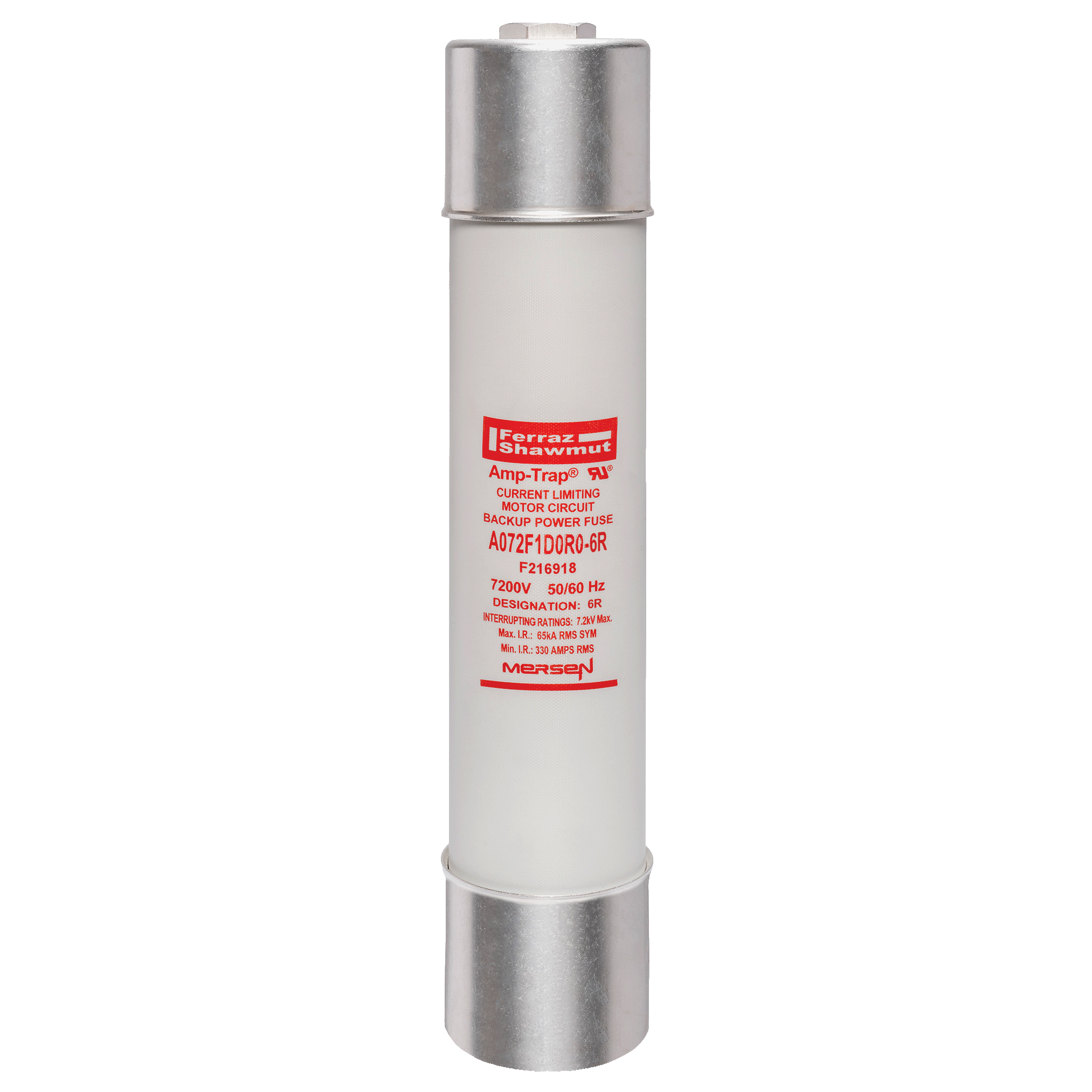

Back-Up R-Rated Medium Voltage Fuse 7200VAC 6R Mounting: Ferrule Visual Indicator Amp-Trap®

Manufacturer: Ferraz Shawmut Mersen | Catalog # A072F1D0R0-6R | Electrozad South Part # 38344
$4,818.37 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet

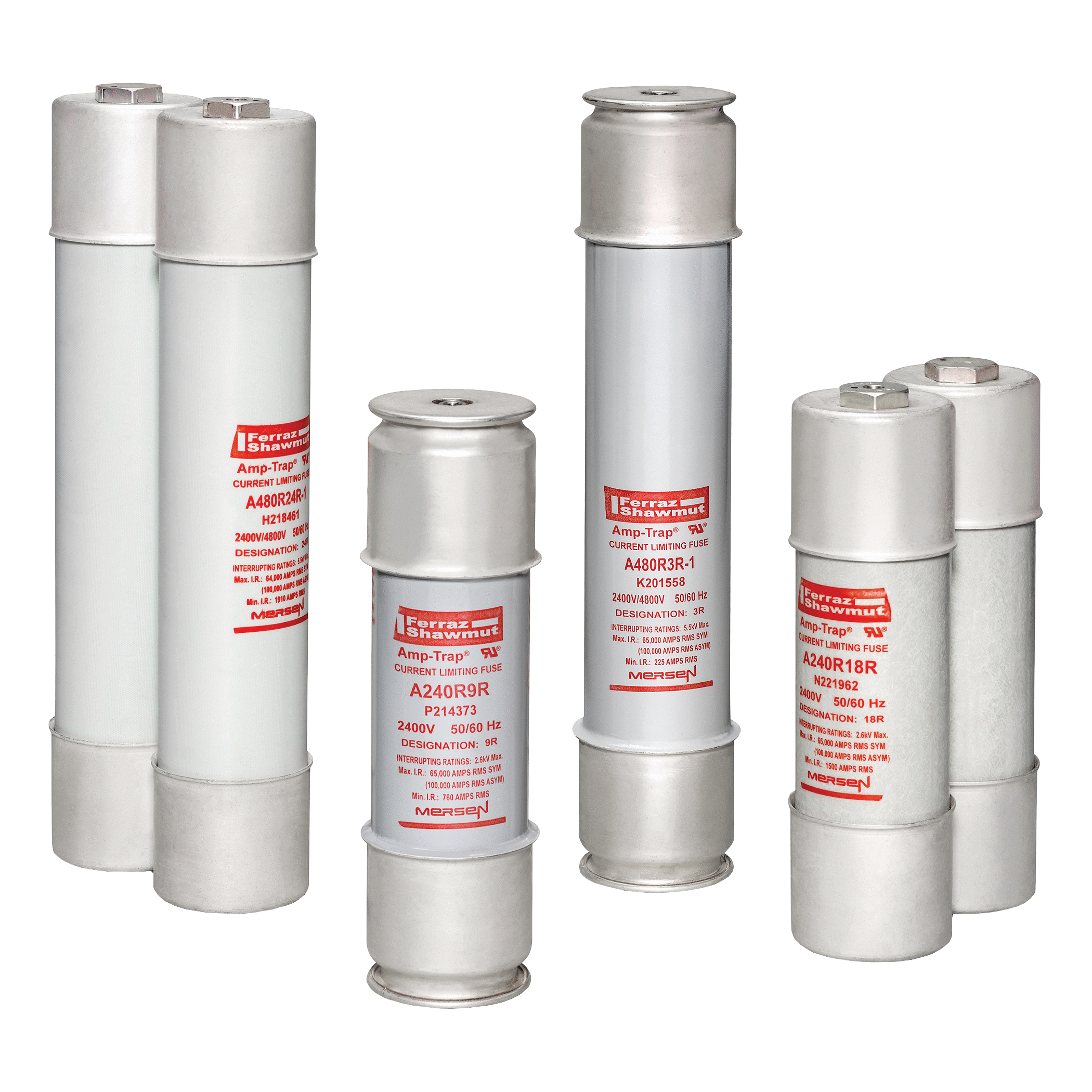

Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips

Technical Information

Applications
Short circuit protection of medium; voltage motors and motor; controllers.
Connection Type
Ferrule
Frequency
50/60 Hz
Indicator
Visual Indicator
Insulation Material
GMG
Interrupt Rating
50 kA
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
7200 V
Response Time
R-Rated
Size
3 x 15.88 Inches
TC Connection
clips
Terminal Material
Silver-Plated Copper
Terminal Type
Ferrule
Type
Back-up current-limiting fuses R-Rated
Voltage
7200 V

Packaging

Package Qty
1

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001805104
GTIN
10782001805101
Product UPC
78200180510
Weight
11 lb

Dimensions

Diameter
3 in
Length
15.88 in

Certifications & Compliance

Country of Origin
Mexico
