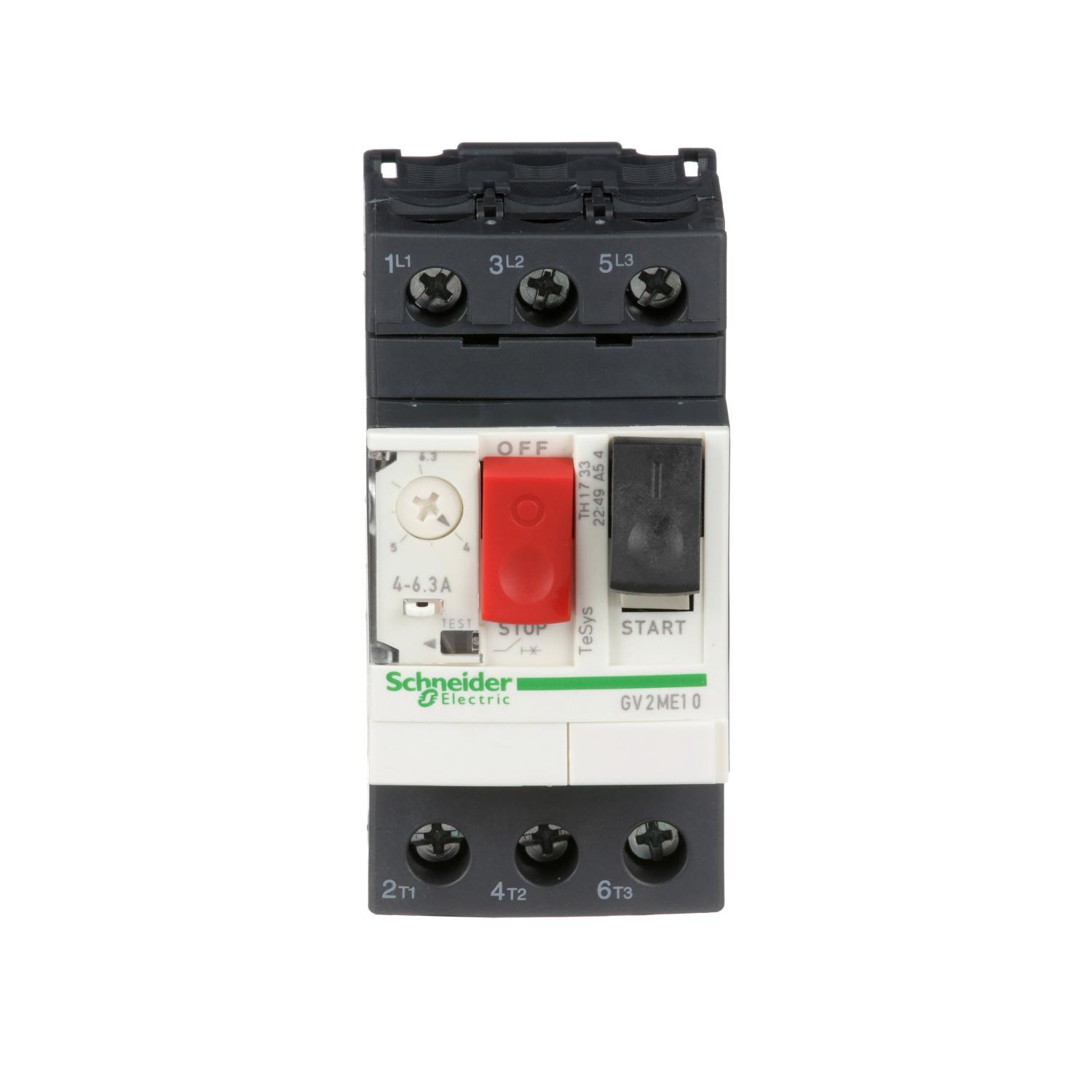

TESYS DECA MANUAL STARTER AND PROTECTOR, THERMAL MAGNETIC CIRCUIT PROTECTOR, PUSH BUTTONS, 4 TO 6.3 A, SCREW CLAMP

Manufacturer: Schneider Electric | Catalog # GV2ME10 | Electrozad South Part # 381066
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 G USERS MANUAL URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 4 ampere to 6.3 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Technical Information

Amperage
6.3 A
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
6.3 A
Net Weight
0.26 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 4.0A TO 6.3A
Size
45 MM,78.5 MM,89 MM
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA² SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA² FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA² FLEXIBLE WITH CABLE END
Trip Point
78-78 A
Type
CIRCUIT BREAKER
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GV2ME,TESYS,TESYS GV2

General Product Info

12-Digit UPC
338911034310
Color
Gray
GTIN
03389110343113
Product UPC
89110343113
Weight
0.26 kg

Dimensions

Depth
3.09 in
Height
3.5 in
Warranty Length
18 mth
Width
1.77 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
Thailand
