Pan-Lug™ LCDXN750-12-3 Compression Connectors - Lugs

Manufacturer: Panduit | Catalog # LCDXN750-12-3 | Electrozad South Part # 379775
$19,374.88 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

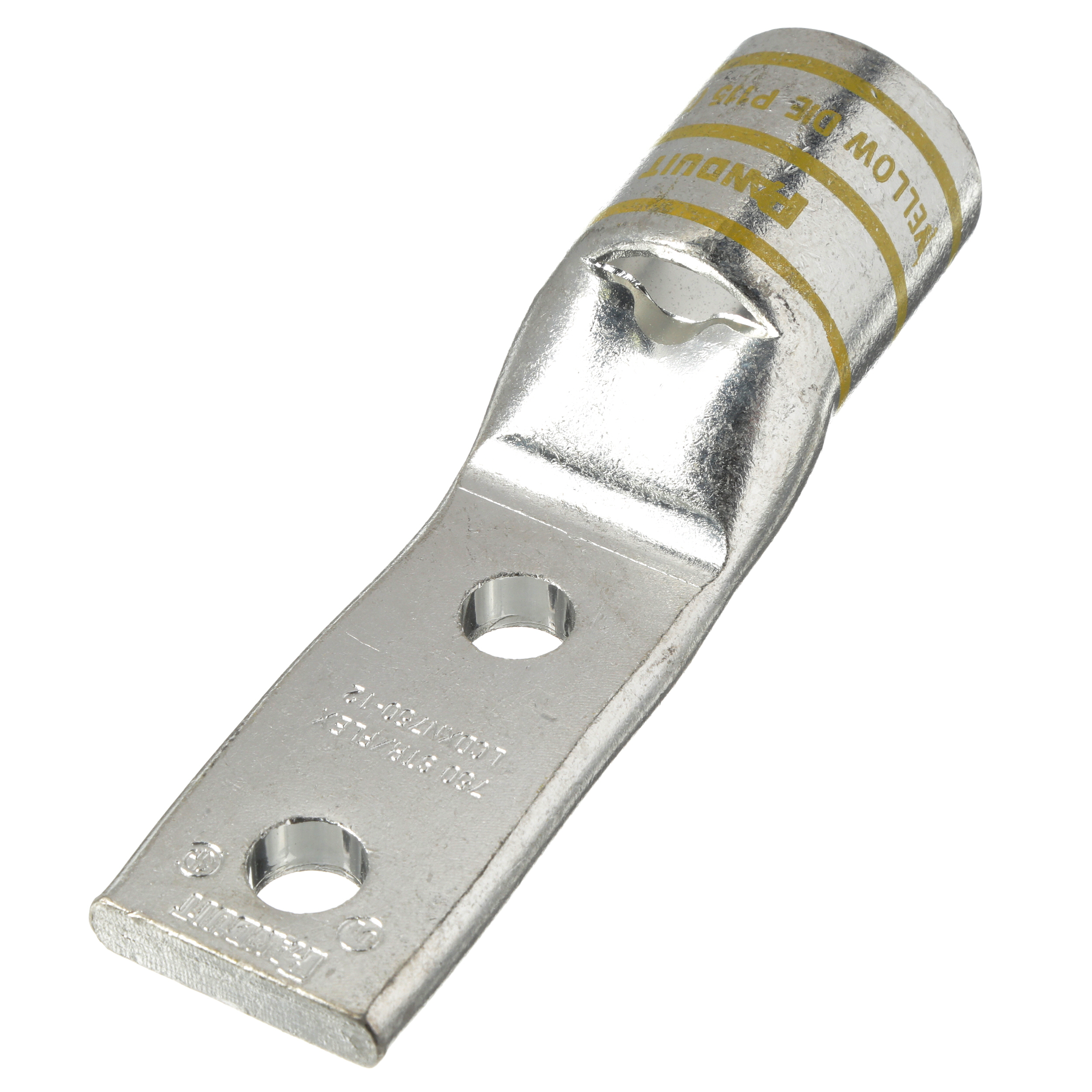

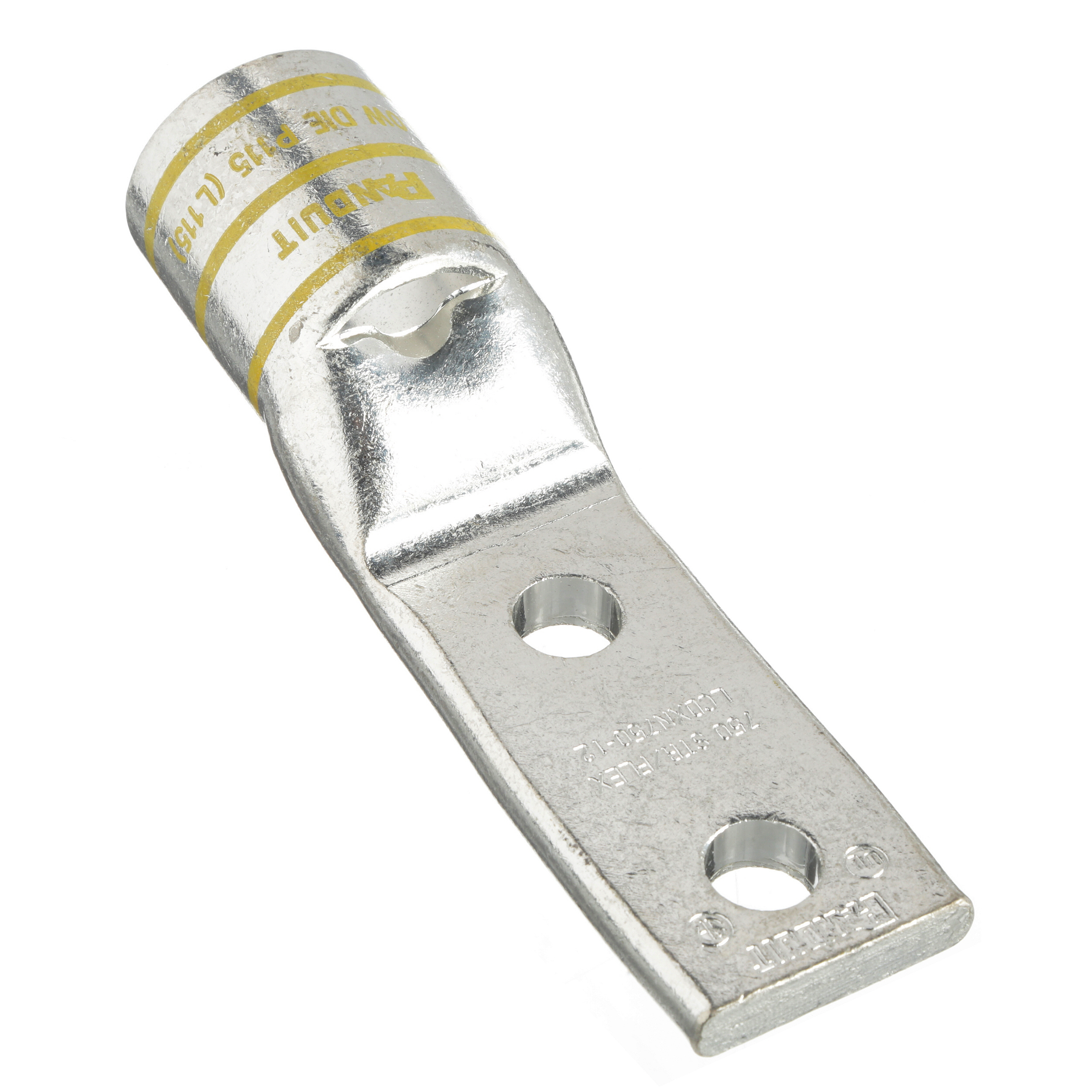

The two-hole standard barrel copper compression flex lug with inspection window and narrow tongue has a diesel locomotive flex conductor size of 777.7 kcmil. The stud hole is 1/2 (12.7mm) with a 1.75 (44.45mm) hole spacing.

Technical Information

Angle
Straight
Barrel Length
1.66 in
Barrel Type
Standard with Inspection Window
Cable Size
AWG
Material
Copper
Number of Holes
NA
Size
777.7 kcmil DLO
Standard
ANSI C-73
Stud Size
1/2 In.
Tongue Thickness
0.35 in
Tongue Type
Narrow
Tongue Width
1.5 in
Type
Tin-Plated Copper Compression Connectors - Lugs

Packaging

Package Qty
3

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983444854
Color
Black on Yellow
GTIN
00074983444854
Product UPC
07498344485
UNSPSC
39121405

Dimensions

Overall Length
5.55 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
