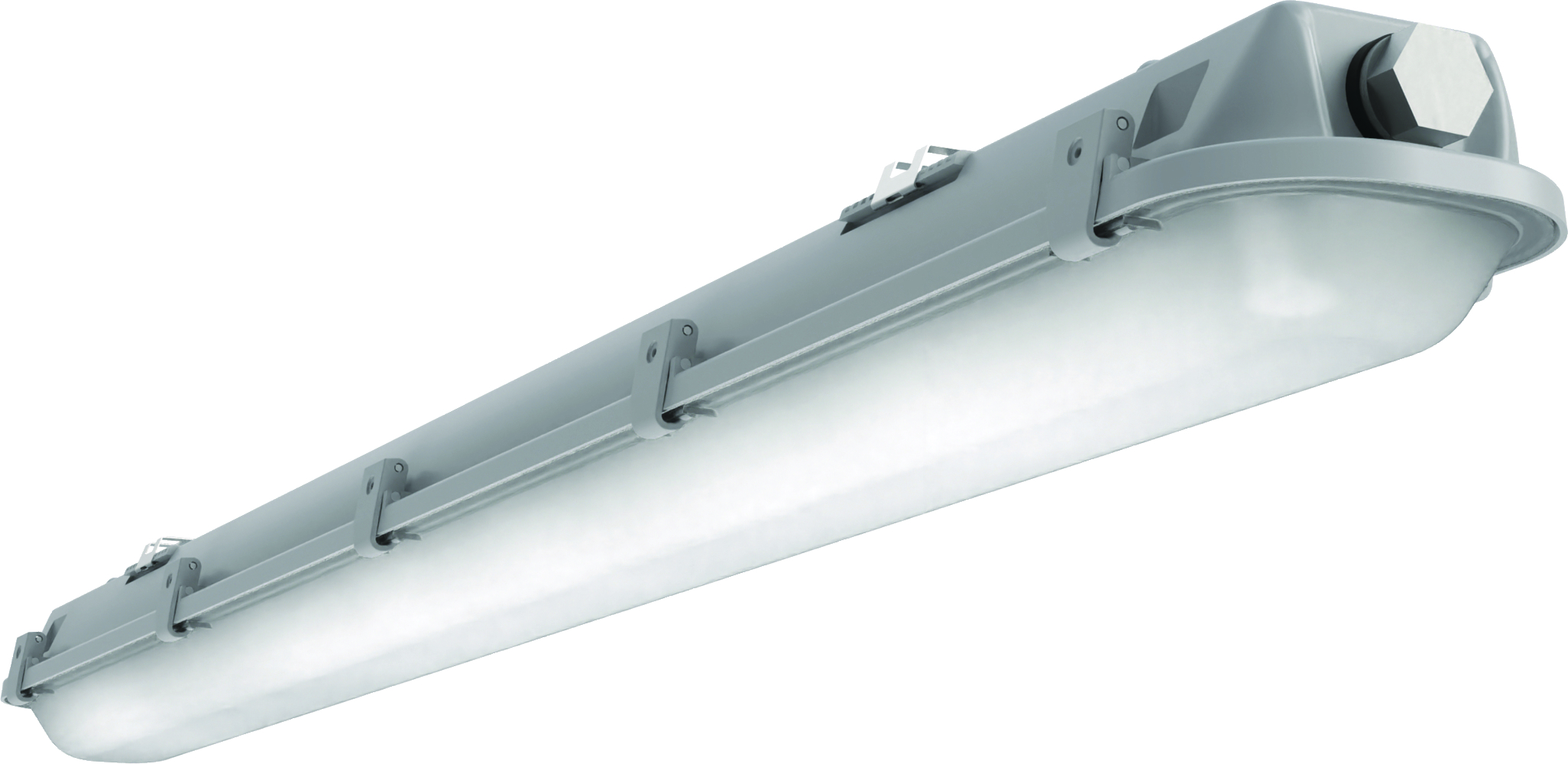

CONTRACTOR SELECT LED VAPORTIGHT, 96IN,

Manufacturer: Lithonia Lighting | Catalog # CSVT L96 ALO4 MVOLT SWW3 80CRI | Electrozad South Part # 379362
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
The CSVT by Lithonia Lighting is built on the technological framework of the CSS, providing greater customization and performance for everyday spaces. And with the ability to switch lumens and adjust color temperature in one fixture, the CSVT can easily be adapted to the needs of each project ... 9 different variations within the same SKU!

Technical Information

Aperture Size
8 ft
Applications
Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
60,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
White
Lens Material
Polycarbonate
Lumens
6000 lm
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Standard
CSA,NOM
Style
Traditional
Type
Low Bay
Voltage
120 V
Wattage
95.000 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995069446
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
GTIN
00194995069446
Product Type
Low Bay
Product UPC
19499506944
Shape
Rectangular
Weight
10.428 lb

Dimensions

Height
3.8 in
Length
98.3 in
Warranty Length
5 yr
Width
5.4 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: MVOLT (120-277V) & 347V
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • DIMMING: 0-10V Dimming standard
  • TECHNOLOGY: Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight
  • ENERGY SAVINGS: High Efficiency LEDs meet DLC Standard
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • BATTERY: This product does not include an emergency back up supply
  • DIMENSIONS: (l x w x h) 98.3 in x 5.4 in x 3.8 in
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
