4... E Series LED Module with Switchable White, LED Retrofit Downlight

Manufacturer: Juno Lighting | Catalog # 4SEMW SWW5 90CRI M6 | Electrozad South Part # 379300

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
The E Series LED Recessed Module with Switchable White feature offers flexibility for lighting a space to the desired colour temperature with the integrated switch that allows for simple colour temperature adjustment directly on the trim to change from 2700K, 3000K, 3500K, 4000K or 5000K at 90 CRI.Providing optimized value, the LED trim module is designed for easy installation into typical 4... residential housings using friction clips. The E Series is ideal for retrofitting into most existing 4... recessed, remodel or new construction housings for residential, multi-family, and light commercial applications. The E Series combines dependable performance and low cost with the virtually maintenance-free, energy-saving benefits of a 50,000 hour rated-life LED.Field installable, colour finish trim inserts available in baffle and smooth styles to further customize your space with designer finishes including matte black, brushed nickel, and oil-rubbed bronze.

Technical Information

Aperture Size
4 in
Applications
Hospitality,Residential,Retail,Retrofit
Average Rated Life
50,000 hr
Color Rendering Index
90 CRI
Color Temperature
2700 K
Dimmable?
Yes
Lamp Life
50,000 hr
Lamp Type
LED - Dynamic
Lens Color
White
Lens Material
Polycarbonate
Lumens
700 lm
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
1
Standard
CSA,CSAus,NOM
Style
Contemporary
Type
Trim
Voltage
120 V
Wattage
8.600 W

Manufacturer Information

Brand
Juno

General Product Info

12-Digit UPC
194994160496
Color
White
Construction
Retrofit
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
GTIN
00194994160496
Product Type
Trim
Product UPC
19499416049
Shape
Round
Weight
0.16 lb

Dimensions

Height
3.42 in
Length
5.230 in
Warranty Length
5 yr
Width
5.230 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • WARRANTY: 5-year limited warranty
  • INSTALLATION: Suitable for installation in standard height rough-in sections, the friction clips allow fitment into cans with an inside diameter of 4 in. to 4.5 in.
  • OPTICS: diffused lens to provide even light distribution for general illumination, equivalent to 65W BR30 lamp
  • DIMMABLE: Dimming down to 10 percent with most standard incandescent dimmers

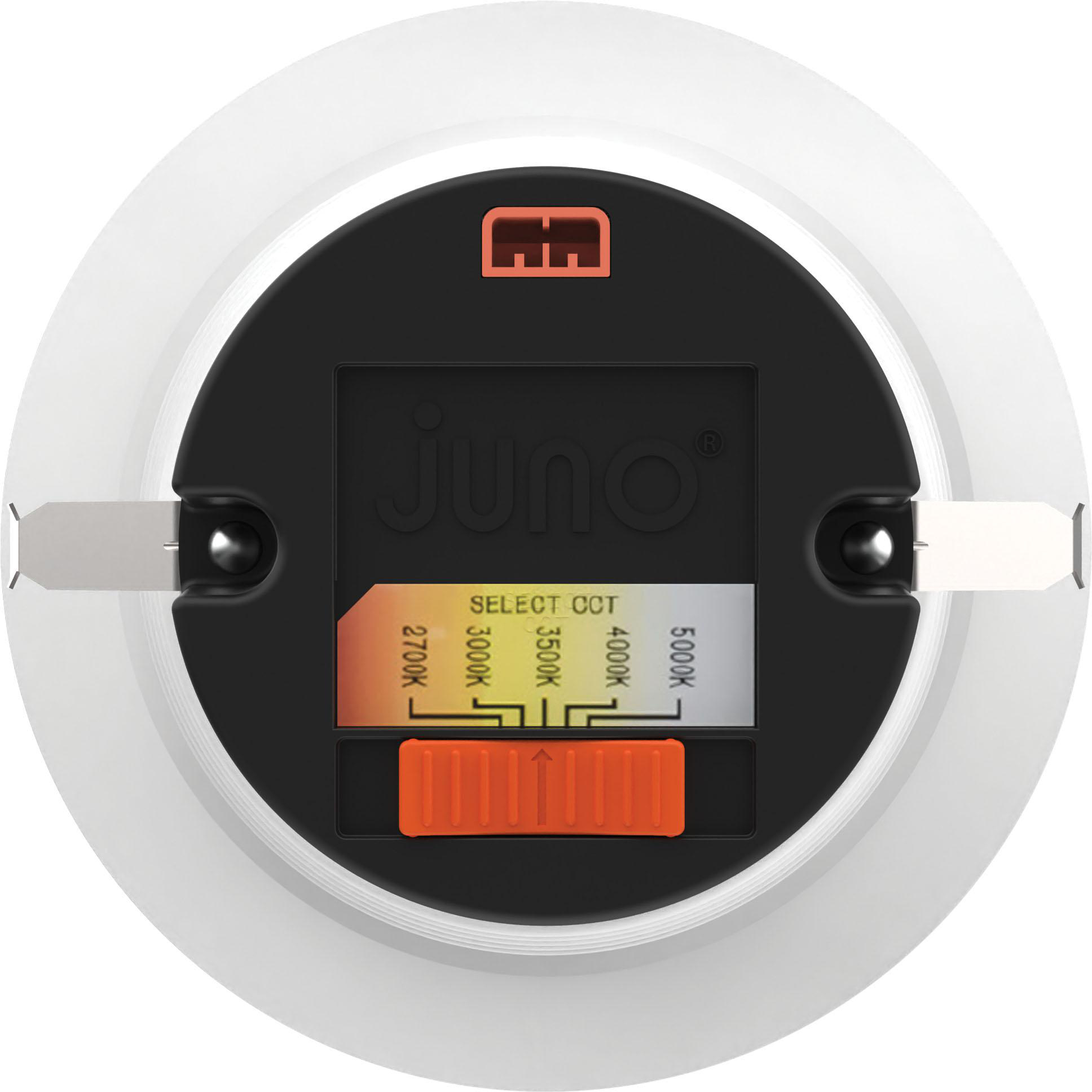

  • COLOR TEMPERATURE TECHNOLOGY: 5 switching color temperatures to choose with a switch ranging from warm (2700K) to daylight (5000K) allowing customization for endless applications
  • ELECTRICAL: Center 2 Edge⢠(patent pending) technology created for a single point source; Primary power disconnect provided for simple connection to a dedicated LED connector in the housing
  • HOURS OF LIFE: LED module maintains at least 70 percent light output for up to 35,000 hours
  • MATERIAL: Aluminum spun reflector with deep regression for reduced glare
  • DIMENSIONS: Aperture: 4-1/8in (10.5cm), Overlap trim: 5-1/4in (13.3cm), Height: 2-1/2in (6.3cm)
  • RATINGS/LISTINGS: CSA certified to US and Canadian safety standards, can be used to comply with California Title 24 Part6 High Efficacy LED Light Source Requirements, Wet location listed, WSEC ASTM E283 for Air-Tight (with IC housings)
