6... E Series LED Module with Switchable White, LED Retrofit Downlight

Manufacturer: Juno Lighting | Catalog # 65SEMW SWW5 90CRI M6 | Electrozad South Part # 379183

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days

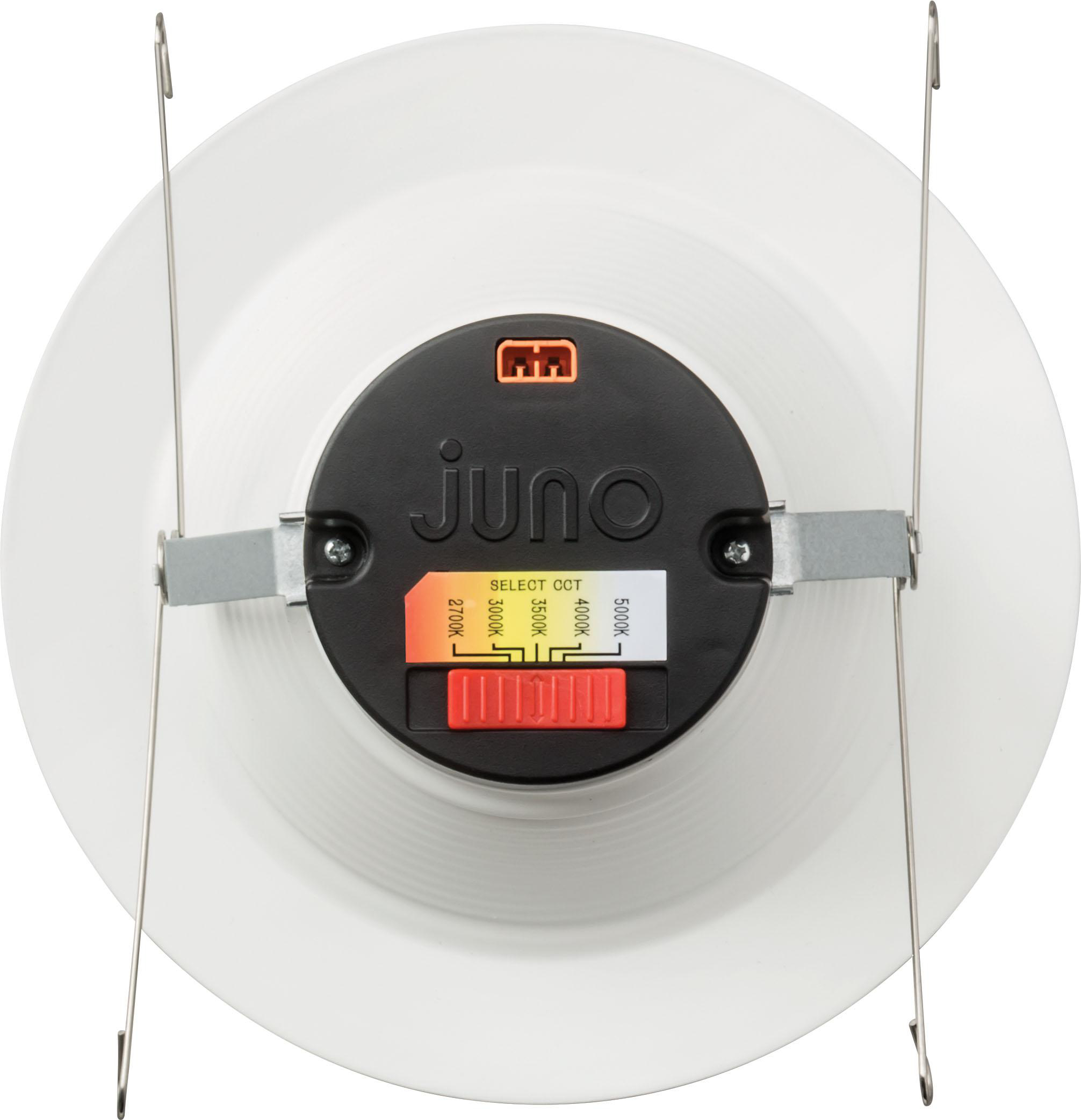

The E Series LED Recessed Module with Switchable White feature offers flexibility for lighting a space to the desired colour temperature with the integrated switch that allows for simple colour temperature adjustment directly on the trim to change from 2700K, 3000K, 3500K, 4000K or 5000K at 90 CRI.Providing optimized value, the 5.../6... LED trim module is designed for easy installation into both 5... and 6... residential housings using the adjustable torsion springs. The E Series is ideal for retrofitting into most existing 5... or 6... recessed, remodel or new construction housings for residential, multi-family, and light commercial applications.The E Series combines dependable performance and low cost with the virtually maintenance-free, energy-saving benefits of a 50,000 hour rated-life LED. Field installable, colour finish trim inserts available in baffle and smooth styles to further customize your space with designer finishes including matte black, brushed nickel, and oil-rubbed bronze.

Technical Information

Aperture Size
5 in
Applications
Hospitality,Residential,Retail,Retrofit
Color Rendering Index
90 CRI
Color Temperature
2700 K
Dimmable?
Yes
Lamp Life
50,000 hr
Lumens
900 lm
Material
Aluminum
Mounting Type
Recessed
Number of Lamps
1
Style
Contemporary
Type
Trim
Voltage
120 V
Wattage
13.900 W

Manufacturer Information

Brand
Juno

General Product Info

12-Digit UPC
194994825197
Color
White
Construction
Retrofit
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Matte
GTIN
00194994825197
Product UPC
19499482519
Shape
Round
Weight
0.22 lb

Dimensions

Height
3.7 in
Length
7.620 in
Width
7.630 in

Certifications & Compliance

Country of Origin
China,China
Overview
  • 5-year limited warranty
  • Suitable for installation in standard and shallow-height rough-in sections
  • Aluminum spun reflector with deep regression for reduced glare. Combined LED and driver printed circuit board attached. Inner reflector cone funnels light through the pressed-in diffused lens
  • Dimming down to 10 percent
  • Center 2 Edge⢠(patent pending) technology created for a single point source. Primary power disconnect provided for simple connection to a dedicated LED connector in the housing
  • Uses minimal wattage and provides the lumens needed to light the room for an energy efficient solution
  • The LED module maintains at least 70 percent light output for 35,000 hours
  • Emergency battery currently not available
  • Dimensions: Aperture: 5-5/8in (14.3cm), Overlap trim: 7-5/8in (19.4cm), Height: 2-3/4in (7.1cm)
  • CSA certified to US and Canadian safety standards, ENERGY STAR® certified, Can be used to comply with California Title 24 Part6 High Efficacy LED Light Source Requirements, Wet location listed, WSEC ASTM E283 for Air-Tight (with IC housings)
