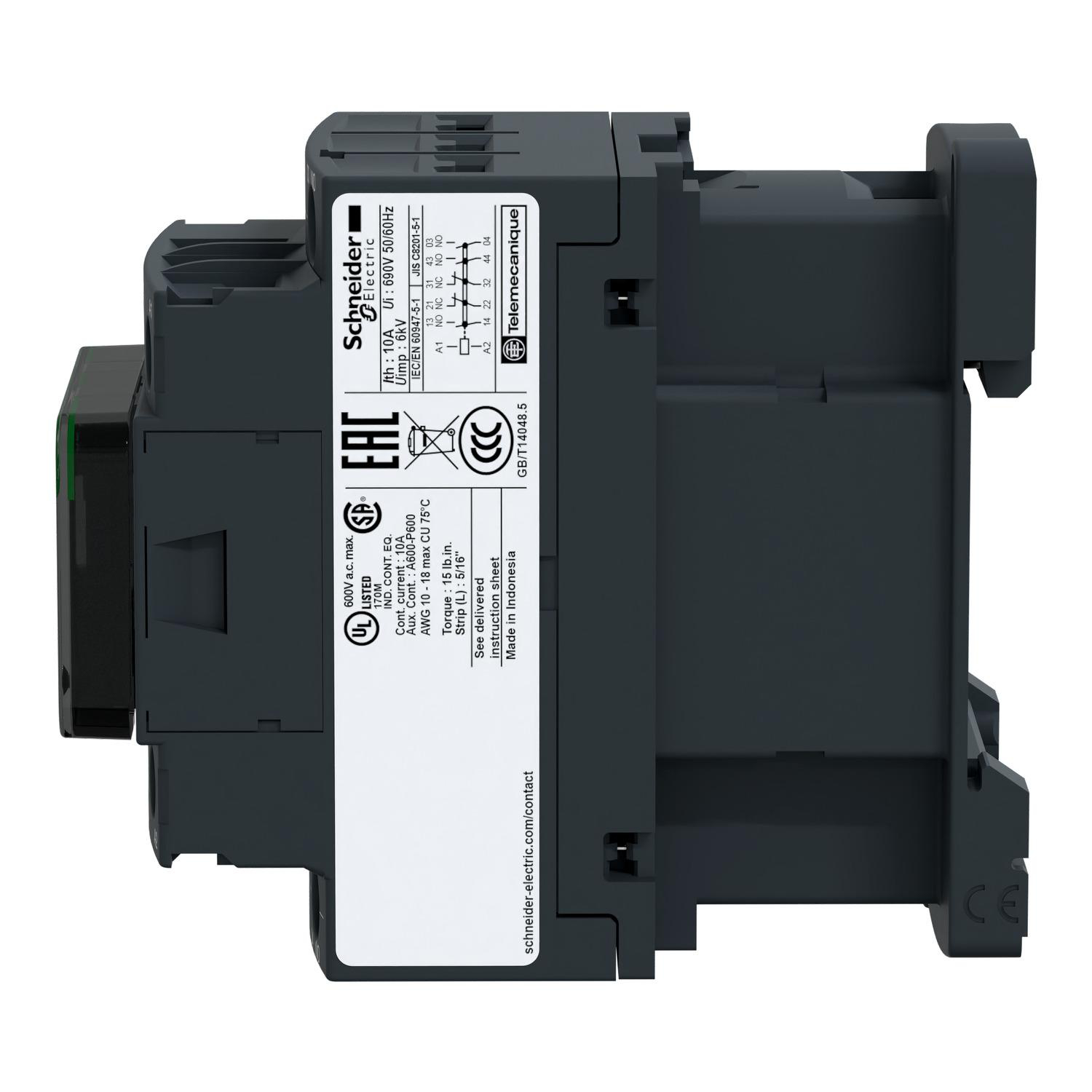

Image thumbnail 1

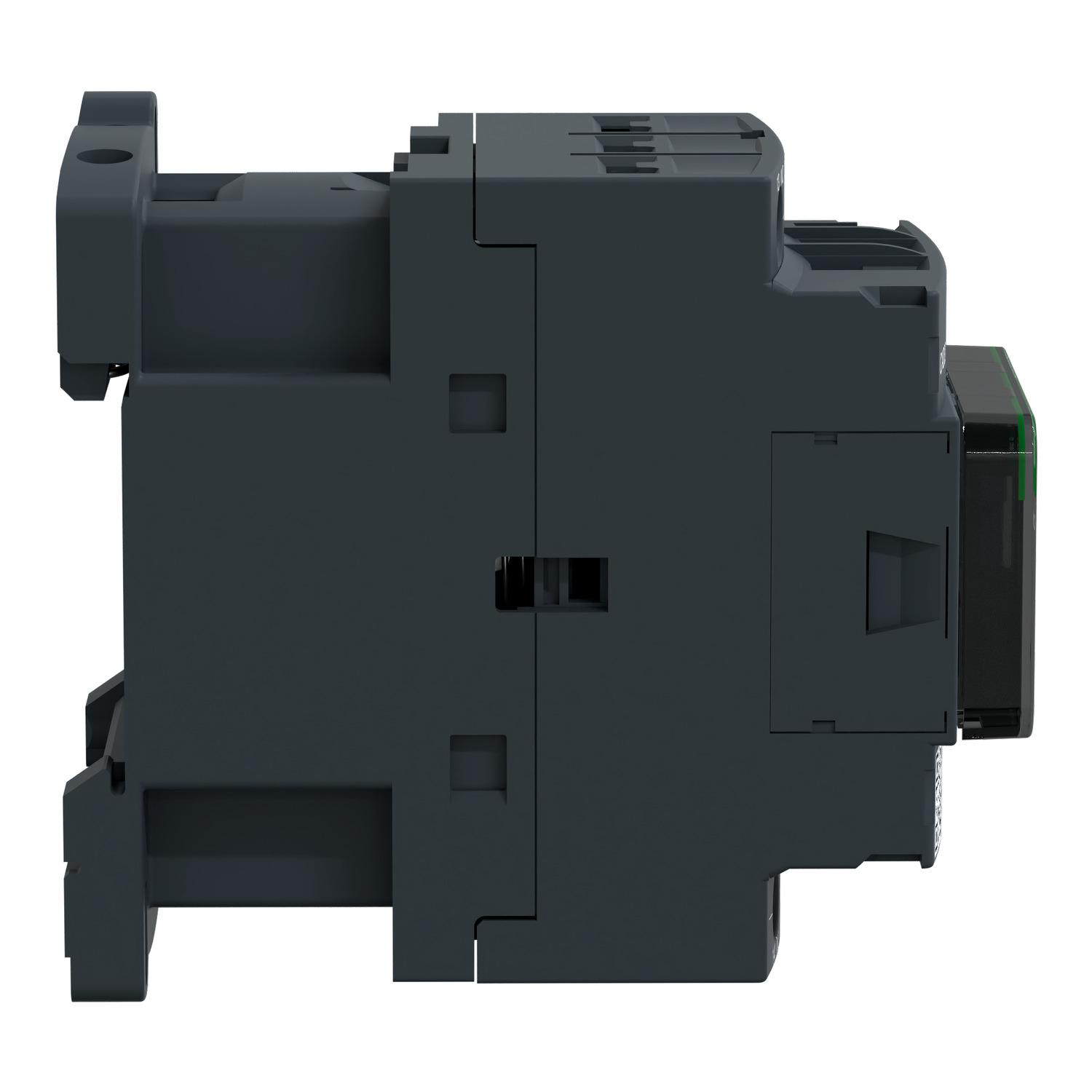

Image thumbnail 2

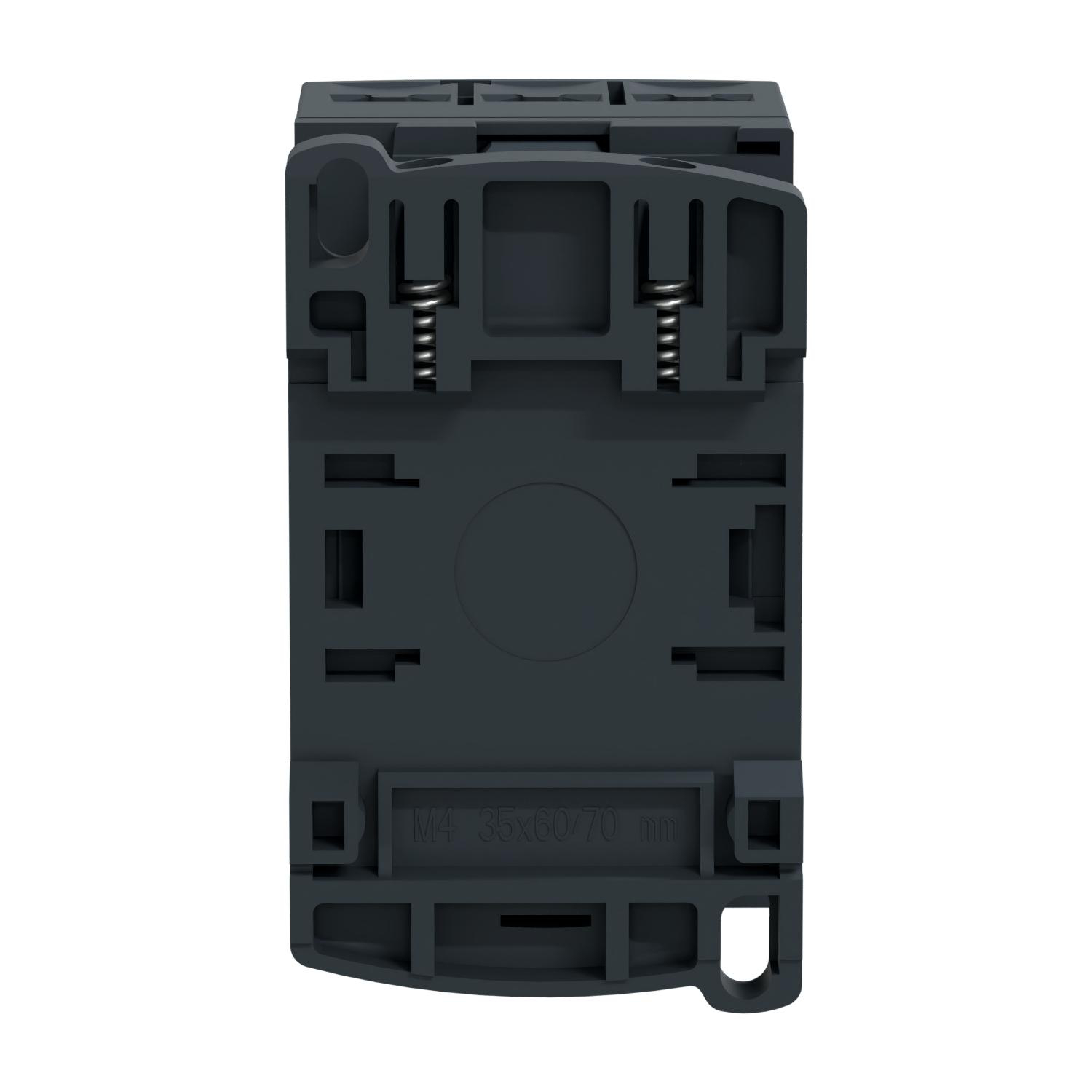

Image thumbnail 3
To:
CC:

TESYS DECA CONTROL RELAY - 5 NO - <= 690 V - 24 V DC STANDARD COIL

Manufacturer: Schneider Kreuznach B & W | Catalog # CAD50BD | Electrozad South Part # 378392
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 I INSTALL ASSEMBLY INSTRUCTIONS URL
TeSys Deca control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60..C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Technical Information

Applications
Control circuit
Contact Configuration
5 NO
Contact Rating
<= 690 V AC 25...400 HZ
Enclosure
IP2X FRONT FACE CONFORMING TO VDE 0106
Net Weight
0.58 kg
Operating Cycles
180 cyc/mn
Operating Temperature
-40-70 Adegrees C
Size
3.66 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,GB/T 14048.5,JIS C8201-5-1,UL 60947-5-1
Storage Temperature
-60-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA²FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA²FLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 1-4 MMA²SOLID WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA²SOLID WITHOUT CABLE END
Type
Control relay
Voltage
690 V

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TESYS

General Product Info

12-Digit UPC
338911040557
GTIN
03389110405583
Weight
0.58 kg

Dimensions

Depth
3.66 in
Height
3.03 in
Warranty Length
18 mth
Width
1.77 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
CB,CCC,CE,CSA,EAC,UKCA,UL
Country of Origin
Indonesia
