Pan-Lug™ A4/0-38RH-C Comp. Lug, 4/0, Tin Plt Copper, 45.., One 0.38" Stud, PK100

Manufacturer: Panduit | Catalog # A4/0-38RH-C | Electrozad South Part # 378271
$1,280.27 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

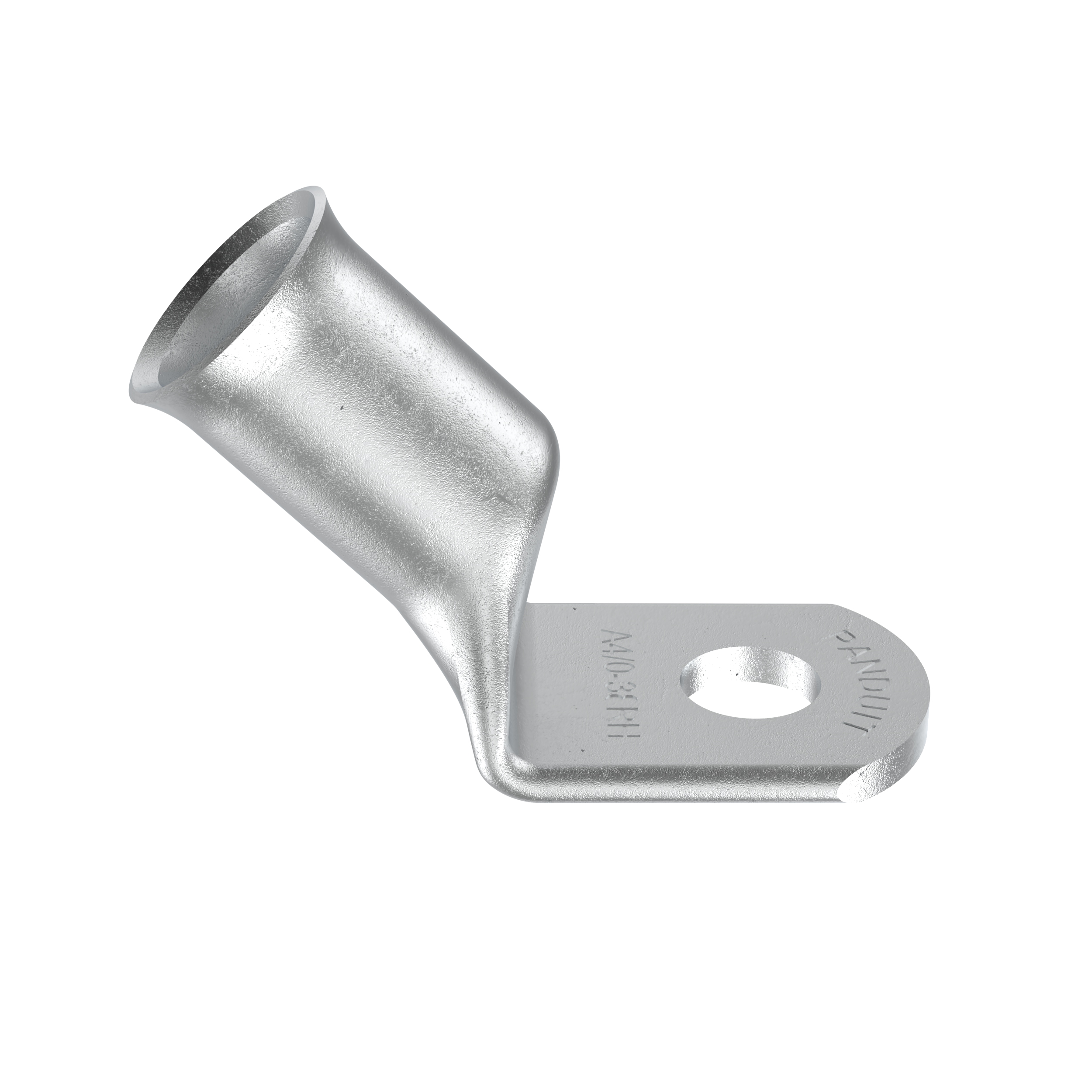

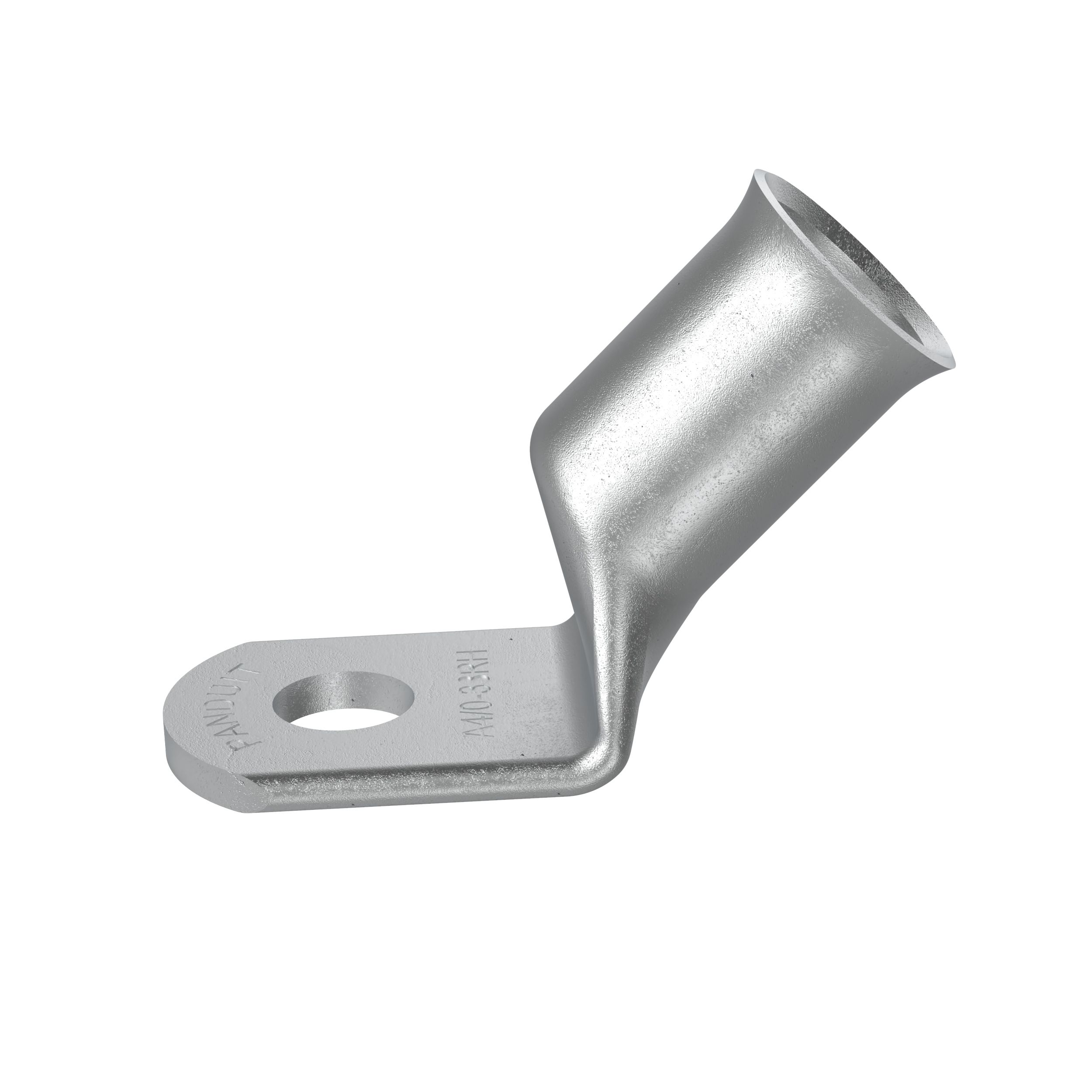

The A4/0-38RH-C Copper Compression Battery Cable Lug, 4/0 AWG, 3/8" Stud with a 45 degree bend are tin plated to meet ASTM Class C specification for corrosion resistance. Manufactured with a standard barrel without an inspection window preventing contaminents from entering. Flared barrel entry for ease of inserting flex conductors. High pullout strength for heavy duty applications and military pullout strength requirements when using Panduit recommended tooling.

Technical Information

Barrel Length
0.91 in
Cable Size
AWG
Material
Copper
Stud Size
0.38 In.
Tongue Angle
45 degrees
Tongue Thickness
0.12 in
Tongue Type
Round
Tongue Width
1.02 in
Type
Compression Lug

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
613056793248
GTIN
00613056793248
Product UPC
61305679324

Dimensions

Outer Diameter
0.69 in
Overall Length
2.39 in

Certifications & Compliance

BAA | Buy American Compliant
Y
CA Prop65 Warning
Y
Country of Origin
India
