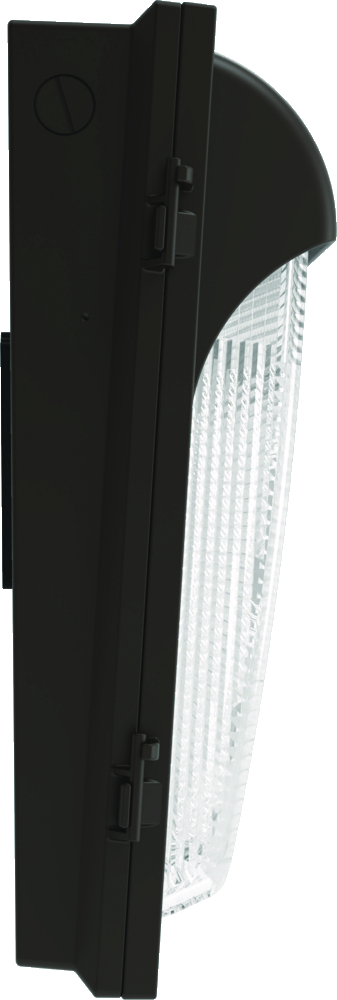

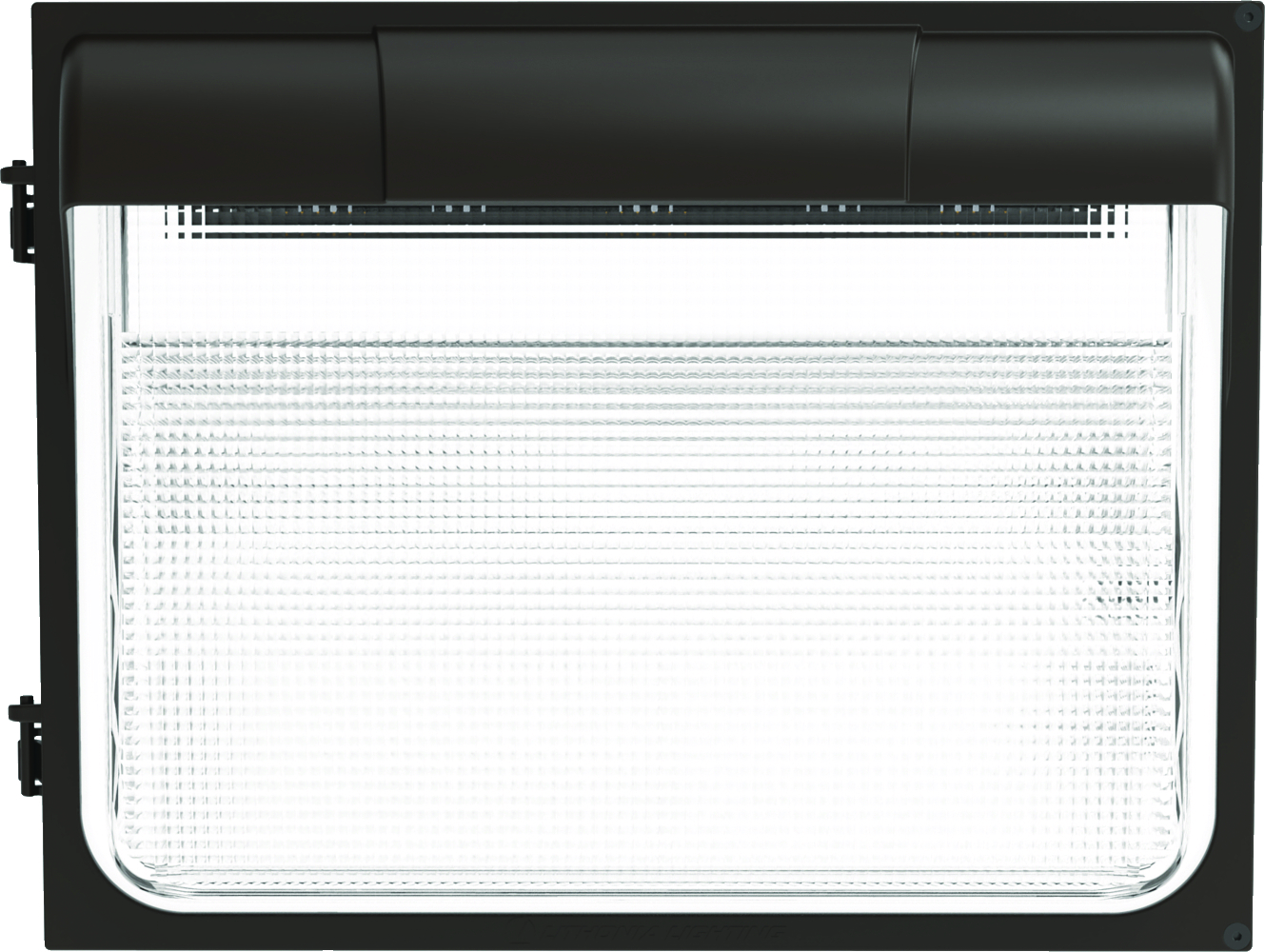

Product image for TWX LED Glass Wall Packs - TWX1, TWX2 and TWX3 ... 2,950 to 13,850 Lumens
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
To:
CC:

TWX LED Glass Wall Packs - TWX1, TWX2 and TWX3 ... 2,950 to 13,850 Lumens

Manufacturer: Lithonia Lighting | Catalog # TWX3 LED ALO 50K MVOLT DDBTXD | Electrozad South Part # 375563
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
The TWX LED wall pack family features a ground-up design with a low initial cost customers demand while providing superior performance in a traditional form. The TWX LED wall packs feature premium borosilicate glass lenses that work in conjunction with the high-efficiency light engine to provide superior illumination while minimizing wasted up-light. The new slim design creates a less obtrusive appearance on the building while still fully covering the unsightly stains leftover from typical HID glass wall packs. The Adjustable Light Output (ALO) option maximizes flexibility both in the field and on distributor shelves.The TWX family has three sizes with lumen packages ranging from 2,950 to 13,850 lumens and are designed to replace 70W to 400W HID wall packs.

Technical Information

Applications
Automotive & Parking,Education,Government,Hospitality,House Of Worship,Offices & Banks,Parking Garage,Sports And Recreation,Transportation,Warehouses
Average Rated Life
100,000 hr
Color Rendering Index
80 CRI
Color Temperature
5000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Glass
Lumens
8,500 lm
Material
Aluminum
Mounting Type
Surface
Power Source
Hardwired
Standard
CSA
Style
Traditional
Type
Wallpack
Voltage
120 V
Wattage
108 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
00194994620549
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Textured
GTIN
00194994620549
Product Type
Wallpack
Product UPC
19499462054
Shape
Rectangular
Weight
21 lb

Dimensions

Height
14 in
Length
14 in
Width
5 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: Five-year limited warranty
  • VOLTAGE: MVOLT for 120-277V (50/60Hz)
  • FINISH: Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
  • PHOTOCELL: Hardwired on/off capability only
  • TECHNOLOGY: Adjustable light output maximizes flexibility in the field. Dial in the lumens you need through a rotary switch located inside of the luminaire
  • ENERGY SAVINGS: The TWX3 LED is energy efficient saving up to 83 percent in energy costs when replacing a metal halide luminaire
  • HOURS OF LIFE: Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100,000 hours at 25°C)
  • BATTERY BACKUP: No emergency battery back-up available in this version
  • DIMENSIONS: 5 in x 14 in x 18 in
  • RATINGS: CSA certified to US and Canadian standards, listed as a DesignLights Consortium® (DLC) qualified product and IP65 rated for outdoor applications
