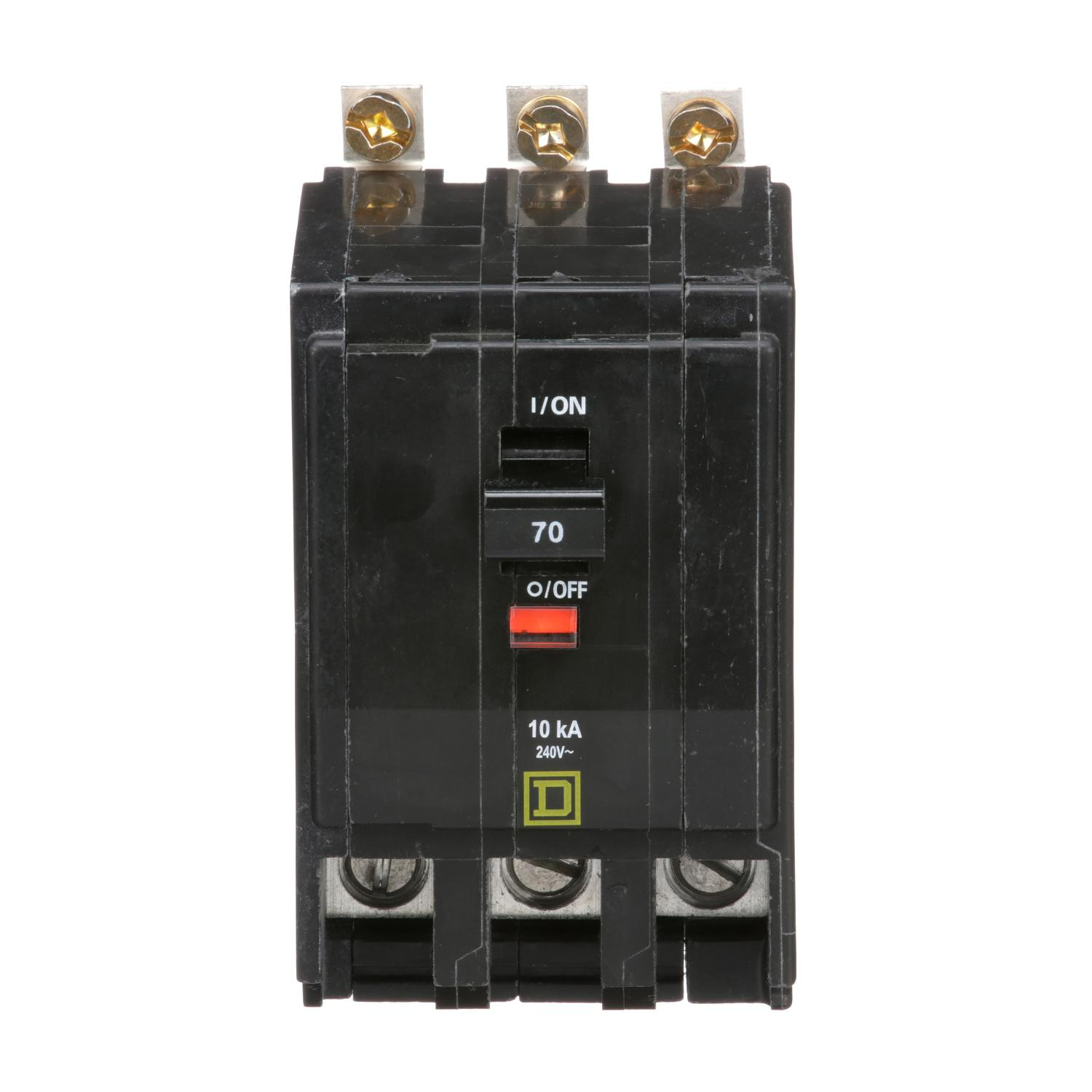

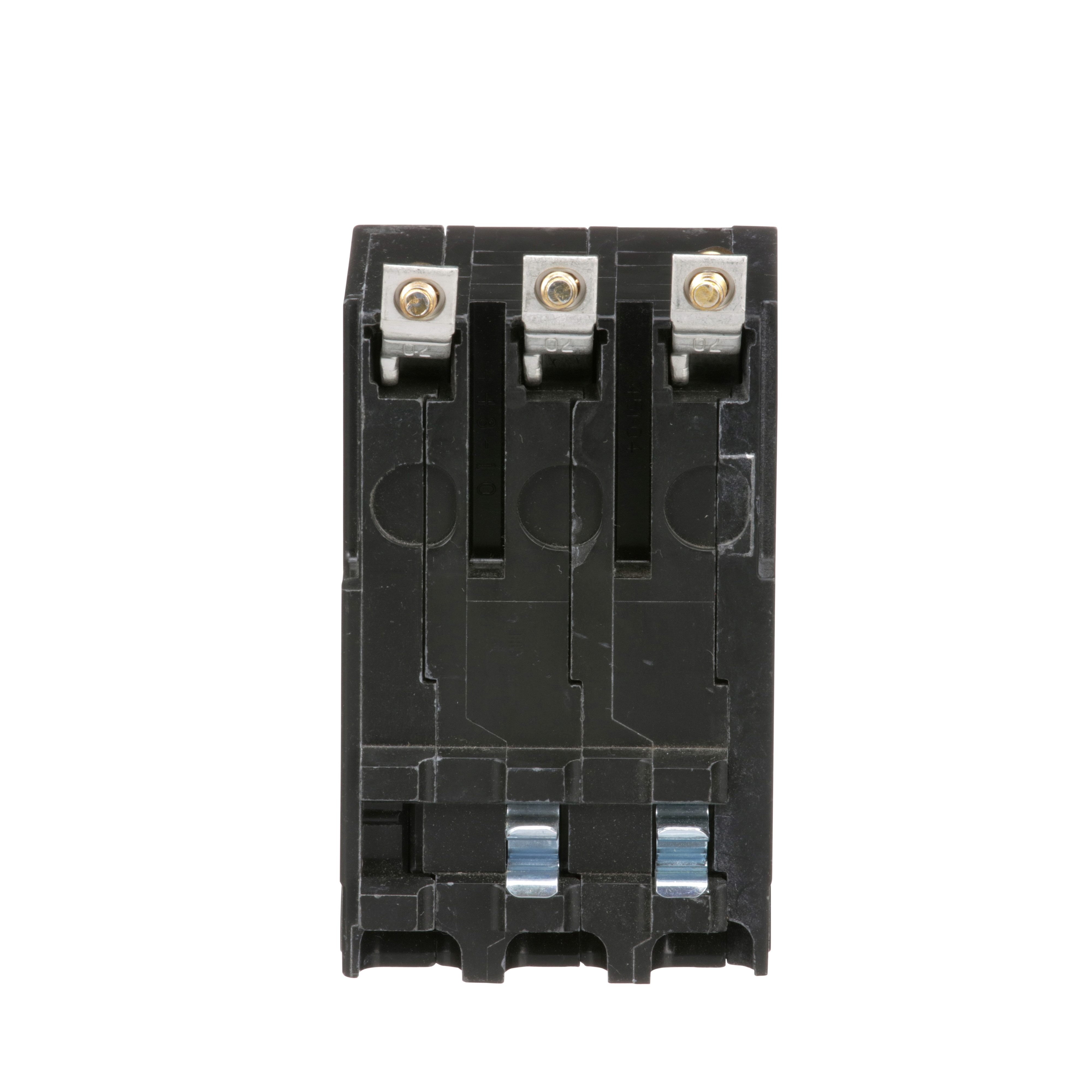

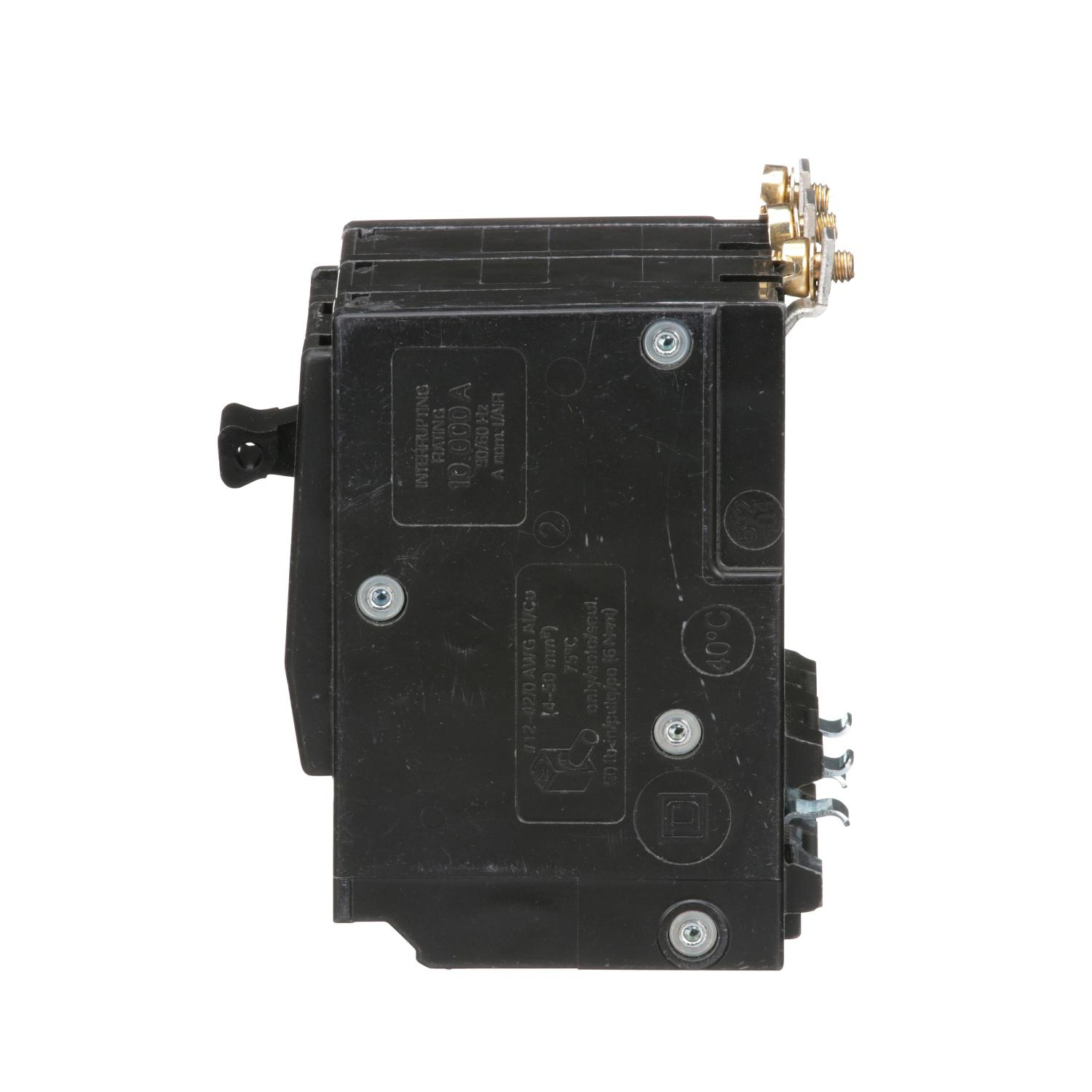

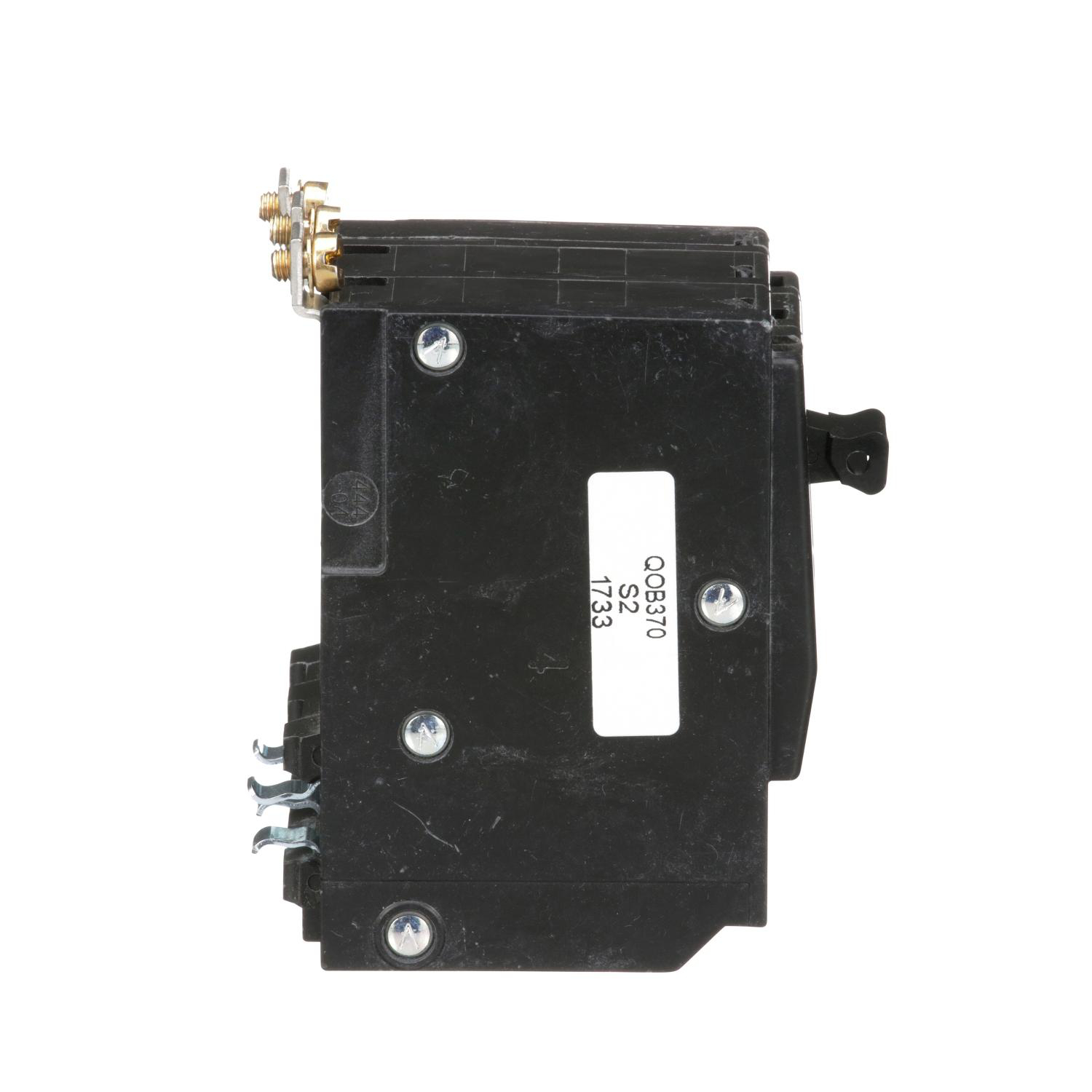

MINI CIRCUIT BREAKER, QO, 70A, 3 POLE, 120/240VAC, 10KA, BOLT ON

Manufacturer: Schneider | Square D | Catalog # QOB370 | Electrozad South Part # 373898
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.

Technical Information

Applications
HACR rated
Circuit Breaker Type
Standard
Current
70 A
Interrupt Rating
10 kA 120/240 V AC 50/60 Hz; 10 kA 240 V AC 50/60 Hz; 10 kA 120 V AC 50/60 Hz
Line Rated Current
70 A
Mounting Type
Bolt-On
Net Weight
0.435 kg
Number of Poles
3
Operating Temperature
40 Adegrees C
Short Circuit Current
10 kA
TC Connection
Box lugs
Type
Miniature circuit-breaker
Voltage
120 V

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901019749
GTIN
00785901019749
Weight
0.435 kg

Dimensions

Depth
2.91 in
Height
3.11 in
Length
2.91 in
Warranty Length
18 mth
Width
2.24 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
