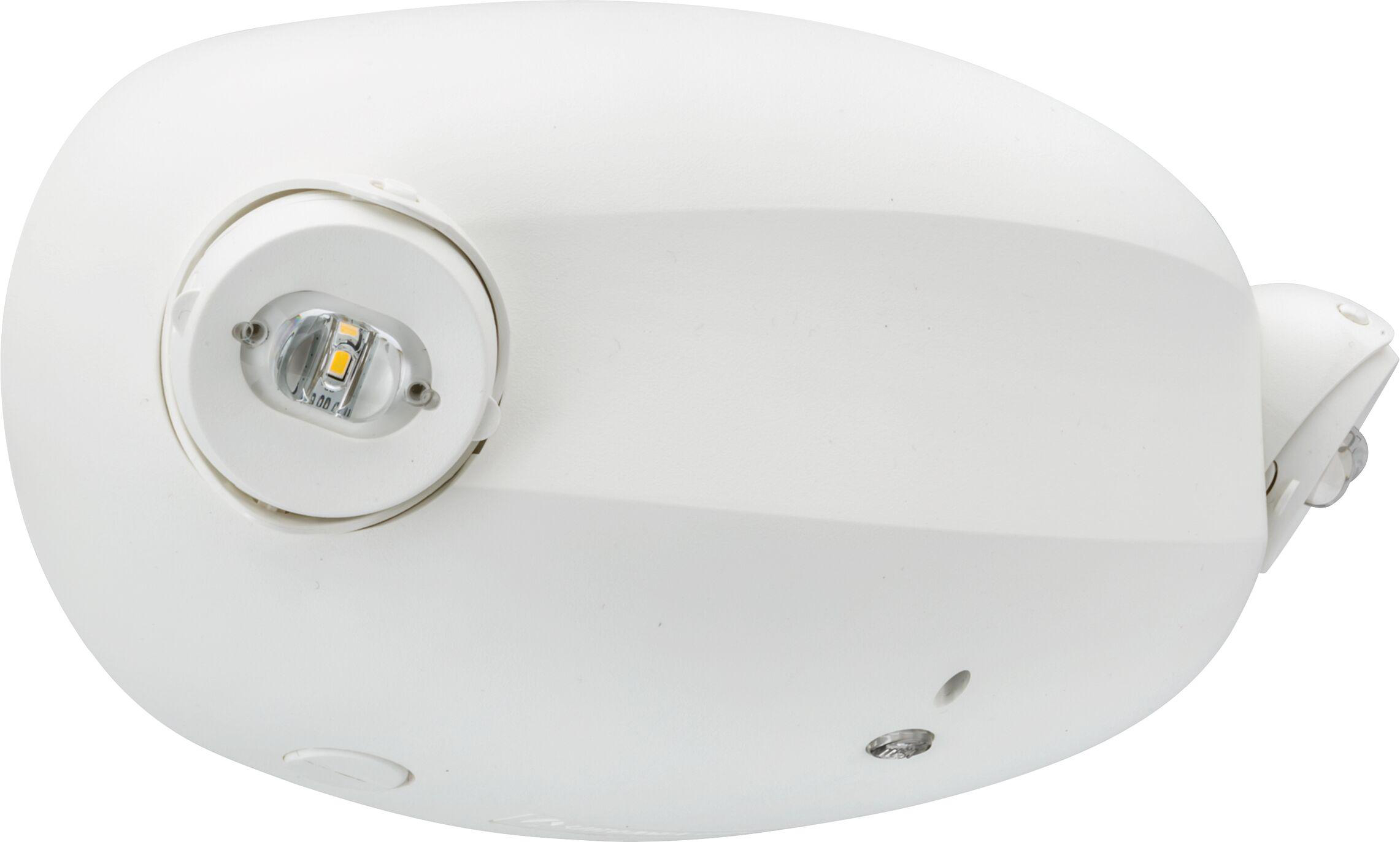

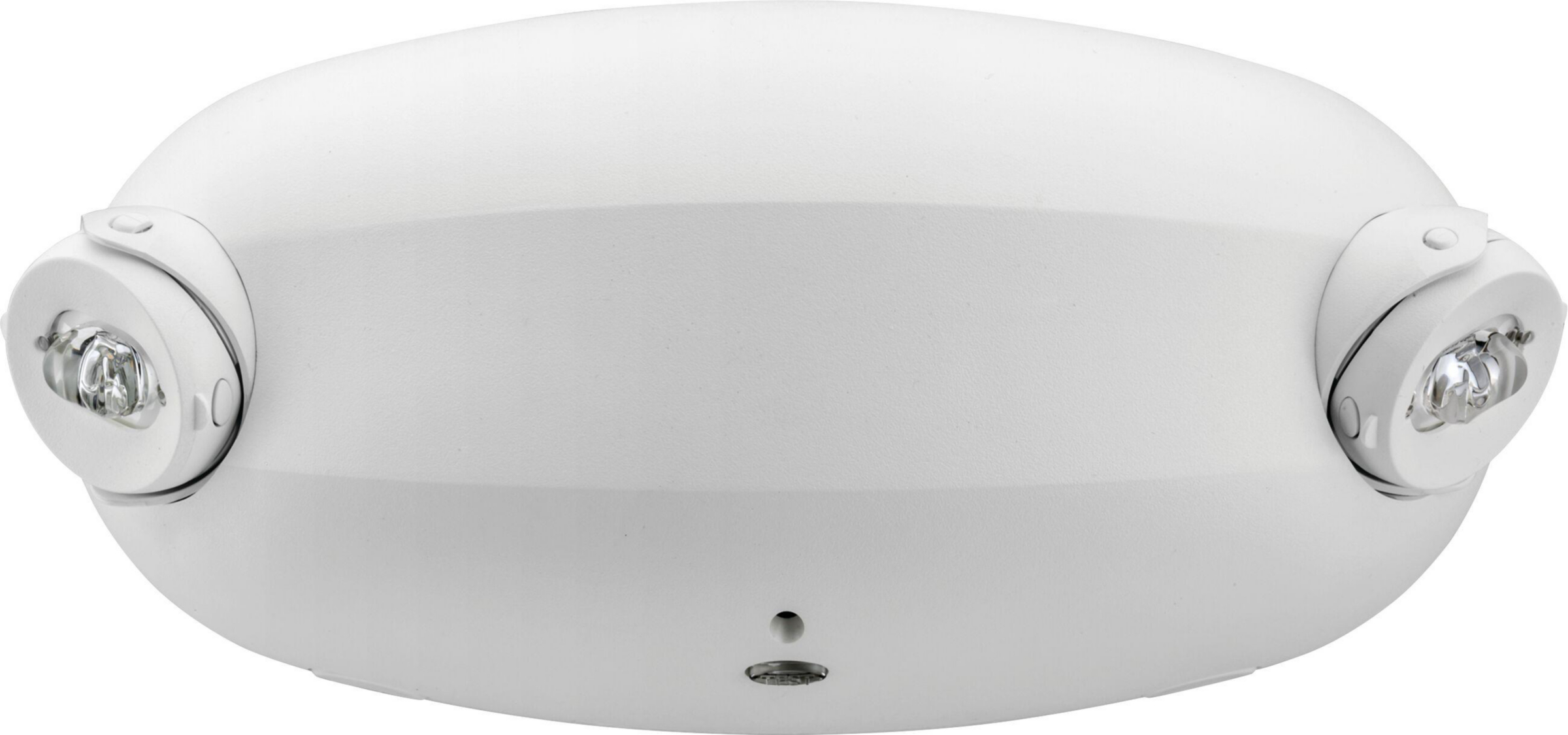

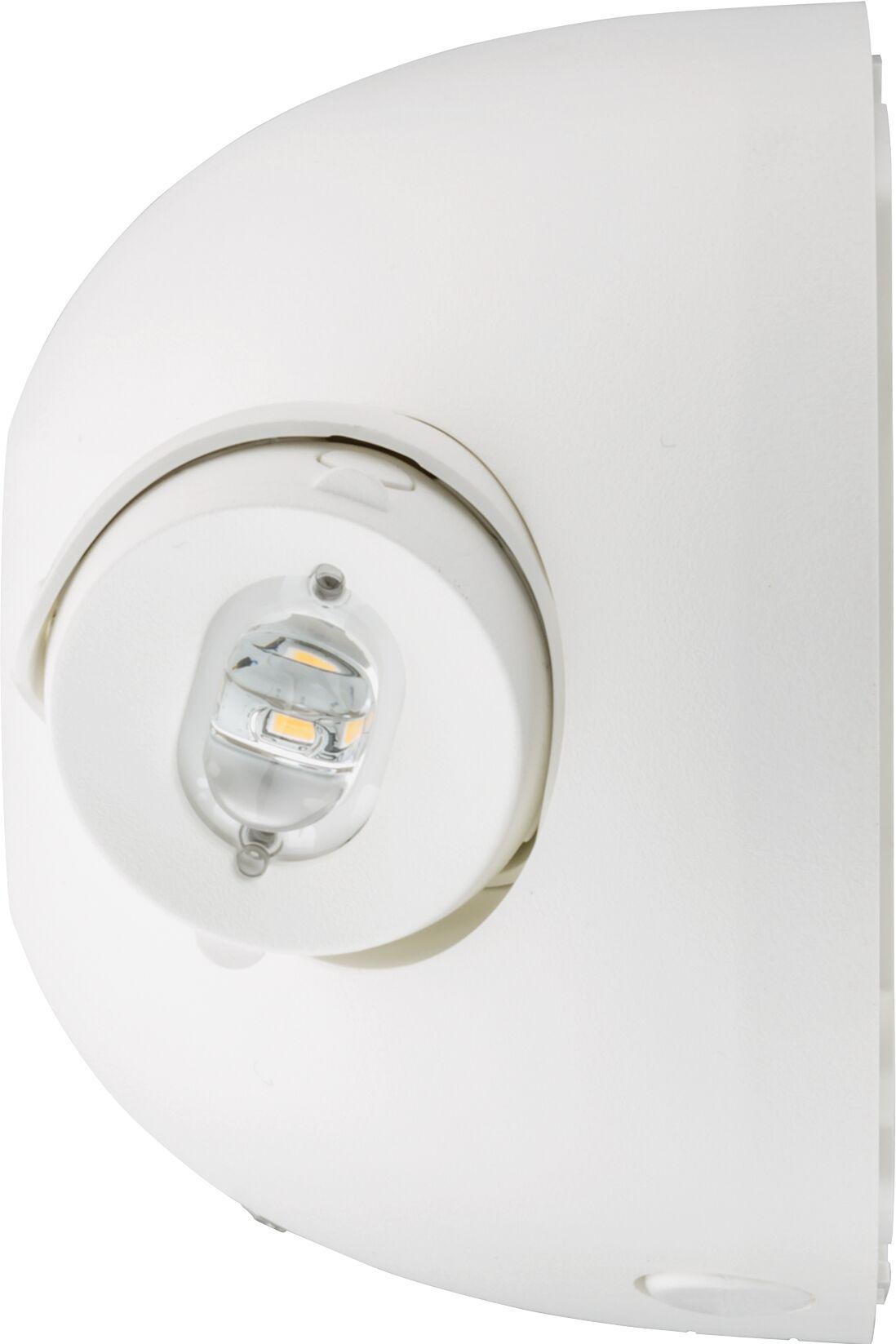

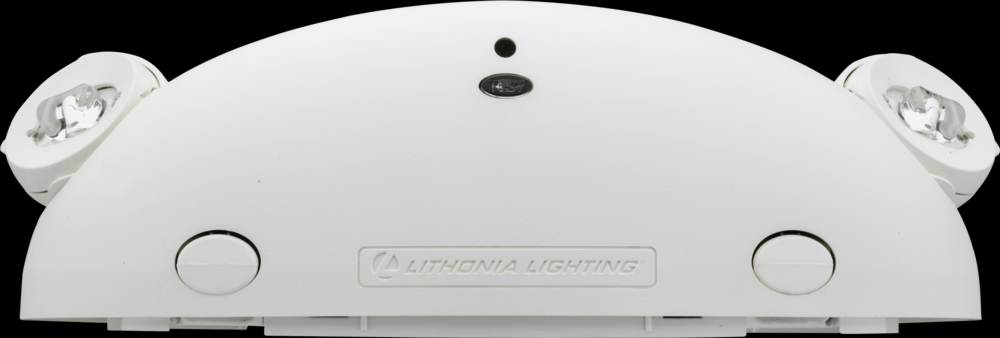

ELM2L

Manufacturer: Lithonia Lighting | Catalog # ELM2L M12 | Electrozad South Part # 373306
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL
Contractor Select & Design Select

Technical Information

Applications
Education,Government,Healthcare,Hospitality,House Of Worship,Offices & Banks,Residential,Retail,Sports And Recreation
Color Rendering Index
70 CRI
Color Temperature
5000 K
Lamp Type
LED - Static
Lens Color
Clear
Lens Material
Acrylic
Lumens
220 lm
Material
Thermoplastic
Mounting Type
Surface
Number of Lamps
2
Power Source
Hardwired
Type
Emergency Lighting Unit
Voltage
120 V
Wattage
0.36 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848091920
Color
White
Construction
New Construction,Remodel
Environment
Indoor,Outdoor
Environmental Conditions
Indoor,Outdoor
Finish
Textured
Fixture Type
Emergency Lighting Unit
GTIN
00191848091920
Product UPC
19184809192
Weight
1.31 lb

Dimensions

Height
4.68 in
Length
9.72 in
Width
3.1 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: Buy with confidence with a 5-year limited warranty
  • VOLTAGE: Functions between 120 or 277 volts (60 Hz) with input wattage of 0.36 watts
  • DESIGN: The housing is a standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
  • DIMMING: Not applicable
  • APPLICATIONS: Ideal for larger commercial indoor applications requiring attractive LED unit equipment for mounting heights up to 12'

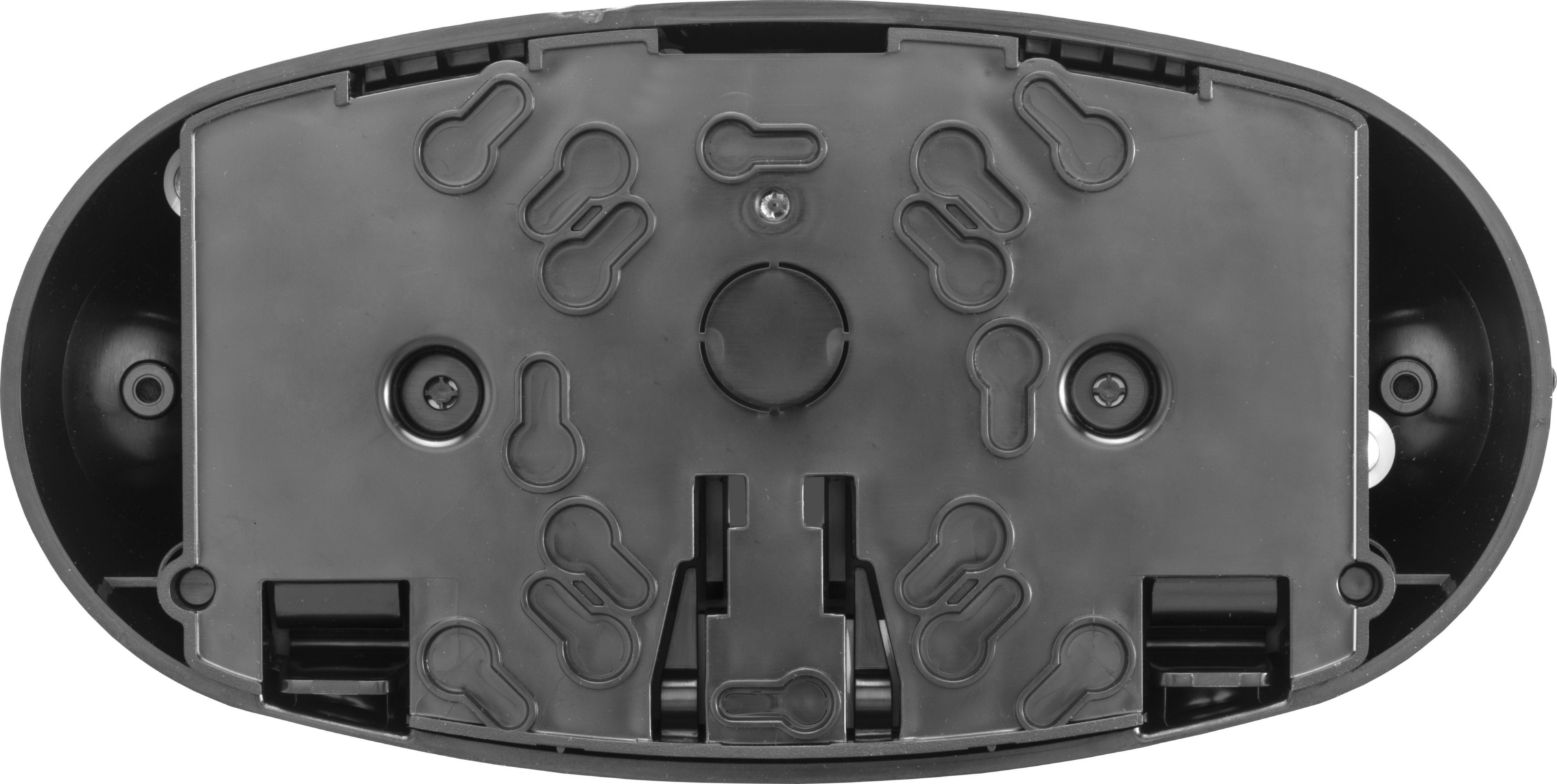

  • INSTALLATION: Wall mount and ceiling mount standard
  • HOURS OF LIFE: The typical life of the LED lamp is 10 years using two 1.2-Watt LED lamps for emergency light
  • BATTERY: Emergency light provided with test switch, status indicator and rechargeable battery with maintenance-free 3.6V nickel-cadmium battery provides 90 minutes of emergency power
  • DIMENSIONS: Length: 9.72 in. x Height 4.68 in.
  • RATINGS: UL damp location listed standard at 50-104 degrees F (10-40 C), meets or exceeds all applicable requirements for Life Safety Code and state specific requirements
