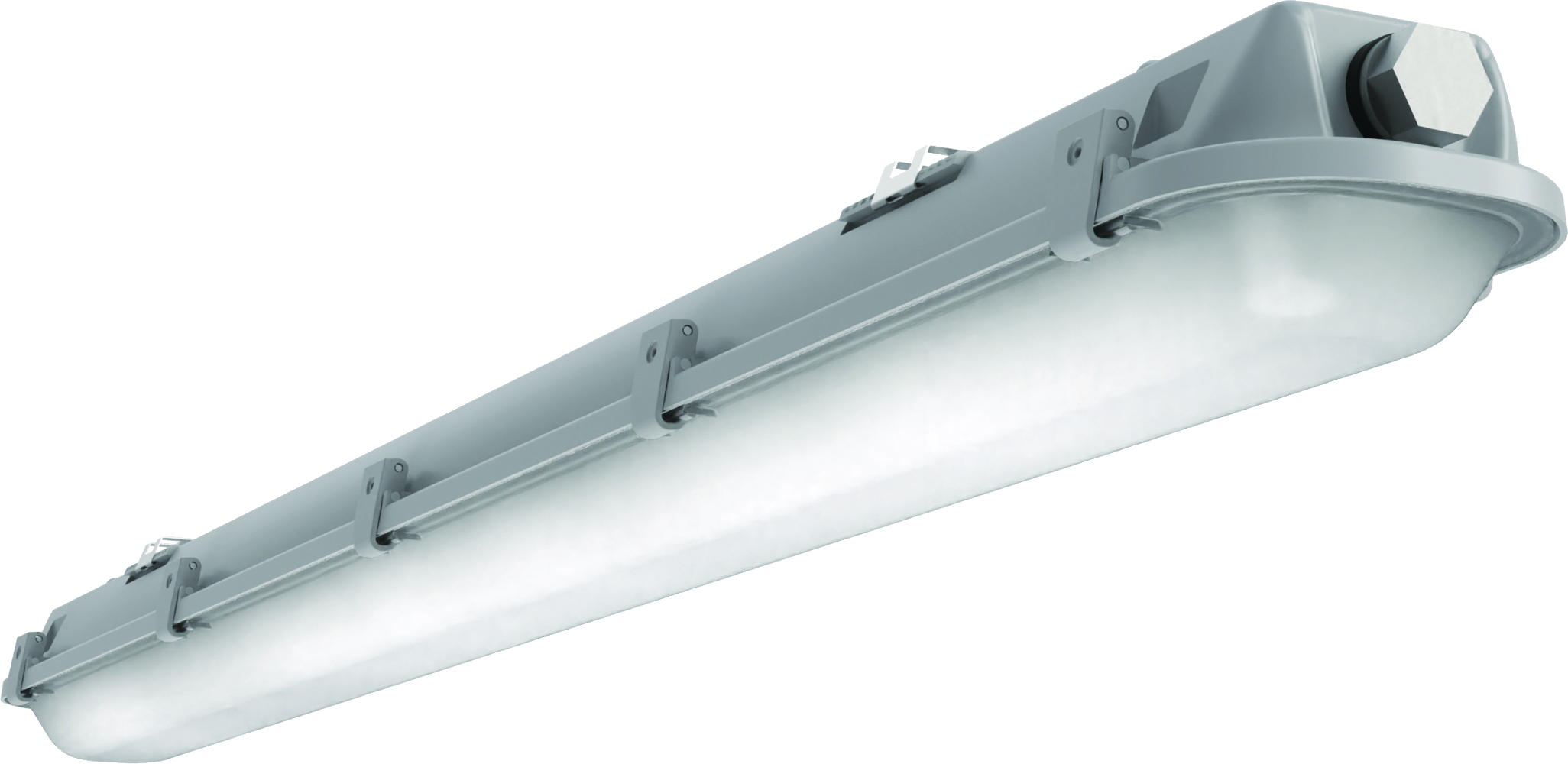

CONTRACTOR SELECT LED VAPORTIGHT, 48IN,

Manufacturer: Lithonia Lighting | Catalog # CSVT L48 5000LM MVOLT 40K 80CRI | Electrozad South Part # 371176
$121.62 /pc
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

Technical Information

Aperture Size
4 ft
Applications
Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
54,000 hr
Color Rendering Index
80 CRI
Color Temperature
4000 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
White
Lens Material
Polycarbonate
Lumens
5000 lm
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Size
50.3x5.4x3.8 IN
Standard
CSA,NOM
Style
Traditional
Type
Low Bay
Voltage
120 V
Wattage
47.600 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995069408
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
Fixture Type
Low Bay
GTIN
00194995069408
Product Type
Low Bay
Product UPC
19499506940
Shape
Rectangular
Weight
9 lb

Dimensions

Height
3.8 in
Length
50.3 in
Warranty Length
5 yr
Width
5.4 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: MVOLT (120-277V) & 347V
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • DIMMING: 0-10V Dimming standard
  • TECHNOLOGY: Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight
  • ENERGY SAVINGS: High Efficiency LEDs meet DLC Standard
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • BATTERY: This product does not include an emergency back up supply
  • DIMENSIONS: (l x w x h) 50.3 in x 5.4 in x 3.8 in
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
