CONTRACTOR SELECT LED VAPORTIGHT, 48IN,

Manufacturer: Lithonia Lighting | Catalog # CSVT L48 ALO3 MVOLT SWW3 80CRI | Electrozad South Part # 370630
$132.31 /ea
ea
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

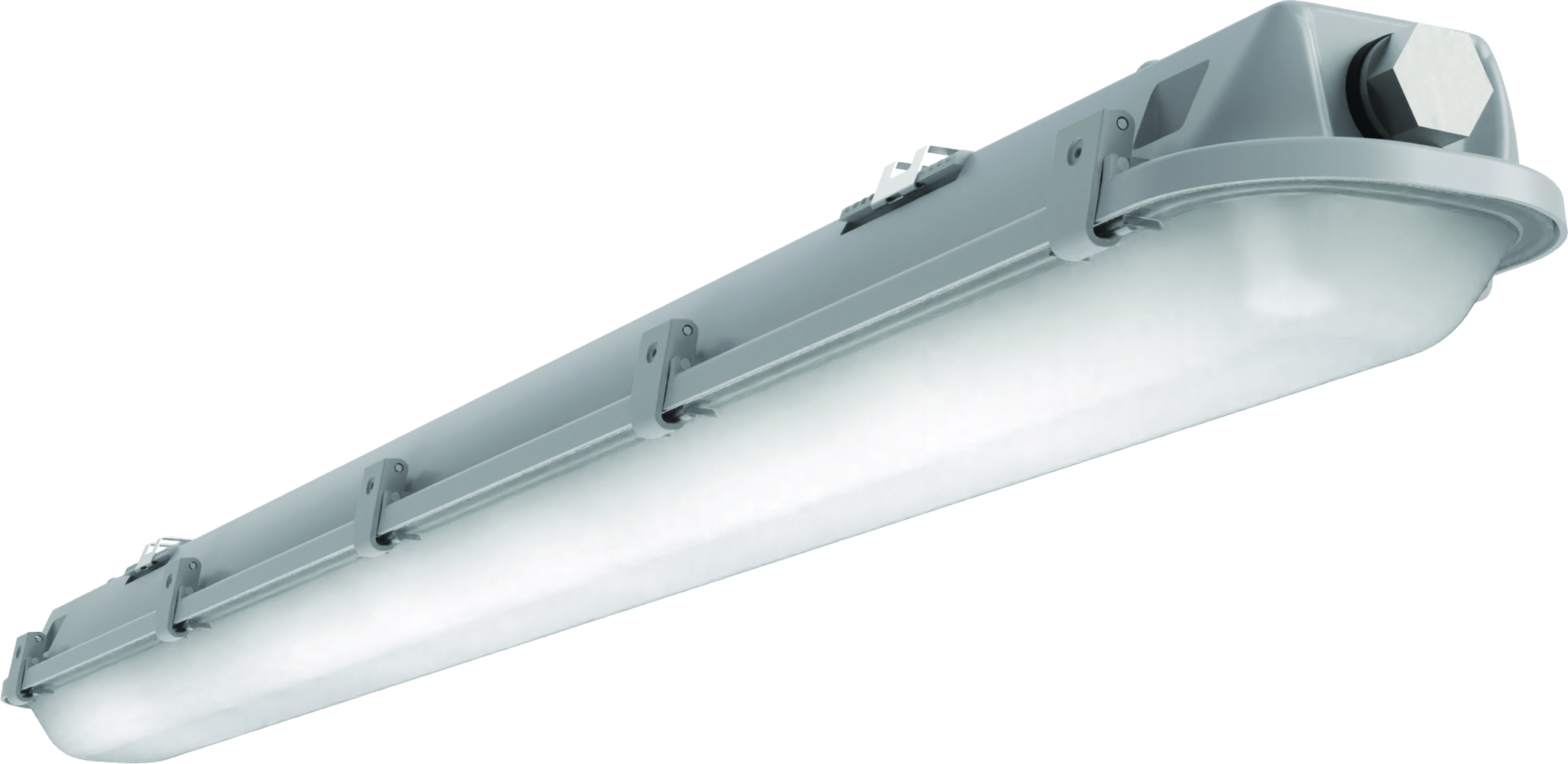

The CSVT™ Vapor Tight LED Strip Light by Lithonia Lighting is built on the technological framework of the CSS and uses a tongue & groove, poured in gasket design, allowing for easy, on the go maintenance and provides for impressive ratings such as CSA wet location, IP65, IP66 for general washdown, and NEMA4X!

Technical Information

Aperture Size
4 ft
Applications
Manufacturing,Parking Garage,Sports And Recreation,Warehouses
Average Rated Life
60,000 hr
Color Rendering Index
80
Color Temperature
3500 K
Dimmable?
Yes
Lamp Type
LED - Static
Lens Color
White
Lens Material
Polycarbonate
Lumens
3000 lm
Material
Polycarbonate
Mounting Type
Pendant,Surface,Suspended
Power Source
Hardwired
Standard
CSA,NOM
Style
Traditional
Type
Low Bay
Voltage
120 V
Wattage
47.600 W

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
194995069507
Color
Gray
Construction
New Construction,Remodel
Environment
Demanding,Indoor,Outdoor
Environmental Conditions
Demanding,Indoor,Outdoor
Fixture Type
Low Bay
GTIN
00194995069507
Product Type
Low Bay
Product UPC
19499506950
Shape
Rectangular
Weight
8.298 lb

Dimensions

Height
3.8 in
Length
50.3 in
Warranty Length
5 yr
Width
5.4 in

Certifications & Compliance

Country of Origin
Mexico
Overview
  • WARRANTY: 5-year limited warranty
  • VOLTAGE: MVOLT (120-277V) & 347V
  • INSTALLATION: Surface (wall, ceiling) or suspended (chain, cable) using standard brackets
  • DIMMING: 0-10V Dimming standard
  • TECHNOLOGY: Adjustable Lumen Output (ALO) and Switchable white (SWW) features allow for this strip light to offer 9 potential configurations within one fixture, using two switches
  • ENERGY SAVINGS: High-Efficiency LEDs meet DLC Standard
  • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 120,000 hours (L70>120,000)
  • BATTERY: This product does not include an emergency back up supply
  • DIMENSIONS: (l x w x h) 50.3 in x 5.4 in x 3.8 in
  • RATINGS: CSA Certified to UL & C-UL Standards for wet location, IP65 and IP66 rated, NSF splash zone rated
