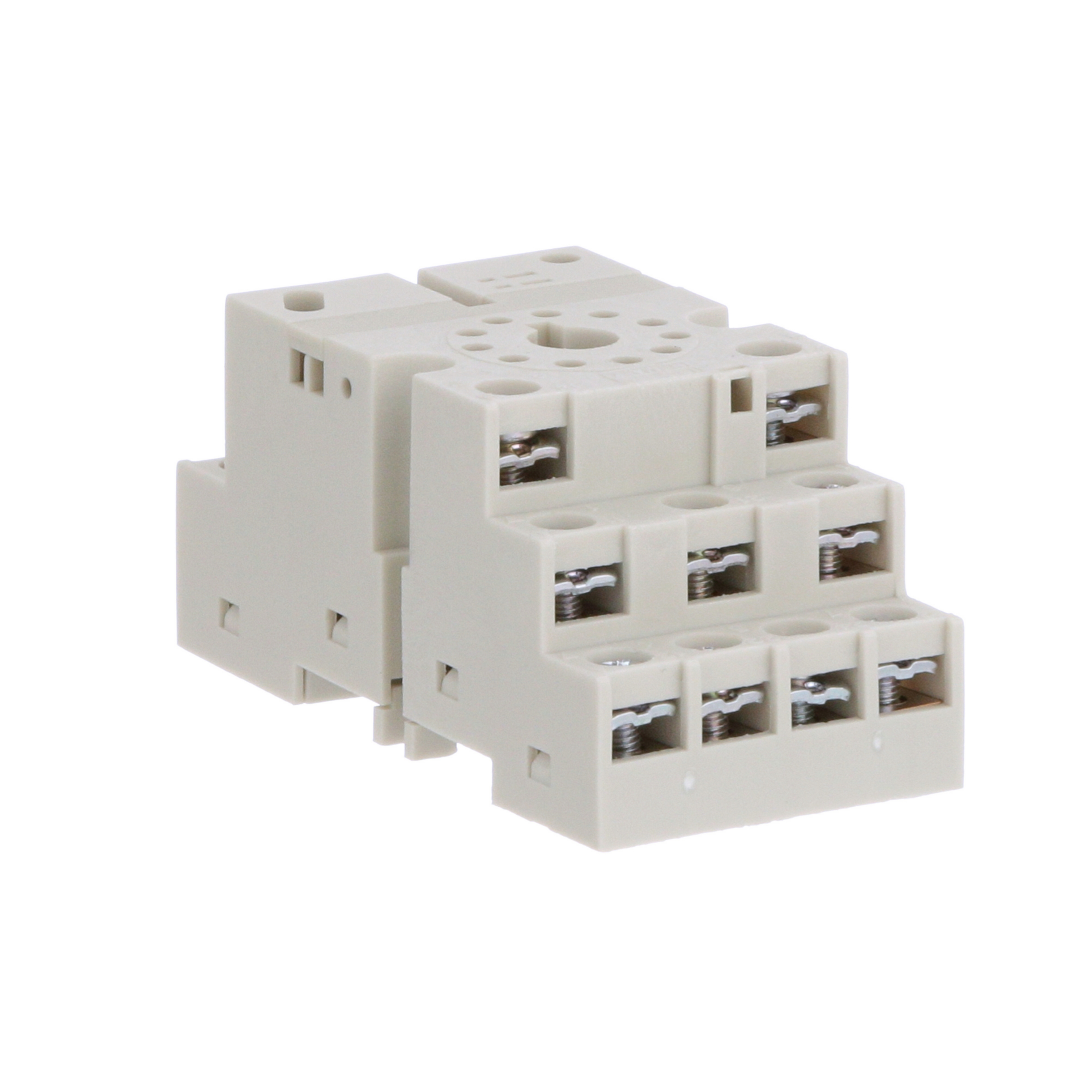

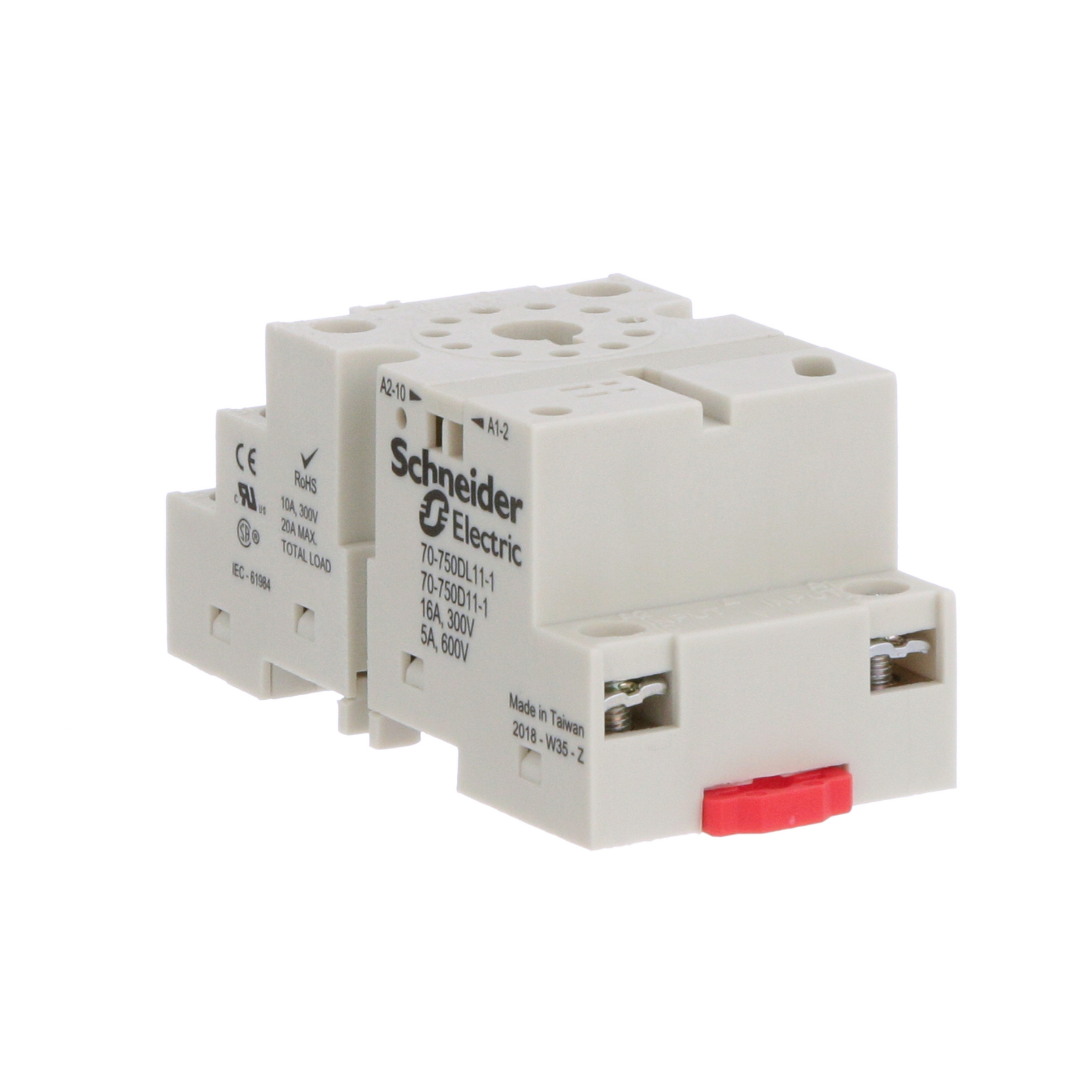

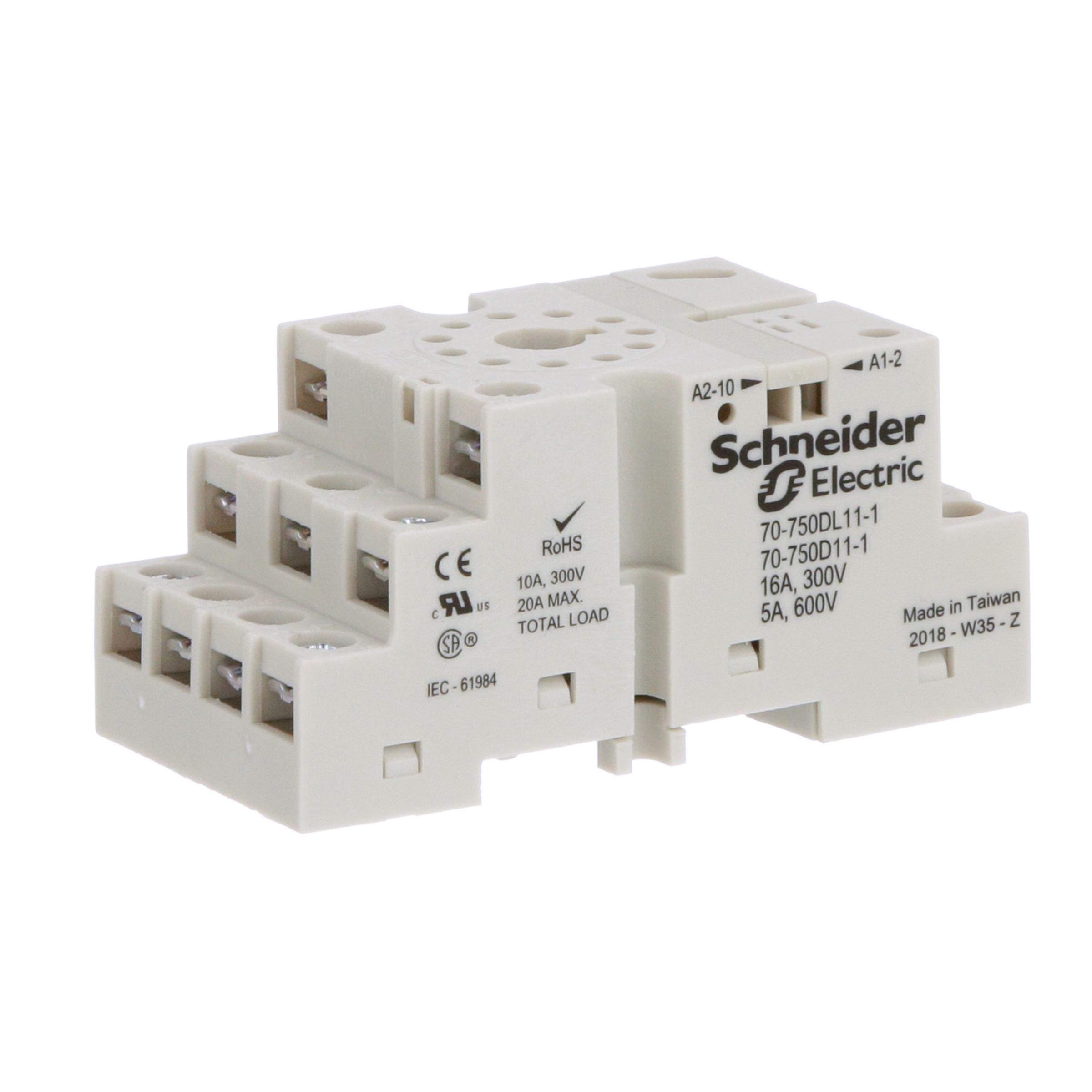

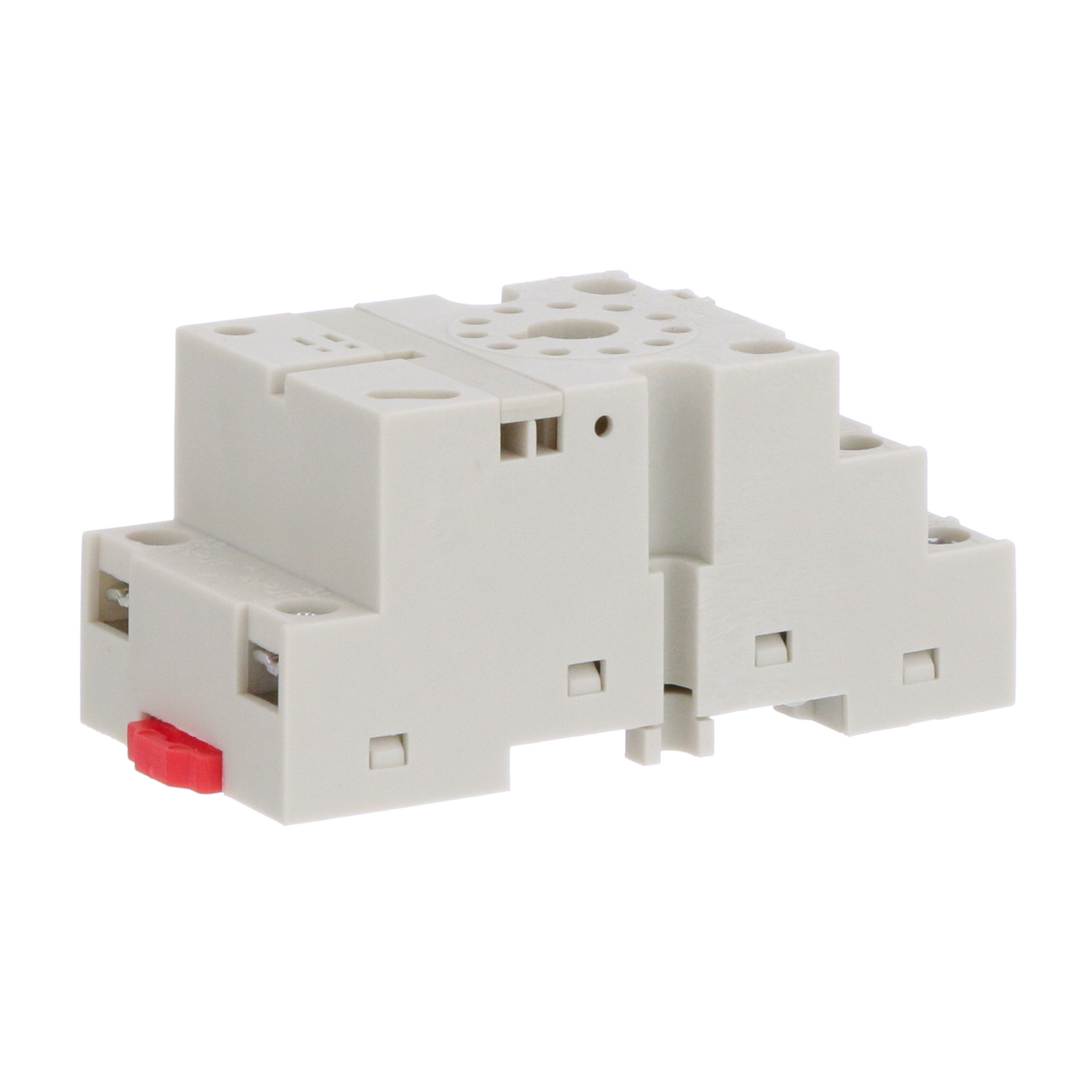

Product image for SOCKET, SE RELAYS GENERAL PURPOSE RELAY ACCESSORY, 3PDT, 16A, 600 V, 11 PINS, SCREW CLAMP TERMINAL, 750/750H SERIES
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

SOCKET, SE RELAYS GENERAL PURPOSE RELAY ACCESSORY, 3PDT, 16A, 600 V, 11 PINS, SCREW CLAMP TERMINAL, 750/750H SERIES

Manufacturer: Schneider Electric | Catalog # 70-750DL11-1 | Electrozad South Part # 366375
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Legacy general purpose relay series accessory , optional socket for 750/750H series relays with 3PDT configuration contacts rated 16A at 600V. Screw clamping connect terminals 11 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Technical Information

Current
16 A
Line Rated Current
16 A
Net Weight
78 g
Number of Terminations
11
Operating Temperature
-40-55 degrees C
Storage Temperature
-40-105 degrees C
Voltage
300 V

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901182948
GTIN
03606480277993
Weight
2.75 oz

Dimensions

Depth
3.02 in
Width
1.5 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Taiwan
