UL CLASS RK-5 TIME DELAY

Manufacturer: Bussman Cooper Fuses | Catalog # ECSR100 | Electrozad South Part # 366117
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure

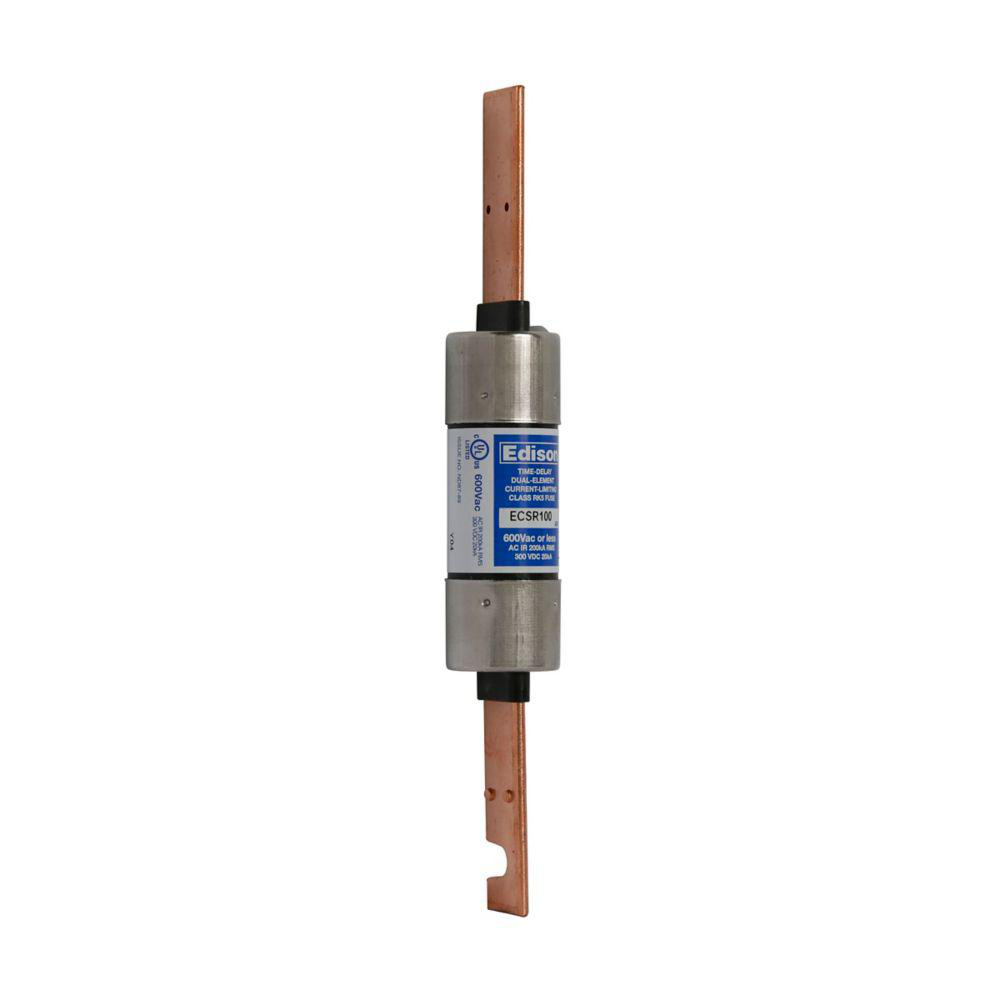

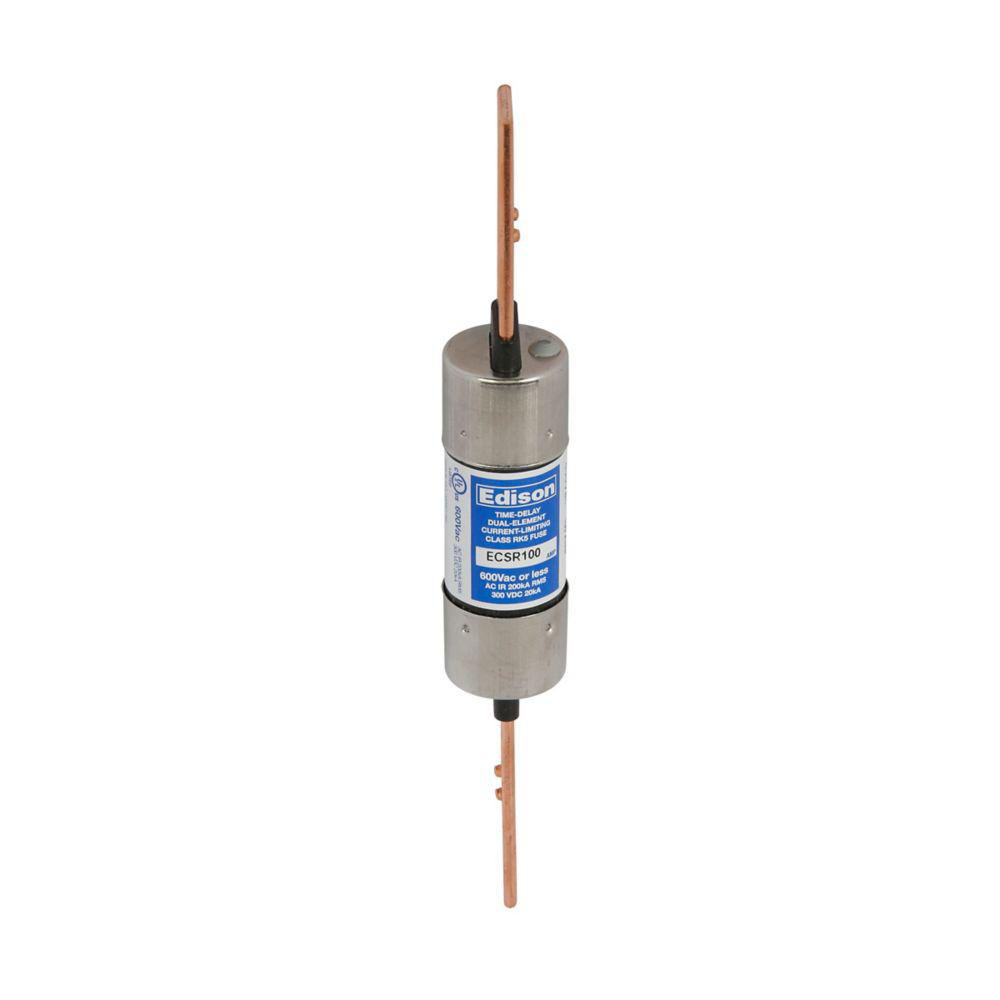

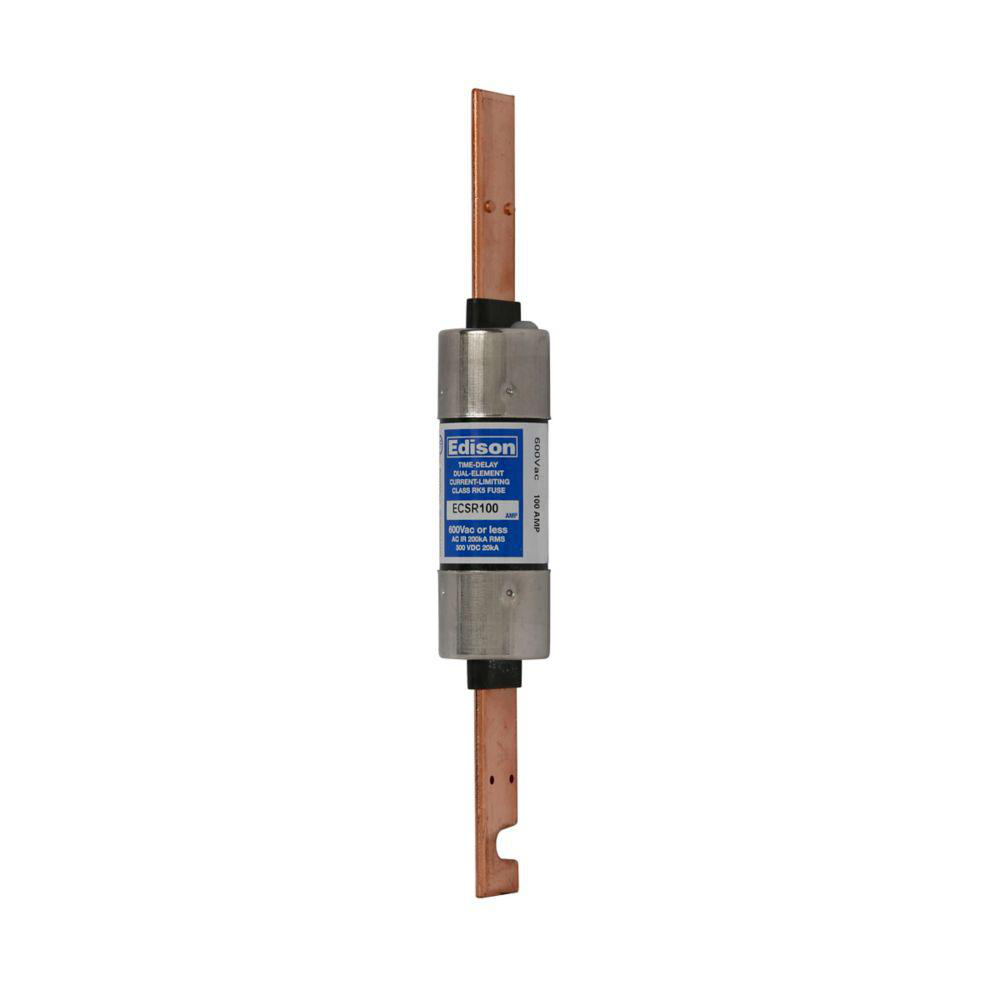

Eaton Edison ECSR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 100 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Technical Information

Amperage
100 A
Applications
Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Type
Blade
End Type
Blade
Interrupt Rating
200 kA
Response Time
10 S at 500%
Size
1.11 In Diameter X 7.88 In Length
TC Connection
Blade end x blade end
Type
Current Limiting,Time-Delay
Voltage
600 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Edison

General Product Info

12-Digit UPC
782634508434
Class
Class RK5
GTIN
00782634508434
Product UPC
78263450843
Weight
.38 lb

Dimensions

Diameter
1.11 in
Height
7.88 in
Length
1.11 in
Width
1.11 in
