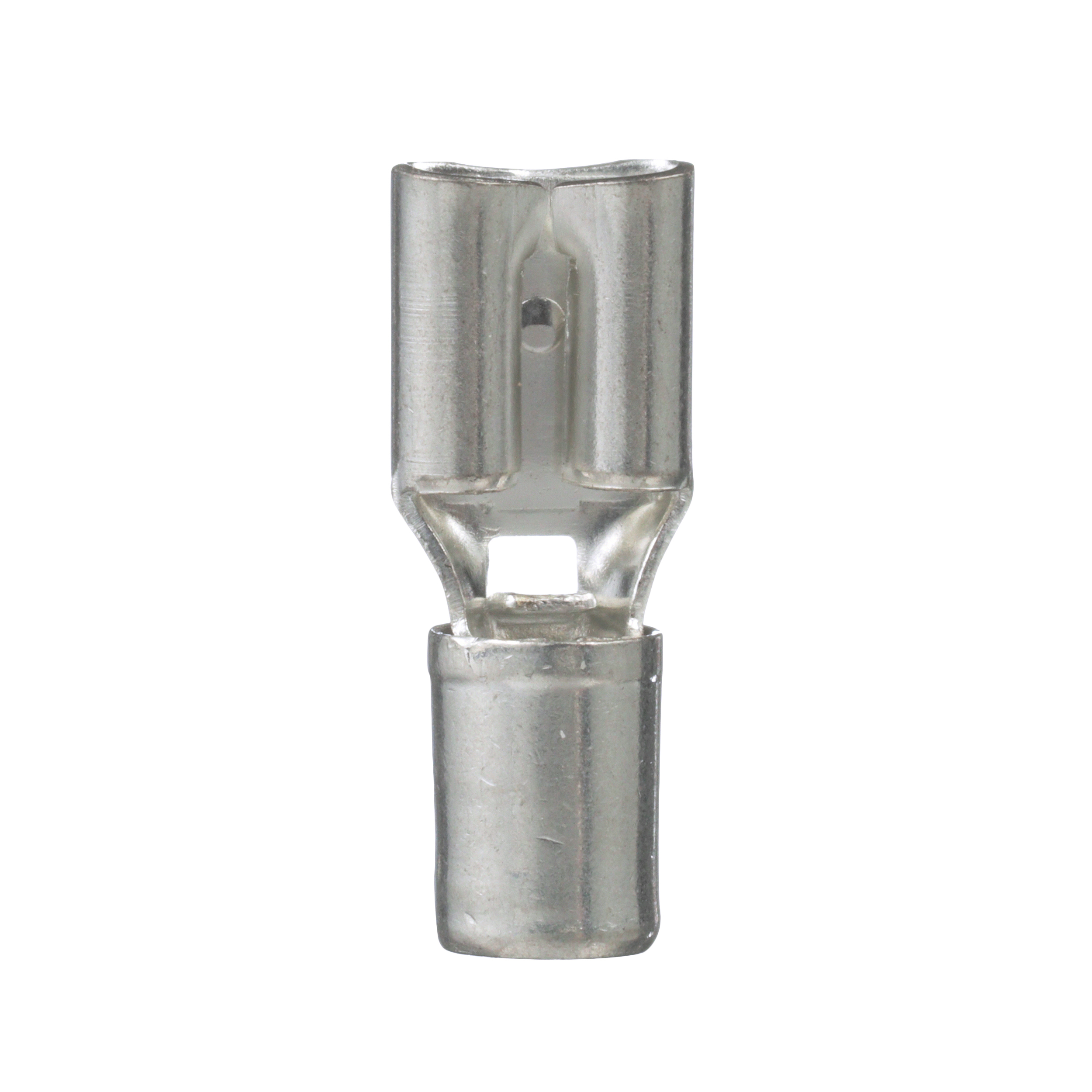

Pan-Term® D14-188-M Loose Piece Disconnect

Manufacturer: Panduit | Catalog # D14-188-M | Electrozad South Part # 35504
$260.90 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm..). It is 0.58" (14.7 mm) long and 0.23" (5.8 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1,000.

Technical Information

Material
Brass
Max Operating Temperature
150 degrees C
TC Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Wire Size
#14 AWG

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983822096
Finish
Tin Plated
GTIN
00074983822096
Product UPC
07498382209

Dimensions

Overall Length
0.58 in
Width
0.23 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
