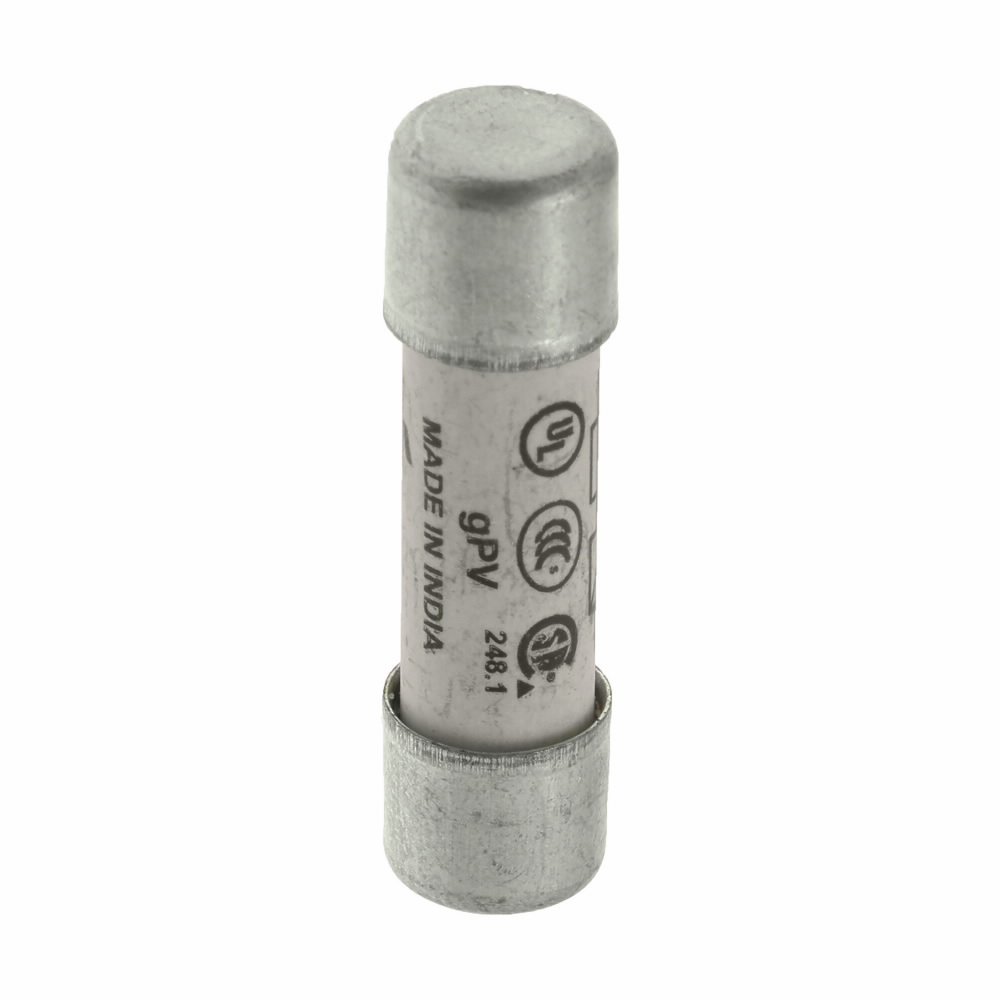

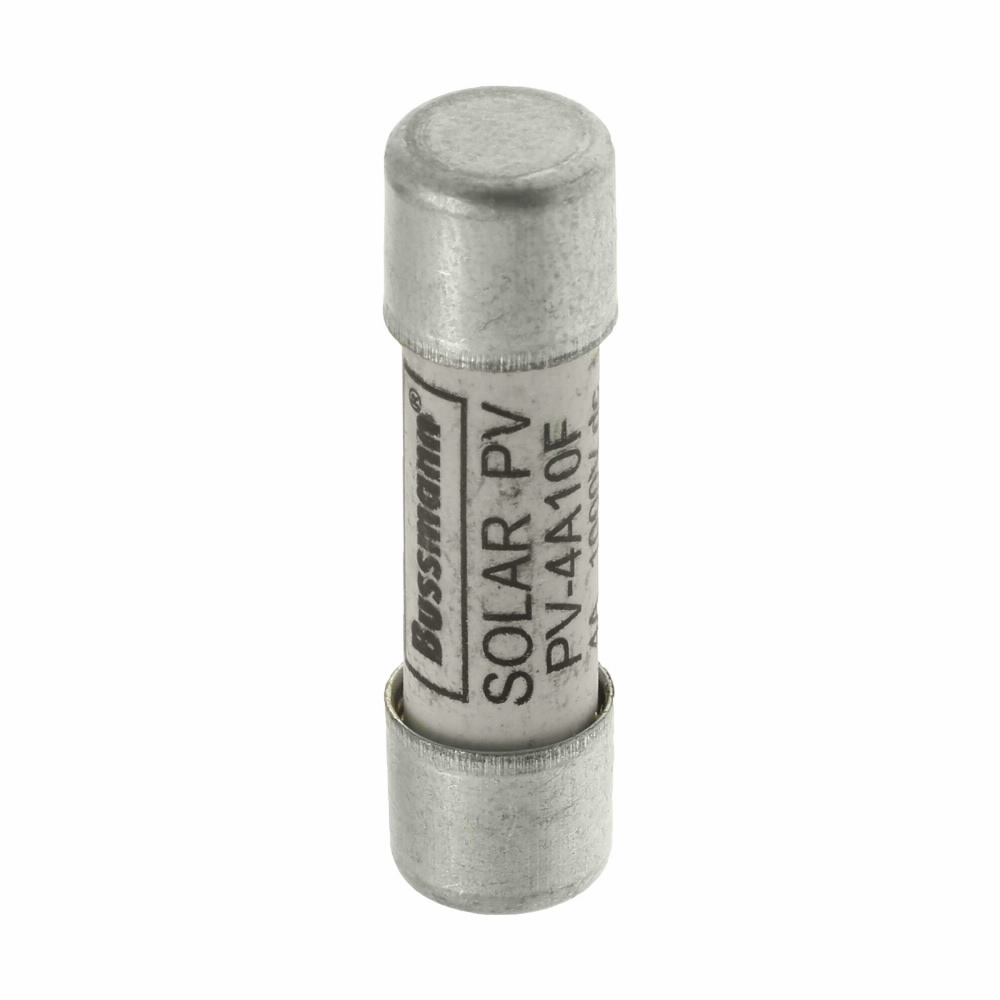

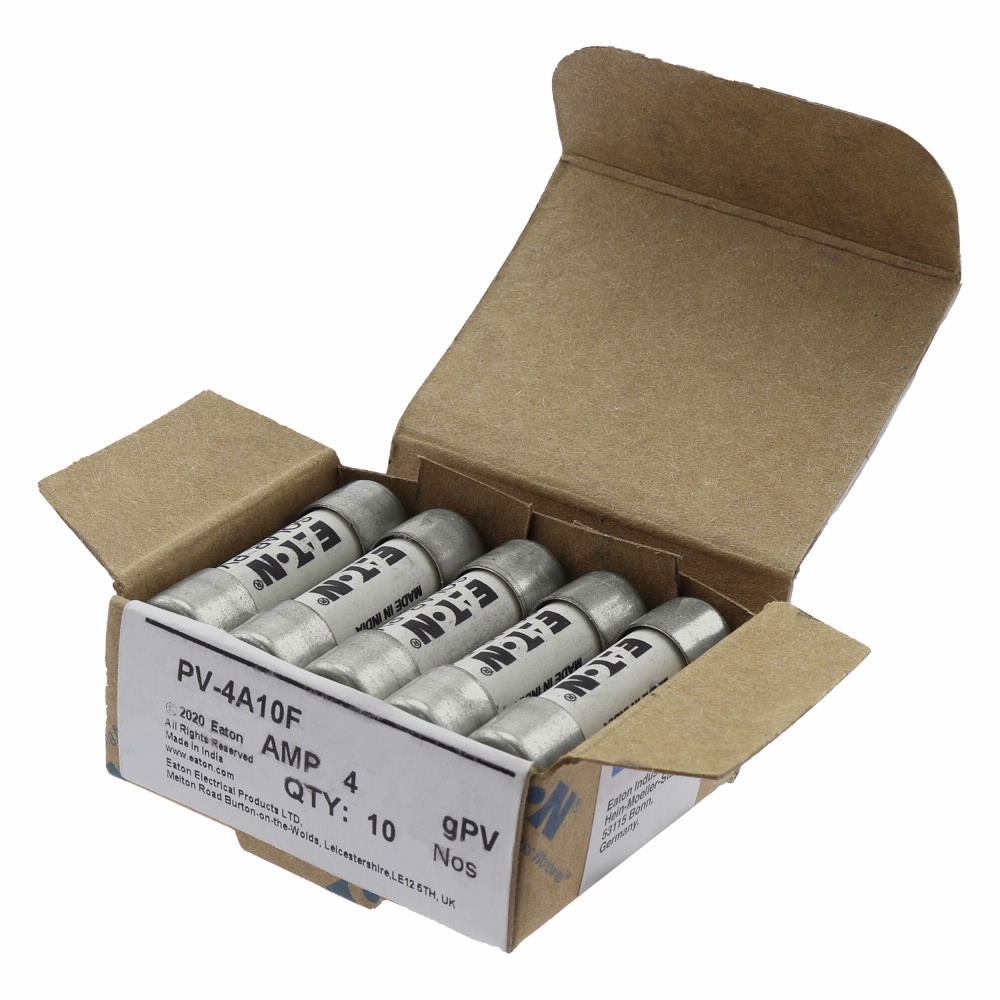

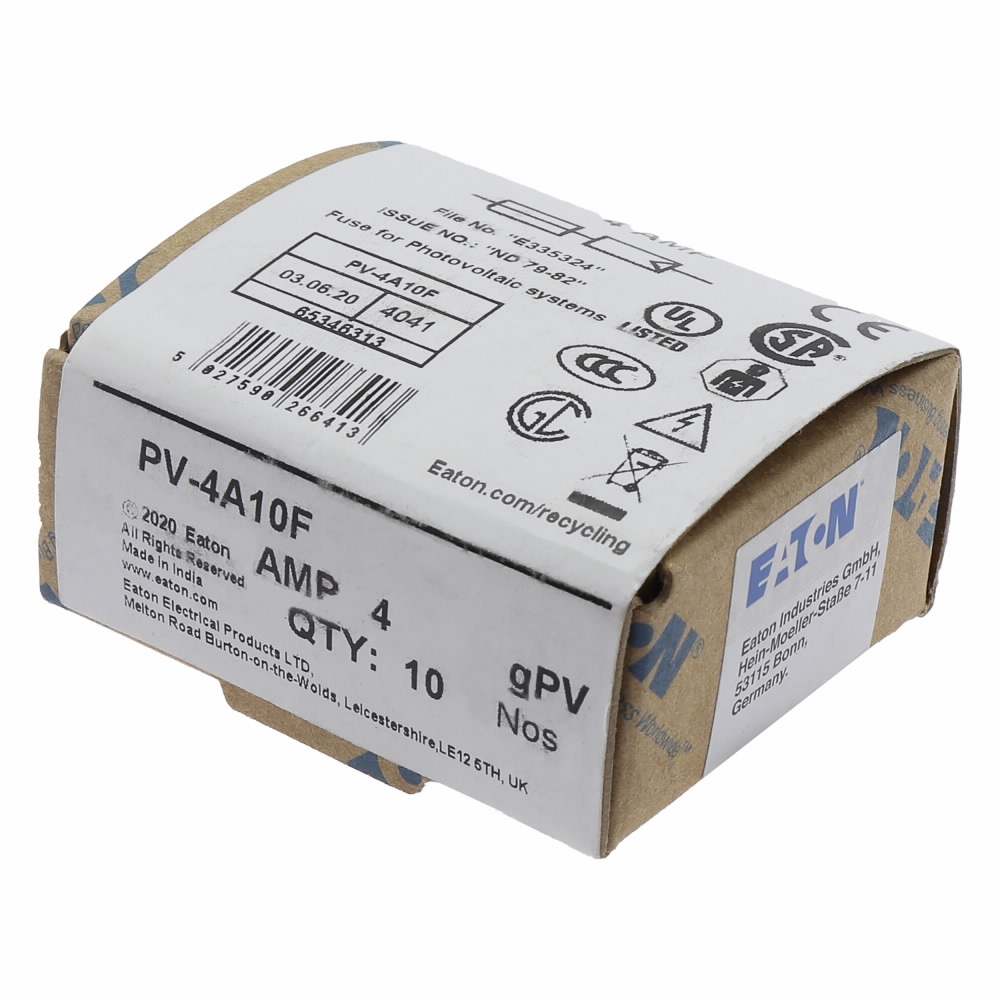

4AMP 1000V DC SOLAR FERRULE 10 X 38MM

Manufacturer: Bussman Cooper Fuses | Catalog # PV-4A10F | Electrozad South Part # 346509
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet H TECHNICAL DRAWING URL
Eaton Bussmann series photovoltaic fuses, 1000 Vdc, 4A, 50 kAIC, Non Indicating, IEC 60269-6 type A, Class gPV, Time constant: 1-3 ms, Ferrule end x ferrule end

Technical Information

Amperage
4 A
Applications
Generation - Renewable Energy - Alternative EnergyGeneration - Renewable Energy - Storage SystemsGeneration - Renewable Energy - Solar
Body Material
Ceramic
Connection Type
Ferrule
End Type
Ferrule
Interrupt Rating
50 kA
Material
Ceramic
Size
10.30 mm Diameter X 38.00 mm Length
TC Connection
Ferrule end x ferrule end
Type
Fuse

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712245197
Class
Class GPV
Color
Yellow
GTIN
00051712245197
Product UPC
51712245197
Weight
9.7 g

Dimensions

Diameter
10 mm
Height
23 mm
Length
44 mm
