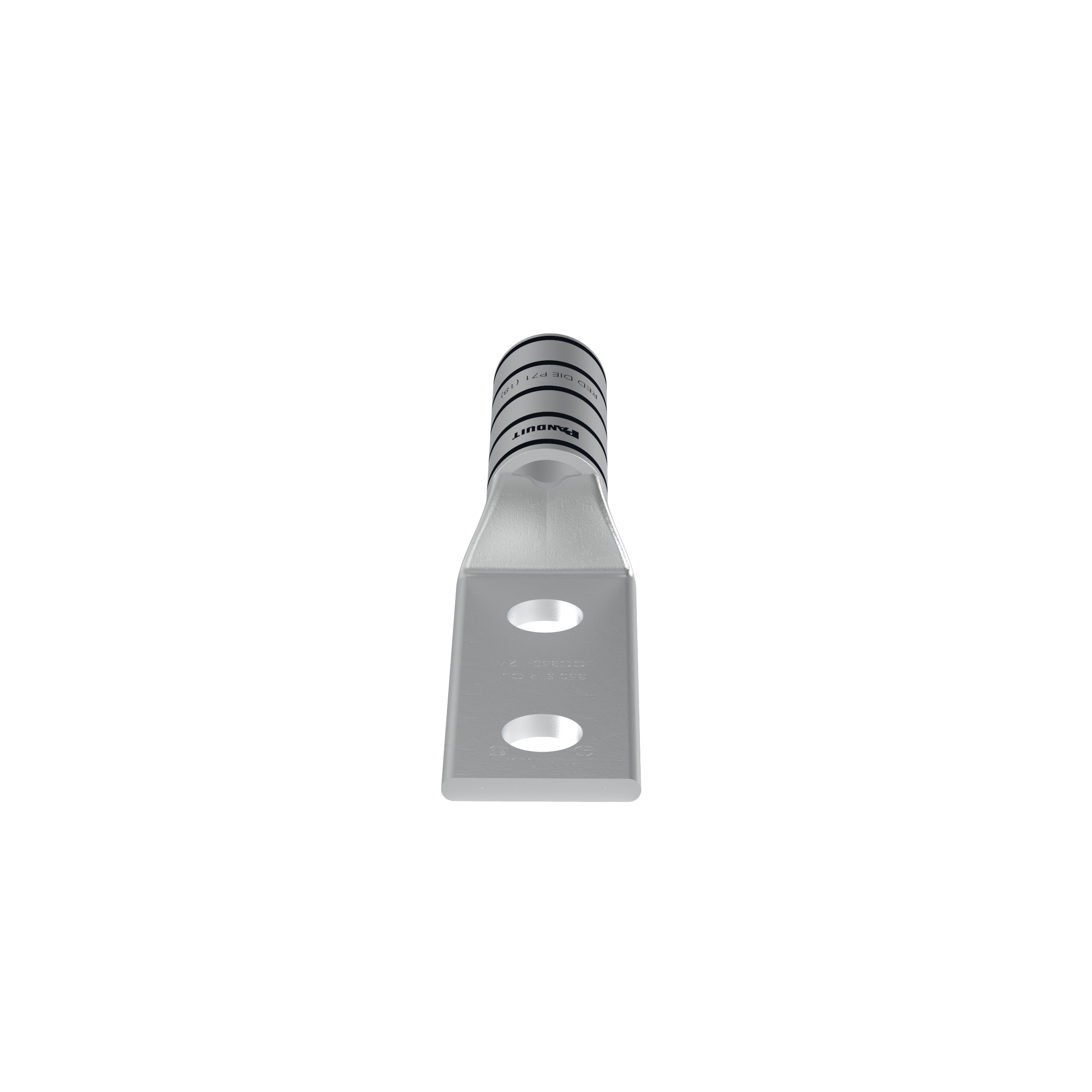

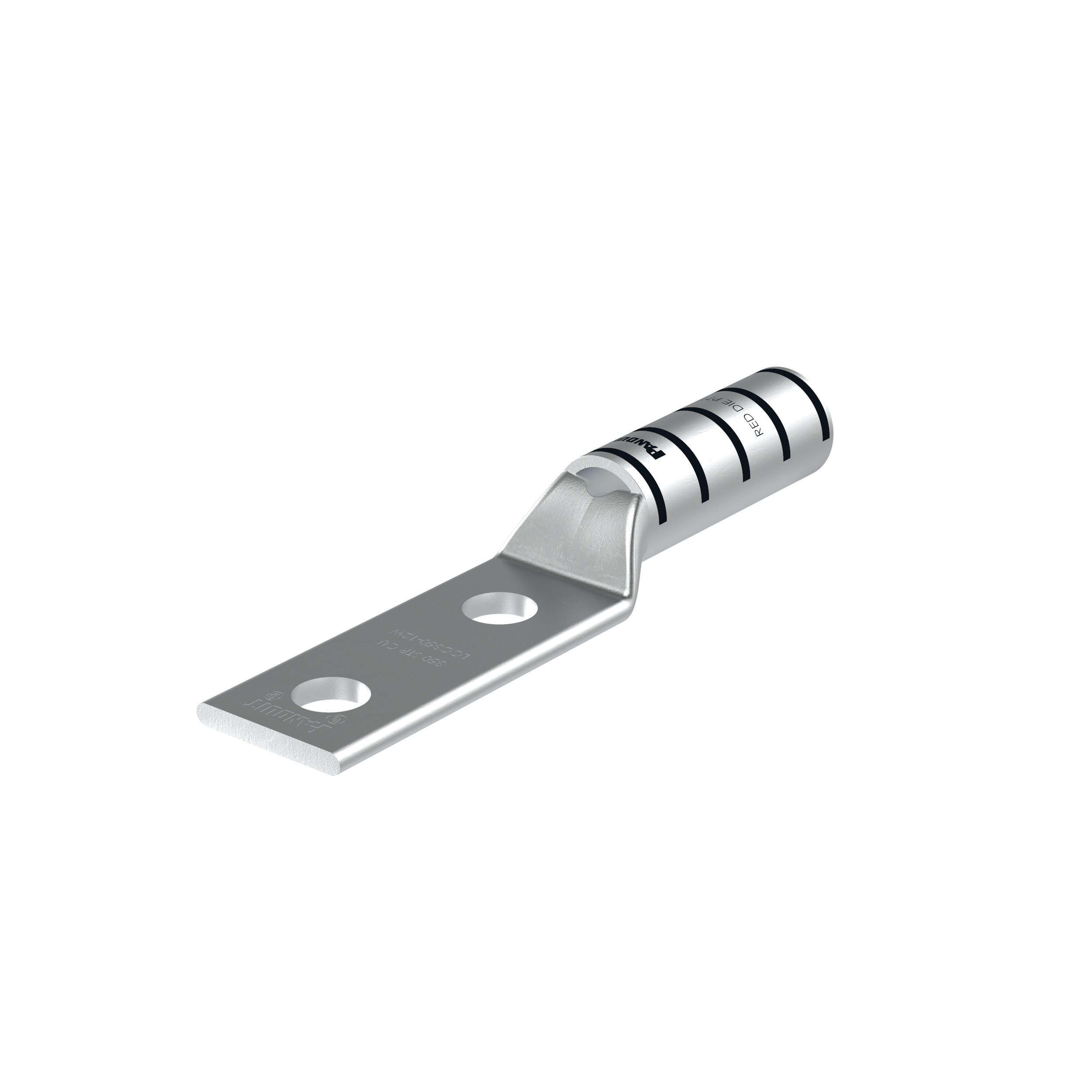

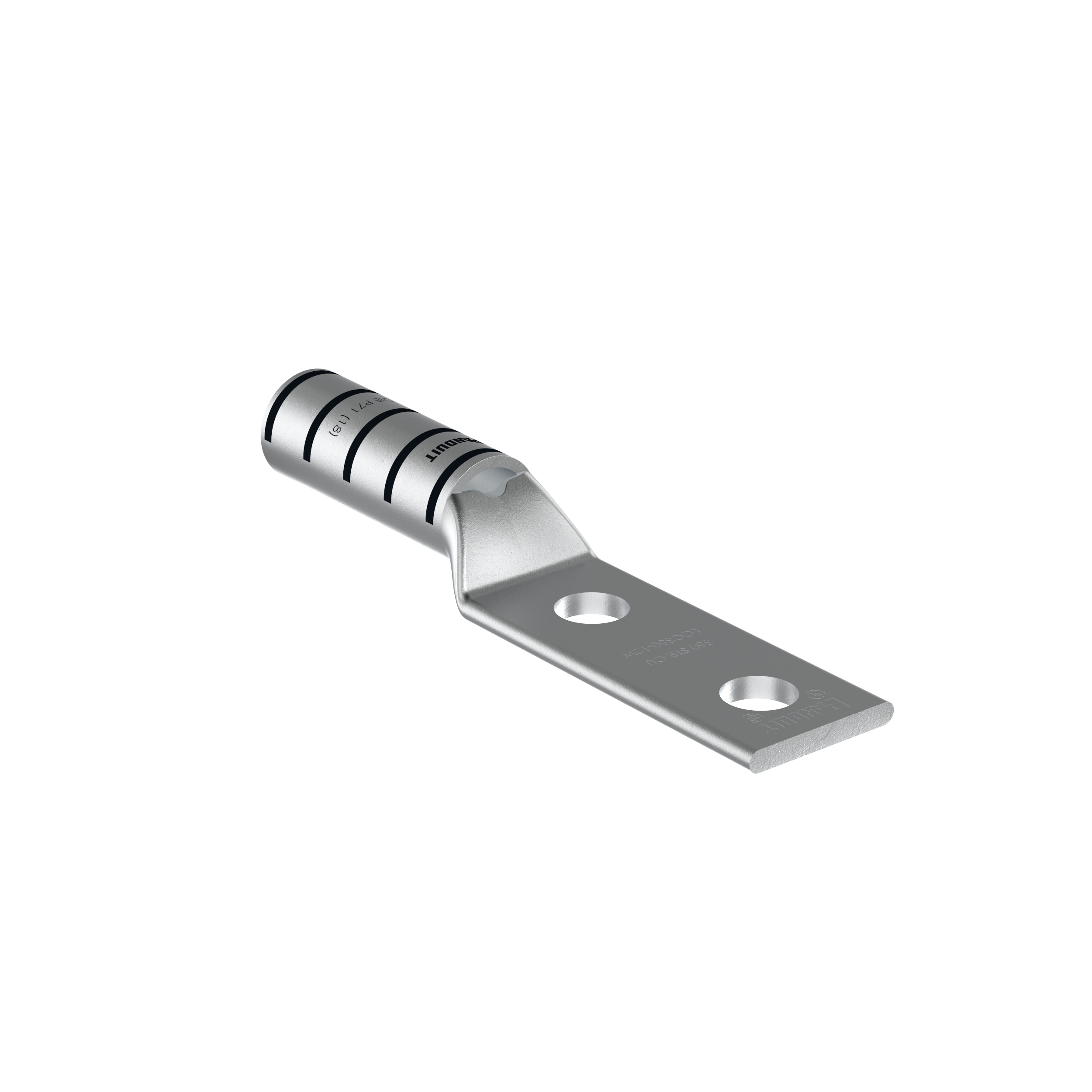

Product image for Pan-Lug™ LCC350-12W-X Comp. Lug, 350, Window, Tin Plt Copper, Strt, Two .5"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

Pan-Lug™ LCC350-12W-X Comp. Lug, 350, Window, Tin Plt Copper, Strt, Two .5"

Manufacturer: Panduit | Catalog # LCC350-12W-X | Electrozad South Part # 344279
$4,604.79 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The LCC350-12W-X Tin-Plated Copper Compression Lug, two-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The generously beveled wire entry prevents bent back strands when inserting the conductor into the barrel. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
2.24 in
Barrel Type
Long Barrel Length With Inspection Window
Cable Size
AWG
Color Coding
Red
Material
Copper
Number of Holes
2
Size
350 kcmil Code
Stud Size
1/2 In.
Tongue Thickness
0.17 in
Tongue Type
Standard
Tongue Width
1.28 in
Type
Compression Lug

Packaging

Package Qty
10

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983798438
Color
Red
GTIN
00074983798438
Product UPC
07498379843

Dimensions

Outer Diameter
0.88 in
Overall Length
5.76 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
