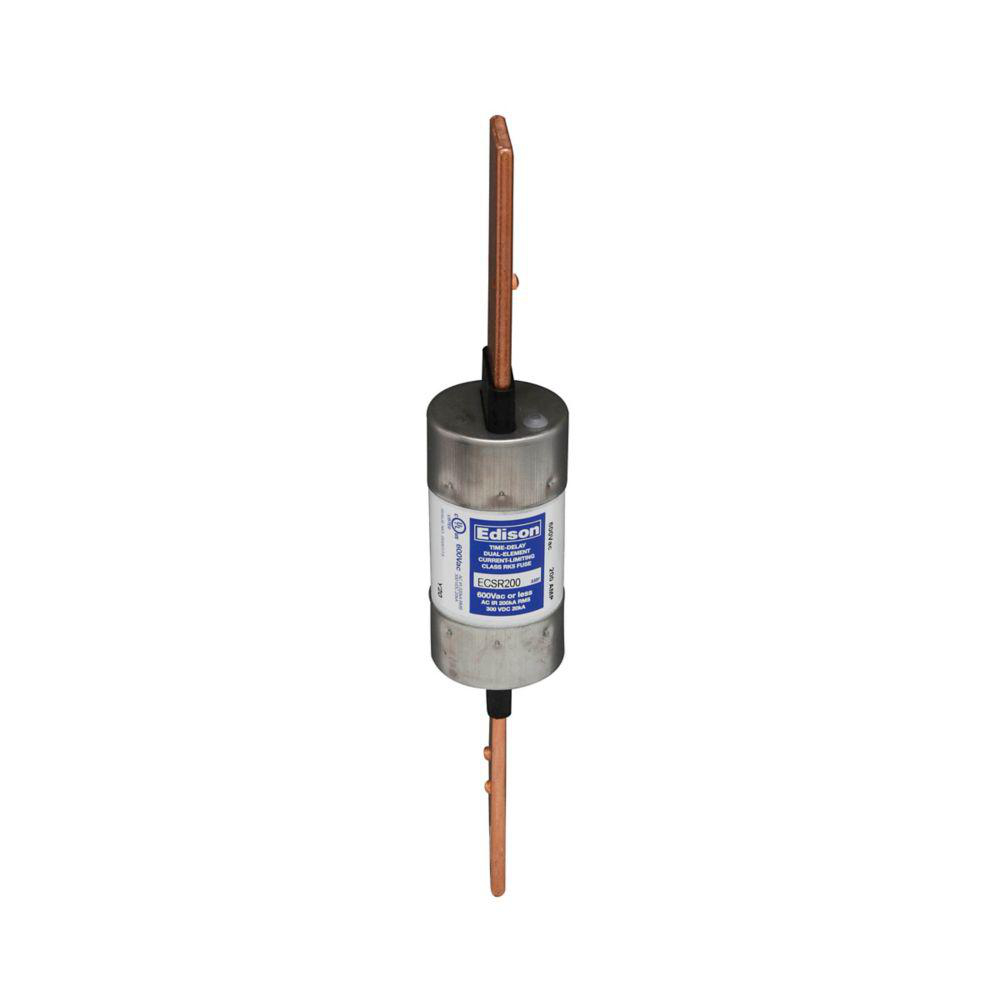

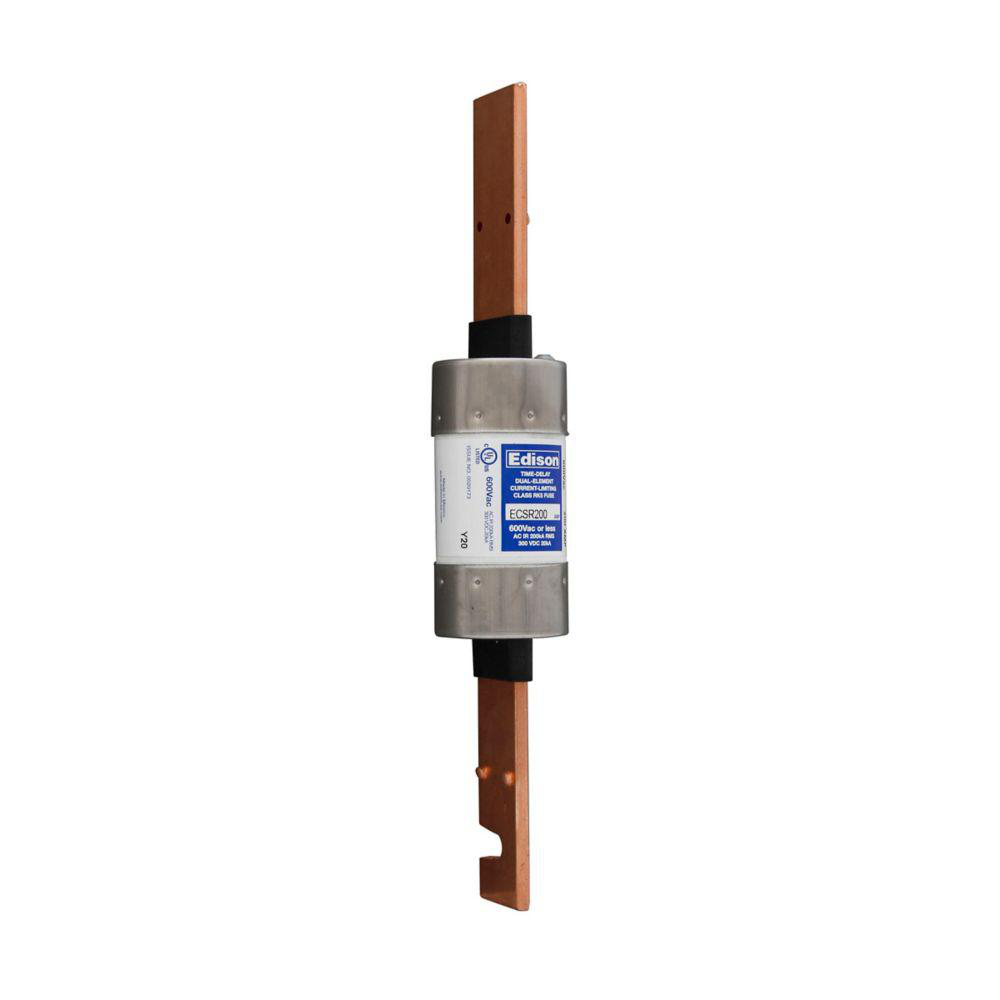

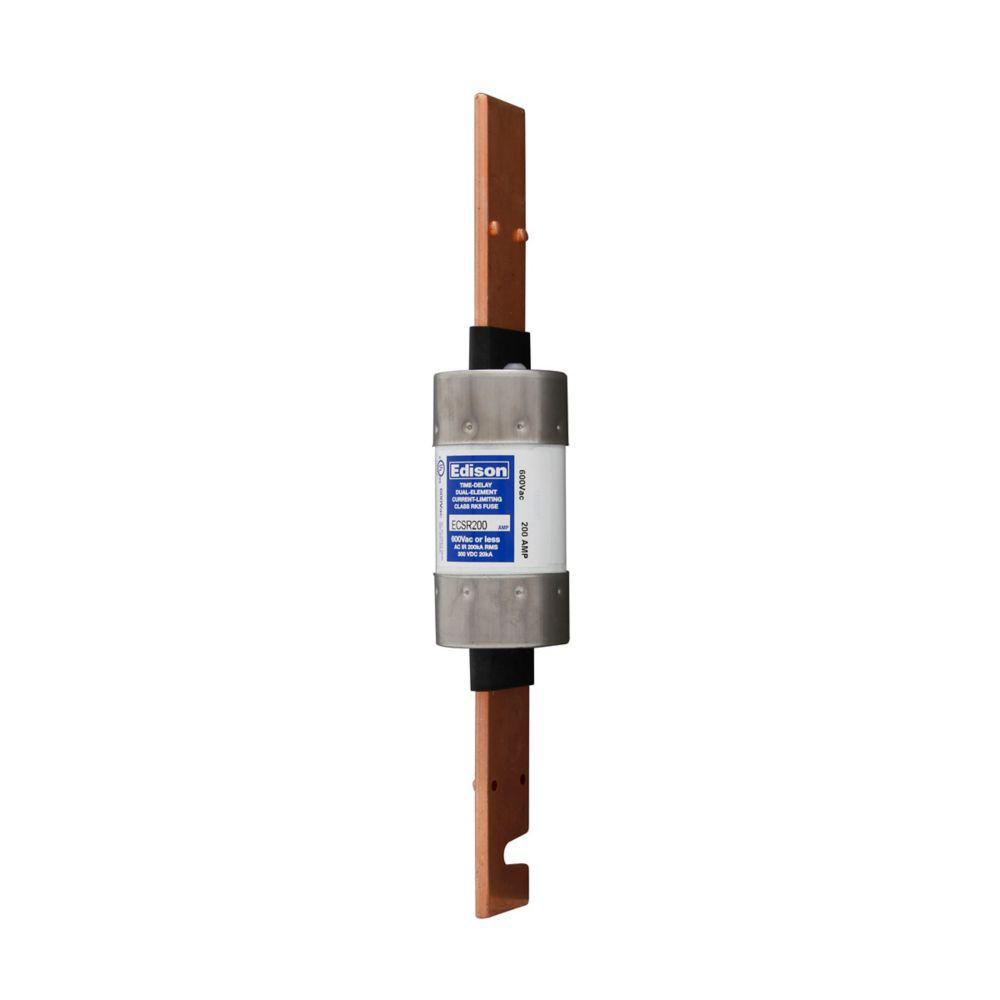

Product image for UL CLASS RK-5 TIME DELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

UL CLASS RK-5 TIME DELAY

Manufacturer: Bussman Cooper Fuses | Catalog # ECSR110 | Electrozad South Part # 339171
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet
Eaton Edison ECSR fuse, Current-limiting fuse, Superior overload and cycling capabilities, 110 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 600 V

Technical Information

Amperage
110 A
Applications
AC Power Distribution System Mains, Feeders and Branch Circuits, Protection of Motor and Motor Branch Circuits, Transformers and Other Inductive Loa
Connection Type
Blade
Element
Dual
Enclosure Material
Stainless Steel
End Type
Blade
Interrupt Rating
200 kA
Response Time
10 S At 500%
Size
1.61 In Diameter X 9.63 In Length
Standard
CSA C22.2,UL
TC Connection
Blade End X Blade End
Type
Current Limiting,Time-Delay
Voltage
600 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Edison

General Product Info

12-Digit UPC
782634508441
Class
Class RK5
GTIN
00782634508441
Product UPC
78263450844
Weight
1.5 lb

Dimensions

Diameter
1.61 in
Height
9.63 in
Length
1.61 in
Width
1.61 in
