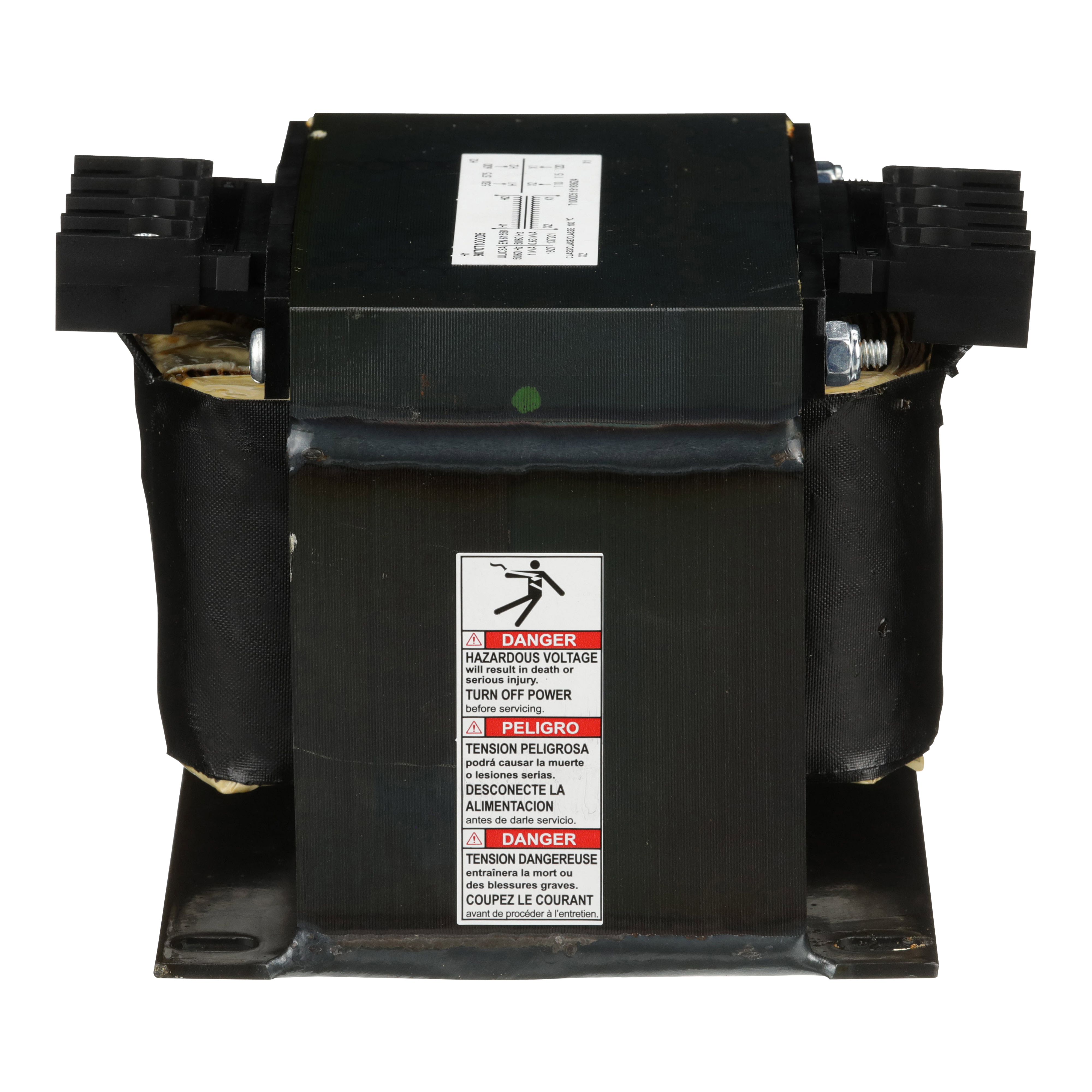

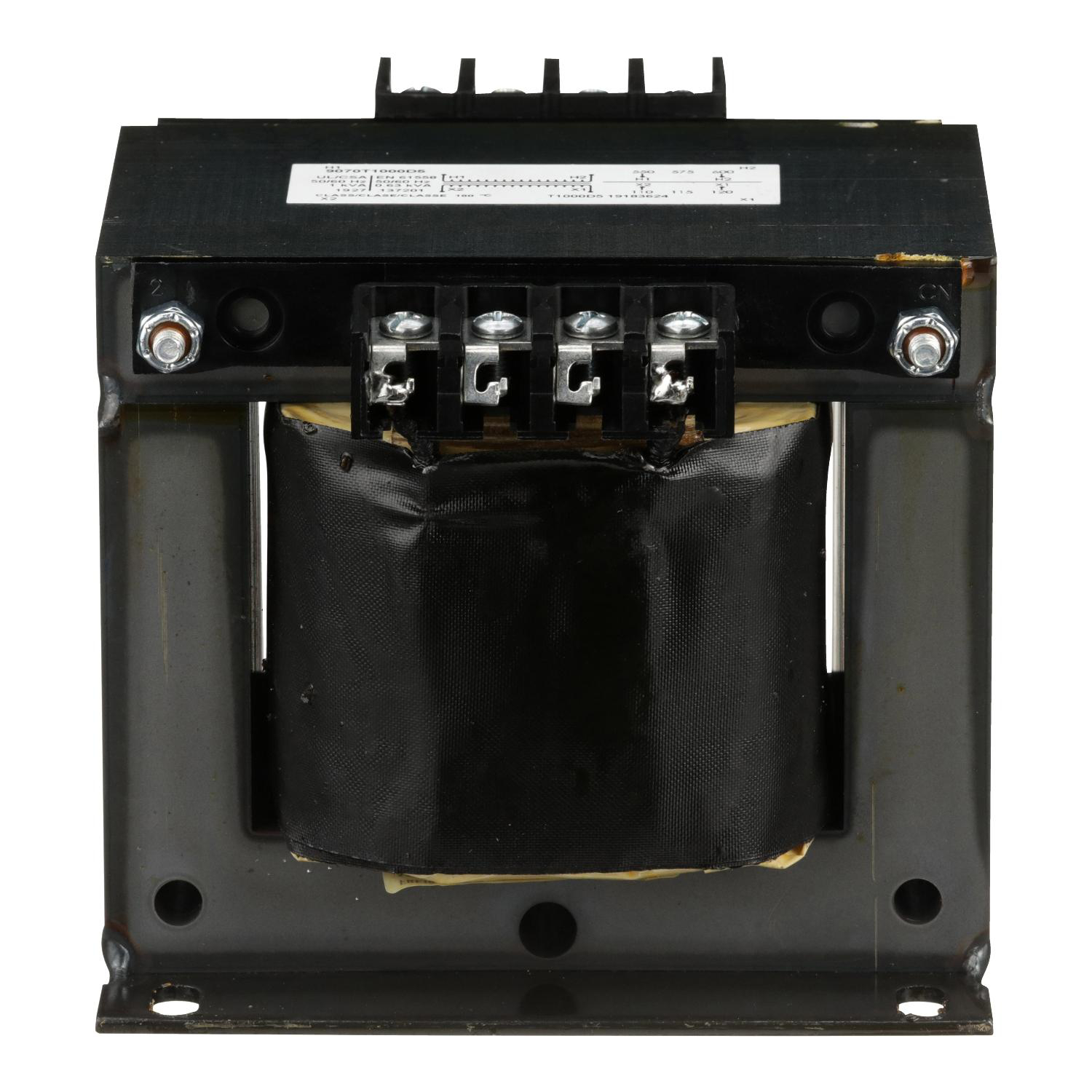

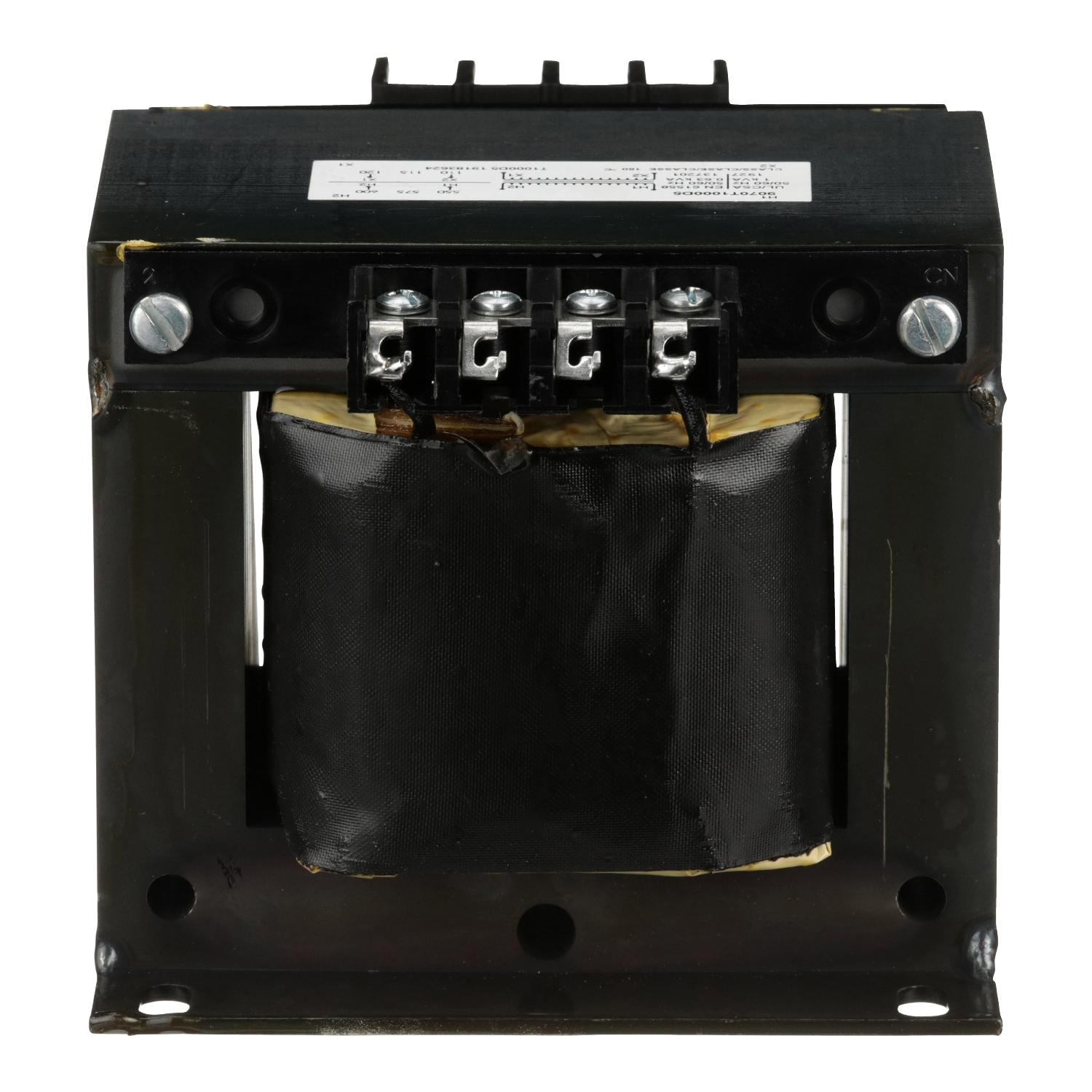

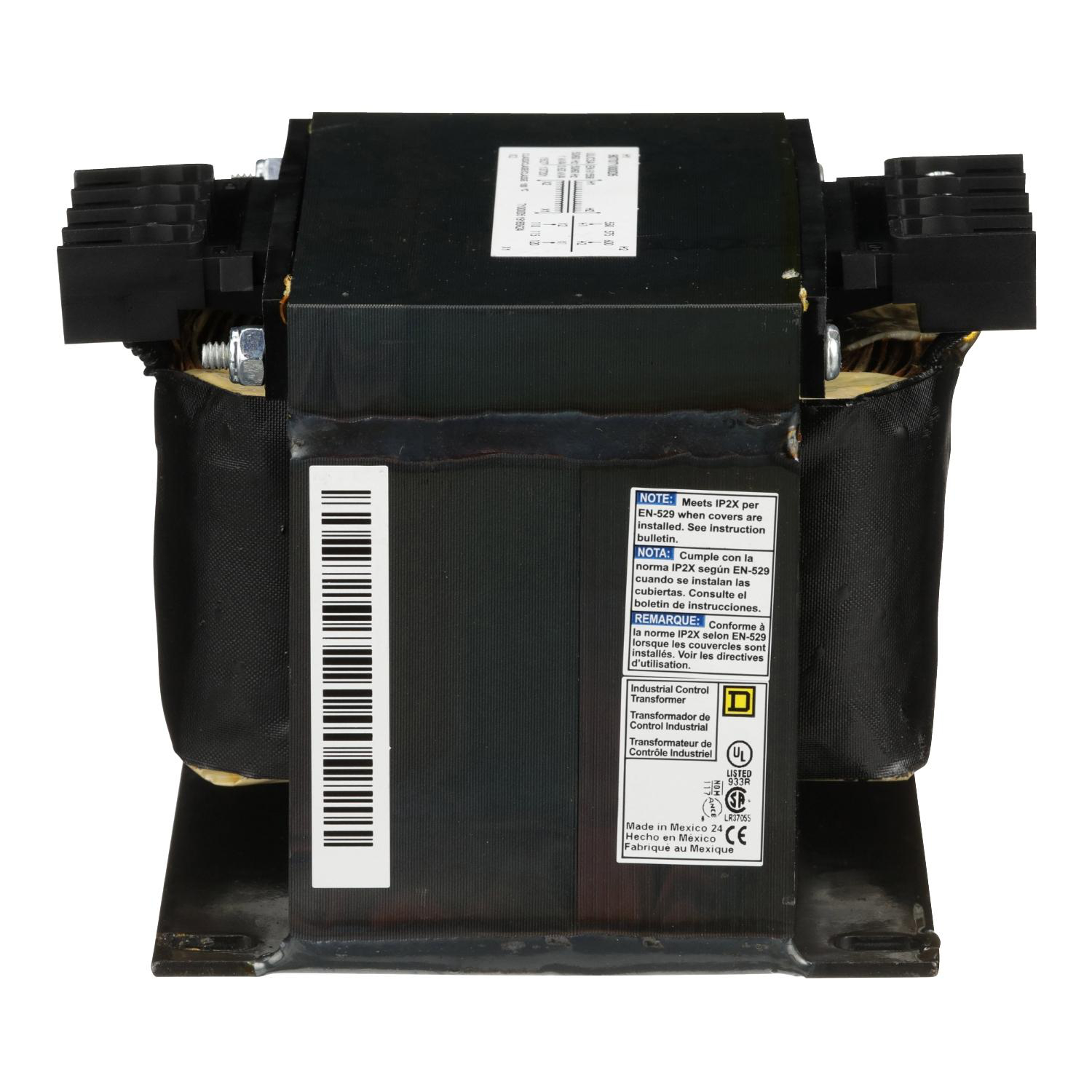

Product image for TRANSFORMER, TYPE T, INDUSTRIAL CONTROL, 1000VA, 1 PHASE, 600V PRIMARY, 120V SECONDARY, 115C RISE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

TRANSFORMER, TYPE T, INDUSTRIAL CONTROL, 1000VA, 1 PHASE, 600V PRIMARY, 120V SECONDARY, 115C RISE

Manufacturer: Schneider | Square D | Catalog # 9070T1000D5 | Electrozad South Part # 338398
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 I INSTALL ASSEMBLY INSTRUCTIONS URL
The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. They also have customer installable accessories such as covers, fuse blocks and fuse clips to fit your exact need. This industrial control transformer has a power rating of 100VA and is 1 phase. It has a 600V primary voltage and 120V secondary voltage. It also has a temperature rise of 115 degrees Celsius. This transformer complies to UL, CSA, CE standards. This product comes with an 18 month warranty.

Technical Information

Applications
FSC2
Enclosure
OPEN
Material
Copper: Winding
Number of Phases
1
Primary Voltage
110 V
Secondary Voltage
110 V
TC Connection
SCREW CLAMP
Temperature Rating
115 DEGREES C
Temperature Rise
115 degrees C
Type
Industrial Control Transformer
Voltage
110 V

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901739111
GTIN
00785901739111

Dimensions

Depth
6.3 in
Height
4.51 in
Warranty Length
18 mth
Width
5.25 in

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA File LR37055 Guide 184-N-90,UL Listed File E61239
Country of Origin
USA
