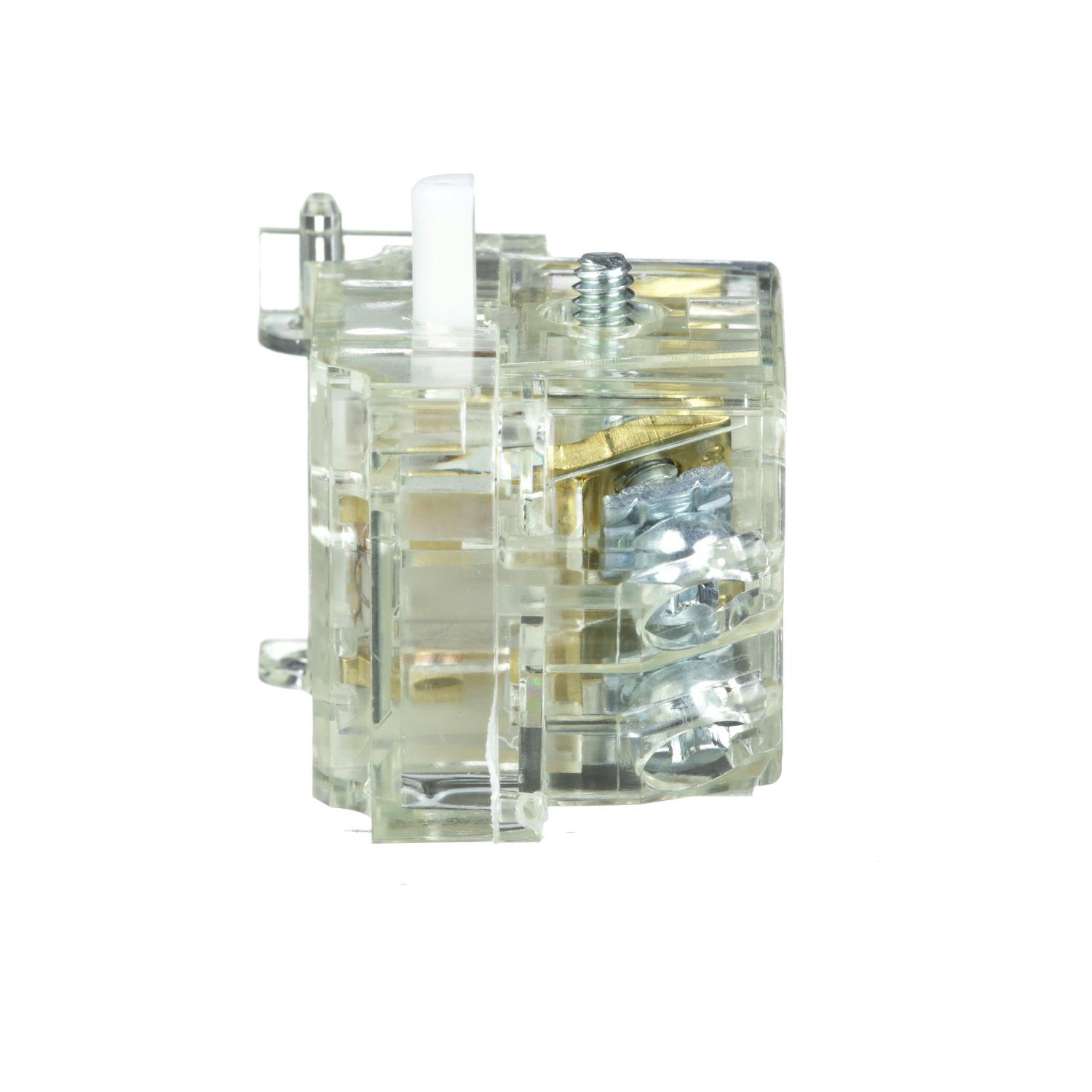

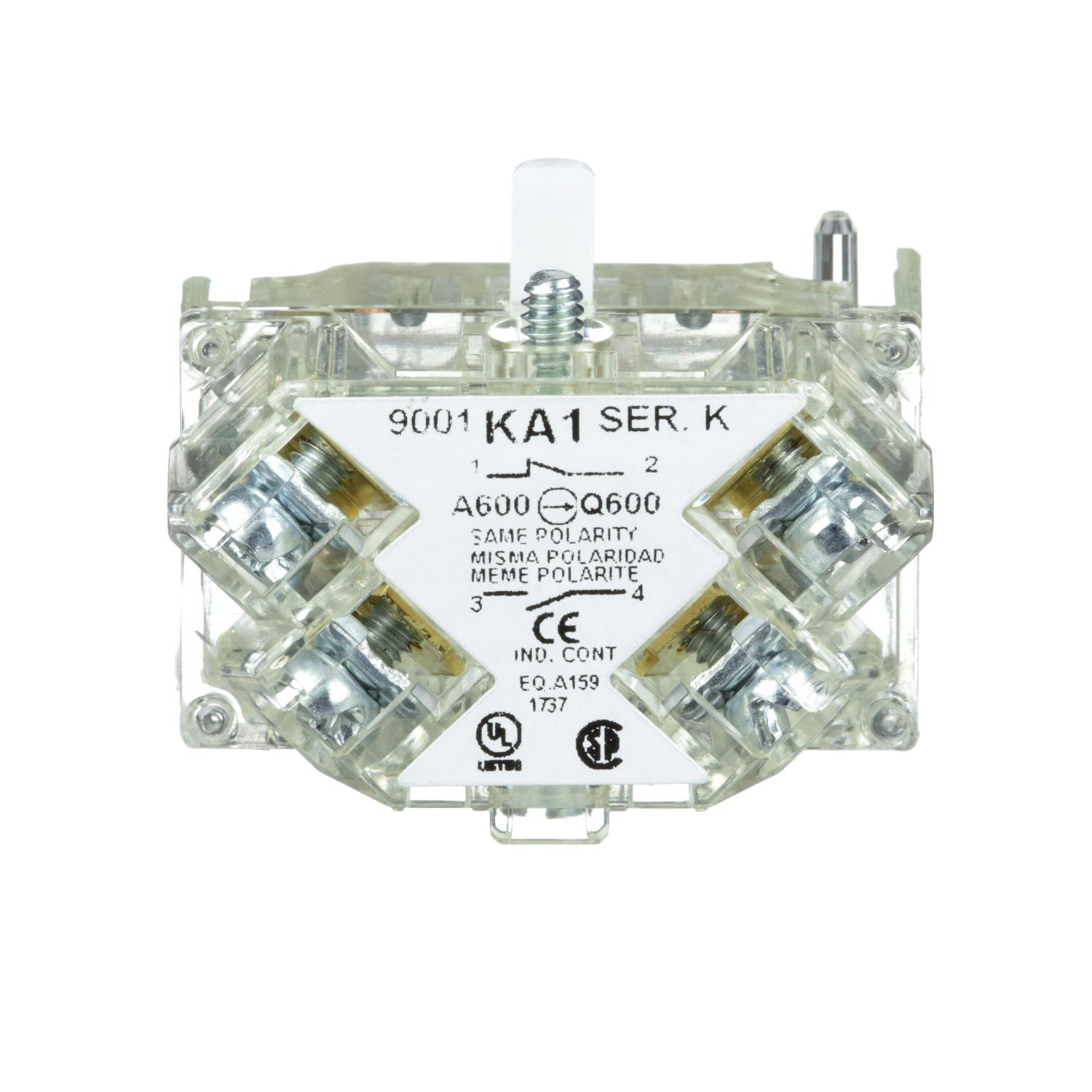

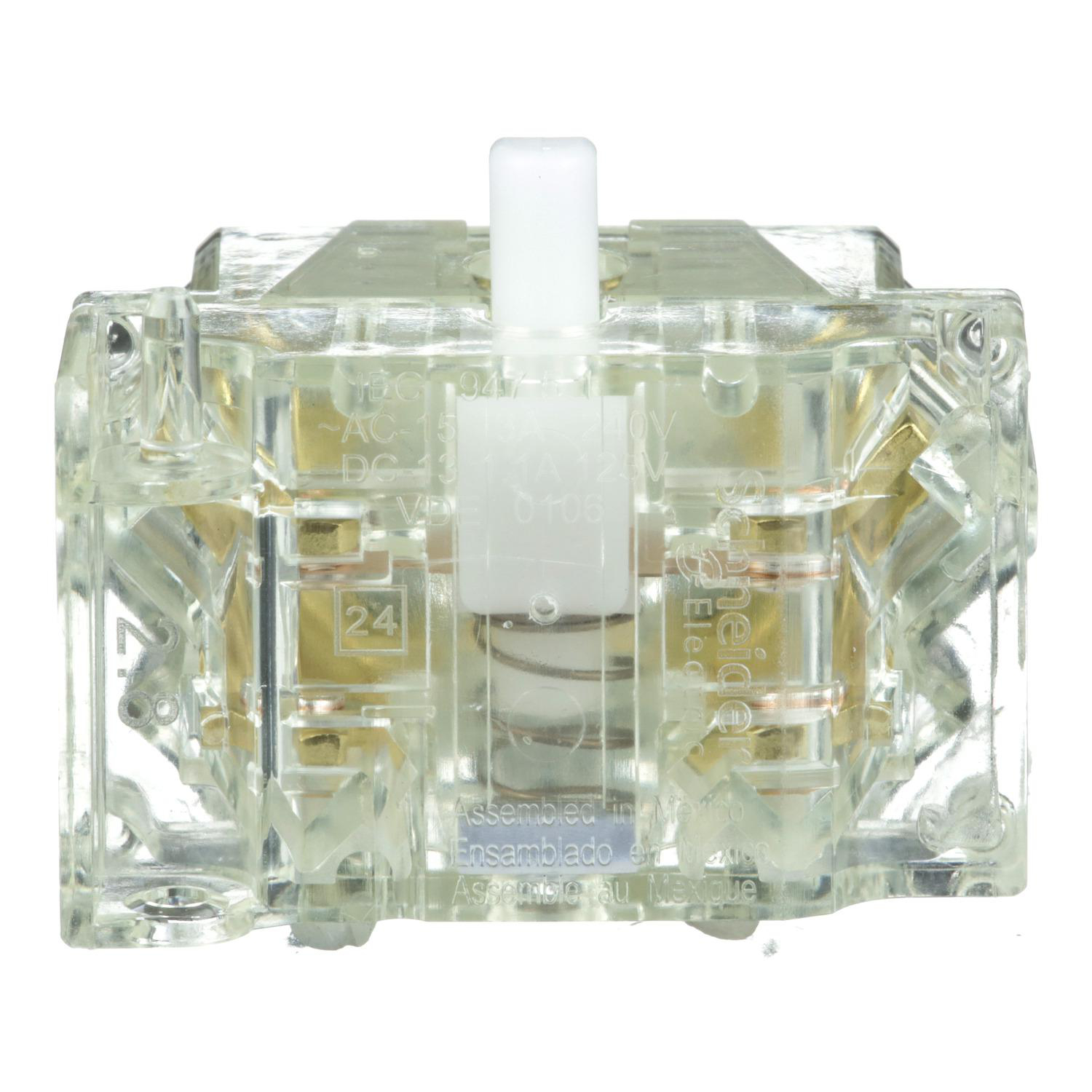

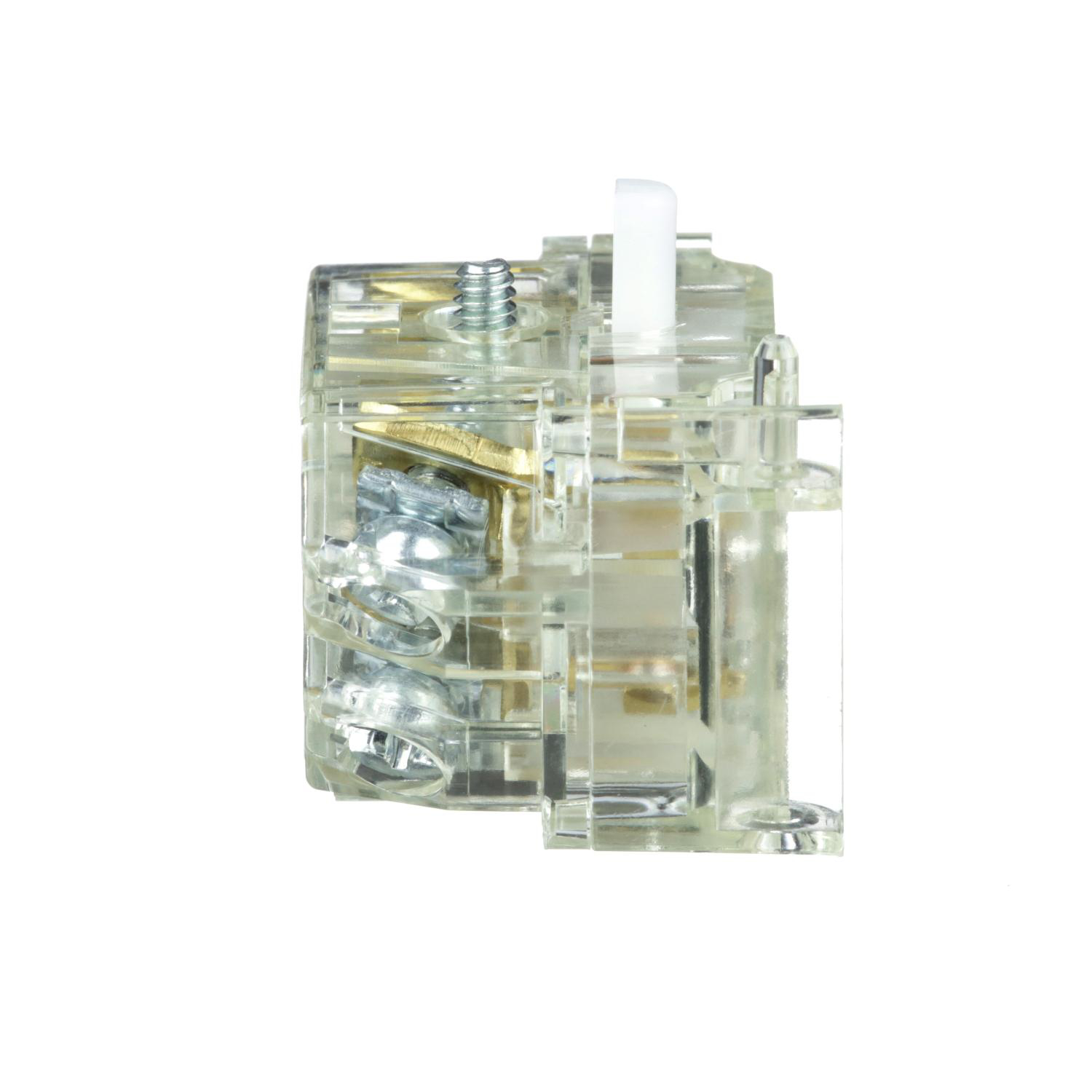

Product image for 30MM PUSH BUTTON, TYPES K, SK OR KX, CONTACT BLOCK, 1 NO AND 1 NC
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

30MM PUSH BUTTON, TYPES K, SK OR KX, CONTACT BLOCK, 1 NO AND 1 NC

Manufacturer: Schneider | Square D | Catalog # 9001KA1 | Electrozad South Part # 337202
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Product Brochure CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 H TECHNICAL DRAWING URL
This Harmony 9001K, contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25..C to 70..C allows versatility in usage of product.

Technical Information

Action
STANDARD
Contact Configuration
1 NO - 1 NC
Contact Material
Silver Alloy
Net Weight
0.027 kg
Operating Temperature
-25-70 Adegrees C
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508,UL 60947-5-1
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
CONTACT BLOCK

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
785901880004
GTIN
00785901880004
Weight
0.027 kg

Dimensions

Warranty Length
18 mth

Certifications & Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
Overview
  • This Schneider Electric Harmony 9001K contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. It is compatible with Harmony 9001K push-buttons and switches. It fits in a 30mm hole.
